Ferrari F80 — [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD (diagram 0070)

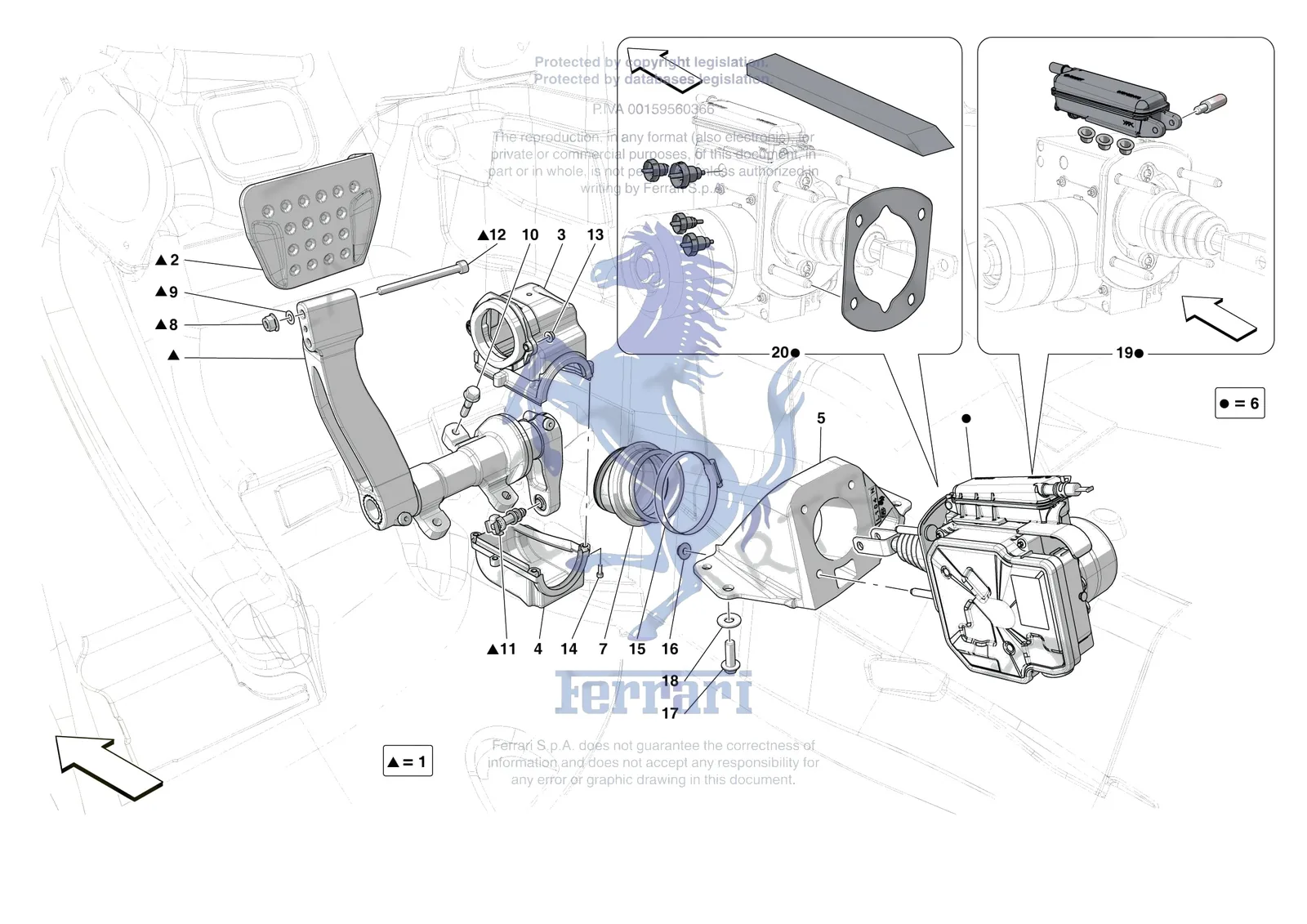

Exploded view of the [mechanical system] - d.20 - pedal board on the Ferrari F80, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0070.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days | |
| 1 | 986776 | Ferrari F250 PEDALIERA_CPL - 986776 | $6,805.21 | Special order, ships in 7-14 days |
| 2 | 840614 | Ferrari BRAKE PEDAL COVER - 840614 | Price on request | Contact us for price and availability |
| 3 | 55035587 | Ferrari COMPL. UPPER IPB SHIELD SHELL - 55035587 | Price on request | Contact us for price and availability |
| 4 | 55035589 | Ferrari COMPL. LOWER IPB SHIELD SHELL - 55035589 | Price on request | Contact us for price and availability |
| 5 | 55032642 | Ferrari IPB MOUNT - 55032642 | Price on request | Contact us for price and availability |
| 6 | 953724 | Ferrari IPB UNIT - 953724 | Price on request | Contact us for price and availability |
| 7 | 55035588 | Ferrari COMPL. IPB SHIELD DUCT - 55035588 | Price on request | Contact us for price and availability |
| 8 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 9 | 13579221 | Ferrari Washer 0.5mm - 13579221 | $1.02 | Available, ships in 3-6 days |
| 10 | 745337 | Ferrari SCREW - 745337 | Price on request | Contact us for price and availability |
| 12 | 14303924 | Ferrari Allen Screw M6 x 70 - 14303924 | $0.71 | Special order, ships in 7-14 days |
| 13 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 14 | 14303024 | Ferrari Allen Screw M4 x 12 TCEI - 14303024 | $1.63 | Available, ships in 3-6 days |
| 15 | 296785 | Ferrari Hose Clamp 60 to 80mm - 296785 | $24.05 | Available, ships in 3-6 days |
| 16 | 12578211 | Ferrari Flanged Nyloc Nut - 12578211 | $0.57 | Special order, ships in 7-14 days |
| 17 | 298805 | Ferrari Titanium Screw - 298805 | $125.54 | Special order, ships in 7-14 days |
| 18 | 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead |
| 19 | 898168 | Ferrari Rsv Manifold Kit - 898168 | $524.51 | Special order, ships in 7-14 days |
| 20 | 898169 | Ferrari Ipb Installation Kit - 898169 | $56.79 | Special order, ships in 7-14 days |
