Ferrari F80 — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0098)

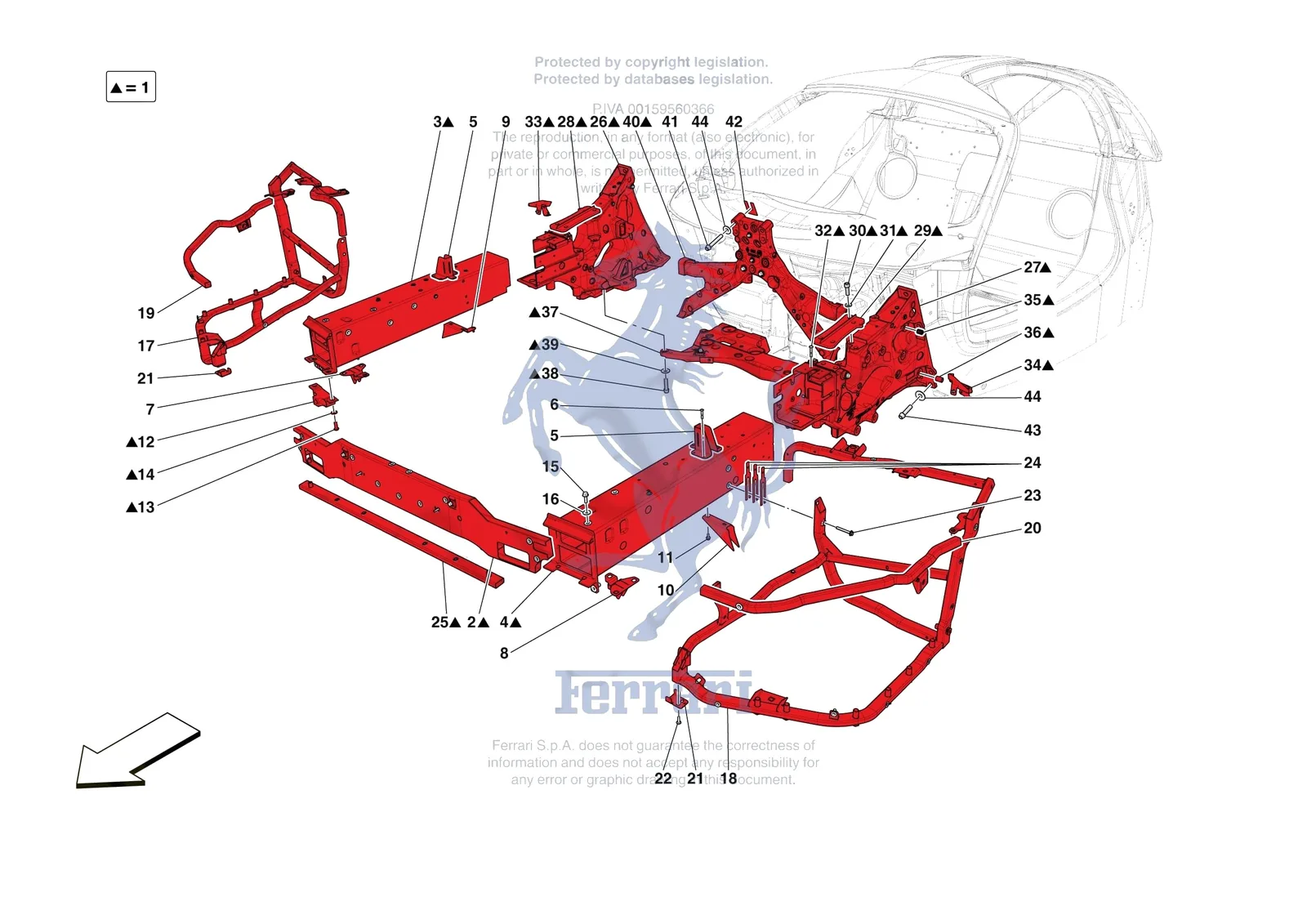

Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari F80, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0098.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 2 | 985775271 | Ferrari FRONT BUMPER CROSS MEMBER - 985775271 | Price on request | Contact us for price and availability |
| 3 | 985888996 | Ferrari RH FRONT SPAR - 985888996 | Price on request | Contact us for price and availability |
| 4 | 985888952 | Ferrari LH FRONT SPAR - 985888952 | Price on request | Contact us for price and availability |
| 5 | 748865 | Ferrari REAR MOUNTING BRACKET FOR SUBFRAME - 748865 | Price on request | Contact us for price and availability |
| 6 | 284016 | Ferrari STRUCTURAL RIVET - 284016 | $2.38 | Special order, ships in 7-14 days |
| 7 | 748940 | Ferrari RH STRUT SUBFRAME CONNECTION FASTENER BRACKET - 748940 | Price on request | Contact us for price and availability |
| 8 | 748938 | Ferrari LH STRUT SUBFRAME CONNECTION FASTENER BRACKET - 748938 | Price on request | Contact us for price and availability |
| 9 | 977949 | Ferrari RH FRONT SUBSTRUCTURE REINFORCEMENT BRACKET - 977949 | Price on request | Contact us for price and availability |
| 10 | 973918 | Ferrari LH FRONT SUBSTRUCTURE REINFORCEMENT BRACKET - 973918 | Price on request | Contact us for price and availability |
| 11 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 12 | 889178 | Ferrari RH Tow Hook Extrusion - 889178 | $689.41 | Special order, ships in 7-14 days |
| 13 | 85633900 | Ferrari Screw - 85633900 | $15.95 | Available, ships in 3-6 days |
| 14 | 955263 | Ferrari WASHER - 955263 | Price on request | Contact us for price and availability |
| 15 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 16 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 21 | 55038040 | Ferrari FASTENER BRACKET FOR FRONT CENTRE EXTRUSION - 55038040 | Price on request | Contact us for price and availability |
| 22 | 85692300 | Ferrari Screw M5 x 20 TBFTX - 85692300 | $0.65 | Available, ships in 3-6 days |
| 23 | 13832614 | Ferrari SCREW - 13832614 | Price on request | Contact us for price and availability |
| 23 | 13832611 | Ferrari Screw 6X45 - 13832611 | $1.94 | Available, ships in 3-6 days |
| 24 | 87549700 | Ferrari Shim - 87549700 | $6.96 | Special order, ships in 7-14 days |
| 28 | 861562 | Ferrari MOUNTING BRACKET FOR RH STEERING BOX ACTUATOR - 861562 | Price on request | Contact us for price and availability |
| 29 | 861561 | Ferrari MOUNTING BRACKET FOR LH STEERING BOX ACTUATOR - 861561 | Price on request | Contact us for price and availability |
| 30 | 14307574 | Ferrari SCREW - 14307574 | Price on request | Contact us for price and availability |
| 31 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 32 | 204430 | Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430 | $2.82 | Available, ships in 3-6 days |
| 33 | 957507 | Ferrari COMPL. RH FRONT BRAKE HOSE BRACKET - 957507 | Price on request | Contact us for price and availability |
| 34 | 957506 | Ferrari COMPL. FRONT LH BRAKE HOSE BRACKET - 957506 | Price on request | Contact us for price and availability |
| 35 | 252200 | Ferrari Threaded Insert - 252200 | $18.32 | Special order, ships in 7-14 days |
| 36 | 252486 | Ferrari Threaded Insert - 252486 | $66.35 | Special order, ships in 7-14 days |
| 38 | 202449 | Ferrari SCREW - 202449 | Price on request | Contact us for price and availability |
| 39 | 202452 | Ferrari WASHER - 202452 | Price on request | Contact us for price and availability |
| 41 | 202448 | Ferrari SCREW - 202448 | Price on request | Contact us for price and availability |
| 42 | 886440 | Ferrari SHIM - 886440 | Price on request | Contact us for price and availability |
| 42 | 886441 | Ferrari SHIM - 886441 | Price on request | Contact us for price and availability |
| 42 | 886442 | Ferrari SHIM - 886442 | Price on request | Contact us for price and availability |
| 44 | 202451 | Ferrari WASHER - 202451 | Price on request | Contact us for price and availability |
