Ferrari F80 — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0100)

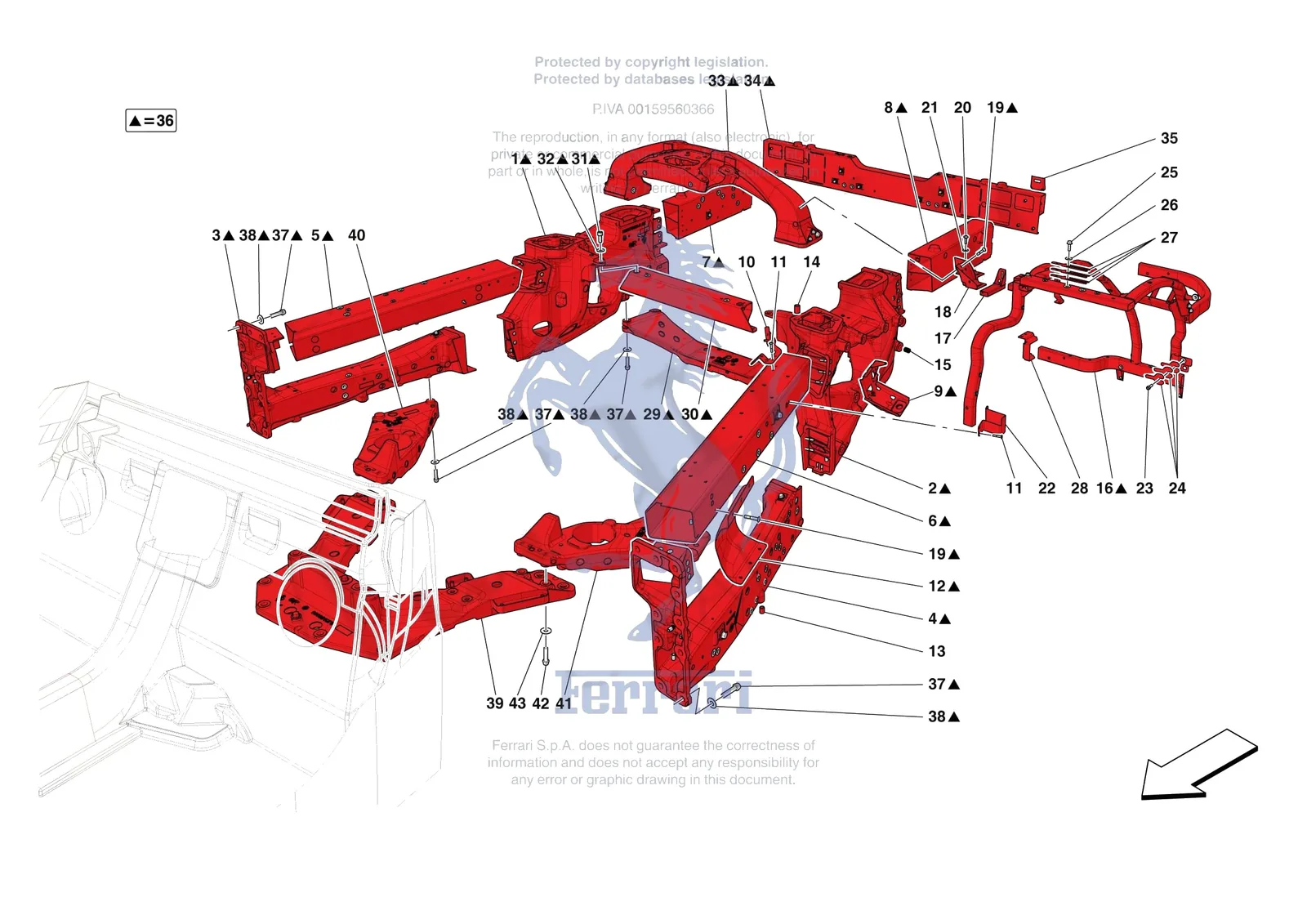

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari F80, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0100.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 86149600 | Ferrari Screw - 86149600 | Superseded | Order 14305326 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days | |
| 5 | 985775314 | Ferrari RH UPPER DIAGONAL BRACE - 985775314 | Price on request | Contact us for price and availability |
| 6 | 985775313 | Ferrari LH UPPER DIAGONAL BRACE - 985775313 | Price on request | Contact us for price and availability |
| 7 | 985773645 | Ferrari REAR RH STRUT - 985773645 | Price on request | Contact us for price and availability |
| 8 | 985995871 | Ferrari LH REAR SPAR - 985995871 | Price on request | Contact us for price and availability |
| 9 | 974563 | Ferrari REAR LH BRAKE BRACKET - 974563 | Price on request | Contact us for price and availability |
| 9 | 974564 | Ferrari REAR RH BRAKE BRACKET - 974564 | Price on request | Contact us for price and availability |
| 10 | 773602 | Ferrari COMPL. CABLE RETAINER BRACKET - 773602 | Price on request | Contact us for price and availability |
| 11 | 284016 | Ferrari STRUCTURAL RIVET - 284016 | $2.38 | Special order, ships in 7-14 days |
| 12 | 985950722 | Ferrari LH ANTI-INTRUSION PLATE - 985950722 | Price on request | Contact us for price and availability |
| 12 | 955006373 | Ferrari RH ANTI-INTRUSION PLATE - 955006373 | Price on request | Contact us for price and availability |
| 13 | 252199 | Ferrari Threaded Insert - 252199 | $34.40 | Special order, ships in 7-14 days |
| 14 | 252486 | Ferrari Threaded Insert - 252486 | $66.35 | Special order, ships in 7-14 days |
| 15 | 252200 | Ferrari Threaded Insert - 252200 | $18.32 | Special order, ships in 7-14 days |
| 17 | 959725 | Ferrari Rear Subframe Stay - 959725 | $219.11 | Special order, ships in 7-14 days |
| 18 | 873589 | Ferrari LH REAR TRELLIS BRACKET - 873589 | Price on request | Contact us for price and availability |
| 18 | 873694 | Ferrari RH REAR TRELLIS BRACKET - 873694 | Price on request | Contact us for price and availability |
| 19 | 204430 | Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430 | $2.82 | Available, ships in 3-6 days |
| 20 | 81911600 | Ferrari Screw M6 x 22 - 81911600 | $0.98 | Special order, ships in 7-14 days |
| 21 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 22 | 762727 | Ferrari LH REAR TRELLIS FRAME BRACKET - 762727 | Price on request | Contact us for price and availability |
| 22 | 762748 | Ferrari RH REAR TRELLIS FRAME BRACKET - 762748 | Price on request | Contact us for price and availability |
| 23 | 14305326 | Ferrari Screw - 14305326 | $2.38 | Special order, ships in 7-14 days |
| 24 | 88187400 | Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400 | $8.82 | Special order, ships in 7-14 days |
| 25 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 26 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 27 | 87549700 | Ferrari Shim - 87549700 | $6.96 | Special order, ships in 7-14 days |
| 28 | 55005334 | Ferrari LH TRELLIS BRACKET - 55005334 | Price on request | Contact us for price and availability |
| 28 | 810368 | Ferrari RH TRELLIS BRACKET - 810368 | Price on request | Contact us for price and availability |
| 30 | 985861810 | Ferrari UPPER CONNECTION CROSS-MEMBER - 985861810 | Price on request | Contact us for price and availability |
| 31 | 14307434 | Ferrari Screw - 14307434 | $3.70 | Available, ships in 3-6 days |
| 32 | 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead |
| 34 | 985775878 | Ferrari REAR BUMPER CROSS MEMBER - 985775878 | Price on request | Contact us for price and availability |
| 35 | 993887 | Ferrari REAR SUBFRAME BRACKET - 993887 | Price on request | Contact us for price and availability |
| 37 | 202447 | Ferrari SCREW - 202447 | Price on request | Contact us for price and availability |
| 38 | 202451 | Ferrari WASHER - 202451 | Price on request | Contact us for price and availability |
