Ferrari Monza SP1 — [ENGINE] - B.1 - CRANKCASE (diagram 0004)

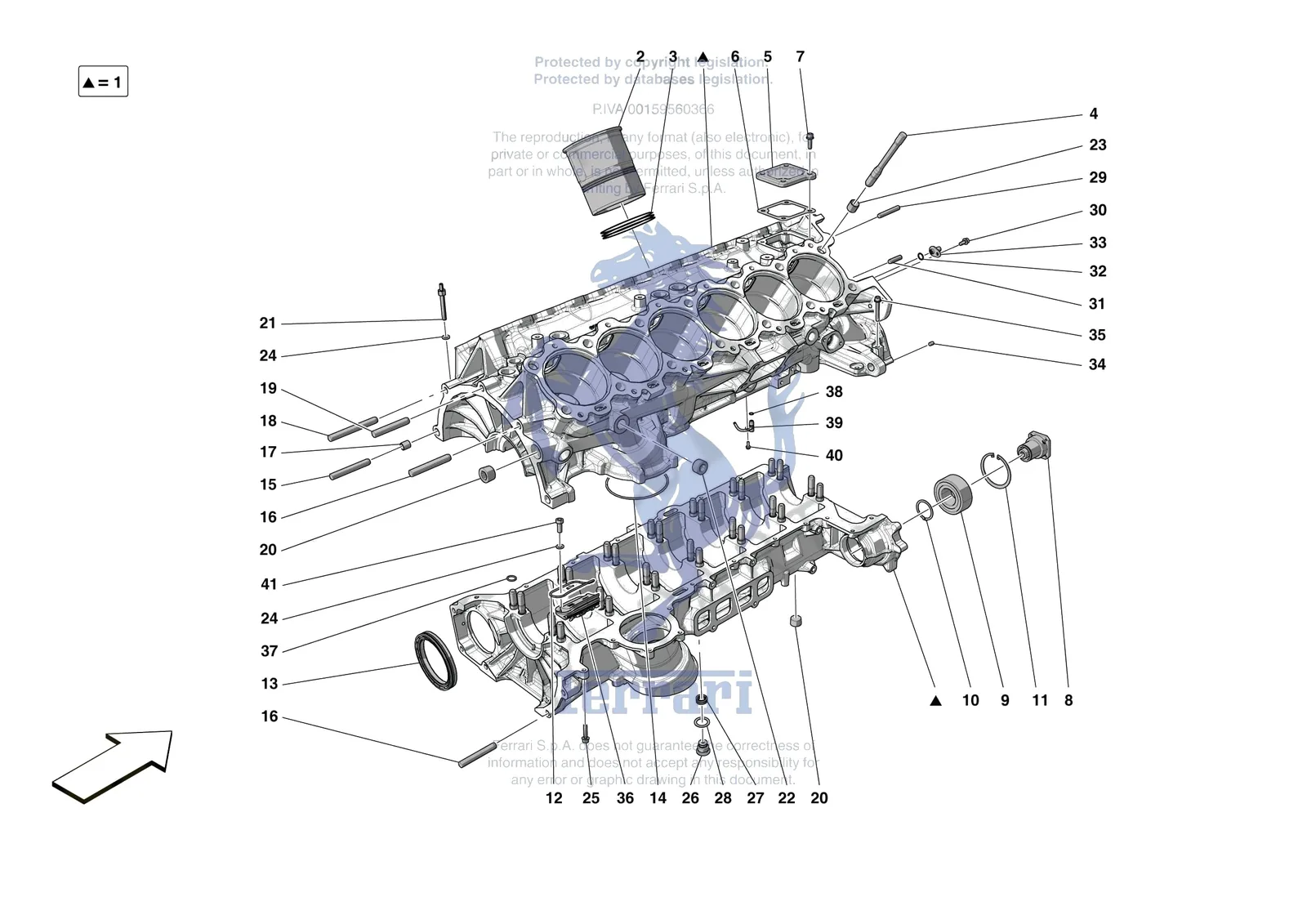

Exploded view of the [engine] - b.1 - crankcase on the Ferrari Monza SP1, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Monza SP1 [ENGINE] - B.1 - CRANKCASE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
302154Ferrari Cap - 302154$13.03Special order, ships in 7-14 days
290106Ferrari Chain Cooling Nozzle Complete - 290106SupersededOrder 294944 instead
335939Ferrari Crankcase-Lower Crankcase Shell Assy - 335939Price on requestContact us for price and availability
209623Ferrari Gasket - 209623$10.50Special order, ships in 7-14 days
248026Ferrari Gasket - 248026Price on requestContact us for price and availability
290282Ferrari Pump Drive Joint - 290282SupersededOrder 295132 instead
294950Ferrari Pump Drive Joint - 294950SupersededOrder 295132 instead
242269Ferrari Rear Main Oil Seal - 242269$104.41Available, ships in 3-6 days
300499Ferrari Screw - 300499$1.44Special order, ships in 7-14 days
13543121Ferrari Stud - 13543121SupersededOrder 13543124 instead
13543821Ferrari Stud M8 x 16 Gambo 40 - 13543821$4.54Special order, ships in 7-14 days
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
155002687Ferrari Crankcase-Lower Crankcase Shell Assy - 55002687$13,021.54Contact us to order
1805484Ferrari Crankcase-Lower Crankcase Shell Assy - 805484$17,844.08Contact us to order
1824484Ferrari Crankcase-Lower Crankcase Shell Assy - 824484$13,372.55Contact us to order
2266366Ferrari Cylinder Sleeve D.94 - 266366$467.15Special order, ships in 7-14 days
3186251Ferrari O-Ring Cylinder Liner - 186251$4.56Available, ships in 3-6 days
4802590Ferrari Stud Bolt M14x2 - 802590$28.39Available, ships in 3-6 days
5208451Ferrari Cover - 208451$56.52Special order, ships in 7-14 days
6317312Ferrari Gasket - 317312$5.39Special order, ships in 7-14 days
7231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
8295132Ferrari Pump Drive Joint - 295132$688.45Special order, ships in 7-14 days
9128799Ferrari Bearing - 128799$170.45Special order, ships in 7-14 days
1011068376Ferrari Circlip - 11068376$0.92Available, ships in 3-6 days
1111061576Ferrari Circlip - 11061576$3.47Available, ships in 3-6 days
12154691Ferrari O-Ring - 154691$3.26Available, ships in 3-6 days
13240214Ferrari/Maserati Rear Main Crankshaft Oil Seal - 240214SupersededOrder 242269 instead
14176388Ferrari Oil Disareator O-Ring - 176388$3.95In stock
1513546934Ferrari Stud 50mm - 13546934$3.26Available, ships in 3-6 days
1613546834Ferrari Stud 45mm - 13546834$3.26Special order, ships in 7-14 days
17100052Ferrari Centering Dowel - 100052$4.35Available, ships in 3-6 days
1813547234Ferrari Stud 65mm - 13547234$30.57Special order, ships in 7-14 days
1913546734Ferrari Stud 40mm - 13546734$2.82Available, ships in 3-6 days
20282753Ferrari Cover - Threaded Plug - 282753$13.09Special order, ships in 7-14 days
21219283Ferrari Stud - 219283$27.03Special order, ships in 7-14 days
22127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
23185360Ferrari Centering Dowel - 185360$5.44Special order, ships in 7-14 days
2411197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
25231620Ferrari/Maserati Screw - 231620$0.58In stock
26104280Ferrari/Maserati Drain Plug Magnetic - 104280$12.75In stock
27112254Ferrari Heli Coil - 112254$7.84Available, ships in 3-6 days
2810261860Ferrari Copper Washer - 10261860$1.42In stock
2913543824Ferrari Stud Bolt M8x16 -Shank length 40mm- - 13543824$6.31Available, ships in 3-6 days
30282393Ferrari Screw 6x16 - 282393$1.48Available, ships in 3-6 days
3113543124Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124$13.53Special order, ships in 7-14 days
32137192Ferrari/Maserati O-Ring - 137192$1.25In stock
33294944Ferrari Chain Cooling Nozzle Complete - 294944$154.89Special order, ships in 7-14 days
34175611Ferrari Centering Dowel - 175611$3.26Available, ships in 3-6 days
35231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
36300580Ferrari Valve Holder Complete - 300580$442.56Special order, ships in 7-14 days
37134704Ferrari O-Ring Gasket - 134704$0.27Available, ships in 3-6 days
38164877Ferrari O-Ring Gasket - 164877$0.52Available, ships in 3-6 days
39319988Ferrari Piston Cooling Jet - 319988$44.24Special order, ships in 7-14 days
40315493Ferrari Screw - 315493$2.13Special order, ships in 7-14 days
4113026924Ferrari Screw 6x14 - 13026924$0.57Available, ships in 3-6 days
