Ferrari Monza SP1 — [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD (diagram 0012)

Exploded view of the [engine] - b.08.02 - cylinder heads - lh head on the Ferrari Monza SP1, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

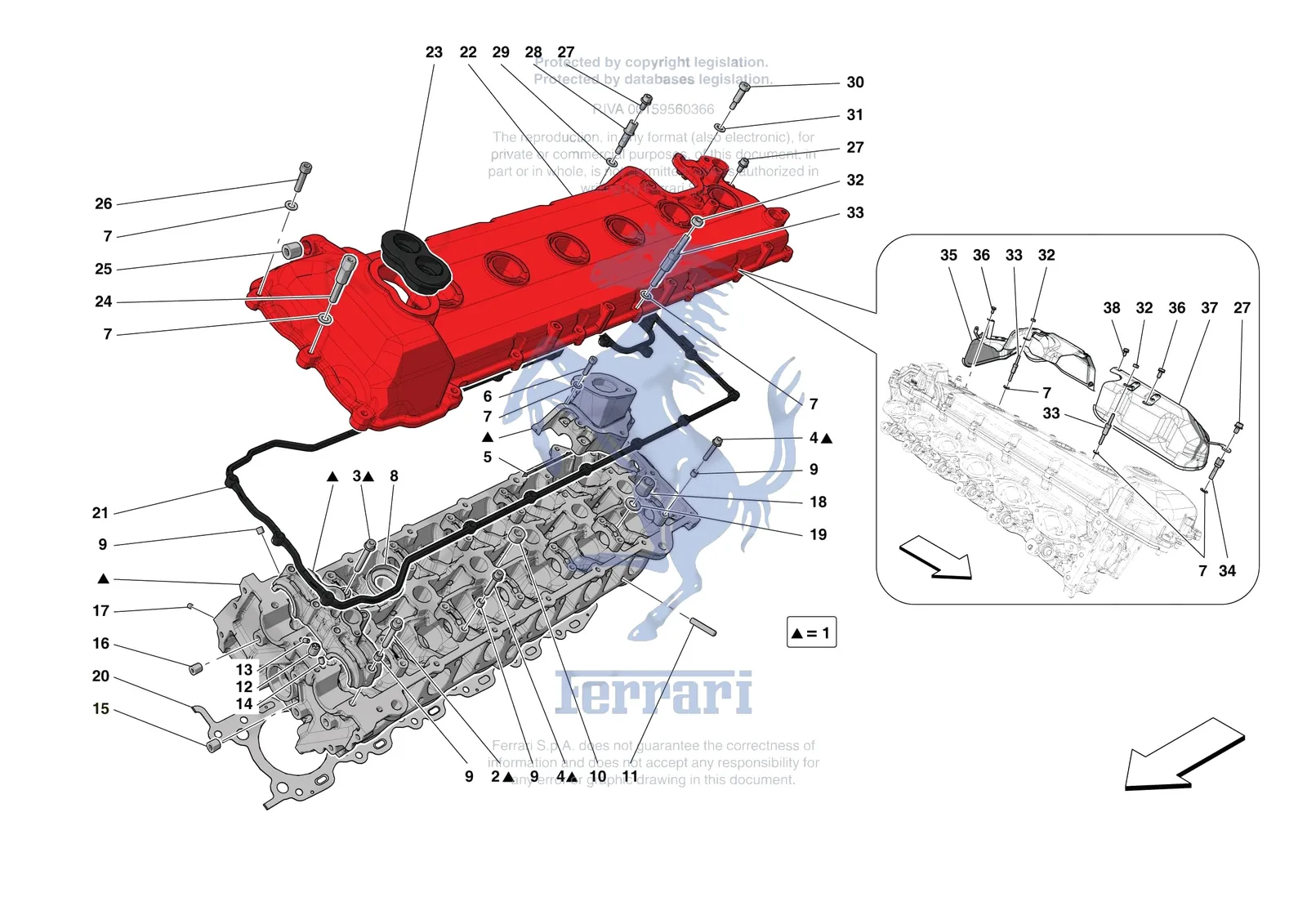

Ferrari Monza SP1 [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
322682Ferrari Calibrated Stud Bolt - 322682SupersededOrder 333779 instead
317787Ferrari Lh Cylinder Head Cover - 317787SupersededOrder 816000 instead
243804Ferrari LH Cylinder Head Gasket - 243804SupersededOrder 324014 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
194495Ferrari Threaded Plug - 194495SupersededOrder 282755 instead
282400Ferrari Threaded Plug 12x11 - 282400$7.59Special order, ships in 7-14 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1878825Ferrari LH Cylinder Head - 878825SupersededOrder 919201 instead
1919201Ferrari LH Cylinder Head - 919201$6,117.34Special order, ships in 7-14 days
2243720Ferrari Screw With Washer 6x40 - 243720$1.15Special order, ships in 7-14 days
3243721Ferrari Screw With Washer M6 x 45 TCEI - 243721$0.98Available, ships in 3-6 days
4243719Ferrari Screw With Washer M6 x 35 TCEI - 243719$1.05Available, ships in 3-6 days
5239614Ferrari Gasket - 239614$10.29Available, ships in 3-6 days
6239502Ferrari Screw 6x25 - 239502$1.17Available, ships in 3-6 days
711197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
8223982Ferrari Spark Plug Tube Gasket - 223982$2.63In stock
9102725Ferrari/Maserati Dowel - 102725$2.79In stock
10127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
11211641Ferrari Exhaust Manifold Stud - 211641$2.00In stock
12200458Ferrari/Maserati Non Return Valve - 200458$13.08In stock
13226414Ferrari Grub Screw - 226414$13.74Available, ships in 3-6 days
14342290Ferrari Grub Screw - 342290$20.37Special order, ships in 7-14 days
1510275501Ferrari Threaded Plug 12x11 - 10275501$1.92Special order, ships in 7-14 days
1614326001Ferrari Threaded Plug D 10x1.25 - 14326001SupersededOrder 282755 instead
16282755Ferrari Threaded Plug D 10x1.25 - 282755$4.35Available, ships in 3-6 days
17199760Ferrari Threaded Plug D 6x1 - 199760$0.57Available, ships in 3-6 days
18183524Ferrari Cylinder Head Nut - 183524$6.75Special order, ships in 7-14 days
19136270Ferrari Washer - 136270$8.12Available, ships in 3-6 days
20324014Ferrari LH Head-Crankcase Gasket - 324014$442.56Special order, ships in 7-14 days
21243802Ferrari Valve Cover Gasket - Left - 243802$128.35In stock
21AW3440000Ferrari Valve Cover Gasket Set - AW3440000$244.90In stock
22816000Ferrari LH Cylinder Head Cover - 816000$1,819.49Special order, ships in 7-14 days
23229353Ferrari Solenoid Valve Gasket - 229353$24.42In stock
24208765Ferrari Stud Bolt - 208765$12.21Available, ships in 3-6 days
25235754Ferrari Threaded Plug - 235754$12.77Available, ships in 3-6 days
26157218Ferrari Bolt M6 x 25 - 157218$1.17Available, ships in 3-6 days
27233600Ferrari/Maserati Screw - 233600$1.98In stock
28333779Ferrari Calibrated Stud Bolt - 333779$27.03Special order, ships in 7-14 days
2914499401Ferrari Washer - 14499401$0.54Available, ships in 3-6 days
2914499424Ferrari Washer - 14499424SupersededOrder 14499401 instead
30293278Ferrari Screw - 293278$30.57Available, ships in 3-6 days
3111198074Ferrari/Maserati Washer - 11198074$0.14In stock
3215896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
33269228Ferrari Stud Bolt - 269228$12.86Available, ships in 3-6 days
34214412Ferrari Stud Bolt - 214412$20.14Available, ships in 3-6 days
35821252Ferrari Paratia Anticalore Testa Sx - 821252$467.15Special order, ships in 7-14 days
3611628424Ferrari Screw 6X14 - 11628424$1.28Special order, ships in 7-14 days
37821250Ferrari Paratia Anticalore Testa Sx - 821250$417.97Special order, ships in 7-14 days
3811625524Ferrari Screw - 11625524$1.53Special order, ships in 7-14 days

All Monza SP1 diagrams
