Ferrari Monza SP2 — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari Monza SP2, with 66 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

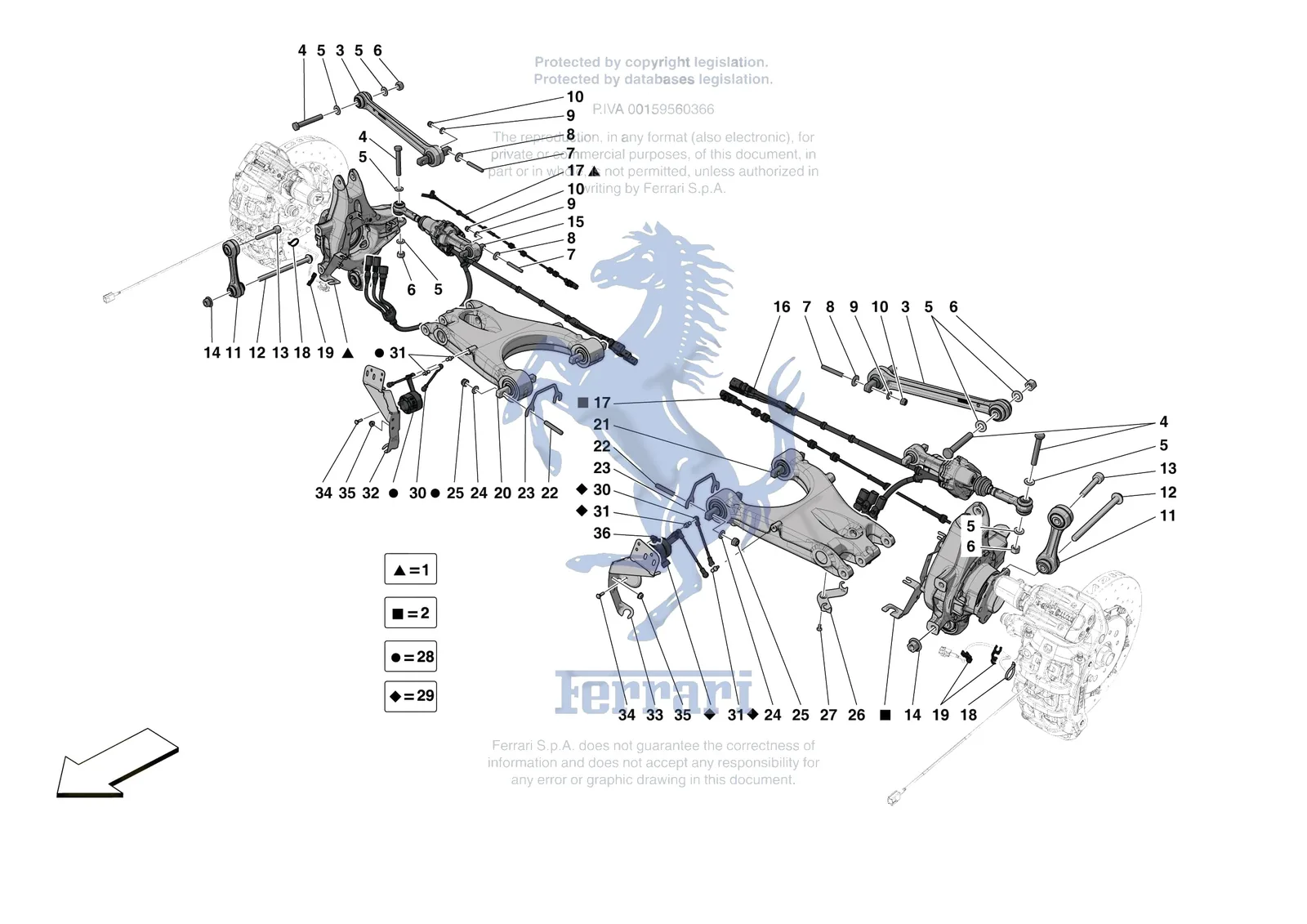

Ferrari Monza SP2 [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
322737Ferrari Clip - 322737$1.25Special order, ships in 7-14 days
328216Ferrari LH Actuator Complete - 328216Price on requestContact us for price and availability
329653Ferrari LH Actuator Complete - 329653$10,481.12Special order, ships in 7-14 days
238469Ferrari LH Rear Hub Holder - 238469SupersededOrder 299933 instead
268379Ferrari LH Rear Hub Holder - 268379SupersededOrder 299933 instead
276809Ferrari LH Rear Hub Holder - 276809SupersededOrder 299933 instead
314774Ferrari LH Rear Lower Arm Complete - 314774SupersededOrder 911176 instead
329243Ferrari LH Rear Lower Arm Complete - 329243SupersededOrder 911176 instead
230953Ferrari LH Rear Motion Sensor Complete - 230953SupersededOrder 259265 instead
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
328218Ferrari RH Actuator Complete - 328218SupersededOrder 330992 instead
329655Ferrari RH Actuator Complete - 329655SupersededOrder 330992 instead
314775Ferrari RH Rear Lower Arm Complete - 314775SupersededOrder 911175 instead
329244Ferrari RH Rear Lower Arm Complete - 329244SupersededOrder 911175 instead
230954Ferrari RH Rear Motion Sensor Complete - 230954$391.61Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1299935Ferrari RH Rear Hub Carrier Complete - 299935$3,718.64Special order, ships in 7-14 days
2299933Ferrari LH Rear Hub Carrier Complete - 299933$3,718.64Available, ships in 3-6 days
3295792Ferrari Rear Upper Arm - 295792$888.98Available, ships in 3-6 days
415541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
514496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
6203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
7302406Ferrari Threaded Rod - 302406$4.77Special order, ships in 7-14 days
813578321Ferrari Washer D.8.15-24x2 - 13578321$1.04Available, ships in 3-6 days
914496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
10104030Ferrari/Maserati Nut - 104030$0.88In stock
11259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
12238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
13238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
14238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
15330992Ferrari RH Actuator Complete - 330992$11,244.43Special order, ships in 7-14 days
16330990Ferrari LH Actuator Complete - 330990$11,244.43Special order, ships in 7-14 days
17252514Ferrari ABS Sensor - 252514$349.68Special order, ships in 7-14 days
1810815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
19310942Ferrari Triple Clip - 310942$3.26Special order, ships in 7-14 days
20896445Ferrari Compl. RH Rear Lower Arm - 896445SupersededOrder 911175 instead
20911175Ferrari Compl. RH Rear Lower Arm - 911175$1,745.74Special order, ships in 7-14 days
21896443Ferrari Compl. LH Rear Lower Arm - 896443SupersededOrder 911176 instead
21911176Ferrari Compl. LH Rear Lower Arm - 911176$1,745.74Special order, ships in 7-14 days
22264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
23262545Ferrari Camber Spacer 1.0mm - 262545$18.32Special order, ships in 7-14 days
23262546Ferrari Camber Spacer 1.5mm - 262546$18.32Special order, ships in 7-14 days
23262539Ferrari Camber Spacer 2.0mm - 262539$18.32Special order, ships in 7-14 days
23262540Ferrari Camber Spacer 2.5mm - 262540$18.32Special order, ships in 7-14 days
23262541Ferrari Camber Spacer 3.0mm - 262541$18.32Special order, ships in 7-14 days
23262542Ferrari Camber Spacer 3.5mm - 262542$18.32Available, ships in 3-6 days
23262543Ferrari Camber Spacer 4.0mm - 262543$18.32Special order, ships in 7-14 days
2414496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
25104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
26314125Ferrari Actuator Cable Fastener Brac - 314125$39.31Special order, ships in 7-14 days
27269959Ferrari Screw - 269959$1.61In stock
28259266Ferrari RH Rear Motion Sensor Complete - 259266$349.68Special order, ships in 7-14 days
29259265Ferrari LH Rear Motion Sensor Complete - 259265$349.68Special order, ships in 7-14 days
30229653Ferrari Potentiometer Tie-Rod - 229653$78.66Special order, ships in 7-14 days
31216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
32326365Ferrari Rear RH Bracket - 326365$216.35Special order, ships in 7-14 days
33326364Ferrari Rear LH Bracket - 326364$216.35Special order, ships in 7-14 days
34217456Ferrari Screw 5X16 - 217456$0.59Available, ships in 3-6 days
3514040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
36303508Ferrari Raymond Clip - 303508$0.96Special order, ships in 7-14 days
