Ferrari Monza SP2 — [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE (diagram 0116)

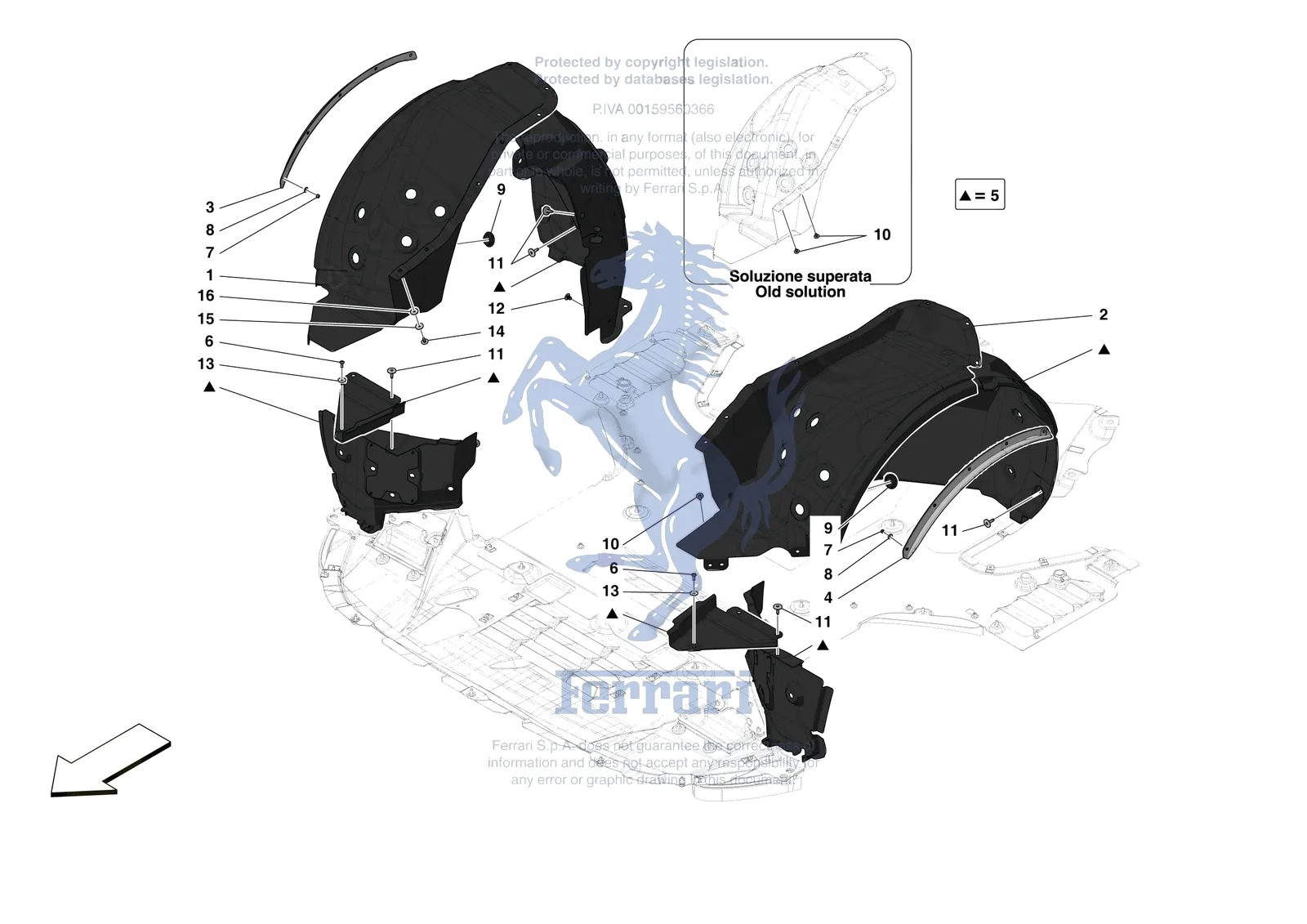

Exploded view of the [vehicle trim] - e.17 - front wheelhouse on the Ferrari Monza SP2, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP2 [VEHICLE TRIM] - E.17 - FRONT WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp2/0116.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 156093 | Ferrari Washer - 156093 | Superseded | Order 12646778 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 881538 | Ferrari Compl. Removable Section Of - 881538 | $6,813.33 | Special order, ships in 7-14 days |
| 2 | 881534 | Ferrari Compl. Removable Section Of - 881534 | $6,813.33 | Special order, ships in 7-14 days |
| 3 | 881575 | Ferrari Compl. RH Front Wheel Bay Li - 881575 | $3,276.11 | Special order, ships in 7-14 days |
| 3 | 881578 | Ferrari Compl. RH Front Wheel Bay Li - 881578 | $3,276.11 | Special order, ships in 7-14 days |
| 4 | 881566 | Ferrari Compl. LH Front Wheel Bay Li - 881566 | $3,276.11 | Special order, ships in 7-14 days |
| 4 | 881576 | Ferrari Compl. LH Front Wheel Bay Li - 881576 | $3,276.11 | Special order, ships in 7-14 days |
| 5 | 1002904 | Ferrari Front Wheel Bay Kit - 1002904 | $1,697.09 | Special order, ships in 7-14 days |
| 6 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 7 | 897207 | Ferrari Nut - 897207 | $18.32 | Special order, ships in 7-14 days |
| 7 | 113647 | Ferrari Nyloc Nut - 113647 | $0.52 | Available, ships in 3-6 days |
| 8 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 9 | 14508087 | Ferrari Cap - 14508087 | $5.65 | Special order, ships in 7-14 days |
| 10 | 85824800 | Ferrari Screw - 85824800 | $56.52 | Special order, ships in 7-14 days |
| 10 | 256490 | Ferrari Screw TBEI M5 x 16 - 256490 | $3.91 | Available, ships in 3-6 days |
| 11 | 83442900 | Ferrari Body Screw - 83442900 | $1.51 | In stock |
| 12 | 83222200 | Ferrari Fastener Button - 83222200 | $1.42 | Available, ships in 3-6 days |
| 13 | 61148700 | Ferrari WASHER - 61148700 | Superseded | Order 12643724 instead |
| 13 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 15 | 263276 | Ferrari Washer - 263276 | $0.33 | Available, ships in 3-6 days |
| 16 | 12646778 | Ferrari Washer - 12646778 | $0.89 | In stock |
