Ferrari Portofino M — [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS (diagram 0076)

Exploded view of the [mechanical system] - d.25.02 - front suspension - arms on the Ferrari Portofino M, with 61 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

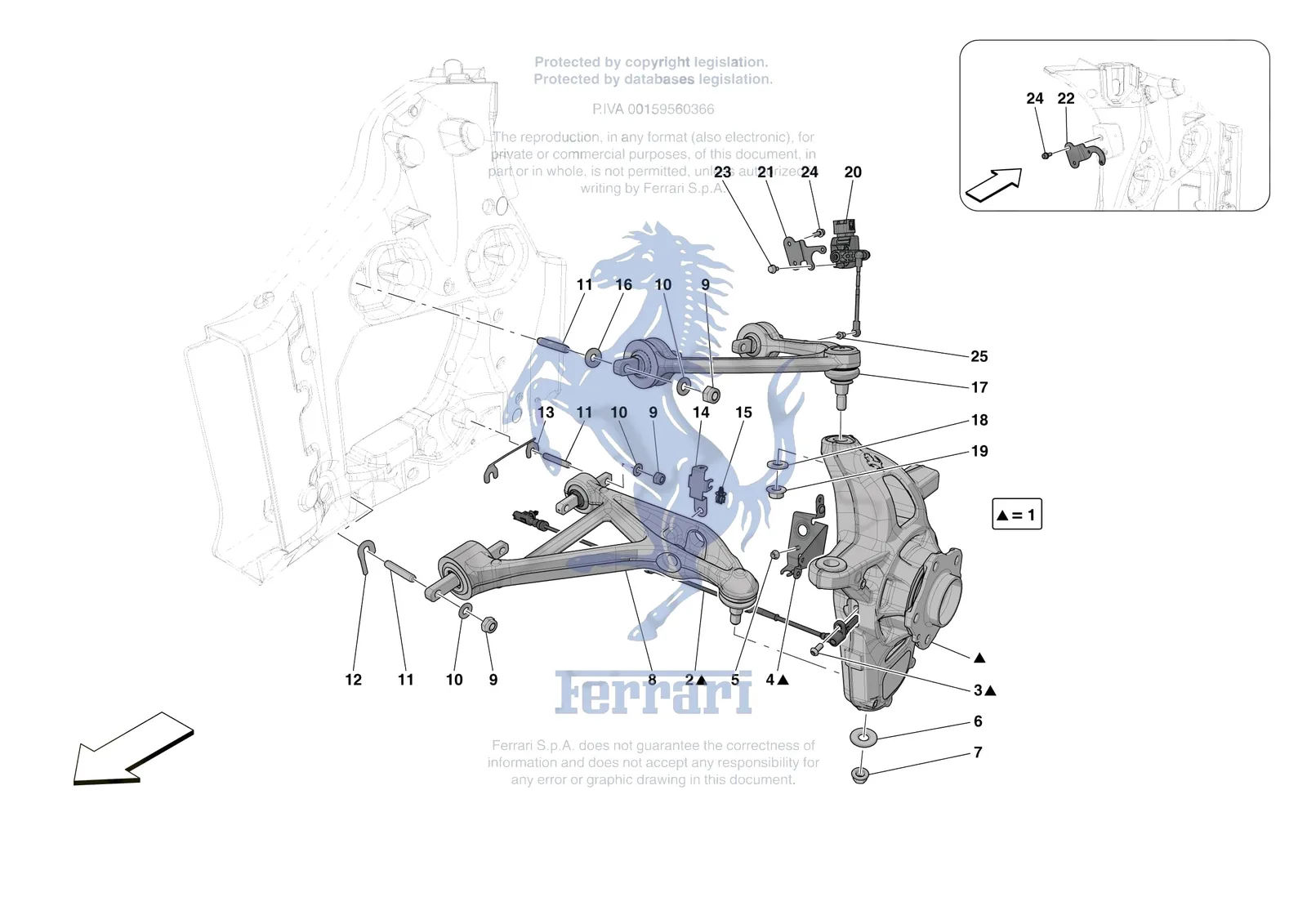

Ferrari Portofino M [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
268896Ferrari LH Front Lower Arm Complete - 268896$1,695.11Available, ships in 3-6 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
268897Ferrari RH Front Lower Arm Complete - 268897$2,051.44Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
340274Ferrari Sensore Di Spostam. Anterior - 340274SupersededOrder 984045 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1867707Ferrari Compl. LH Front Hub Carrier - 867707$3,766.07Special order, ships in 7-14 days
1867714Ferrari Portamozzo Anteriore Dx Cpl - 867714$3,766.07Special order, ships in 7-14 days
2338963Ferrari ABS Sensor - Front - 338963$128.92Available, ships in 3-6 days
4289163Ferrari LH Front Joint Bracket - 289163$59.07Special order, ships in 7-14 days
4289164Ferrari RH Front Joint Bracket - 289164$59.07Special order, ships in 7-14 days
514040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
6241689Ferrari Spacer - 241689$14.62Special order, ships in 7-14 days
7203795Ferrari Nut M14 x 1.5 - 203795$4.56Available, ships in 3-6 days
8268894Ferrari LH Front Lower Arm Complete - 268894$1,893.26Special order, ships in 7-14 days
8268895Ferrari RH Front Lower Arm Complete - 268895$1,893.26Special order, ships in 7-14 days
9104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
1014496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
11264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
12263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
12263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
12263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
12263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
12263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
12238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
12263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
12263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
12263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
13333339Ferrari Camber Adjustment Shim - 333339$7.19Special order, ships in 7-14 days
13333340Ferrari Camber Adjustment Shim - 333340$8.72Special order, ships in 7-14 days
13333341Ferrari Camber Adjustment Shim - 333341$11.12Available, ships in 3-6 days
13333342Ferrari Camber Adjustment Shim - 333342$13.30Special order, ships in 7-14 days
13333343Ferrari Camber Adjustment Shim - 333343$15.49Special order, ships in 7-14 days
13333338Ferrari Distanziale Regolaz. Camber - 333338$6.31Special order, ships in 7-14 days
13333344Ferrari Distanziale Regolaz. Camber - 333344$17.67Special order, ships in 7-14 days
13333345Ferrari Distanziale Regolaz. Camber - 333345$19.86Special order, ships in 7-14 days
14275791Ferrari ABS Cable And Ground Cable Guide Bracket - 275791$44.29Available, ships in 3-6 days
15261214Ferrari Raymond Clip - 261214$2.59Available, ships in 3-6 days
1612646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
1612646821Ferrari Washer D.10 20-25x2 - 12646821$0.19Available, ships in 3-6 days
17331628Ferrari Complete LH Front Upper Arm - 331628$1,278.55Special order, ships in 7-14 days
17331629Ferrari Complete RH Front Upper Arm - 331629$1,352.32Special order, ships in 7-14 days
1812646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
19149807Ferrari Self-Locking Nut For Top And Bottom Ball Joints - 149807$2.13Available, ships in 3-6 days
20984045Ferrari Compl. Front RH Motion Sensor - 984045$328.27Special order, ships in 7-14 days
21340267Ferrari Front LH Bracket for Motion Sensor - 340267$21.64Special order, ships in 7-14 days
22340268Ferrari Front RH Bracket for Motion Sensor - 340268$21.64Special order, ships in 7-14 days
2316284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2316284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
24231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
25216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
