Ferrari Portofino M — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari Portofino M, with 78 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

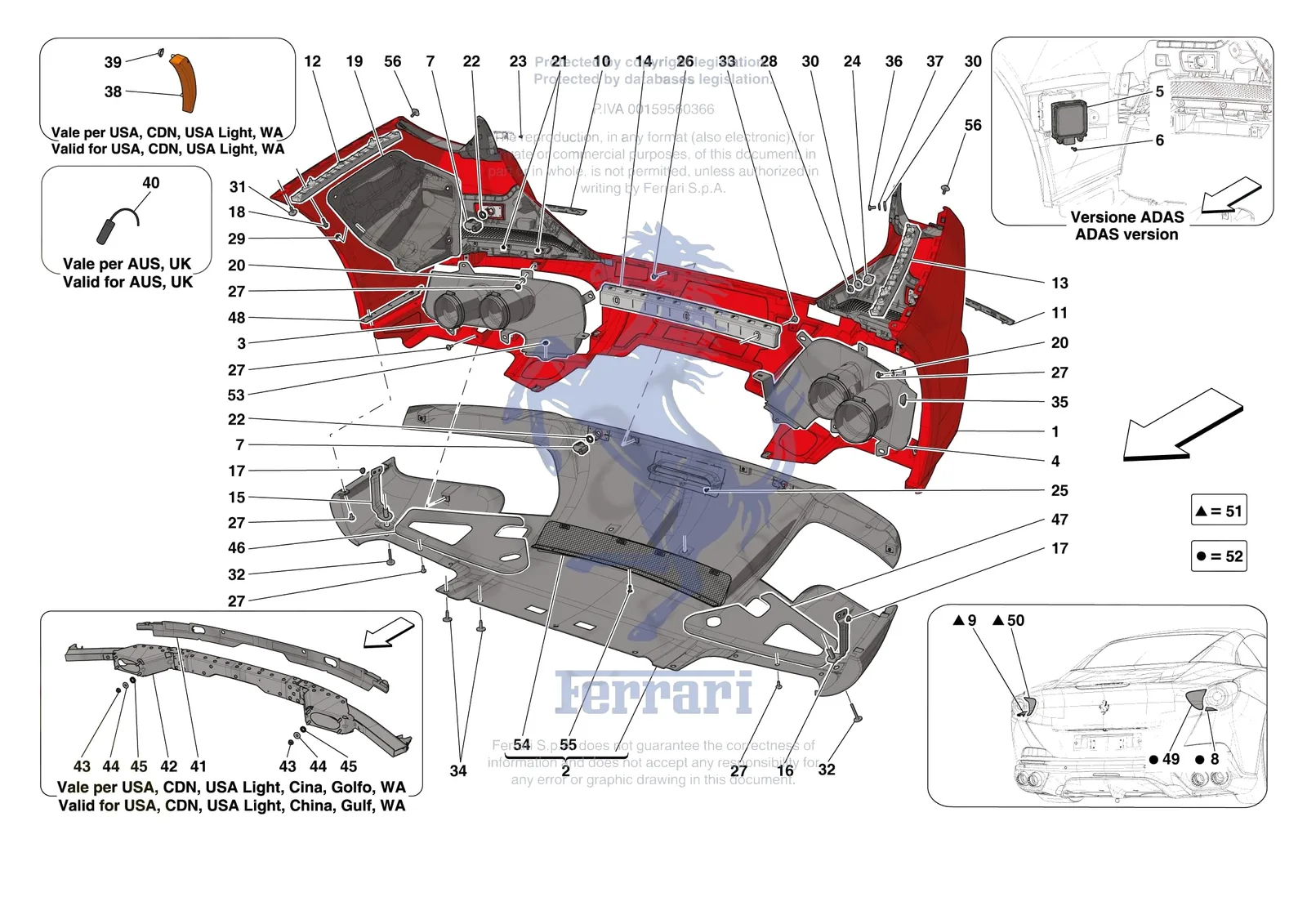

Ferrari Portofino M [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10902411Ferrari Bolt - 10902411SupersededOrder 10902024 instead
86574400Ferrari Screw - 86574400SupersededOrder 86876500 instead
10902011Ferrari Screw 6x12 - 10902011$13.69Available, ships in 3-6 days
1985784114Ferrari Compl. Rear Bumper - 985784114$20,739.49Contact us to order
1985784118Ferrari Compl. Rear Bumper - 985784118$22,638.32Contact us to order
1985957829Ferrari Compl. Rear Bumper with Mesh - 985957829$20,724.29Contact us to order
1985956959Ferrari Compl. Rear Mesh - 985956959$18,827.61Contact us to order
270007252Ferrari COMPL. REAR DIFFUSER - 70007252Price on requestContact us to order
2891961Ferrari Compl. Rear Diffuser - 891961$12,939.76Contact us to order
2891980Ferrari Compl. Rear Diffuser - 891980$18,115.20Contact us to order
3884499Ferrari Compl. RH Cosmetic Tailpipes - 884499$2,387.20Special order, ships in 7-14 days
3884594Ferrari Compl. RH Cosmetic Tailpipes - 884594$3,714.48Special order, ships in 7-14 days
3884607Ferrari Compl. RH Cosmetic Tailpipes - 884607$6,092.32Special order, ships in 7-14 days
4884497Ferrari Compl. LH Cosmetic Tailpipes - 884497$2,387.20Special order, ships in 7-14 days
4884592Ferrari Compl. LH Cosmetic Tailpipes - 884592$3,714.48Special order, ships in 7-14 days
4884600Ferrari Compl. LH Cosmetic Tailpipes - 884600$6,092.32Special order, ships in 7-14 days
5833142Ferrari Rear Radar - 833142$1,501.96Special order, ships in 7-14 days
5958559Ferrari Rear Radar - 958559$1,526.57Special order, ships in 7-14 days
669396000Ferrari Screw M4 X 16 - 69396000$1.55Special order, ships in 7-14 days
7295361Ferrari Parking Sensor - 295361$80.91In stock
8765462Ferrari RH Shell - 765462$2,485.70Special order, ships in 7-14 days
8780831Ferrari RH Shell - 780831$1,551.20Special order, ships in 7-14 days
9765464Ferrari LH Shell - 765464$2,485.70Special order, ships in 7-14 days
9780829Ferrari LH Shell - 780829$1,551.20Special order, ships in 7-14 days
1084806800Ferrari Right Rear Reflector - 84806800$29.40In stock
1184806900Ferrari Left Rear Reflector - 84806900$29.75In stock
1288980300Ferrari RH Lateral Mounting Bracket - 88980300$31.99Special order, ships in 7-14 days
1388980200Ferrari LH Lateral Mounting Bracket - 88980200$31.99Special order, ships in 7-14 days
1488276500Ferrari Centre Mounting Bracket for Rear Bumper - 88276500$56.60Special order, ships in 7-14 days
15918236Ferrari Compl. RH Lateral Bracket - 918236$108.31Special order, ships in 7-14 days
16916814Ferrari Compl. LH Lateral Bracket - 916814$108.31Special order, ships in 7-14 days
1713046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
1816285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
19935148Ferrari Carbon Canister Guard - 935148$369.30Special order, ships in 7-14 days
2087547900Ferrari Washer - 87547900$1.99Special order, ships in 7-14 days
2184784600Ferrari Washer For Pin - 84784600$43.68Special order, ships in 7-14 days
2281544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
23301703Ferrari Screw - 301703$0.71Special order, ships in 7-14 days
24807298Ferrari Screw - 807298$30.57Special order, ships in 7-14 days
2586876500Ferrari Screw M4 x 12 TBEI - 86876500$7.84Special order, ships in 7-14 days
2646401657Ferrari Screw TBEI M6 x 12 Torx - 46401657$1.04Available, ships in 3-6 days
2782113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
2814039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
2815896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
2913046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
30791018Ferrari Washer - 791018$0.92Special order, ships in 7-14 days
3181290900Ferrari Screw With Double Washer - 81290900$1.42In stock
3285687400Ferrari 488 Rear Bumper Screw - 85687400$4.16In stock
3311625621Ferrari Screw - 11625621$1.11Available, ships in 3-6 days
3483442900Ferrari Body Screw - 83442900$1.51In stock
3514507687Ferrari Cap - 14507687$1.78Special order, ships in 7-14 days
3610902024Ferrari Screw M6 x 12 - 10902024$0.12Available, ships in 3-6 days
3712647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
3887329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
3887329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days
3989241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
40328670Ferrari Rear Bumper DAB Antenna - 328670$214.46Special order, ships in 7-14 days
41934237Ferrari Rear Bumper Impact Absorber - 934237$443.17Special order, ships in 7-14 days
42934236Ferrari Rear Cross Member - 934236$2,412.99Special order, ships in 7-14 days
4313046214Ferrari Nut - 13046214$0.73Special order, ships in 7-14 days
4412642024Ferrari Washer - 12642024SupersededOrder 12642021 instead
4583072500Ferrari Gasket - 83072500$4.35Available, ships in 3-6 days
46804095Ferrari RH Heat Shield - 804095$1,107.99Special order, ships in 7-14 days
47804094Ferrari LH Heat Shield - 804094$1,107.99Special order, ships in 7-14 days
48848268Ferrari LH Lateral Bumper Reinforcem - 848268$3,020.36Special order, ships in 7-14 days
48848266Ferrari RH Lateral Bumper Reinforcem - 848266$3,020.36Special order, ships in 7-14 days
49780834Ferrari RH Taillight Surround - 780834$150.17Special order, ships in 7-14 days
49837507Ferrari RH Taillight Surround - 837507$270.83Special order, ships in 7-14 days
49765479Ferrari RH Taillight Surround - Carbon - 765479$2,485.70Special order, ships in 7-14 days
50780833Ferrari LH Taillight Surround - 780833$150.17Special order, ships in 7-14 days
50837508Ferrari LH Taillight Surround - 837508$270.83Special order, ships in 7-14 days
50765480Ferrari LH Taillight Surround - Carbon - 765480$2,485.70Special order, ships in 7-14 days
5170006488Ferrari LH Rear Lid Scalloped Trim K - 70006488$13,945.78Contact us to order
5270006487Ferrari RH Rear Lid Scalloped Trim K - 70006487$13,945.78Contact us to order
5387546400Ferrari Round Fastener - 87546400$10.91Special order, ships in 7-14 days
54916766Ferrari LOWER CENTRAL GRILLE - 916766$525.26Special order, ships in 7-14 days
5514642096Ferrari Rivet - 14642096$1.50Available, ships in 3-6 days
5685692400Ferrari Screw M5 x 20 TBFTX - 85692400$0.92Available, ships in 3-6 days

All Portofino M diagrams
