Ferrari Portofino M — [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS (diagram 0157)

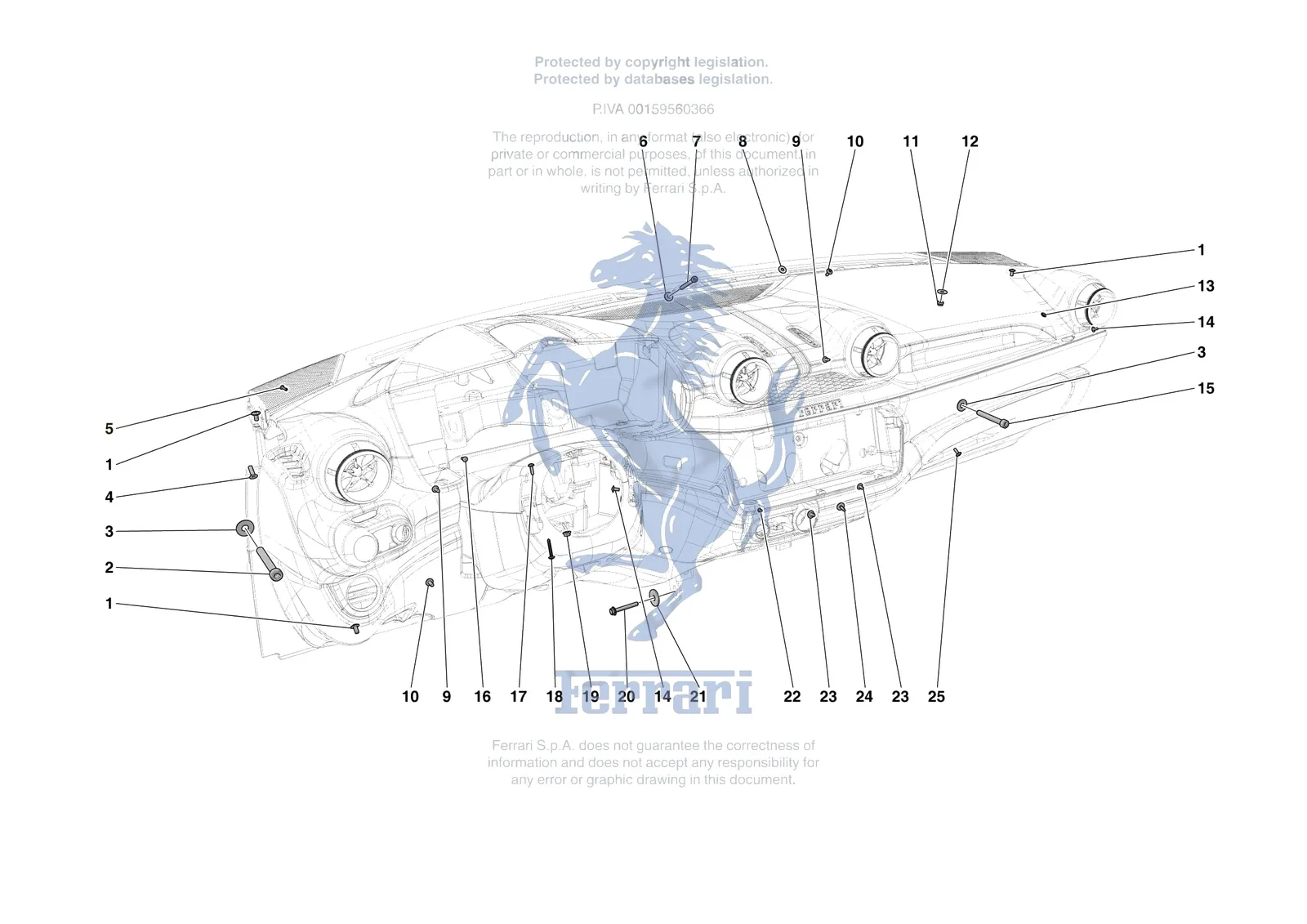

Exploded view of the [vehicle trim] - e.47.09 - dashboard - fasteners on the Ferrari Portofino M, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Portofino M [VEHICLE TRIM] - E.47.09 - DASHBOARD - FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/portofino-m/0157.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14304821 | Ferrari Allen Screw 6x55 - 14304821 | Superseded | Order 14304824 instead | |
| 14440721 | Ferrari Screw - 14440721 | Superseded | Order 14440734 instead | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 290589 | Ferrari Screw 4x8 - 290589 | Superseded | Order 309629 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days | |
| 1 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 2 | 14308574 | Ferrari Allen Screw 10x1.25x90 - 14308574 | $7.40 | Available, ships in 3-6 days |
| 3 | 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead |
| 4 | 14440727 | Ferrari Screw - 14440727 | Superseded | Order 14440734 instead |
| 4 | 14440734 | Ferrari Screw TSEI M5 x 16 - 14440734 | $12.86 | Available, ships in 3-6 days |
| 5 | 67653400 | Ferrari Rivet - 67653400 | $0.38 | Special order, ships in 7-14 days |
| 6 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
| 7 | 14304824 | Ferrari Allen Screw 6x55 - 14304824 | $0.50 | Available, ships in 3-6 days |
| 8 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
| 9 | 16081677 | Ferrari Screw - 16081677 | $0.40 | Special order, ships in 7-14 days |
| 10 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 11 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 12 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 13 | 813124 | Ferrari Starlock Raymond 011876004 - 813124 | Price on request | Contact us for price and availability |
| 14 | 309629 | Ferrari Screw 4x8 - 309629 | $4.77 | Special order, ships in 7-14 days |
| 15 | 84018500 | Ferrari Screw M10 x 75 - 84018500 | $10.02 | Special order, ships in 7-14 days |
| 16 | 15687204 | Ferrari Screw 3.5x13 - 15687204 | $0.90 | Available, ships in 3-6 days |
| 17 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 17 | 15688801 | Ferrari Screw M3.5 x 13 - 15688801 | Superseded | Order 63343400 instead |
| 18 | 15689201 | Ferrari Screw M3.5 x 25 - 15689201 | $1.92 | Available, ships in 3-6 days |
| 19 | 14059121 | Ferrari Nut M5 - 14059121 | $0.31 | Available, ships in 3-6 days |
| 20 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 20 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 20 | 13832611 | Ferrari Screw 6X45 - 13832611 | $1.94 | Available, ships in 3-6 days |
| 21 | 10523107 | Ferrari Washer - 10523107 | $5.44 | Available, ships in 3-6 days |
| 22 | 87474200 | Ferrari Screw - 87474200 | $0.44 | Special order, ships in 7-14 days |
| 23 | 85691900 | Ferrari Screw M5 x 8 TBFTX - 85691900 | $0.65 | Available, ships in 3-6 days |
| 24 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
| 25 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
