Ferrari Purosangue — [ENGINE] - B.1 - CRANKCASE (diagram 0004)

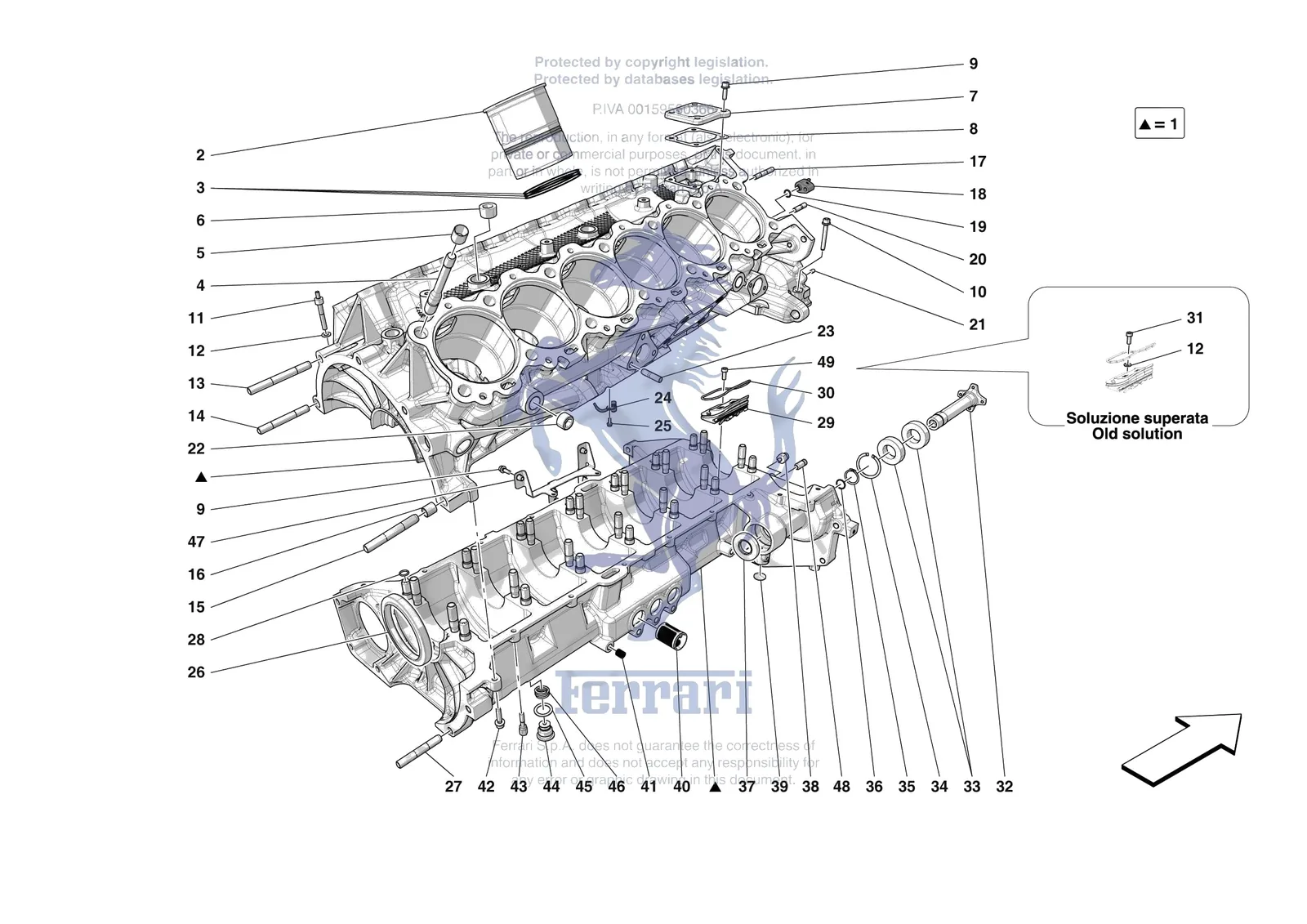

Exploded view of the [engine] - b.1 - crankcase on the Ferrari Purosangue, with 63 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [ENGINE] - B.1 - CRANKCASE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
302154Ferrari Cap - 302154$13.03Special order, ships in 7-14 days
209623Ferrari Gasket - 209623$10.50Special order, ships in 7-14 days
248026Ferrari Gasket - 248026Price on requestContact us for price and availability
106244Ferrari Oil Seal - 106244SupersededOrder 200323 instead
40000230Ferrari Oil Seal - 40000230SupersededOrder 200323 instead
163989Ferrari Rear Main Crankshaft Seal - 163989SupersededOrder 200323 instead
136527Ferrari Rear Main Oil Seal - 136527SupersededOrder 200323 instead
13516821Ferrari RH Threaded Stud - 13516821SupersededOrder 13543324 instead
300499Ferrari Screw - 300499$1.44Special order, ships in 7-14 days
13543121Ferrari Stud - 13543121SupersededOrder 13543124 instead
13543821Ferrari Stud M8 x 16 Gambo 40 - 13543821$4.54Special order, ships in 7-14 days
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1921985Ferrari Crankcase-Lower Crankcase Sh - 921985$16,225.51Contact us to order
2266366Ferrari Cylinder Sleeve D.94 - 266366$467.15Special order, ships in 7-14 days
3186251Ferrari O-Ring Cylinder Liner - 186251$4.56Available, ships in 3-6 days
4802590Ferrari Stud Bolt M14x2 - 802590$28.39Available, ships in 3-6 days
5185360Ferrari Centering Dowel - 185360$5.44Special order, ships in 7-14 days
6282753Ferrari Cover - Threaded Plug - 282753$13.09Special order, ships in 7-14 days
7208451Ferrari Cover - 208451$56.52Special order, ships in 7-14 days
8317312Ferrari Gasket - 317312$5.39Special order, ships in 7-14 days
9231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
10231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
11219283Ferrari Stud - 219283$27.03Special order, ships in 7-14 days
1211197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
1313547234Ferrari Stud 65mm - 13547234$30.57Special order, ships in 7-14 days
1413547034Ferrari Stud 55mm - 13547034$6.31Available, ships in 3-6 days
1513546934Ferrari Stud 50mm - 13546934$3.26Available, ships in 3-6 days
16100052Ferrari Centering Dowel - 100052$4.35Available, ships in 3-6 days
1713543824Ferrari Stud Bolt M8x16 -Shank length 40mm- - 13543824$6.31Available, ships in 3-6 days
18234002Ferrari Chain Cooling Nozzle - 234002$189.56Available, ships in 3-6 days
19137192Ferrari/Maserati O-Ring - 137192$1.25In stock
2013543124Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124$13.53Special order, ships in 7-14 days
21175611Ferrari Centering Dowel - 175611$3.26Available, ships in 3-6 days
22127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
2313516824Ferrari/Maserati Stud - 13516824$0.58In stock
24943980Ferrari Compl. Piston Cooling Jet - 943980$76.30Special order, ships in 7-14 days
25315493Ferrari Screw - 315493$2.13Special order, ships in 7-14 days
26200323Ferrari Rear Crankshaft Seal - 200323$43.13In stock
2713546834Ferrari Stud 45mm - 13546834$3.26Special order, ships in 7-14 days
28134704Ferrari O-Ring Gasket - 134704$0.27Available, ships in 3-6 days
29300580Ferrari Valve Holder Complete - 300580$442.56Special order, ships in 7-14 days
30154691Ferrari O-Ring - 154691$3.26Available, ships in 3-6 days
3113026924Ferrari Screw 6x14 - 13026924$0.57Available, ships in 3-6 days
32212592Ferrari Pump Drive Shaft - 212592$393.93Special order, ships in 7-14 days
33155996Ferrari Pump Bearing - 155996$20.55Special order, ships in 7-14 days
3411381076Ferrari Circlip - 11381076$3.26Available, ships in 3-6 days
35902208Ferrari Seeger Ring For Shaft - 902208$0.59Special order, ships in 7-14 days
36186272Ferrari O-Ring Seal - 186272$0.52Available, ships in 3-6 days
37184384Ferrari Pump Seal - 184384$61.52Available, ships in 3-6 days
38257379Ferrari Stud Bolt - 257379$24.05Available, ships in 3-6 days
39282401Ferrari Expansion Cap - 282401$59.07Special order, ships in 7-14 days
40187162Ferrari Oil Pump Filter - 187162$53.26Available, ships in 3-6 days
41103830Ferrari Heli Coil - 103830$5.00Available, ships in 3-6 days
4113525770Ferrari Heli-Coil - 13525770SupersededOrder 103830 instead
42231620Ferrari/Maserati Screw - 231620$0.58In stock
43214412Ferrari Stud Bolt - 214412$20.14Available, ships in 3-6 days
44104280Ferrari/Maserati Drain Plug Magnetic - 104280$12.75In stock
4510261860Ferrari Copper Washer - 10261860$1.42In stock
46112254Ferrari Heli Coil - 112254$7.84Available, ships in 3-6 days
47291925Ferrari Bracket - 291925$100.93Special order, ships in 7-14 days
48902180Ferrari Pin For Spring - 902180$13.76Special order, ships in 7-14 days
49282392Ferrari Screw 6x14 - 282392$0.96Available, ships in 3-6 days
