Ferrari Purosangue — [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD (diagram 0012)

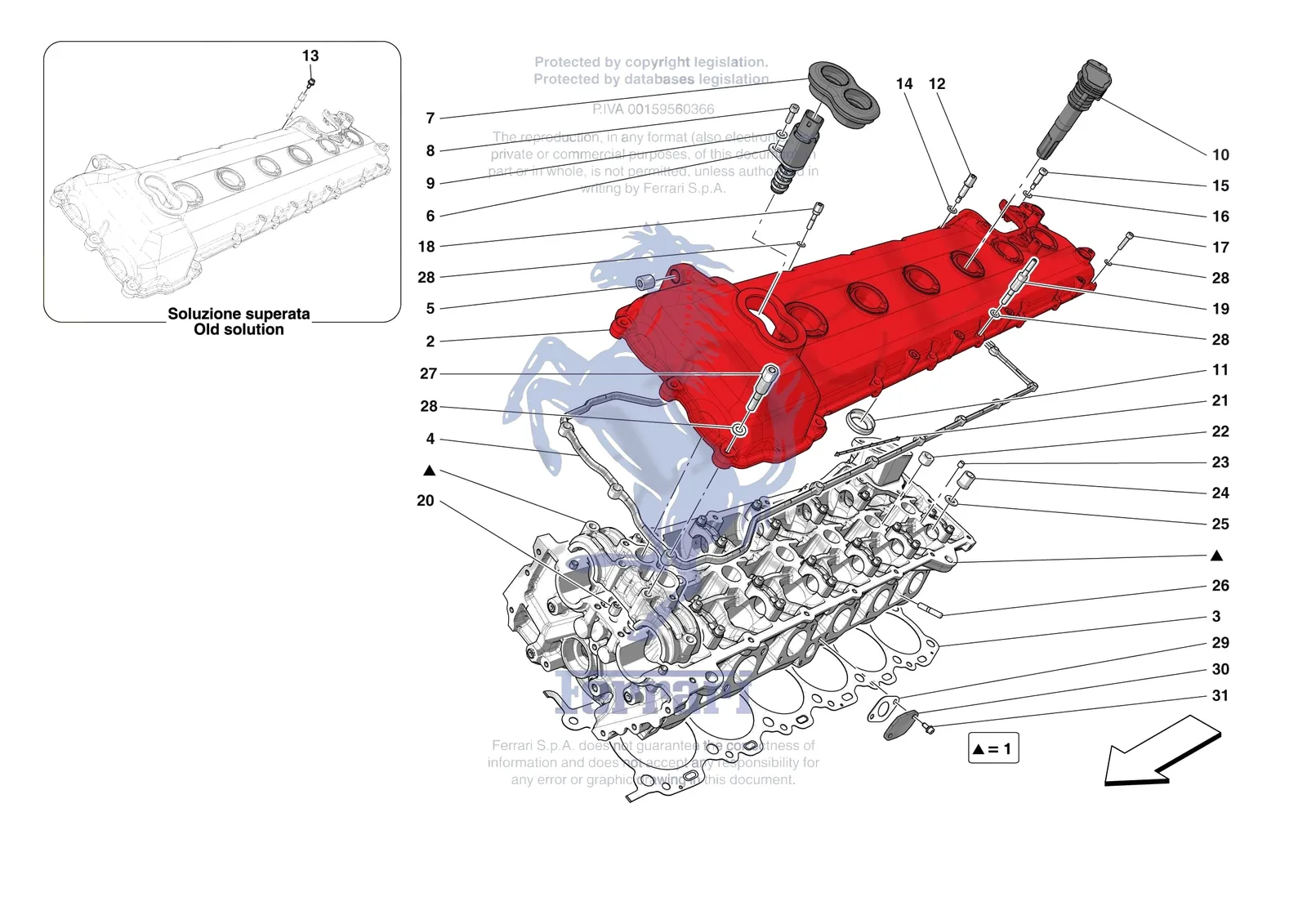

Exploded view of the [engine] - b.08.02 - cylinder heads - lh head on the Ferrari Purosangue, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0012.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 322682 | Ferrari Calibrated Stud Bolt - 322682 | Superseded | Order 333779 instead | |
| 248406 | Ferrari Ignition Coil - 248406 | Superseded | Order 772927 instead | |
| 290850 | Ferrari Ignition Coil - 290850 | Superseded | Order 772927 instead | |
| 337713 | Ferrari Ignition Coil - 337713 | Superseded | Order 772927 instead | |
| 317787 | Ferrari Lh Cylinder Head Cover - 317787 | Superseded | Order 816000 instead | |
| 243804 | Ferrari LH Cylinder Head Gasket - 243804 | Superseded | Order 324014 instead | |
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead | |
| 231359 | Ferrari Single Ignition Coil - 231359 | Superseded | Order 772927 instead | |
| 183447 | Ferrari Threaded Plug - 183447 | $18.48 | Available, ships in 3-6 days | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 949233 | Ferrari LH Head Assembly - 949233 | $7,351.58 | Special order, ships in 7-14 days |
| 2 | 816000 | Ferrari LH Cylinder Head Cover - 816000 | $1,819.49 | Special order, ships in 7-14 days |
| 3 | 324014 | Ferrari LH Head-Crankcase Gasket - 324014 | $442.56 | Special order, ships in 7-14 days |
| 4 | 243802 | Ferrari Valve Cover Gasket - Left - 243802 | $128.35 | In stock |
| 4 | AW3440000 | Ferrari Valve Cover Gasket Set - AW3440000 | $244.90 | In stock |
| 5 | 235754 | Ferrari Threaded Plug - 235754 | $12.77 | Available, ships in 3-6 days |
| 6 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 7 | 229353 | Ferrari Solenoid Valve Gasket - 229353 | $24.42 | In stock |
| 8 | 14304221 | Ferrari Screw 5X16 - 14304221 | $0.19 | Special order, ships in 7-14 days |
| 9 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 10 | 772927 | Ferrari Ignition Coil - 772927 | $120.98 | In stock |
| 11 | 223982 | Ferrari Spark Plug Tube Gasket - 223982 | $2.63 | In stock |
| 12 | 333779 | Ferrari Calibrated Stud Bolt - 333779 | $27.03 | Special order, ships in 7-14 days |
| 13 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 14 | 14499401 | Ferrari Washer - 14499401 | $0.54 | Available, ships in 3-6 days |
| 14 | 14499424 | Ferrari Washer - 14499424 | Superseded | Order 14499401 instead |
| 15 | 293278 | Ferrari Screw - 293278 | $30.57 | Available, ships in 3-6 days |
| 16 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 17 | 157218 | Ferrari Bolt M6 x 25 - 157218 | $1.17 | Available, ships in 3-6 days |
| 18 | 214412 | Ferrari Stud Bolt - 214412 | $20.14 | Available, ships in 3-6 days |
| 19 | 269228 | Ferrari Stud Bolt - 269228 | $12.86 | Available, ships in 3-6 days |
| 20 | 200458 | Ferrari/Maserati Non Return Valve - 200458 | $13.08 | In stock |
| 21 | 239614 | Ferrari Gasket - 239614 | $10.29 | Available, ships in 3-6 days |
| 22 | 127635 | Ferrari Threaded Plug M18 x 11 x 1.5 - 127635 | $6.75 | Available, ships in 3-6 days |
| 23 | 102725 | Ferrari/Maserati Dowel - 102725 | $2.79 | In stock |
| 24 | 183524 | Ferrari Cylinder Head Nut - 183524 | $6.75 | Special order, ships in 7-14 days |
| 25 | 136270 | Ferrari Washer - 136270 | $8.12 | Available, ships in 3-6 days |
| 26 | 211641 | Ferrari Exhaust Manifold Stud - 211641 | $2.00 | In stock |
| 27 | 208765 | Ferrari Stud Bolt - 208765 | $12.21 | Available, ships in 3-6 days |
| 28 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 29 | 202980 | Ferrari Gasket - 202980 | $4.89 | Available, ships in 3-6 days |
| 30 | 984306 | Ferrari Air Cap - 984306 | $36.86 | Special order, ships in 7-14 days |
| 31 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
