Ferrari Purosangue — [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS (diagram 0077)

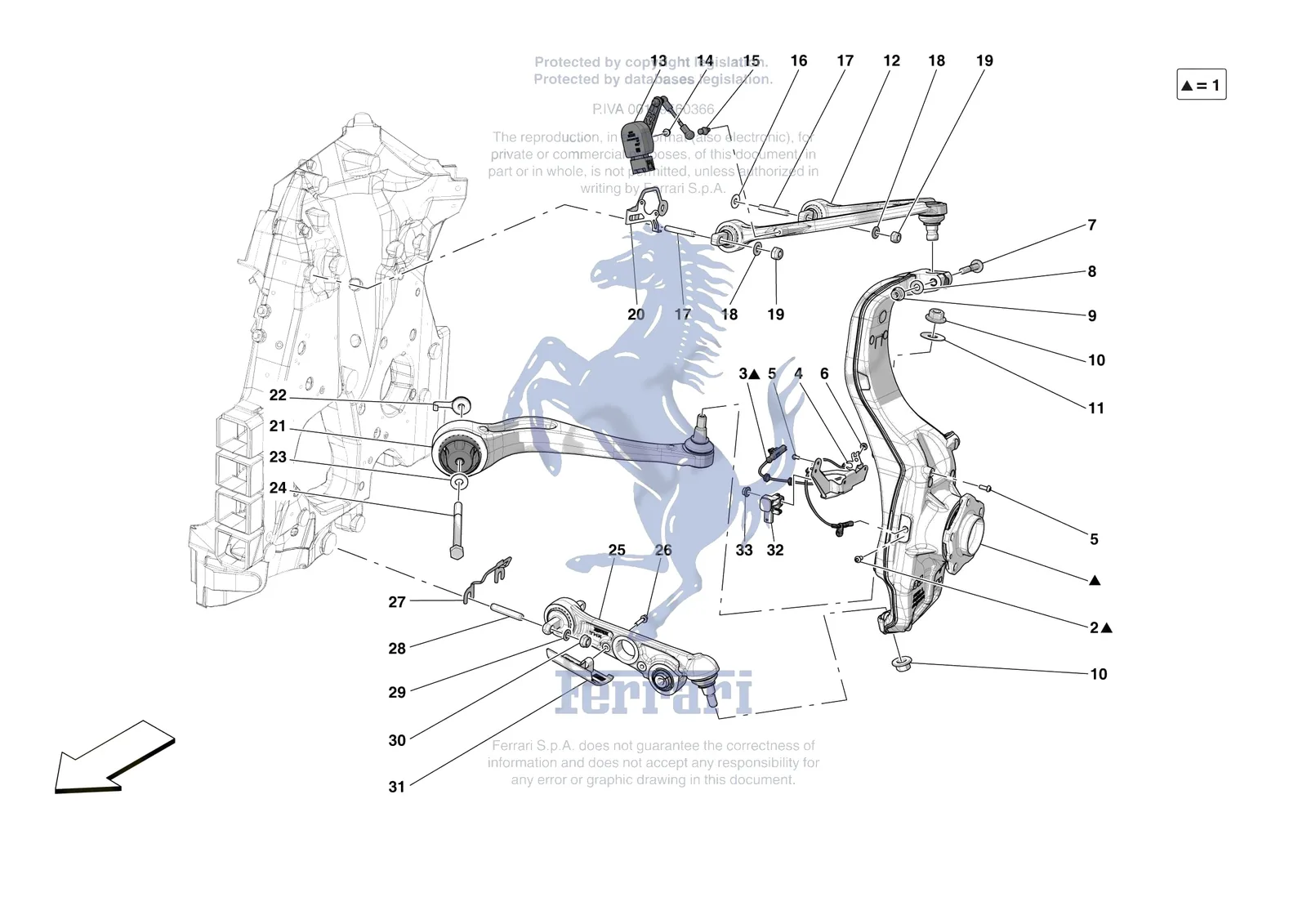

Exploded view of the [mechanical system] - d.25.02 - front suspension - arms on the Ferrari Purosangue, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1799945Ferrari Compl. LH Front Hub Carrier - 799945$5,527.17Available, ships in 3-6 days
1799949Ferrari Compl. RH Front Hub Carrier - 799949$5,527.17Available, ships in 3-6 days
3336025Ferrari ABS Sensor - 336025$120.18Special order, ships in 7-14 days
4881681Ferrari LH Front Brake Hose Fastener - 881681$88.61Special order, ships in 7-14 days
4881682Ferrari RH Front Brake Hose Fastener - 881682$88.61Special order, ships in 7-14 days
455012865Ferrari Staffa Fissa Flex Freno Ant - 55012865$179.73Special order, ships in 7-14 days
455013388Ferrari Staffa Fissa Flex Freno Ant - 55013388$179.73Special order, ships in 7-14 days
5250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
614040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
7986576Ferrari Screw - 986576$12.23Special order, ships in 7-14 days
812642524Ferrari Washer - 12642524$0.40Available, ships in 3-6 days
914058621Ferrari Flanged Nut M10 x 1.25 x 11.8 - 14058621$0.79Special order, ships in 7-14 days
10863632Ferrari Flanged Nut - M14 x 1.5 - 863632$9.62Available, ships in 3-6 days
11863832Ferrari Washer - 863832$3.03Special order, ships in 7-14 days
12746752Ferrari Compl. Upper LH Front Arm - 746752$2,040.14Available, ships in 3-6 days
12746754Ferrari Compl. Upper RH Front Arm - 746754$2,040.14Available, ships in 3-6 days
13934265Ferrari Compl. Travel Sensor - 934265$349.68Special order, ships in 7-14 days
1416284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
1416284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
15216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
1612646821Ferrari Washer D.10 20-25x2 - 12646821$0.19Available, ships in 3-6 days
17264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
1814496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
19104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
20952664Ferrari LH Front Sensor Bracket - 952664$51.67Special order, ships in 7-14 days
20952665Ferrari RH Front Sensor Bracket - 952665$51.67Special order, ships in 7-14 days
21862188Ferrari Compl. LH Front Comfort Rod - 862188$1,723.56Available, ships in 3-6 days
21862189Ferrari Compl. RH Front Comfort Rod - 862189$1,723.56Available, ships in 3-6 days
22917755Ferrari Cage - 917755$184.65Special order, ships in 7-14 days
2312646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
2416241434Ferrari Screw - 16241434$20.99Special order, ships in 7-14 days
25864182Ferrari Compl. LH Front Handling Rod - 864182$1,899.43Available, ships in 3-6 days
25864183Ferrari Compl. RH Front Handling Rod - 864183$1,899.43Available, ships in 3-6 days
26231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
27985786Ferrari Adjuster Shim - 985786$93.40Special order, ships in 7-14 days
27986488Ferrari Adjuster Shim - 986488$73.73Special order, ships in 7-14 days
27986489Ferrari Adjuster Shim - 986489$78.66Special order, ships in 7-14 days
27986491Ferrari Adjuster Shim - 986491$83.57Special order, ships in 7-14 days
27986492Ferrari Adjuster Shim - 986492$98.32Special order, ships in 7-14 days
27986493Ferrari Adjuster Shim - 986493$113.08Special order, ships in 7-14 days
27986494Ferrari Adjuster Shim - 986494$113.08Special order, ships in 7-14 days
27986495Ferrari Adjuster Shim - 986495$125.37Special order, ships in 7-14 days
28896438Ferrari Barra Filettata M12X1.25 L.6 - 896438$7.63Special order, ships in 7-14 days
2913507434Ferrari Flat Washer 12 - 13507434$2.59Special order, ships in 7-14 days
30102825Ferrari Locking Suspension Nut - 102825$1.10In stock
31905119Ferrari Deflector On LH Handling Arm - 905119$39.37Special order, ships in 7-14 days
31905139Ferrari Deflector On RH Handling Arm - 905139$39.37Special order, ships in 7-14 days
32991235Ferrari Acc. Sensor Pss2.32 Bosch 16 - 991235$113.79Special order, ships in 7-14 days
3314059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days

All Purosangue diagrams
