Ferrari Purosangue — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0082)

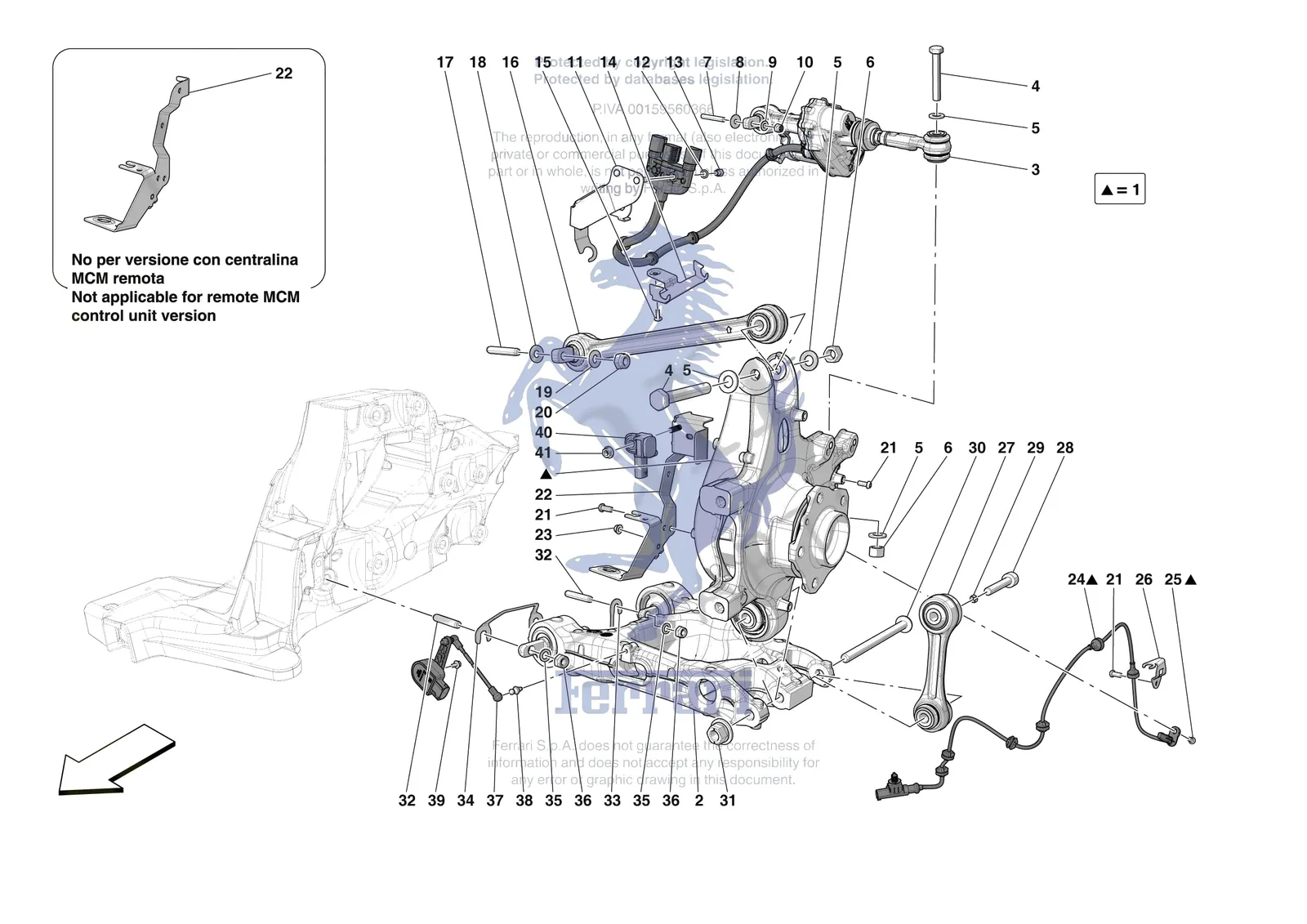

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari Purosangue, with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Purosangue [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
55080434Ferrari LH Actuator - 55080434$15,423.29Special order, ships in 7-14 days
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
190870Ferrari Screw 6x14 - 190870$4.10Special order, ships in 7-14 days
340274Ferrari Sensore Di Spostam. Anterior - 340274SupersededOrder 984045 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1800828Ferrari Compl. LH Rear Hub Carrier - 800828$4,157.69Available, ships in 3-6 days
1800829Ferrari Compl. RH Rear Hub Carrier - 800829$4,157.69Available, ships in 3-6 days
2971876Ferrari Compl. Lower LH Rear Arm - 971876$2,485.70Available, ships in 3-6 days
2971905Ferrari Compl. Lower RH Rear Arm - 971905$2,485.70Available, ships in 3-6 days
3950508Ferrari LH Actuator - 950508SupersededOrder 55080434 instead
3950509Ferrari RH Actuator - 950509$10,307.74Special order, ships in 7-14 days
415541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
514496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
6203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
7302406Ferrari Threaded Rod - 302406$4.77Special order, ships in 7-14 days
813578321Ferrari Washer D.8.15-24x2 - 13578321$1.04Available, ships in 3-6 days
914496524Ferrari Washer - 14496524$0.19Available, ships in 3-6 days
10104030Ferrari/Maserati Nut - 104030$0.88In stock
11859105Ferrari LH Rear Sensor Bracket - 859105$96.01Special order, ships in 7-14 days
11859109Ferrari RH Rear Sensor Bracket - 859109$96.01Special order, ships in 7-14 days
1212642724Ferrari Washer - 12642724$0.50Special order, ships in 7-14 days
13741924Ferrari Nut - 741924$17.90Special order, ships in 7-14 days
14833066Ferrari Actuator Cable Fastener Brac - 833066$71.38Special order, ships in 7-14 days
15269959Ferrari Screw - 269959$1.61In stock
16883878Ferrari Compl. Rear Upper Arm - 883878$763.27Available, ships in 3-6 days
17264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
18312826Ferrari Washer D. 10.20-25x1 - 312826$0.92Special order, ships in 7-14 days
1914496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
20104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
21250657Ferrari Screw M6 x 14 TBTX - 250657$13.36Available, ships in 3-6 days
22338394Ferrari LH Rear Joint Bracket - 338394$41.76Special order, ships in 7-14 days
22338395Ferrari RH Rear Joint Bracket - 338395$41.76Special order, ships in 7-14 days
2255013392Ferrari Staffa Giunzione Post.Dx Acc - 55013392$160.02Special order, ships in 7-14 days
2255012082Ferrari Staffa Giunzione Post.Sx Acc - 55012082$160.02Special order, ships in 7-14 days
2314040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
24336026Ferrari ABS Sensor - 336026$120.18Available, ships in 3-6 days
26942843Ferrari LH ABS Cable Bracket - 942843$6.61Special order, ships in 7-14 days
26942906Ferrari RH ABS Cable Bracket - 942906$6.61Special order, ships in 7-14 days
27259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
28238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
29222956Ferrari Compensator Ring 24x12 - 222956$20.76Available, ships in 3-6 days
30238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
31238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
32896438Ferrari Barra Filettata M12X1.25 L.6 - 896438$7.63Special order, ships in 7-14 days
33888754Ferrari Adjuster Shim - 888754$18.13Special order, ships in 7-14 days
33888755Ferrari Adjuster Shim - 888755$19.89Special order, ships in 7-14 days
33888756Ferrari Adjuster Shim - 888756$21.43Special order, ships in 7-14 days
33888757Ferrari Adjuster Shim - 888757$24.05Special order, ships in 7-14 days
33888758Ferrari Adjuster Shim - 888758$24.05Special order, ships in 7-14 days
33888759Ferrari Adjuster Shim - 888759$28.42Special order, ships in 7-14 days
33888760Ferrari Adjuster Shim - 888760$28.42Special order, ships in 7-14 days
33888761Ferrari Adjuster Shim - 888761$30.61Special order, ships in 7-14 days
34969297Ferrari Spacer 0.5mm - 969297$43.68Special order, ships in 7-14 days
34969298Ferrari Spacer 1.0mm - 969298$50.24Special order, ships in 7-14 days
34969299Ferrari Spacer 1.5mm - 969299$54.61Special order, ships in 7-14 days
34969296Ferrari Spacer 2.0mm - 969296$61.16Special order, ships in 7-14 days
34969300Ferrari Spacer 2.5mm - 969300$63.37Special order, ships in 7-14 days
34969301Ferrari Spacer 3.0mm - 969301$72.10Special order, ships in 7-14 days
34969302Ferrari Spacer 3.5mm - 969302$78.66Special order, ships in 7-14 days
34969303Ferrari Spacer 4.0mm - 969303$80.84Special order, ships in 7-14 days
3513507434Ferrari Flat Washer 12 - 13507434$2.59Special order, ships in 7-14 days
36102825Ferrari Locking Suspension Nut - 102825$1.10In stock
37984045Ferrari Compl. Front RH Motion Sensor - 984045$328.27Special order, ships in 7-14 days
38216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
3916284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
3916284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
40991235Ferrari Acc. Sensor Pss2.32 Bosch 16 - 991235$113.79Special order, ships in 7-14 days
4114059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
