Ferrari Purosangue — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0098)

Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari Purosangue, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

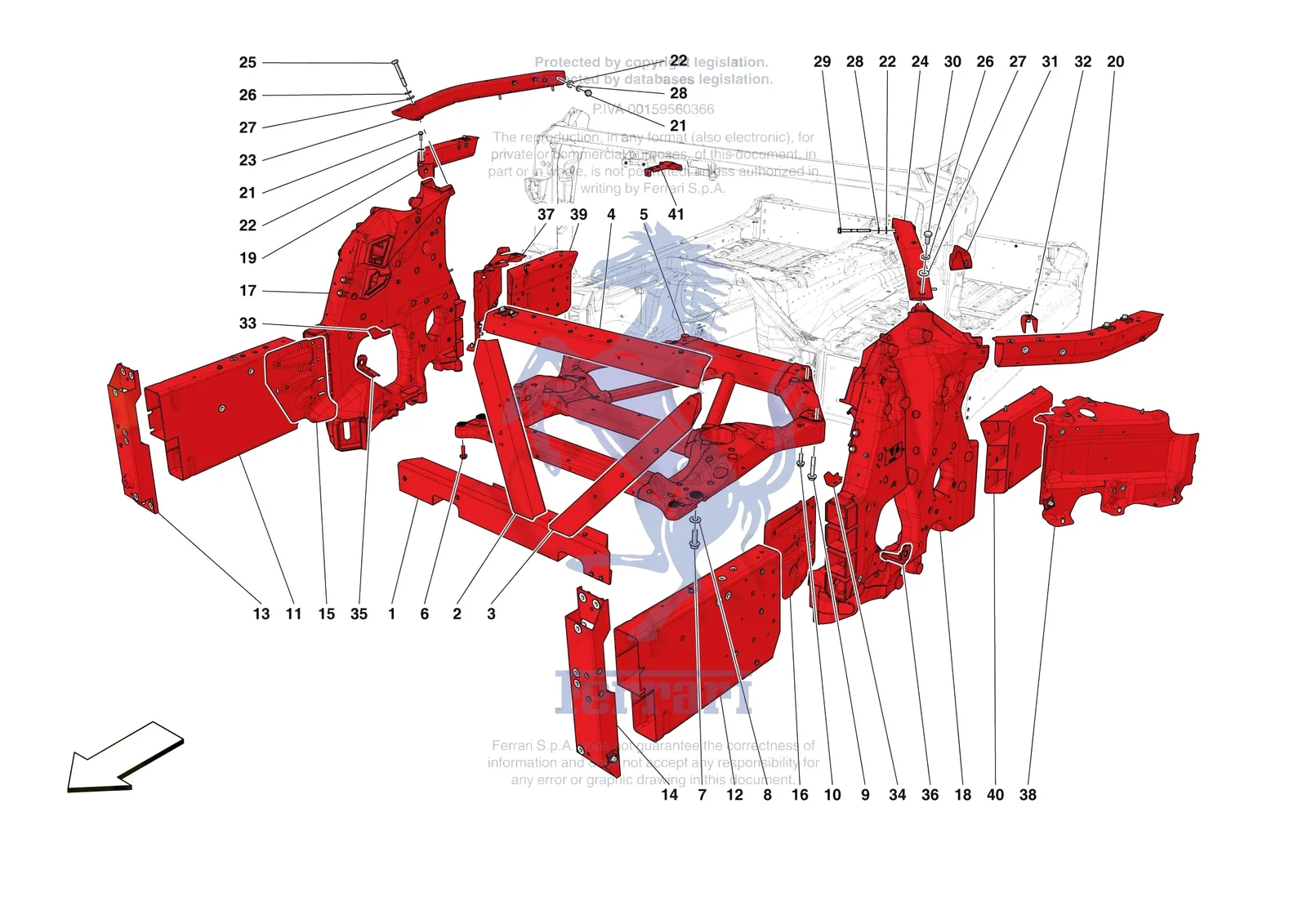

Ferrari Purosangue [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
1985789785Ferrari Compl. Front Cross Member - 985789785$2,298.08Special order, ships in 7-14 days
2985832076Ferrari Compl. RH Fst K-Brace - 985832076$1,501.96Special order, ships in 7-14 days
3985832074Ferrari Compl. LH Fst K-Brace - 985832074$1,501.96Special order, ships in 7-14 days
4985830466Ferrari COMPL. UPPER FRONT CROSS MEMBER - 985830466$1,899.43Special order, ships in 7-14 days
5985776884Ferrari Engine Subframe - 985776884$23,268.37Contact us to order
6277287Ferrari Screw M10 x 1.25 x 40 - 277287$32.76Available, ships in 3-6 days
7743432Ferrari Screw - 743432SupersededOrder 902545 instead
7902545Ferrari Screw - 902545$37.18Special order, ships in 7-14 days
810552324Ferrari Washer Dia 15X32 - 10552324$0.92Special order, ships in 7-14 days
9749854Ferrari Screw TE M12 x 1.25 x 75 with Washer - 749854$8.95Available, ships in 3-6 days
10749855Ferrari Screw - 749855$7.63Special order, ships in 7-14 days
11985822071Ferrari Compl. Front RH Strut - 985822071$2,321.54Special order, ships in 7-14 days
12985822069Ferrari Compl. Front LH Strut - 985822069$2,227.73Special order, ships in 7-14 days
13985844539Ferrari RH Front Crash Box Upright - 985844539$2,274.65Special order, ships in 7-14 days
14985844542Ferrari LH Front Crash Box Upright - 985844542$2,204.29Special order, ships in 7-14 days
15985822066Ferrari Compl. Front RH Strut Reinfo - 985822066$738.64Special order, ships in 7-14 days
16985822064Ferrari Compl. Front LH Strut Reinfo - 985822064$738.64Special order, ships in 7-14 days
17985780521Ferrari Compl. RH Fst - 985780521$14,177.93Contact us to order
18985780517Ferrari Compl. LH Fst - 985780517$14,177.93Contact us to order
19985797916Ferrari Compl. RH Upper External Dia - 985797916$1,822.04Special order, ships in 7-14 days
19985810780Ferrari Compl. RH Upper External Dia - 985810780$1,501.96Special order, ships in 7-14 days
20985797912Ferrari Compl. LH Upper External Dia - 985797912$1,551.20Special order, ships in 7-14 days
20985810779Ferrari Compl. LH Upper External Dia - 985810779$1,600.44Special order, ships in 7-14 days
2116287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days
2212646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
23985803472Ferrari RH UPPER INNER DIAGONAL BRACE - 985803472$1,723.56Special order, ships in 7-14 days
24985781738Ferrari LH UPPER INNER DIAGONAL BRACE - 985781738$1,723.56Special order, ships in 7-14 days
2515971334Ferrari Screw - 15971334$2.82Available, ships in 3-6 days
2611190574Ferrari Washer - 11190574$0.13Available, ships in 3-6 days
2712646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
2811194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days
2983743900Ferrari Screw M8 x 90 - 83743900$6.96Available, ships in 3-6 days
3015970734Ferrari Screw - 15970734$0.86Available, ships in 3-6 days
31781837Ferrari Compl. Internal Fastener Mou - 781837$120.62Special order, ships in 7-14 days
31772237Ferrari COMPL. INTERNAL FASTENER MOUNTING BRACKET - 772237Price on requestContact us for price and availability
32863947Ferrari Compl. Front Fastener Mounti - 863947$78.76Special order, ships in 7-14 days
33893152Ferrari Compl. RH Front Hose Bracket - 893152$135.39Special order, ships in 7-14 days
34892749Ferrari Compl. Front LH Hose Bracket - 892749$135.39Special order, ships in 7-14 days
35913977Ferrari RH Front Brake Hose Bracket - 913977$130.47Special order, ships in 7-14 days
36913971Ferrari LH Front Brake Hose Bracket - 913971$130.47Special order, ships in 7-14 days
37985822054Ferrari Compl. RH Lower Front Box - 985822054$1,649.69Special order, ships in 7-14 days
38985822052Ferrari Compl. LH Lower Front Box - 985822052$1,846.67Special order, ships in 7-14 days
39985822062Ferrari Compl. RH Apron - 985822062$2,345.00Special order, ships in 7-14 days
40985822061Ferrari Compl. LH Apron - 985822061$2,274.65Special order, ships in 7-14 days
41864094Ferrari Compl. Centre Surround Faste - 864094$152.62Special order, ships in 7-14 days
