Ferrari Purosangue — [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL (diagram 0101)

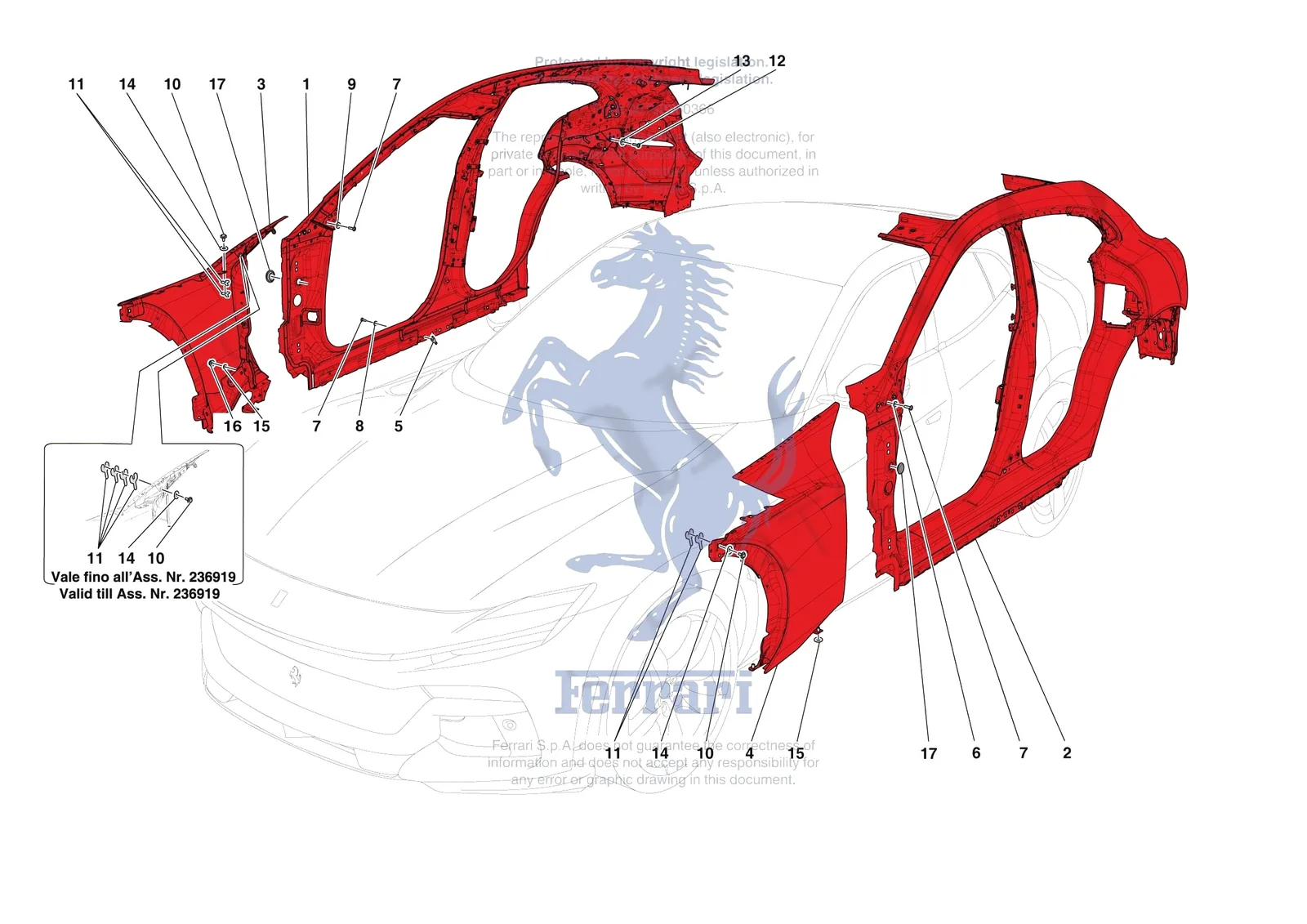

Exploded view of the [vehicle trim] - e.2 - lateral outer bodyshell on the Ferrari Purosangue, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0101.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days | |
| 1 | 985812401 | Ferrari RH Flank - 985812401 | $46,762.74 | Contact us to order |
| 2 | 985812389 | Ferrari LH Flank - 985812389 | $46,795.33 | Contact us to order |
| 3 | 985822797 | Ferrari Compl. RH Front Fender - 985822797 | $9,736.47 | Contact us to order |
| 3 | 985822816 | Ferrari Compl. RH Front Fender - 985822816 | $9,819.85 | Contact us to order |
| 4 | 985821630 | Ferrari Compl. LH Front Fender - 985821630 | $9,736.47 | Contact us to order |
| 4 | 985822812 | Ferrari Compl. LH Front Fender - 985822812 | $9,819.85 | Contact us to order |
| 5 | 887113 | Ferrari Shim - 887113 | $11.77 | Special order, ships in 7-14 days |
| 5 | 887114 | Ferrari Shim - 887114 | $12.52 | Special order, ships in 7-14 days |
| 6 | 12646727 | Ferrari Washer D. 8.45 X 20 X 2 - 12646727 | $0.40 | Available, ships in 3-6 days |
| 7 | 812752 | Ferrari Screw - 812752 | $11.14 | Special order, ships in 7-14 days |
| 8 | 87944700 | Ferrari Washer - 87944700 | $0.57 | Special order, ships in 7-14 days |
| 9 | 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead |
| 10 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 11 | 88187400 | Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400 | $8.82 | Special order, ships in 7-14 days |
| 11 | 88187600 | Ferrari Spessore Di Regolaz.Ant. Sp. - 88187600 | $8.82 | Special order, ships in 7-14 days |
| 12 | 16287234 | Ferrari SCREW - 16287234 | $1.05 | Available, ships in 3-6 days |
| 14 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 15 | 13578301 | Ferrari Washer - 13578301 | $0.17 | Special order, ships in 7-14 days |
| 16 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 16 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 17 | 14507887 | Ferrari Plug. - 14507887 | $4.14 | Special order, ships in 7-14 days |
