Ferrari Purosangue — [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE (diagram 0105)

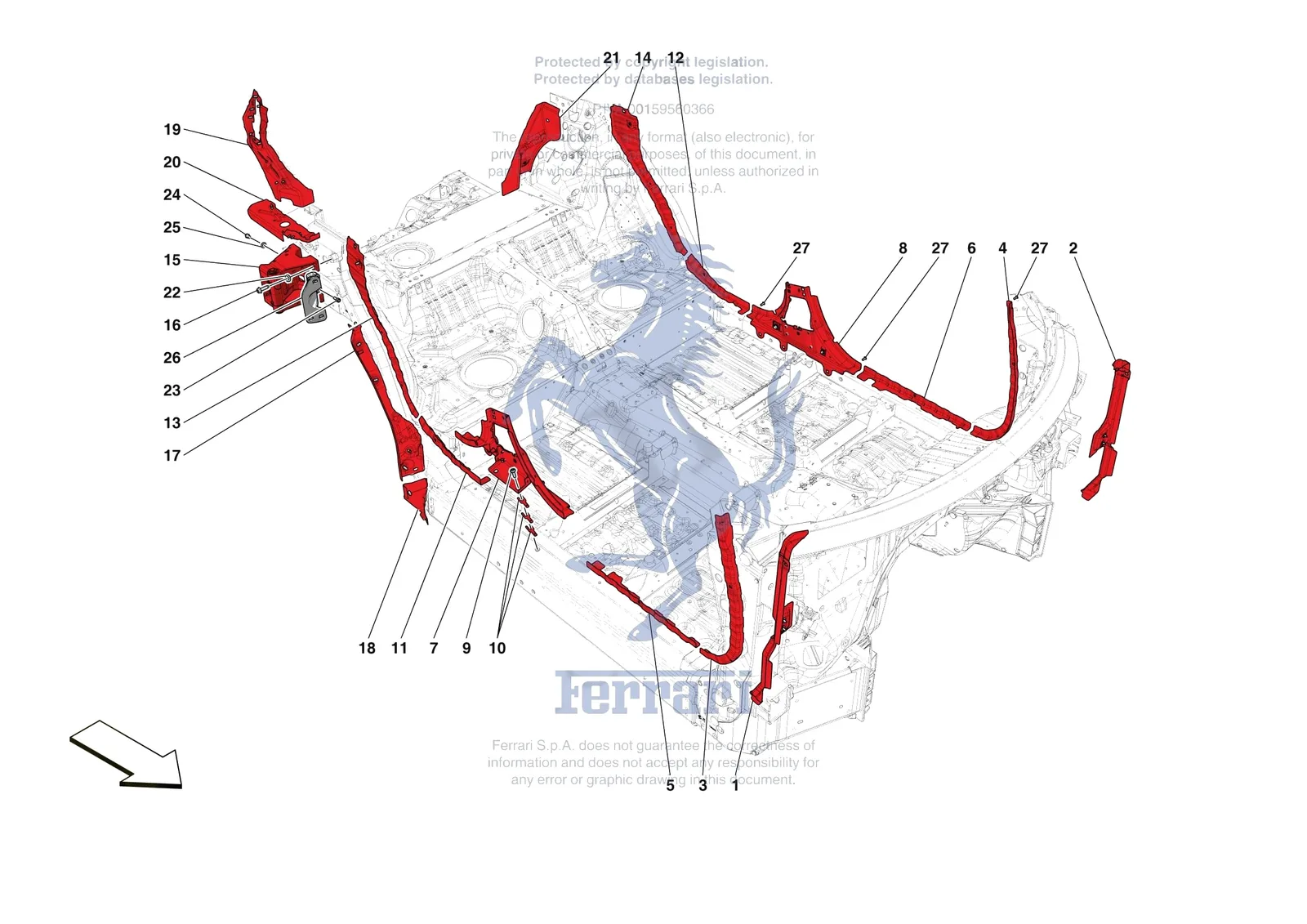

Exploded view of the [vehicle trim] - e.6 - lateral substructure on the Ferrari Purosangue, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Purosangue [VEHICLE TRIM] - E.6 - LATERAL SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/purosangue/0105.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 82505100 | Ferrari Screw - 82505100 | Superseded | Order 81267100 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days | |
| 1 | 985822561 | Ferrari Flangia Montante Dx. Cpl. Ca - 985822561 | $590.91 | Special order, ships in 7-14 days |
| 2 | 985822565 | Ferrari Flangia Montante Sx. Cpl. Ca - 985822565 | $590.91 | Special order, ships in 7-14 days |
| 3 | 985822553 | Ferrari Flangia Nodo Dx. Cataforizza - 985822553 | $164.95 | Special order, ships in 7-14 days |
| 4 | 985822543 | Ferrari Flangia Nodo Sx. Cataforizza - 985822543 | $164.95 | Special order, ships in 7-14 days |
| 5 | 985822567 | Ferrari Flangia Ant P-P1 Dx Catafori - 985822567 | $130.47 | Special order, ships in 7-14 days |
| 6 | 985822541 | Ferrari Flangia Ant P-P1 Sx Catafori - 985822541 | $130.47 | Special order, ships in 7-14 days |
| 7 | 985822554 | Ferrari Piede Montante B Dx. Cpl. Ca - 985822554 | $861.77 | Special order, ships in 7-14 days |
| 8 | 985822533 | Ferrari Piede Montante B Sx. Cpl. Ca - 985822533 | $861.77 | Special order, ships in 7-14 days |
| 9 | 812752 | Ferrari Screw - 812752 | $11.14 | Special order, ships in 7-14 days |
| 10 | 887113 | Ferrari Shim - 887113 | $11.77 | Special order, ships in 7-14 days |
| 10 | 887114 | Ferrari Shim - 887114 | $12.52 | Special order, ships in 7-14 days |
| 11 | 985822526 | Ferrari Controventatura Porta Dx. Ca - 985822526 | $152.62 | Special order, ships in 7-14 days |
| 12 | 985822558 | Ferrari Controventatura Porta Sx. Ca - 985822558 | $152.62 | Special order, ships in 7-14 days |
| 13 | 985845190 | Ferrari Controventatura Porta Post. - 985845190 | $238.82 | Special order, ships in 7-14 days |
| 14 | 985845184 | Ferrari Controventatura Porta Post. - 985845184 | $238.82 | Special order, ships in 7-14 days |
| 15 | 947484 | Ferrari LH Rear Door Hinge - 947484 | $2,087.03 | Special order, ships in 7-14 days |
| 15 | 947482 | Ferrari RH Rear Door Hinge - 947482 | $2,087.03 | Special order, ships in 7-14 days |
| 16 | 81267100 | Ferrari Screw M10 x 30 - 81267100 | $10.02 | Special order, ships in 7-14 days |
| 17 | 985822532 | Ferrari Supp. Fix Fiancata Ant. Sx. - 985822532 | $443.17 | Special order, ships in 7-14 days |
| 17 | 985822563 | Ferrari Supp. Fix. Fiancata Ant. Dx - 985822563 | $443.17 | Special order, ships in 7-14 days |
| 18 | 822564 | Ferrari LH Flank Completion Part - 822564 | $78.76 | Special order, ships in 7-14 days |
| 18 | 863072 | Ferrari RH Flank Completion Part - 863072 | $78.76 | Special order, ships in 7-14 days |
| 19 | 985822538 | Ferrari Chiusura Lat. Lato Baule Dx. - 985822538 | $517.04 | Special order, ships in 7-14 days |
| 20 | 985822540 | Ferrari Riporto Inferiore Post. Dx. - 985822540 | $270.83 | Special order, ships in 7-14 days |
| 20 | 985822544 | Ferrari Riporto Inferiore Post. Sx. - 985822544 | $270.83 | Special order, ships in 7-14 days |
| 21 | 985822535 | Ferrari Supporto Fix. Fiancata Post. - 985822535 | $393.93 | Special order, ships in 7-14 days |
| 22 | 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead |
| 23 | 877730 | Ferrari Screw - 877730 | $15.29 | Special order, ships in 7-14 days |
| 24 | 877740 | Ferrari Screw - 877740 | $7.63 | Special order, ships in 7-14 days |
| 25 | 877744 | Ferrari Washer - 877744 | $15.06 | Special order, ships in 7-14 days |
| 26 | 859200 | Ferrari Mobile LH Rear Door Hinge - 859200 | $1,797.43 | Special order, ships in 7-14 days |
| 26 | 859163 | Ferrari Mobile RH Rear Door Hinge - 859163 | $1,797.43 | Special order, ships in 7-14 days |
| 27 | 742352 | Ferrari Rivet - 742352 | $2.82 | Special order, ships in 7-14 days |
