Ferrari Purosangue — [VEHICLE TRIM] - E.42.01 - REAR BUMPER (diagram 0150)

Exploded view of the [vehicle trim] - e.42.01 - rear bumper on the Ferrari Purosangue, with 80 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

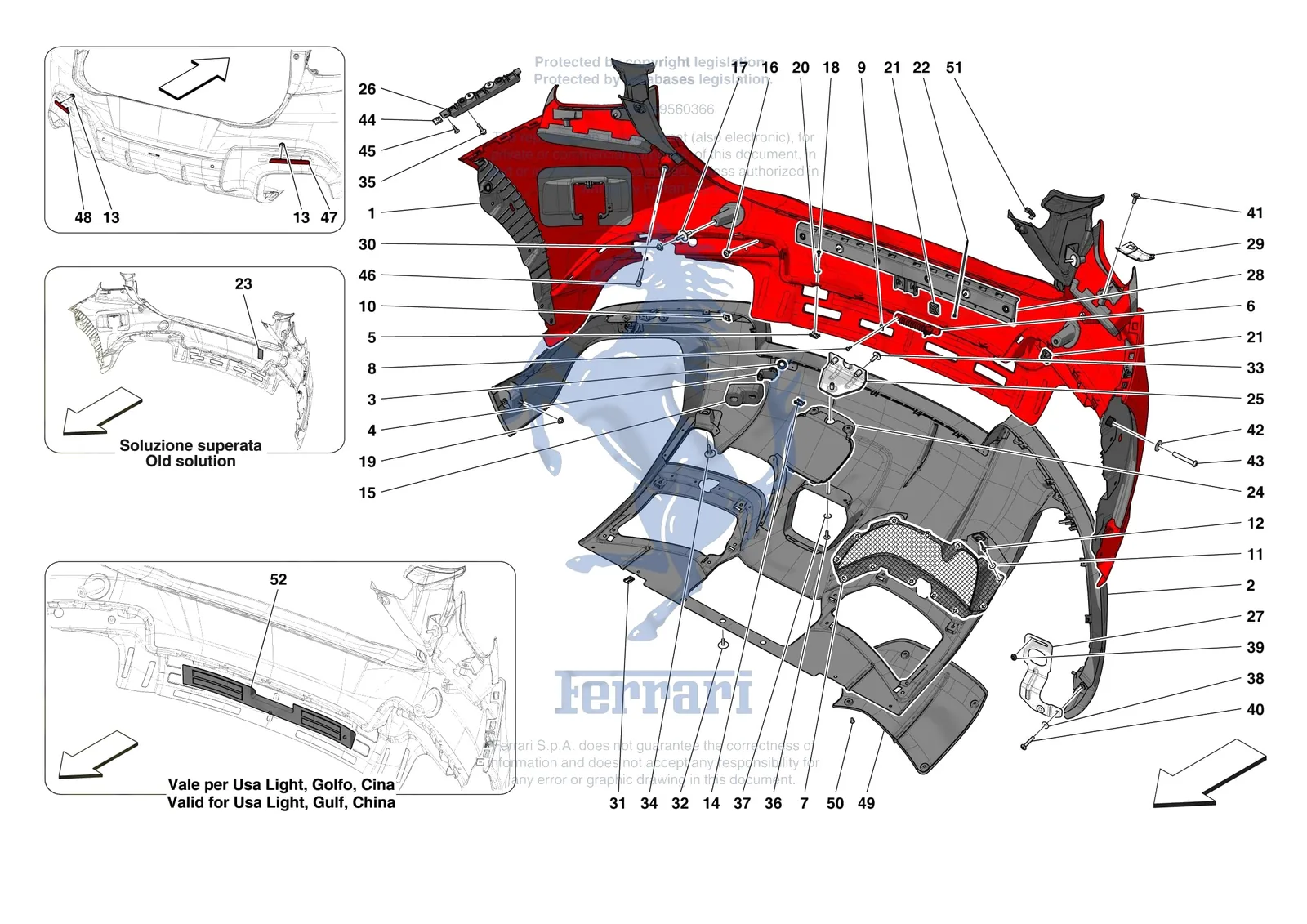

Ferrari Purosangue [VEHICLE TRIM] - E.42.01 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
85309700Ferrari Centre Heat Shield - 85309700$215.38Special order, ships in 7-14 days
89376900Ferrari Lid Surround Plug - 89376900SupersededOrder 772668 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
86141300Ferrari Screw - 86141300SupersededOrder 66294400 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
1955002996Ferrari Compl. Rear Bumper - 955002996$46,021.88Contact us to order
1985958029Ferrari Compl. Rear Bumper - 985958029$60,095.91Contact us to order
270007948Ferrari DIFFUSER - 70007948$22,937.07Contact us to order
270007949Ferrari Diffuser - 70007949$31,706.70Contact us to order
2957251Ferrari DIFFUSER - 957251Price on requestContact us to order
2958047Ferrari Diffuser - 958047$13,214.12Contact us to order
2958048Ferrari Diffuser - 958048$31,706.70Contact us to order
3770452Ferrari Silicone Ring - 770452$17.02Special order, ships in 7-14 days
4295361Ferrari Parking Sensor - 295361$80.91In stock
5788815Ferrari Plate For Screws - 788815$7.63Special order, ships in 7-14 days
6910850Ferrari Rear Fog Light - 910850$568.23Special order, ships in 7-14 days
770007950Ferrari LH LATERAL MESH - 70007950Price on requestContact us for price and availability
7884098Ferrari LH Lateral Mesh - 884098$700.35Special order, ships in 7-14 days
770007951Ferrari RH LATERAL MESH - 70007951Price on requestContact us for price and availability
7884102Ferrari RH Lateral Mesh - 884102$700.35Special order, ships in 7-14 days
886876400Ferrari Screw M4 x 14 TBEI - 86876400$15.49Special order, ships in 7-14 days
914370171Ferrari Screw Clip - 14370171$4.35Available, ships in 3-6 days
1087546600Ferrari Clip - 87546600$1.74Available, ships in 3-6 days
1113577778Ferrari Washer - 13577778$0.57Special order, ships in 7-14 days
12913424Ferrari Rivet - 913424$4.56Special order, ships in 7-14 days
1389241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
1484583500Ferrari Fastener clip - 84583500$2.59Available, ships in 3-6 days
1588135100Ferrari Centre Heat Shield - 88135100$174.55Special order, ships in 7-14 days
1666294400Ferrari Screw M6 x 12 TBFEI - 66294400$2.82Special order, ships in 7-14 days
17807298Ferrari Screw - 807298$30.57Special order, ships in 7-14 days
1914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
1915896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
2012642807Ferrari Washer - 12642807$0.63Special order, ships in 7-14 days
2182889700Ferrari Clip - 82889700$1.63Available, ships in 3-6 days
22145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
23179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
2470007952Ferrari CENTRE SURROUND - 70007952Price on requestContact us for price and availability
2470007953Ferrari CENTRE SURROUND - 70007953Price on requestContact us for price and availability
2470007954Ferrari CENTRE SURROUND - 70007954Price on requestContact us for price and availability
24941097Ferrari CENTRE SURROUND - 941097Price on requestContact us for price and availability
24821828Ferrari Compl. Centre Mesh Frame - 821828$1,938.52Special order, ships in 7-14 days
24839005Ferrari Compl. Centre Mesh Frame - 839005$4,917.22Special order, ships in 7-14 days
25883986Ferrari Compl. Centre Bracket Of Rea - 883986$78.76Special order, ships in 7-14 days
26883990Ferrari Compl. LH Side Mounting Bracket - 883990$36.92Special order, ships in 7-14 days
26883976Ferrari Compl. RH Side Mounting Bracket - 883976$36.92Special order, ships in 7-14 days
27883981Ferrari Compl. LH Lower Bracket Of R - 883981$66.45Special order, ships in 7-14 days
27883980Ferrari Compl. RH Lower Bracket Of R - 883980$66.45Special order, ships in 7-14 days
28884000Ferrari Compl. Centre Mounting Bracket - 884000$123.09Special order, ships in 7-14 days
29834780Ferrari LH Light Unit Bezel Bracket - 834780$34.44Special order, ships in 7-14 days
29834782Ferrari RH Light Unit Bezel Bracket - 834782$34.44Special order, ships in 7-14 days
3281290900Ferrari Screw With Double Washer - 81290900$1.42In stock
3381591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
3483442900Ferrari Body Screw - 83442900$1.51In stock
3516285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
3688004600Ferrari Screw 5x16 - 88004600$3.26Special order, ships in 7-14 days
3761148700Ferrari WASHER - 61148700SupersededOrder 12643724 instead
3712643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
3712643724Ferrari/Maserati Washer - 12643724$0.20In stock
3913046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
40925745Ferrari Screw M5 x 35 TBFTX - 925745$3.03Special order, ships in 7-14 days
41792394Ferrari Screw TE M6 x 18 - 792394$0.84Available, ships in 3-6 days
4268040000Ferrari Washer 6X20x2 - 68040000$0.27Available, ships in 3-6 days
4386495500Ferrari Screw M6 x 40 Torx T30 TBTX - 86495500$0.86Available, ships in 3-6 days
4588822200Ferrari Screw 4 x 10 - 88822200$1.30Special order, ships in 7-14 days
4610903424Ferrari Screw - 10903424$15.95Special order, ships in 7-14 days
47901262Ferrari RH Reflector - 901262$85.22Special order, ships in 7-14 days
48901263Ferrari LH Reflector - 901263$85.22Special order, ships in 7-14 days
4970007955Ferrari COMPL. LH LOWER CAP - 70007955$8,320.09Special order, ships in 7-14 days
4970007957Ferrari COMPL. LH LOWER CAP - 70007957Price on requestContact us for price and availability
49881073Ferrari Compl. LH Lower Cap - 881073$113.24Special order, ships in 7-14 days
49881938Ferrari Compl. LH Lower Cap - 881938$2,959.39Special order, ships in 7-14 days
4970007956Ferrari COMPL. RH LOWER CAP - 70007956Price on requestContact us for price and availability
4970007958Ferrari COMPL. RH LOWER CAP - 70007958Price on requestContact us for price and availability
49881072Ferrari Compl. RH Lower Cap - 881072$113.24Special order, ships in 7-14 days
49881941Ferrari Compl. RH Lower Cap - 881941$2,959.39Special order, ships in 7-14 days
5085692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
51772668Ferrari Boot Lid Carpet Surround Plug - 772668$2.93Special order, ships in 7-14 days
52883984Ferrari Rear Bumper Impact Absorber - 883984$145.25Special order, ships in 7-14 days
