Ferrari Roma Spider — [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE (diagram 0095)

Exploded view of the [vehicle trim] - e.01.01 - structures and elements front of vehicle on the Ferrari Roma Spider, with 70 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

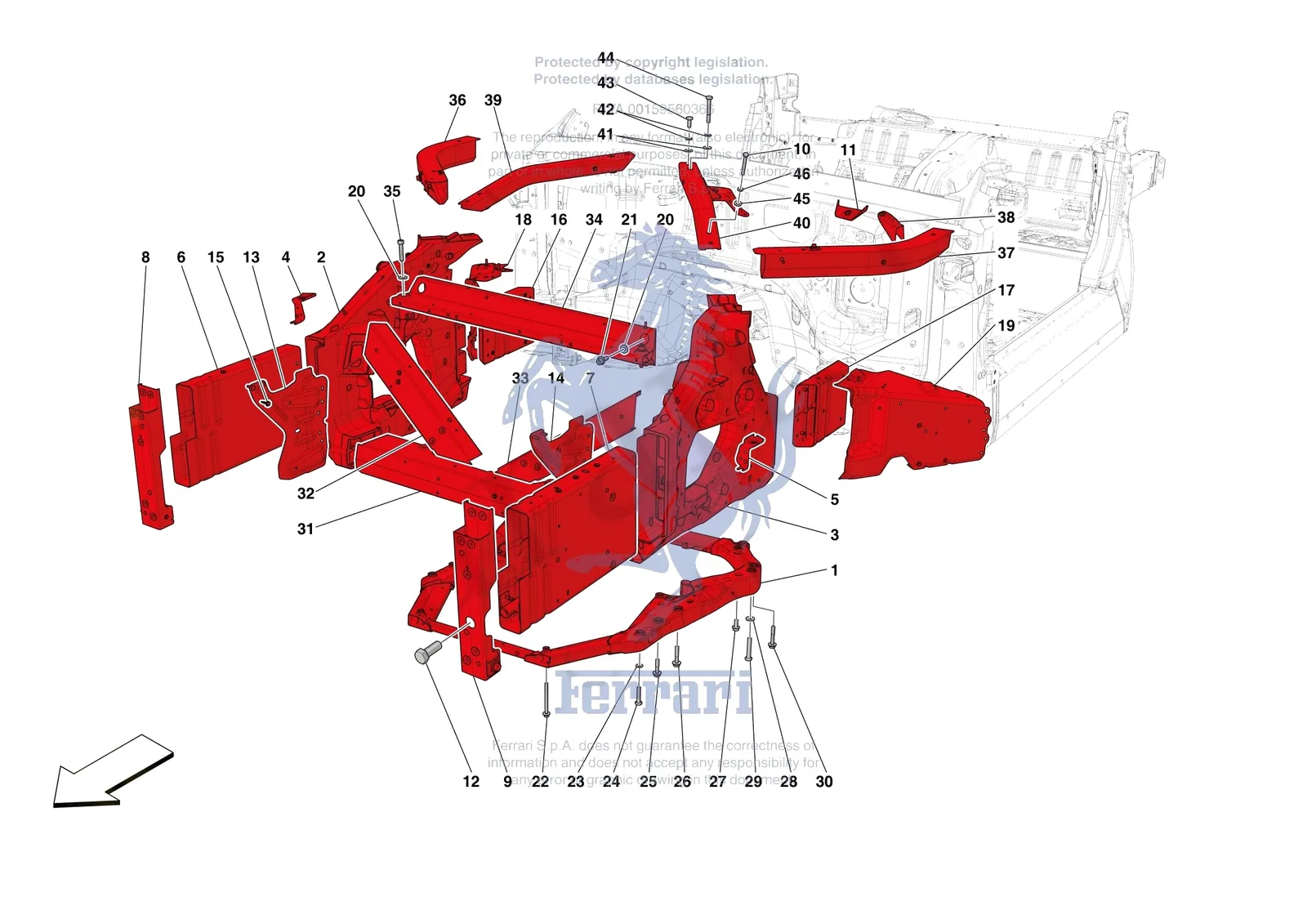

Ferrari Roma Spider [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14307924Ferrari Allen Screw 10x50 - 14307924SupersededOrder 14307934 instead
10413870Ferrari Belleville Washer - 10413870SupersededOrder 12646724 instead
985852070Ferrari Compl. LH Internal Upper Eng - 985852070SupersededOrder 985768622 instead
985335236Ferrari Compl. LH Lower Front Box - 985335236$1,639.98Special order, ships in 7-14 days
985339826Ferrari Compl. Strut Tower Connector - 985339826$1,591.03Special order, ships in 7-14 days
985337746Ferrari Front RH Strut - 985337746$1,864.95Special order, ships in 7-14 days
14307920Ferrari Screw - 14307920SupersededOrder 14307934 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12601570Ferrari Washer - 12601570SupersededOrder 12646724 instead
12601571Ferrari Washer - 12601571SupersededOrder 12646724 instead
12646721Ferrari Washer - 12646721SupersededOrder 12646724 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
14496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
128944Ferrari Washer D10.2-20 - 128944$3.68Available, ships in 3-6 days
1955045495Ferrari ENGINE SUBFRAME - 955045495$17,726.52Contact us to order
1985333845Ferrari Engine Subframe - 985333845$12,653.67Contact us to order
2985334831Ferrari Fst 2Wd RH - 985334831$31,904.42Contact us to order
2985806661Ferrari Fst 2Wd RH - 985806661$33,414.37Contact us to order
3985334829Ferrari Fst 2Wd LH - 985334829$31,904.42Contact us to order
4985786160Ferrari Front RH Hose Bracket - 985786160$517.04Special order, ships in 7-14 days
5985786159Ferrari Front LH Hose Bracket - 985786159$517.04Special order, ships in 7-14 days
6985910528Ferrari Compl. Front RH Strut - 985910528$2,063.59Special order, ships in 7-14 days
6985914086Ferrari Front RH Strut - 985914086$2,321.54Special order, ships in 7-14 days
7985880674Ferrari Compl. Front LH Strut - 985880674$1,946.33Special order, ships in 7-14 days
8985880404Ferrari Compl. RH Front Crash Box Up - 985880404$1,501.96Special order, ships in 7-14 days
9985880387Ferrari Compl. LH Front Crash Box Up - 985880387$1,403.46Special order, ships in 7-14 days
1016044634Ferrari Screw - 16044634$4.56Special order, ships in 7-14 days
11985963162Ferrari Bracket - 985963162$344.69Special order, ships in 7-14 days
11985852102Ferrari Windscreen Wiper Motor Mount - 985852102$320.06Special order, ships in 7-14 days
1211390521Ferrari Screw - 11390521$12.44Special order, ships in 7-14 days
13985900923Ferrari Compl. RH Strut Reinforcemen - 985900923$762.20Special order, ships in 7-14 days
14985900896Ferrari Compl. LH Strut Reinforcemen - 985900896$762.20Special order, ships in 7-14 days
15330777Ferrari Ejoform Fds M5X25 - 330777$8.72Special order, ships in 7-14 days
16985337754Ferrari Compl. RH Internal Centre En - 985337754$1,231.11Special order, ships in 7-14 days
17985337752Ferrari Compl. LH Internal Centre En - 985337752$1,231.11Special order, ships in 7-14 days
18985335235Ferrari Compl. RH Lower Front Box - 985335235$1,748.17Special order, ships in 7-14 days
19985803892Ferrari Compl. LH Lower Front Box - 985803892$2,298.08Special order, ships in 7-14 days
19985909545Ferrari Compl. LH Lower Front Box - 985909545$2,387.20Special order, ships in 7-14 days
2012642524Ferrari Washer - 12642524$0.40Available, ships in 3-6 days
2114307534Ferrari Screw M10 x 1.25 x 30 TCEI - 14307534$5.65Available, ships in 3-6 days
22749849Ferrari Screw TE M8 x 100 with Washer - 749849$4.12Available, ships in 3-6 days
2313550424Ferrari Washer - 13550424$0.31Available, ships in 3-6 days
2313550401Ferrari Washer 10.2-20x2 - 13550401$0.31Available, ships in 3-6 days
25299580Ferrari Screw TE M10 x 1.25 x 50 with Washer - 299580$4.77Available, ships in 3-6 days
26749853Ferrari Screw TE M10 x 1.25 x 60 with Washer - 749853$5.44Available, ships in 3-6 days
2716289834Ferrari Screw Flanged M12 x 1.25 x 30 - 16289834$2.82Available, ships in 3-6 days
2812646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
2915541234Ferrari Screw - 15541234$2.82Available, ships in 3-6 days
30749854Ferrari Screw TE M12 x 1.25 x 75 with Washer - 749854$8.95Available, ships in 3-6 days
31985338589Ferrari Lower Front Cross-Member - 985338589$2,087.03Special order, ships in 7-14 days
32985339709Ferrari RH K-Brace - 985339709$1,255.72Special order, ships in 7-14 days
33985339707Ferrari LH K-Brace - 985339707$1,231.11Special order, ships in 7-14 days
34985803870Ferrari Compl. Strut Tower Connector - 985803870$1,899.43Special order, ships in 7-14 days
3514307934Ferrari Allen Screw M10 x 1.25 x 50 - 14307934$6.54Special order, ships in 7-14 days
36985337371Ferrari Compl. RH Upper External Eng - 985337371$1,501.96Special order, ships in 7-14 days
36985803863Ferrari Compl. RH Upper External Eng - 985803863$1,946.33Special order, ships in 7-14 days
37985337370Ferrari Compl. LH Upper External Eng - 985337370$1,452.72Special order, ships in 7-14 days
37985803910Ferrari Compl. LH Upper External Eng - 985803910$1,899.43Special order, ships in 7-14 days
38985861525Ferrari Compl. LH Windscreen Wiper B - 985861525$418.56Special order, ships in 7-14 days
38985904418Ferrari RH Windscreen Wiper Bracket - 985904418$566.30Special order, ships in 7-14 days
39985339480Ferrari Compl. RH Internal Upper Eng - 985339480$1,378.85Special order, ships in 7-14 days
40985768622Ferrari Compl. LH Internal Upper Eng - 985768622$1,772.80Special order, ships in 7-14 days
40985804769Ferrari Compl. LH Internal Upper Eng - 985804769$1,723.56Special order, ships in 7-14 days
4112646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
4211190574Ferrari Washer - 11190574$0.13Available, ships in 3-6 days
4315970734Ferrari Screw - 15970734$0.86Available, ships in 3-6 days
4415971334Ferrari Screw - 15971334$2.82Available, ships in 3-6 days
4512646724Ferrari Washer 8.45-20x2 - 12646724$0.19Available, ships in 3-6 days
4611194074Ferrari Washer 8.6-16x1.9 - 11194074$0.08Available, ships in 3-6 days

All Roma Spider diagrams
