Ferrari Roma Spider — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari Roma Spider, with 94 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

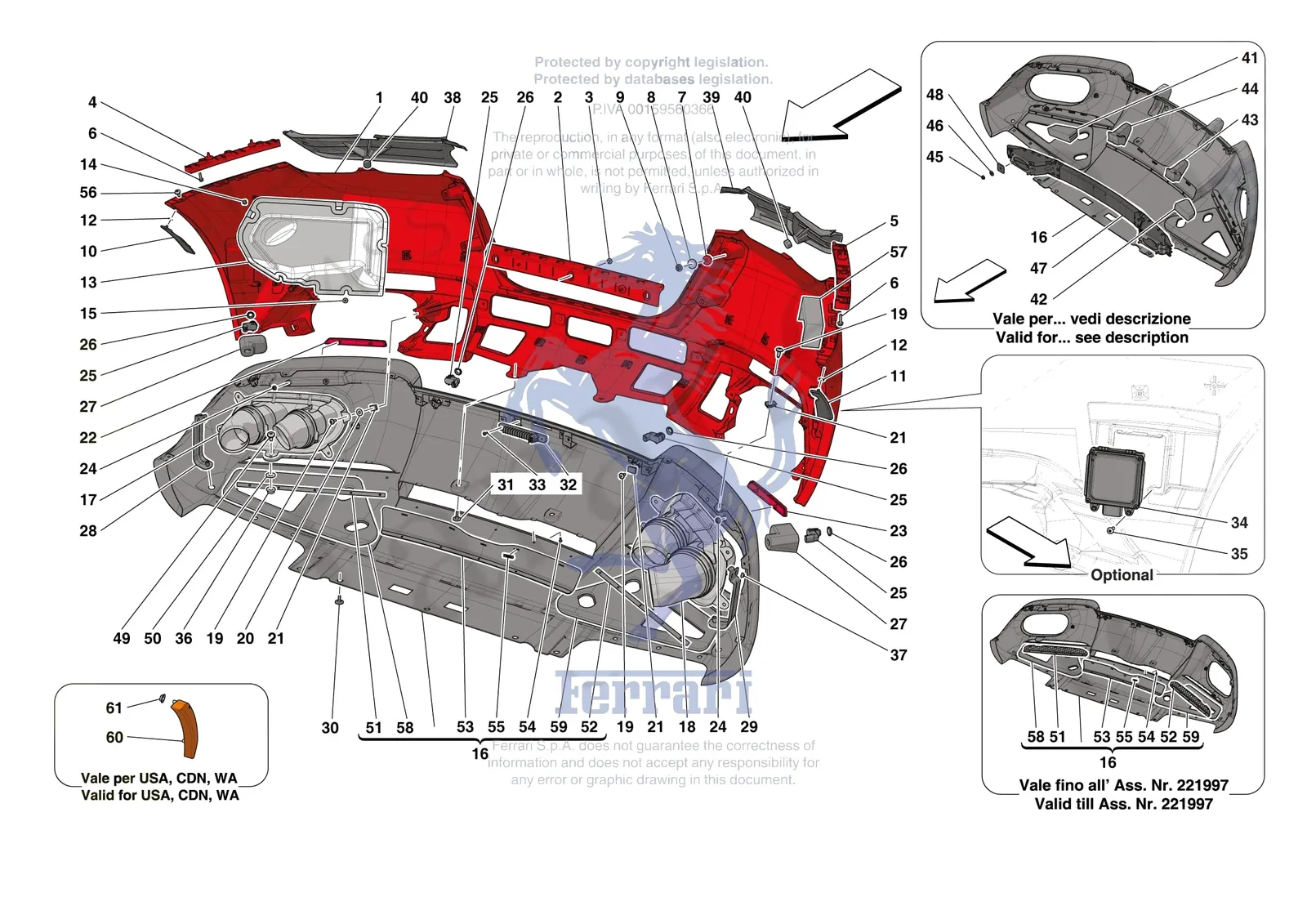

Ferrari Roma Spider [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
85309700Ferrari Centre Heat Shield - 85309700$215.38Special order, ships in 7-14 days
773335Ferrari Grigl.Termi.Opt Codini Neri - 773335SupersededOrder 880006 instead
773338Ferrari Grigl.Termi.Opt Codini Neri - 773338SupersededOrder 880008 instead
871119Ferrari Grigl.Termi.Opt Codini Neri - 871119SupersededOrder 880006 instead
871122Ferrari Grigl.Termi.Opt Codini Neri - 871122SupersededOrder 880008 instead
773322Ferrari Griglia Terminale Base Dx Cp - 773322SupersededOrder 877410 instead
871110Ferrari Griglia Terminale Base Dx Cp - 871110SupersededOrder 877410 instead
773318Ferrari Griglia Terminale Base Sx Cp - 773318SupersededOrder 877408 instead
871113Ferrari Griglia Terminale Base Sx Cp - 871113SupersededOrder 877408 instead
871117Ferrari Griglia Terminale Opt Dx Cpl - 871117SupersededOrder 880004 instead
773333Ferrari Griglia Terminale Opt Sx Cpl - 773333SupersededOrder 880002 instead
773334Ferrari Griglia Terminale Opt Sx Cpl - 773334SupersededOrder 880002 instead
871115Ferrari Griglia Terminale Opt Sx Cpl - 871115SupersededOrder 880002 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
1985812569Ferrari Compl. Rear Bumper - 985812569$6,401.87Contact us to order
1985832325Ferrari Compl. Rear Mesh - 985832325$6,561.32Special order, ships in 7-14 days
2977290Ferrari Complete Centre Mounting Bracket - 977290$41.76Special order, ships in 7-14 days
311625824Ferrari Screw 6x18 - 11625824$0.71Available, ships in 3-6 days
4978943Ferrari Complete RH Side Mounting Bracket - 978943$39.37Special order, ships in 7-14 days
5978929Ferrari Complete LH Side Mounting Bracket - 978929$39.37Special order, ships in 7-14 days
616285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
7807298Ferrari Screw - 807298$30.57Special order, ships in 7-14 days
8774877Ferrari Washer - 774877$1.82Special order, ships in 7-14 days
914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
10949104Ferrari RH Flick - 949104$14.26Special order, ships in 7-14 days
11949100Ferrari LH Flick - 949100$14.26Special order, ships in 7-14 days
1284784600Ferrari Washer For Pin - 84784600$43.68Special order, ships in 7-14 days
13901246Ferrari Protezione Canister - 901246$295.43Special order, ships in 7-14 days
1416285014Ferrari Screw - 16285014$3.47Available, ships in 3-6 days
1514039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
16780224Ferrari Compl. Carbon Rear Diffuser. - 780224$12,025.20Contact us to order
1670007119Ferrari COMPL. DIFFUSER - 70007119$25,121.60Contact us to order
1670007120Ferrari COMPL. DIFFUSER - 70007120Price on requestContact us to order
1670008201Ferrari COMPL. DIFFUSER - 70008201Price on requestContact us to order
1670008202Ferrari COMPL. DIFFUSER - 70008202Price on requestContact us to order
16820675Ferrari Compl. Diffuser - 820675$12,939.76Contact us to order
16820678Ferrari Compl. Diffuser - 820678$14,367.88Contact us to order
16812519Ferrari Complete Rear Diffuser - 812519$5,904.72Contact us to order
1770008203Ferrari COMPL. RH TERMINAL GRILLE - 70008203Price on requestContact us for price and availability
17880008Ferrari Grigl.Termi.Opt Codini Neri - 880008$5,782.78Special order, ships in 7-14 days
17877410Ferrari Griglia Terminale Base Dx Cp - 877410$2,274.65Special order, ships in 7-14 days
17880004Ferrari Griglia Terminale Opt Dx Cpl - 880004$3,531.56Special order, ships in 7-14 days
1870008204Ferrari COMPL. LH TERMINAL GRILLE - 70008204Price on requestContact us for price and availability
18880006Ferrari Grigl.Termi.Opt Codini Neri - 880006$5,782.78Special order, ships in 7-14 days
18877408Ferrari Griglia Terminale Base Sx Cp - 877408$2,274.65Special order, ships in 7-14 days
18880002Ferrari Griglia Terminale Opt Sx Cpl - 880002$3,531.56Special order, ships in 7-14 days
1982113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
2087547900Ferrari Washer - 87547900$1.99Special order, ships in 7-14 days
2180874300Ferrari Clip - 80874300$1.97Available, ships in 3-6 days
22901262Ferrari RH Reflector - 901262$85.22Special order, ships in 7-14 days
23901263Ferrari LH Reflector - 901263$85.22Special order, ships in 7-14 days
2489241300Ferrari Nut - 89241300$32.76Special order, ships in 7-14 days
25295361Ferrari Parking Sensor - 295361$80.91In stock
26770452Ferrari Silicone Ring - 770452$17.02Special order, ships in 7-14 days
2788135100Ferrari Centre Heat Shield - 88135100$174.55Special order, ships in 7-14 days
28901241Ferrari Complete RH Bumper Lateral Fixing Bracket - 901241$73.85Special order, ships in 7-14 days
29901248Ferrari Complete LH Bumper Lateral Fastener Bracket - 901248$73.85Special order, ships in 7-14 days
3083442900Ferrari Body Screw - 83442900$1.51In stock
32910850Ferrari Rear Fog Light - 910850$568.23Special order, ships in 7-14 days
3386876400Ferrari Screw M4 x 14 TBEI - 86876400$15.49Special order, ships in 7-14 days
34857446Ferrari Rear Radar - 857446$1,475.26Special order, ships in 7-14 days
3569396000Ferrari Screw M4 X 16 - 69396000$1.55Special order, ships in 7-14 days
3614059290Ferrari Flanged Nut M6 - 14059290$2.82Available, ships in 3-6 days
3613046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
38967985Ferrari RH Taillight Surround - 967985$590.91Special order, ships in 7-14 days
39967979Ferrari LH Taillight Surround - 967979$590.91Special order, ships in 7-14 days
40770173Ferrari Plug - 770173$3.41Special order, ships in 7-14 days
41958727Ferrari Rear Impact Absorber - 958727$98.46Special order, ships in 7-14 days
42958728Ferrari Rear Impact Absorber - 958728$98.46Special order, ships in 7-14 days
43922457Ferrari LH Retention Bracket Absorbe - 922457$98.46Special order, ships in 7-14 days
44922458Ferrari RH Retention Bracket Absorbe - 922458$98.46Special order, ships in 7-14 days
4513046214Ferrari Nut - 13046214$0.73Special order, ships in 7-14 days
4612642024Ferrari Washer - 12642024SupersededOrder 12642021 instead
47913706Ferrari Compl. Rear Cross Member - 913706$2,063.59Special order, ships in 7-14 days
4883072500Ferrari Gasket - 83072500$4.35Available, ships in 3-6 days
5170008205Ferrari LOWER RH GRILLE - 70008205Price on requestContact us for price and availability
51800558Ferrari RH Lower Grid - 800558$142.24Special order, ships in 7-14 days
5170008206Ferrari RH LOWER PLATE - 70008206Price on requestContact us for price and availability
51972226Ferrari RH Lower Plate - 972226$54.68Special order, ships in 7-14 days
52800556Ferrari LH Lower Grid - 800556$142.24Special order, ships in 7-14 days
5270008208Ferrari LH LOWER PLATE - 70008208Price on requestContact us for price and availability
52972224Ferrari LH Lower Plate - 972224$54.68Special order, ships in 7-14 days
5270008207Ferrari LOWER LH GRILLE - 70008207Price on requestContact us for price and availability
53800604Ferrari Central Low Grid - 800604$212.27Special order, ships in 7-14 days
5370008209Ferrari CENTRE GRILLE - 70008209Price on requestContact us for price and availability
5414642096Ferrari Rivet - 14642096$1.50Available, ships in 3-6 days
55787410Ferrari Clip - 787410$7.40Special order, ships in 7-14 days
5681591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
5681290900Ferrari Screw With Double Washer - 81290900$1.42In stock
57833652Ferrari Adhesive Foam - 833652$66.45Special order, ships in 7-14 days
58939064Ferrari RH Heat Shield - 939064$98.46Available, ships in 3-6 days
59938883Ferrari LH Heat Shield - 938883$98.46Special order, ships in 7-14 days
6087329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
6087329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days

All Roma Spider diagrams
