Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

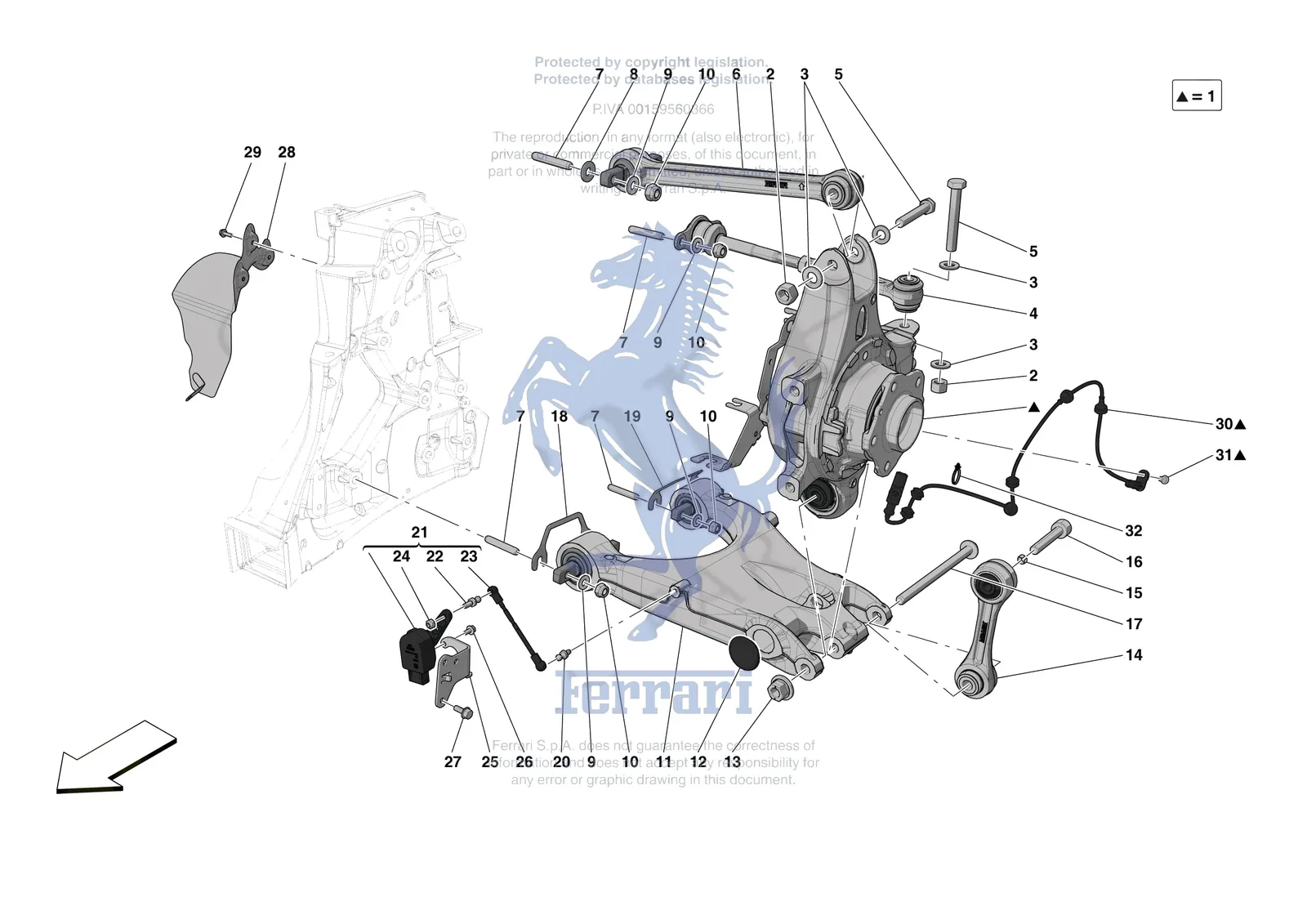

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari SF90 Spider, with 67 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
314774Ferrari LH Rear Lower Arm Complete - 314774SupersededOrder 911176 instead
329243Ferrari LH Rear Lower Arm Complete - 329243SupersededOrder 911176 instead
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
340271Ferrari Potentiometer Tie-Rod - 340271SupersededOrder 984044 instead
240662Ferrari Rear Support Lever Complete - 240662SupersededOrder 259687 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
259014Ferrari Rear Upper Arm - 259014SupersededOrder 259687 instead
314775Ferrari RH Rear Lower Arm Complete - 314775SupersededOrder 911175 instead
329244Ferrari RH Rear Lower Arm Complete - 329244SupersededOrder 911175 instead
765410Ferrari Sensore Di Spostam. Post Cpl - 765410$328.27Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1843923Ferrari Compl. LH Rear Hub Carrier - 843923$3,868.51Special order, ships in 7-14 days
1843963Ferrari Compl. RH Rear Hub Carrier - 843963$3,868.51Special order, ships in 7-14 days
2203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
314496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
4245161Ferrari Tie Rod Complete - 245161$301.17Available, ships in 3-6 days
515541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
6259687Ferrari Rear Upper Arm Complete - 259687$688.45Special order, ships in 7-14 days
7264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
812646821Ferrari Washer D.10 20-25x2 - 12646821$0.19Available, ships in 3-6 days
914496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
10104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
11896443Ferrari Compl. LH Rear Lower Arm - 896443SupersededOrder 911176 instead
11911176Ferrari Compl. LH Rear Lower Arm - 911176$1,745.74Special order, ships in 7-14 days
11896445Ferrari Compl. RH Rear Lower Arm - 896445SupersededOrder 911175 instead
11911175Ferrari Compl. RH Rear Lower Arm - 911175$1,745.74Special order, ships in 7-14 days
1214507987Ferrari Rubber Plug - 14507987$3.85In stock
13238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
14259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
15222956Ferrari Compensator Ring 24x12 - 222956$20.76Available, ships in 3-6 days
16238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
17238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
18262544Ferrari Camber Spacer 0.5mm - 262544$18.36Special order, ships in 7-14 days
18262545Ferrari Camber Spacer 1.0mm - 262545$18.32Special order, ships in 7-14 days
18262546Ferrari Camber Spacer 1.5mm - 262546$18.32Special order, ships in 7-14 days
18262539Ferrari Camber Spacer 2.0mm - 262539$18.32Special order, ships in 7-14 days
18262540Ferrari Camber Spacer 2.5mm - 262540$18.32Special order, ships in 7-14 days
18262541Ferrari Camber Spacer 3.0mm - 262541$18.32Special order, ships in 7-14 days
18262542Ferrari Camber Spacer 3.5mm - 262542$18.32Available, ships in 3-6 days
18262543Ferrari Camber Spacer 4.0mm - 262543$18.32Special order, ships in 7-14 days
19333339Ferrari Camber Adjustment Shim - 333339$7.19Special order, ships in 7-14 days
19333340Ferrari Camber Adjustment Shim - 333340$8.72Special order, ships in 7-14 days
19333341Ferrari Camber Adjustment Shim - 333341$11.12Available, ships in 3-6 days
19333342Ferrari Camber Adjustment Shim - 333342$13.30Special order, ships in 7-14 days
19333343Ferrari Camber Adjustment Shim - 333343$15.49Special order, ships in 7-14 days
19333338Ferrari Distanziale Regolaz. Camber - 333338$6.31Special order, ships in 7-14 days
19333344Ferrari Distanziale Regolaz. Camber - 333344$17.67Special order, ships in 7-14 days
19333345Ferrari Distanziale Regolaz. Camber - 333345$19.86Special order, ships in 7-14 days
20216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
21984051Ferrari Sensore Di Spostam. Post Cpl - 984051$305.96Special order, ships in 7-14 days
22340273Ferrari Ball Joint - 340273$88.49Special order, ships in 7-14 days
23984044Ferrari Potentiometer Tie-Rod - 984044$270.44Special order, ships in 7-14 days
24814254Ferrari Nut - 814254$1.23Special order, ships in 7-14 days
25831081Ferrari LH Bracket - Rear Motion Sensor - 831081$34.40Special order, ships in 7-14 days
25831082Ferrari RH Bracket - Rear Motion Sensor - 831082$34.40Special order, ships in 7-14 days
2616284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2616284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
2716286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
28871830Ferrari Riparo Cuffia Semiasse - 871830$76.30Special order, ships in 7-14 days
28934592Ferrari Riparo Cuffia Semiasse Post - 934592$135.39Special order, ships in 7-14 days
2916285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
30336026Ferrari ABS Sensor - 336026$120.18Available, ships in 3-6 days
32145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
