Ferrari SF90 Stradale — [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE (diagram 0192)

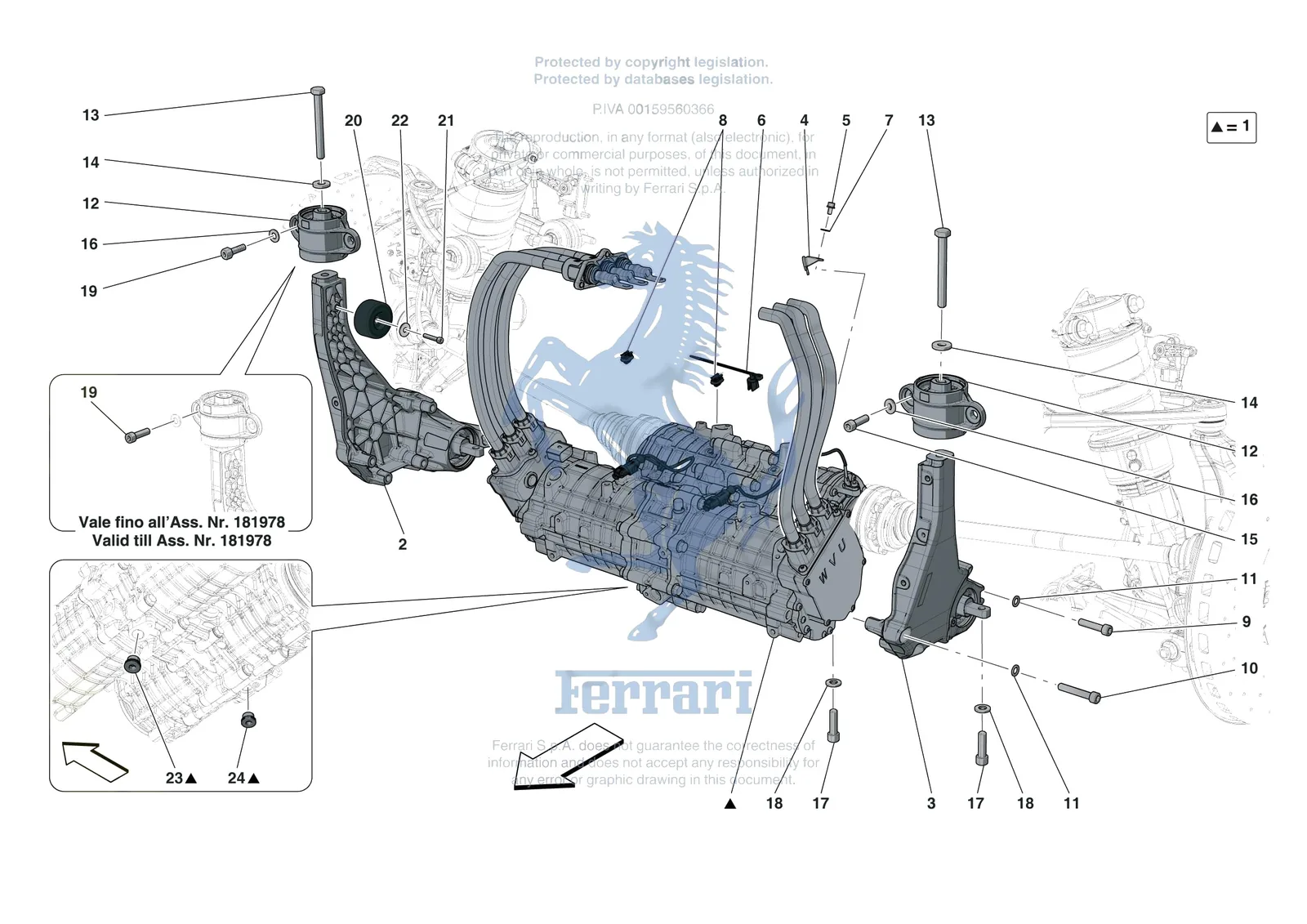

Exploded view of the [electrical system] - f.17 - electric axle on the Ferrari SF90 Stradale, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0192.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 749793 | Ferrari Compl. Electric Front AXLe - 749793 | Superseded | Order 810982 instead |
| 1 | 788764 | Ferrari Compl. Electric Front AXLe - 788764 | Superseded | Order 810982 instead |
| 1 | 801852 | Ferrari Compl. Electric Front AXLe - 801852 | Superseded | Order 810982 instead |
| 1 | 810982 | Ferrari Compl. Electric Front Axle - 810982 | $35,825.70 | Special order, ships in 7-14 days |
| 1 | 980090 | Ferrari Compl. Electric Front AXLe - 980090 | Superseded | Order 810982 instead |
| 1 | 826701 | Ferrari Complete Electric Front Axle - 826701 | Superseded | Order 810982 instead |
| 2 | 855216 | Ferrari Complete RH Axle Carrier - 855216 | $1,034.12 | Special order, ships in 7-14 days |
| 2 | 809587 | Ferrari CPL. RH Axle Carrier - 809587 | $1,083.38 | Special order, ships in 7-14 days |
| 3 | 809588 | Ferrari Compl. LH AXLe Carrier - 809588 | $1,083.38 | Special order, ships in 7-14 days |
| 3 | 855214 | Ferrari Complete LH Axle Carrier - 855214 | $1,034.12 | Special order, ships in 7-14 days |
| 4 | 895886 | Ferrari LH Speed Sensor Cable Bracke - 895886 | $23.12 | Special order, ships in 7-14 days |
| 5 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 6 | 896301 | Ferrari Raymond Clip - 896301 | $6.98 | Special order, ships in 7-14 days |
| 7 | 13579224 | Ferrari Washer - 13579224 | $0.65 | Available, ships in 3-6 days |
| 8 | 896514 | Ferrari Clip Raymond Per Connetto - 896514 | $0.82 | Special order, ships in 7-14 days |
| 9 | 14307834 | Ferrari Allen Screw 10x1.25x45 - 14307834 | $12.88 | Available, ships in 3-6 days |
| 10 | 14308134 | Ferrari Screw - 14308134 | $5.65 | Special order, ships in 7-14 days |
| 11 | 12648324 | Ferrari Flat Washer D. 10.2-17X - 12648324 | $2.61 | Special order, ships in 7-14 days |
| 12 | 818998 | Ferrari Compl. Upper Bushing Mount - 818998 | $664.78 | Special order, ships in 7-14 days |
| 13 | 15541734 | Ferrari Hex Head Screw M 12X1.25X110 - 15541734 | $7.86 | Special order, ships in 7-14 days |
| 13 | 16241234 | Ferrari Hex Head Screw M 12X1.25X110 - 16241234 | Superseded | Order 15541734 instead |
| 14 | 12648524 | Ferrari Washer - 12648524 | $1.09 | Available, ships in 3-6 days |
| 15 | 14307634 | Ferrari Allen Head Bolt M10X1.25X35 - 14307634 | $2.13 | Special order, ships in 7-14 days |
| 16 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 17 | 14331324 | Ferrari Allen Head Bolt M 12X1.25X40 - 14331324 | $4.14 | Special order, ships in 7-14 days |
| 18 | 13550524 | Ferrari Flat Washer D 12.2X24X - 13550524 | $0.50 | Special order, ships in 7-14 days |
| 19 | 850748 | Ferrari Colonnetta M10X35(M) M6X13(F - 850748 | $51.67 | Special order, ships in 7-14 days |
| 19 | 810196 | Ferrari Stud Bolt - 810196 | Price on request | Contact us for price and availability |
| 20 | 799934 | Ferrari Damper - 799934 | Superseded | Order 857399 instead |
| 20 | 857399 | Ferrari Damper - 857399 | $201.88 | Special order, ships in 7-14 days |
| 21 | 14306731 | Ferrari Screw TCEI M8 x 1.25 x 40 - 14306731 | $1.92 | Available, ships in 3-6 days |
| 22 | 12642021 | Ferrari Washer - 12642021 | $1.30 | Available, ships in 3-6 days |
| 22 | 12642024 | Ferrari Washer - 12642024 | Superseded | Order 12642021 instead |
| 23 | 746960 | Ferrari Magnetic Plug M18X1.5 - 746960 | $110.78 | Special order, ships in 7-14 days |
| 24 | 746961 | Ferrari Threaded Plug M18X1.5 - 746961 | $86.15 | Special order, ships in 7-14 days |
