Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH (diagram 0048)

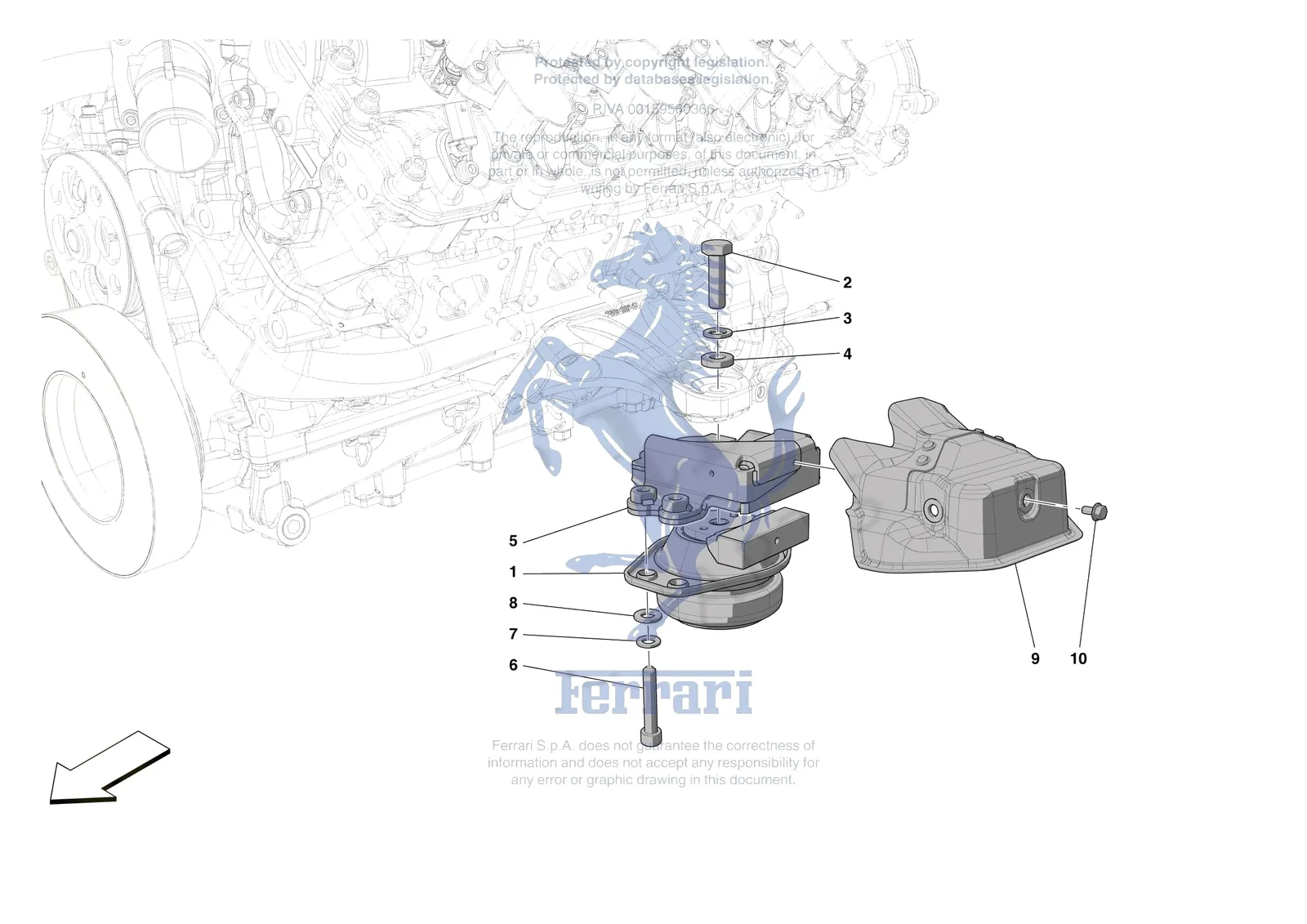

Exploded view of the [mechanical system] - d.01 - engine suspension bush on the Ferrari SF90 XX Spider, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.01 - ENGINE SUSPENSION BUSH exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0048.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 800836 | Ferrari Complete RH Engine Mounting Bush - 800836 | $714.03 | Special order, ships in 7-14 days |
| 1 | 800309 | Ferrari Part Search Results - 800309 | $709.82 | Special order, ships in 7-14 days |
| 2 | 11112834 | Ferrari Screw 12X1.75X40 - 11112834 | $3.26 | Available, ships in 3-6 days |
| 3 | 127498 | Ferrari Spring Washer 12mm - 127498 | $0.27 | Available, ships in 3-6 days |
| 4 | 10738021 | Ferrari Washer - 10738021 | Superseded | Order 13550521 instead |
| 4 | 13550521 | Ferrari Washer - 13550521 | $0.96 | Available, ships in 3-6 days |
| 5 | 979418 | Ferrari LH Engine Mount Limiter Bracket - 979418 | $344.69 | Special order, ships in 7-14 days |
| 5 | 979417 | Ferrari RH Engine Mount Limiter Bracket - 979417 | $344.69 | Special order, ships in 7-14 days |
| 6 | 14308034 | Ferrari Allen Head Bolt M 10X1.25X 55 - 14308034 | $3.91 | Special order, ships in 7-14 days |
| 7 | 127497 | Ferrari Spring Washer 10mm - 127497 | $0.69 | In stock |
| 8 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 9 | 921443 | Ferrari Paratia Protezione Tamponi - 921443 | $182.18 | Special order, ships in 7-14 days |
| 10 | 16284914 | Ferrari Screw - 16284914 | $1.17 | Available, ships in 3-6 days |
