Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS (diagram 0080)

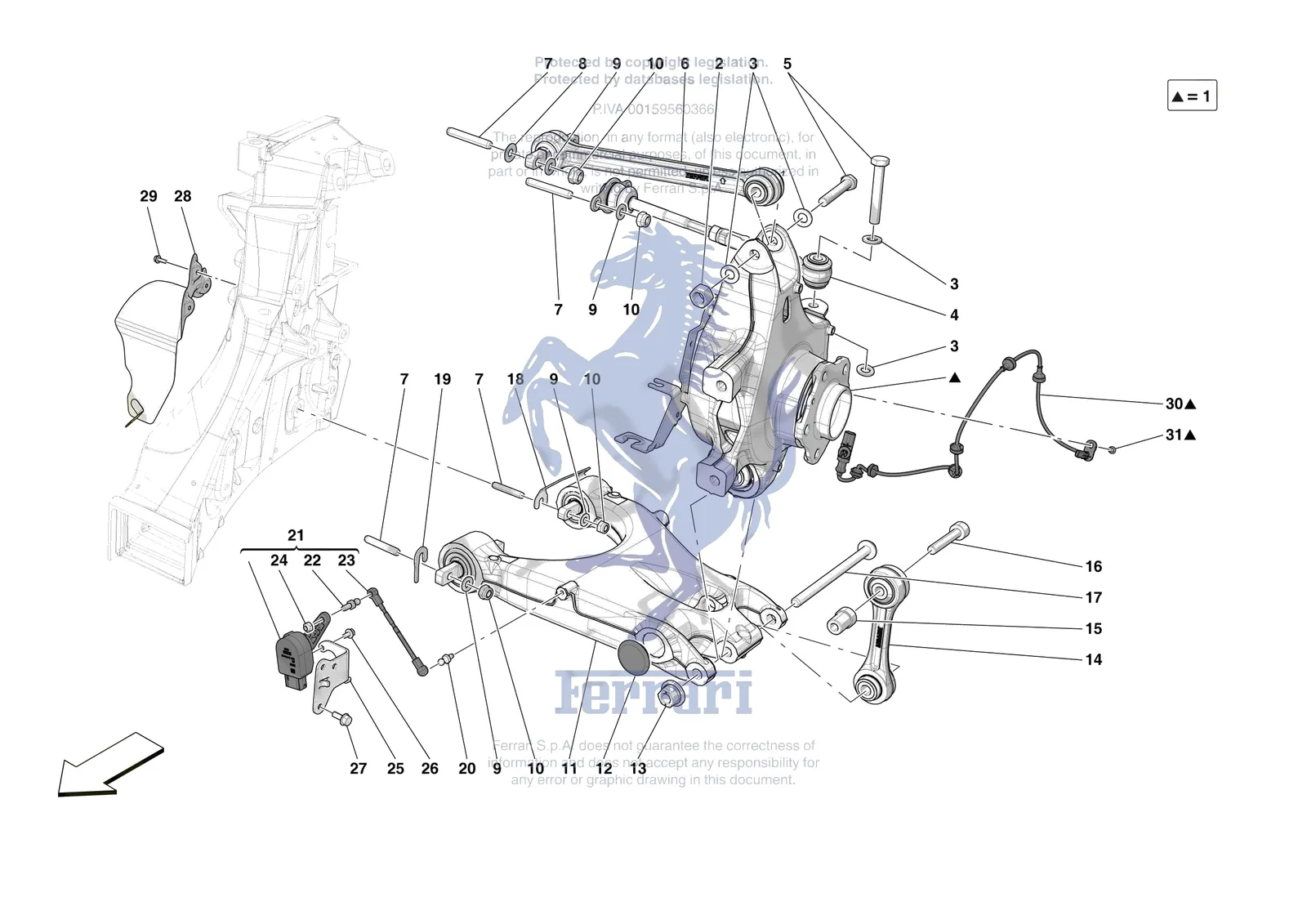

Exploded view of the [mechanical system] - d.27.02 - rear suspension - arms on the Ferrari SF90 XX Spider, with 69 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.27.02 - REAR SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
911176Ferrari Compl. LH Rear Lower Arm - 911176$1,745.74Special order, ships in 7-14 days
911175Ferrari Compl. RH Rear Lower Arm - 911175$1,745.74Special order, ships in 7-14 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
340271Ferrari Potentiometer Tie-Rod - 340271SupersededOrder 984044 instead
240662Ferrari Rear Support Lever Complete - 240662SupersededOrder 259687 instead
236783Ferrari Rear Suspension Link Arm - 236783SupersededOrder 259688 instead
259014Ferrari Rear Upper Arm - 259014SupersededOrder 259687 instead
765410Ferrari Sensore Di Spostam. Post Cpl - 765410$328.27Special order, ships in 7-14 days
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1885450Ferrari Compl. LH Rear Hub Carrier - 885450$3,871.59Special order, ships in 7-14 days
1885451Ferrari COMPL. RH REAR HUB CARRIER - 885451Price on requestContact us for price and availability
2203666Ferrari Nut - 203666$1.80Available, ships in 3-6 days
314496721Ferrari Washer - 14496721$0.19Special order, ships in 7-14 days
4245161Ferrari Tie Rod Complete - 245161$301.17Available, ships in 3-6 days
515541434Ferrari Screw 12x1.25x80 - 15541434$4.12Special order, ships in 7-14 days
6259687Ferrari Rear Upper Arm Complete - 259687$688.45Special order, ships in 7-14 days
7264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
8312826Ferrari Washer D. 10.20-25x1 - 312826$0.92Special order, ships in 7-14 days
914496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
10104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
11896443Ferrari Compl. LH Rear Lower Arm - 896443SupersededOrder 911176 instead
11896445Ferrari Compl. RH Rear Lower Arm - 896445SupersededOrder 911175 instead
1214507987Ferrari Rubber Plug - 14507987$3.85In stock
13238063Ferrari Nut M14 x 1.x - 238063$7.40Available, ships in 3-6 days
14259688Ferrari Anti Rotation Linkage - 259688$295.03Special order, ships in 7-14 days
15222956Ferrari Compensator Ring 24x12 - 222956$20.76Available, ships in 3-6 days
16238258Ferrari Screw M12 x 1.25 x 75 - 238258$63.37Special order, ships in 7-14 days
17238656Ferrari Special Screw TCEI M14 x 1.5 x 21 - 238656$45.87Available, ships in 3-6 days
18333339Ferrari Camber Adjustment Shim - 333339$7.19Special order, ships in 7-14 days
18333340Ferrari Camber Adjustment Shim - 333340$8.72Special order, ships in 7-14 days
18333341Ferrari Camber Adjustment Shim - 333341$11.12Available, ships in 3-6 days
18333342Ferrari Camber Adjustment Shim - 333342$13.30Special order, ships in 7-14 days
18333343Ferrari Camber Adjustment Shim - 333343$15.49Special order, ships in 7-14 days
18333338Ferrari Distanziale Regolaz. Camber - 333338$6.31Special order, ships in 7-14 days
18333344Ferrari Distanziale Regolaz. Camber - 333344$17.67Special order, ships in 7-14 days
18333345Ferrari Distanziale Regolaz. Camber - 333345$19.86Special order, ships in 7-14 days
19263032Ferrari Camber Spacer 0.5mm - 263032$24.02Available, ships in 3-6 days
19263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
19263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
19263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
19263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
19238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
19263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
19263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
19263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
20343376Ferrari Ball Joint - 343376$34.40Special order, ships in 7-14 days
21984051Ferrari Sensore Di Spostam. Post Cpl - 984051$305.96Special order, ships in 7-14 days
22340273Ferrari Ball Joint - 340273$88.49Special order, ships in 7-14 days
23984044Ferrari Potentiometer Tie-Rod - 984044$270.44Special order, ships in 7-14 days
24814254Ferrari Nut - 814254$1.23Special order, ships in 7-14 days
25831081Ferrari LH Bracket - Rear Motion Sensor - 831081$34.40Special order, ships in 7-14 days
25831082Ferrari RH Bracket - Rear Motion Sensor - 831082$34.40Special order, ships in 7-14 days
2616284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2616284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
2716286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
28871830Ferrari Riparo Cuffia Semiasse - 871830$76.30Special order, ships in 7-14 days
28934592Ferrari Riparo Cuffia Semiasse Post - 934592$135.39Special order, ships in 7-14 days
2916285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
30336026Ferrari ABS Sensor - 336026$120.18Available, ships in 3-6 days

All SF90 XX Spider diagrams
