Ferrari SF90 XX Spider — [VEHICLE TRIM] - E.42 - REAR BUMPER (diagram 0143)

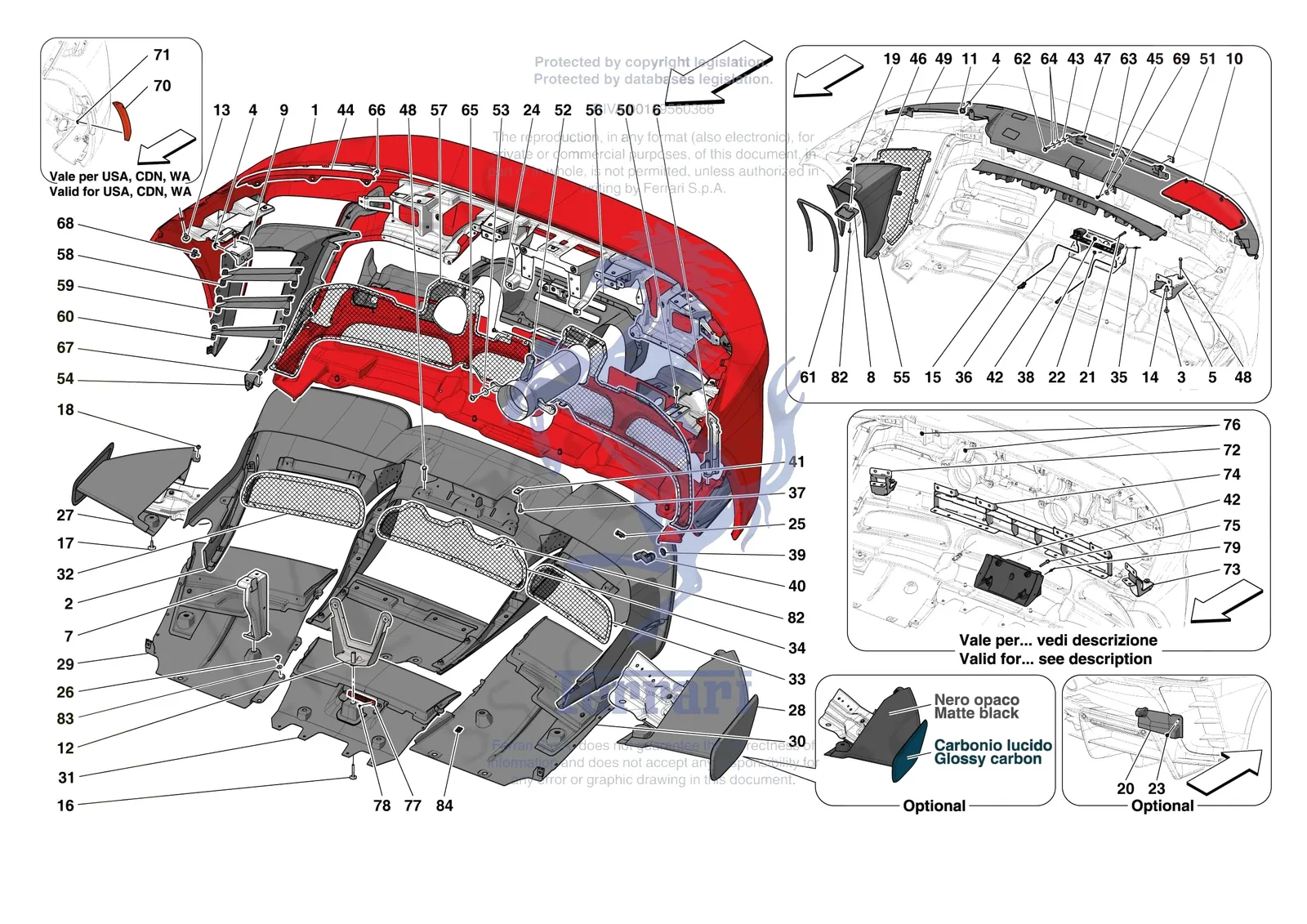

Exploded view of the [vehicle trim] - e.42 - rear bumper on the Ferrari SF90 XX Spider, with 124 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Spider [VEHICLE TRIM] - E.42 - REAR BUMPER exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1955014296Ferrari Compl. Rear Bumper - 955014296$65,751.15Contact us to order
1955073769Ferrari COMPL. REAR BUMPER - 955073769Price on requestContact us to order
1955073770Ferrari COMPL. REAR BUMPER - 955073770Price on requestContact us to order
1985902544Ferrari Compl. Rear Bumper - 985902544$14,834.53Contact us to order
255014280Ferrari Compl. Aerodynamic Extractor - 55014280$46,210.89Contact us to order
255014283Ferrari COMPL. AERODYNAMIC EXTRACTOR - 55014283Price on requestContact us to order
255017417Ferrari COMPL. AERODYNAMIC EXTRACTOR - 55017417Price on requestContact us to order
255017419Ferrari Compl. Aerodynamic Extractor - 55017419$46,210.89Contact us to order
270008502Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70008502Price on requestContact us to order
270008503Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70008503Price on requestContact us to order
270008504Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70008504Price on requestContact us to order
270008505Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70008505$46,345.00Contact us to order
270008506Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70008506Price on requestContact us to order
270008507Ferrari COMPL. AERODYNAMIC EXTRACTOR - 70008507Price on requestContact us to order
2902547Ferrari COMPL. AERODYNAMIC EXTRACTOR - 902547Price on requestContact us to order
2975383Ferrari Compl. Aerodynamic Extractor - 975383$46,210.89Contact us to order
381591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
413046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
5941489Ferrari LH REAR BUMPER MOUNTING BRACKET - 941489$93.53Special order, ships in 7-14 days
5941490Ferrari RH Rear Bumper Mounting Brac - 941490$93.53Special order, ships in 7-14 days
6941414Ferrari COMPL. LH LATERAL BRACKET - 941414$63.61Special order, ships in 7-14 days
6941413Ferrari COMPL. RH LATERAL BRACKET - 941413$63.61Special order, ships in 7-14 days
7895761Ferrari Complete Inner Bracket - Lift System ECU Cover - 895761$147.72Special order, ships in 7-14 days
8893885Ferrari Rear Inner Duct Flap - 893885$46.75Special order, ships in 7-14 days
9891436Ferrari Lateral Light Unit Mounting - 891436$44.29Special order, ships in 7-14 days
10985890513Ferrari LH Cap - 985890513$1,526.57Special order, ships in 7-14 days
10985890663Ferrari RH Cap - 985890663$1,526.57Special order, ships in 7-14 days
11890406Ferrari Screw - 890406$15.49Special order, ships in 7-14 days
12876163Ferrari Compl. Centre Bracket - 876163$140.32Special order, ships in 7-14 days
12874843Ferrari Complete Centre Bracket - 874843$145.25Special order, ships in 7-14 days
13872456Ferrari Vite Tcti M6X18+R.Imp.D6X20X - 872456$3.03Special order, ships in 7-14 days
14277228Ferrari Rivet - 277228$4.14Special order, ships in 7-14 days
15845445Ferrari Rear Cover Mount - 845445$935.64Special order, ships in 7-14 days
1685687400Ferrari 488 Rear Bumper Screw - 85687400$4.16In stock
1783442900Ferrari Body Screw - 83442900$1.51In stock
1885833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
1811566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
18766266Ferrari Screw M5 x 14 - 766266$1.17Special order, ships in 7-14 days
1914371279Ferrari Bracket - 14371279$4.77Available, ships in 3-6 days
20955267Ferrari Lift System ECU Cover - 955267$49.22Special order, ships in 7-14 days
2186495500Ferrari Screw M6 x 40 Torx T30 TBTX - 86495500$0.86Available, ships in 3-6 days
2212646678Ferrari Washer - 12646678$1.49Available, ships in 3-6 days
2568700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
2686705000Ferrari Screw M5x10 TBFTX - 86705000$1.36Special order, ships in 7-14 days
2646401657Ferrari Screw TBEI M6 x 12 Torx - 46401657$1.04Available, ships in 3-6 days
2770008508Ferrari COMPL. RH OUTER WING - 70008508Price on requestContact us for price and availability
27902719Ferrari COMPL. RH OUTER WING - 902719Price on requestContact us for price and availability
27957246Ferrari Compl. RH Outer Wing - 957246$13,408.76Contact us to order
2870008509Ferrari COMPL. LH OUTER WING - 70008509Price on requestContact us for price and availability
28902710Ferrari COMPL. LH OUTER WING - 902710Price on requestContact us for price and availability
28957241Ferrari Compl. LH Outer Wing - 957241$13,408.76Contact us to order
29894557Ferrari Compl. RH Lower Diffuser - 894557$3,320.51Contact us to order
30894555Ferrari Compl. LH Lower Diffuser - 894555$3,320.51Contact us to order
31894553Ferrari Compl. Centre Lower Diffuser - 894553$3,836.42Contact us to order
3270008510Ferrari RH DIFFUSER GRILLE - 70008510Price on requestContact us for price and availability
32943508Ferrari RH DIFFUSER GRILLE - 943508$166.31Special order, ships in 7-14 days
3370008511Ferrari LH DIFFUSER GRILLE - 70008511Price on requestContact us for price and availability
33943236Ferrari LH DIFFUSER GRILLE - 943236$166.31Special order, ships in 7-14 days
3470008512Ferrari CENTRE DIFFUSER MESH - 70008512Price on requestContact us for price and availability
34943241Ferrari CENTRE DIFFUSER MESH - 943241$240.73Special order, ships in 7-14 days
35913424Ferrari Rivet - 913424$4.56Special order, ships in 7-14 days
36948828Ferrari License Plate Light Mount - 948828$714.03Special order, ships in 7-14 days
3786876400Ferrari Screw M4 x 14 TBEI - 86876400$15.49Special order, ships in 7-14 days
3769396000Ferrari Screw M4 X 16 - 69396000$1.55Special order, ships in 7-14 days
38896394Ferrari Trim Panel Clip - 896394$13.76Special order, ships in 7-14 days
40295361Ferrari Parking Sensor - 295361$80.91In stock
4114370171Ferrari Screw Clip - 14370171$4.35Available, ships in 3-6 days
42774069Ferrari LICENSE PLATE MOUNT - 774069Price on requestContact us for price and availability
42950028Ferrari License Plate Mount - 950028$150.17Special order, ships in 7-14 days
43254442Ferrari Washer D. 6.5-1 - 254442Price on requestContact us for price and availability
44985764028Ferrari LH Flick - 985764028$1,899.43Special order, ships in 7-14 days
44985764048Ferrari RH Flick - 985764048$1,899.43Special order, ships in 7-14 days
4670008514Ferrari LH LATERAL MESH - 70008514Price on requestContact us for price and availability
46845279Ferrari LH LATERAL MESH - 845279Price on requestContact us for price and availability
4670008513Ferrari RH LATERAL MESH - 70008513Price on requestContact us for price and availability
46845280Ferrari RH LATERAL MESH - 845280Price on requestContact us for price and availability
47890699Ferrari Third Brake Light Bracket - 890699$71.38Special order, ships in 7-14 days
48791263Ferrari Flanged Screw M6 x 45 - 791263$0.82Special order, ships in 7-14 days
4811628524Ferrari Screw 6X40 - 11628524$2.59Special order, ships in 7-14 days
49914735Ferrari Compl. Tail Light Cover - 914735$19,309.92Special order, ships in 7-14 days
50747853Ferrari Screw - 747853$1.48Special order, ships in 7-14 days
52946131Ferrari LH TAILPIPE - 946131Price on requestContact us for price and availability
52952243Ferrari LH Tailpipe - 952243$2,269.95Special order, ships in 7-14 days
52952258Ferrari LH Tailpipe - 952258$3,139.17Special order, ships in 7-14 days
52946191Ferrari RH TAILPIPE - 946191Price on requestContact us for price and availability
52952239Ferrari RH Tailpipe - 952239$2,269.95Special order, ships in 7-14 days
52952252Ferrari RH Tailpipe - 952252$3,139.17Special order, ships in 7-14 days
5387547900Ferrari Washer - 87547900$1.99Special order, ships in 7-14 days
5470008516Ferrari COMPL. LH OUTER REAR DUCT - 70008516Price on requestContact us for price and availability
54749176Ferrari COMPL. LH OUTER REAR DUCT - 749176Price on requestContact us for price and availability
54774108Ferrari Compl. LH Outer Rear Duct - 774108$25,979.77Special order, ships in 7-14 days
5470008515Ferrari COMPL. RH OUTER REAR DUCT - 70008515Price on requestContact us for price and availability
54749178Ferrari COMPL. RH OUTER REAR DUCT - 749178Price on requestContact us for price and availability
54774110Ferrari Compl. RH Outer Rear Duct - 774110$25,979.77Special order, ships in 7-14 days
55894502Ferrari LH INNER REAR DUCT - 894502Price on requestContact us for price and availability
55894501Ferrari RH INNER REAR DUCT - 894501Price on requestContact us for price and availability
5670008517Ferrari COMPL. TAILPIPE BEZEL - 70008517Price on requestContact us for price and availability
56774106Ferrari Compl. Tailpipe Bezel - 774106$17,890.09Contact us to order
56890123Ferrari Compl. Tailpipe Bezel - 890123$15,038.55Contact us to order
5770008518Ferrari COMPL. CENTRE MESH - 70008518Price on requestContact us for price and availability
57975716Ferrari Compl. Centre Mesh - 975716$1,181.86Special order, ships in 7-14 days
58947022Ferrari UPPER WINGLET OF RH OUTER DUCT - 947022Price on requestContact us for price and availability
59945479Ferrari CENTRE WINGLET OF LH OUTER DUCT - 945479Price on requestContact us for price and availability
59947026Ferrari CENTRE WINGLET OF RH OUTER DUCT - 947026Price on requestContact us for price and availability
60945411Ferrari LOWER WINGLET OF LH OUTER DUCT - 945411Price on requestContact us for price and availability
60947032Ferrari LOWER WINGLET OF RH OUTER DUCT - 947032Price on requestContact us for price and availability
6211626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
6211612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
6313046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
6582113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
6685468700Ferrari Rivet - 85468700$29.52Special order, ships in 7-14 days
6785691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
6913577778Ferrari Washer - 13577778$0.57Special order, ships in 7-14 days
7087329700Ferrari LH Rear Side Marker - 87329700$122.36Special order, ships in 7-14 days
7087329800Ferrari RH Rear Side Marker - 87329800$122.36Special order, ships in 7-14 days
71896395Ferrari Clip - 896395$2.61Special order, ships in 7-14 days
72969893Ferrari RH Rear Lateral Bumper - 969893$44.29Special order, ships in 7-14 days
73969892Ferrari LH Rear Lateral Bumper - 969892$44.29Special order, ships in 7-14 days
7455010282Ferrari Rear Bumper Cross Member - 55010282$1,822.04Special order, ships in 7-14 days
74787076Ferrari Rear Bumper Cross Member - 787076$1,403.46Special order, ships in 7-14 days
75243721Ferrari Screw With Washer M6 x 45 TCEI - 243721$0.98Available, ships in 3-6 days
7614039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
77910850Ferrari Rear Fog Light - 910850$568.23Special order, ships in 7-14 days
8482889700Ferrari Clip - 82889700$1.63Available, ships in 3-6 days
