Ferrari SF90 XX Stradale — [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS (diagram 0076)

Exploded view of the [mechanical system] - d.25.02 - front suspension - arms on the Ferrari SF90 XX Stradale, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

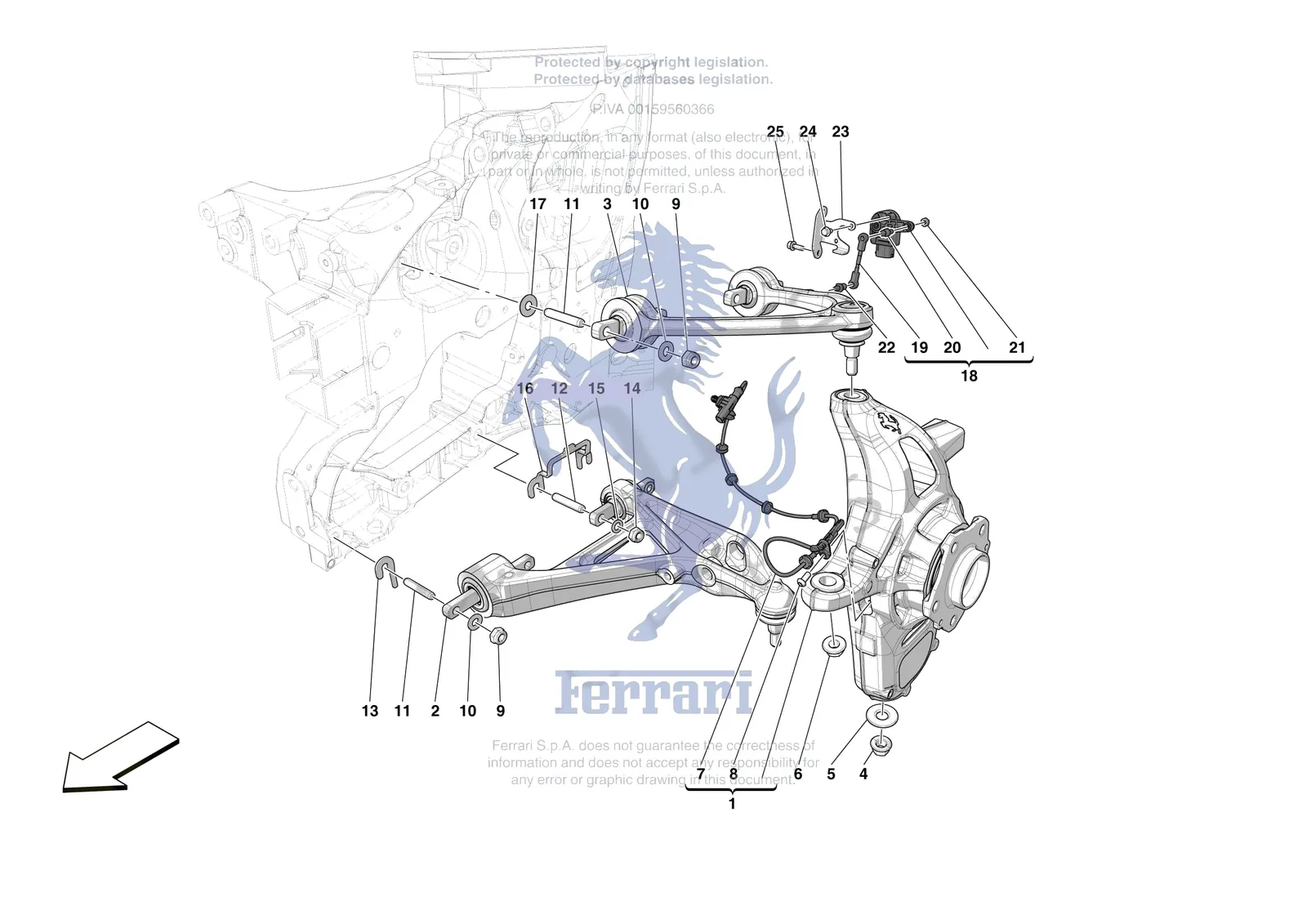

Ferrari SF90 XX Stradale [MECHANICAL SYSTEM] - D.25.02 - FRONT SUSPENSION - ARMS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
238693Ferrari Camber Spacer 1.0mm - 238693$10.25Special order, ships in 7-14 days
238881Ferrari Camber Spacer 1.5mm - 238881$10.25Special order, ships in 7-14 days
238694Ferrari Camber Spacer 2.0mm - 238694SupersededOrder 263035 instead
238882Ferrari Camber Spacer 2.5mm - 238882$10.25Special order, ships in 7-14 days
238884Ferrari Camber Spacer 3.5mm - 238884$10.25Special order, ships in 7-14 days
238885Ferrari Camber Spacer 4.0mm - 238885$10.25Special order, ships in 7-14 days
12575621Ferrari Nyloc Nut - 12575621SupersededOrder 102742 instead
320528Ferrari Potentiometer Tie-Rod - 320528$113.08Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
765409Ferrari Sensore Di Spostam. Ant Cpl - 765409SupersededOrder 984050 instead
14496609Ferrari Steel Washer - 14496609SupersededOrder 12646824 instead
12646824Ferrari Washer - 12646824SupersededOrder 14496624 instead
126648Ferrari Washer - 126648SupersededOrder 14496624 instead
14496601Ferrari Washer - 14496601SupersededOrder 12646824 instead
14496621Ferrari Washer - 14496621SupersededOrder 12646824 instead
1862453Ferrari Compl. LH Front Hub Carrier - 862453$3,760.79Special order, ships in 7-14 days
1862457Ferrari Compl. RH Front Hub Carrier - 862457$3,760.79Special order, ships in 7-14 days
2896440Ferrari Complete Lower LH Front Arm - 896440$1,920.19Special order, ships in 7-14 days
2896441Ferrari Complete Lower RH Front Arm - 896441$1,920.19Special order, ships in 7-14 days
3331628Ferrari Complete LH Front Upper Arm - 331628$1,278.55Special order, ships in 7-14 days
3331629Ferrari Complete RH Front Upper Arm - 331629$1,352.32Special order, ships in 7-14 days
4203795Ferrari Nut M14 x 1.5 - 203795$4.56Available, ships in 3-6 days
5241689Ferrari Spacer - 241689$14.62Special order, ships in 7-14 days
6149807Ferrari Self-Locking Nut For Top And Bottom Ball Joints - 149807$2.13Available, ships in 3-6 days
7336025Ferrari ABS Sensor - 336025$120.18Special order, ships in 7-14 days
9104114Ferrari Nyloc Nut M10 x 1.25 x 12 - 104114$0.73Available, ships in 3-6 days
1014496624Ferrari Washer D. 10.50-21 x2 - 14496624$0.12Available, ships in 3-6 days
11264528Ferrari Threaded Rod 10x1.25 - 264528$7.63Available, ships in 3-6 days
12896438Ferrari Barra Filettata M12X1.25 L.6 - 896438$7.63Special order, ships in 7-14 days
13263033Ferrari Camber Spacer 1.0mm - 263033$7.19Special order, ships in 7-14 days
13263034Ferrari Camber Spacer 1.5mm - 263034$7.19Special order, ships in 7-14 days
13263035Ferrari Camber Spacer 2.0mm - 263035$7.19Available, ships in 3-6 days
13263036Ferrari Camber Spacer 2.5mm - 263036$10.25Special order, ships in 7-14 days
13238883Ferrari Camber Spacer 3.0mm - 238883$10.25Available, ships in 3-6 days
13263037Ferrari Camber Spacer 3.0mm - 263037SupersededOrder 238883 instead
13263038Ferrari Camber Spacer 3.5mm - 263038$10.25Special order, ships in 7-14 days
13263039Ferrari Camber Spacer 4.0mm - 263039$10.25Special order, ships in 7-14 days
14102825Ferrari Locking Suspension Nut - 102825$1.10In stock
1513507434Ferrari Flat Washer 12 - 13507434$2.59Special order, ships in 7-14 days
16283959Ferrari Adjustment Plate - 283959$51.67Special order, ships in 7-14 days
16283960Ferrari Adjustment Plate 1.0mm - 283960$66.35Special order, ships in 7-14 days
16283961Ferrari Adjustment Plate 1.5mm - 283961$66.35Special order, ships in 7-14 days
16283954Ferrari Adjustment Plate 2.0mm - 283954$66.35Special order, ships in 7-14 days
16283955Ferrari Adjustment Plate 2.5mm - 283955$66.35Special order, ships in 7-14 days
16283956Ferrari Adjustment Plate 3.0mm - 283956$66.35Special order, ships in 7-14 days
16283957Ferrari Adjustment Plate 3.5mm - 283957$66.35Special order, ships in 7-14 days
16283958Ferrari Adjustment Plate 4.0mm - 283958$66.35Special order, ships in 7-14 days
17312826Ferrari Washer D. 10.20-25x1 - 312826$0.92Special order, ships in 7-14 days
18984050Ferrari Sensore Di Spostam. Ant Cpl - 984050$327.81Special order, ships in 7-14 days
19984041Ferrari Potentiometer Tie-Rod - 984041$194.22Special order, ships in 7-14 days
20340273Ferrari Ball Joint - 340273$88.49Special order, ships in 7-14 days
21814254Ferrari Nut - 814254$1.23Special order, ships in 7-14 days
22216973Ferrari Ball Joint D8 M6x1 - 216973$6.54Available, ships in 3-6 days
23831077Ferrari Motion Sensor Fastener Bracket - 831077$34.40Special order, ships in 7-14 days
23860788Ferrari RH Front Bracket - 860788$34.40Special order, ships in 7-14 days
2416284934Ferrari Screw - 16284934$1.61Available, ships in 3-6 days
2416284927Ferrari Screw 5x10 - 16284927SupersededOrder 16284934 instead
25231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
