Ferrari SF90 XX Stradale — [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE (diagram 0192)

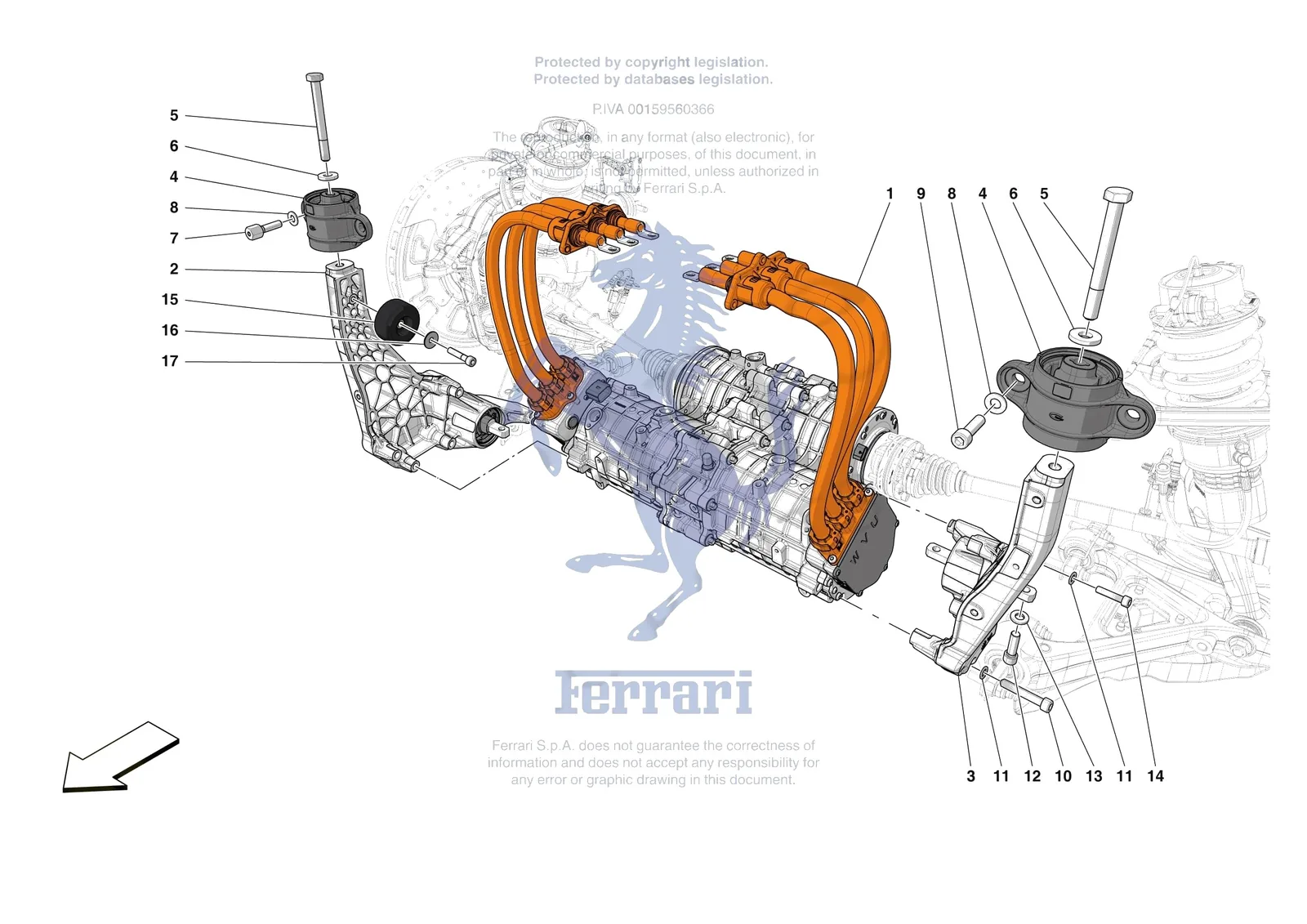

Exploded view of the [electrical system] - f.17 - electric axle on the Ferrari SF90 XX Stradale, with 32 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Stradale [ELECTRICAL SYSTEM] - F.17 - ELECTRIC AXLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-stradale/0192.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 749793 | Ferrari Compl. Electric Front AXLe - 749793 | Superseded | Order 810982 instead | |
| 788764 | Ferrari Compl. Electric Front AXLe - 788764 | Superseded | Order 810982 instead | |
| 801852 | Ferrari Compl. Electric Front AXLe - 801852 | Superseded | Order 810982 instead | |
| 980090 | Ferrari Compl. Electric Front AXLe - 980090 | Superseded | Order 810982 instead | |
| 826701 | Ferrari Complete Electric Front Axle - 826701 | Superseded | Order 810982 instead | |
| 855214 | Ferrari Complete LH Axle Carrier - 855214 | $1,034.12 | Special order, ships in 7-14 days | |
| 855216 | Ferrari Complete RH Axle Carrier - 855216 | $1,034.12 | Special order, ships in 7-14 days | |
| 799934 | Ferrari Damper - 799934 | Superseded | Order 857399 instead | |
| 15541734 | Ferrari Hex Head Screw M 12X1.25X110 - 15541734 | $7.86 | Special order, ships in 7-14 days | |
| 14496609 | Ferrari Steel Washer - 14496609 | Superseded | Order 12646824 instead | |
| 12646824 | Ferrari Washer - 12646824 | Superseded | Order 14496624 instead | |
| 126648 | Ferrari Washer - 126648 | Superseded | Order 14496624 instead | |
| 14496601 | Ferrari Washer - 14496601 | Superseded | Order 12646824 instead | |
| 14496621 | Ferrari Washer - 14496621 | Superseded | Order 12646824 instead | |
| 1 | 810982 | Ferrari Compl. Electric Front Axle - 810982 | $35,825.70 | Special order, ships in 7-14 days |
| 2 | 809587 | Ferrari CPL. RH Axle Carrier - 809587 | $1,083.38 | Special order, ships in 7-14 days |
| 3 | 809588 | Ferrari Compl. LH AXLe Carrier - 809588 | $1,083.38 | Special order, ships in 7-14 days |
| 4 | 818998 | Ferrari Compl. Upper Bushing Mount - 818998 | $664.78 | Special order, ships in 7-14 days |
| 5 | 16241234 | Ferrari Hex Head Screw M 12X1.25X110 - 16241234 | Superseded | Order 15541734 instead |
| 6 | 12648524 | Ferrari Washer - 12648524 | $1.09 | Available, ships in 3-6 days |
| 7 | 850748 | Ferrari Colonnetta M10X35(M) M6X13(F - 850748 | $51.67 | Special order, ships in 7-14 days |
| 8 | 14496624 | Ferrari Washer D. 10.50-21 x2 - 14496624 | $0.12 | Available, ships in 3-6 days |
| 9 | 14307634 | Ferrari Allen Head Bolt M10X1.25X35 - 14307634 | $2.13 | Special order, ships in 7-14 days |
| 10 | 14308134 | Ferrari Screw - 14308134 | $5.65 | Special order, ships in 7-14 days |
| 11 | 12648324 | Ferrari Flat Washer D. 10.2-17X - 12648324 | $2.61 | Special order, ships in 7-14 days |
| 12 | 14331324 | Ferrari Allen Head Bolt M 12X1.25X40 - 14331324 | $4.14 | Special order, ships in 7-14 days |
| 13 | 13550524 | Ferrari Flat Washer D 12.2X24X - 13550524 | $0.50 | Special order, ships in 7-14 days |
| 14 | 14307834 | Ferrari Allen Screw 10x1.25x45 - 14307834 | $12.88 | Available, ships in 3-6 days |
| 15 | 857399 | Ferrari Damper - 857399 | $201.88 | Special order, ships in 7-14 days |
| 16 | 12642021 | Ferrari Washer - 12642021 | $1.30 | Available, ships in 3-6 days |
| 16 | 12642024 | Ferrari Washer - 12642024 | Superseded | Order 12642021 instead |
| 17 | 14306731 | Ferrari Screw TCEI M8 x 1.25 x 40 - 14306731 | $1.92 | Available, ships in 3-6 days |
