Ferrari 12 Cilindri Spider — [ENGINE] - B.31 - ELECTRIC STARTER MOTOR (diagram 0036)

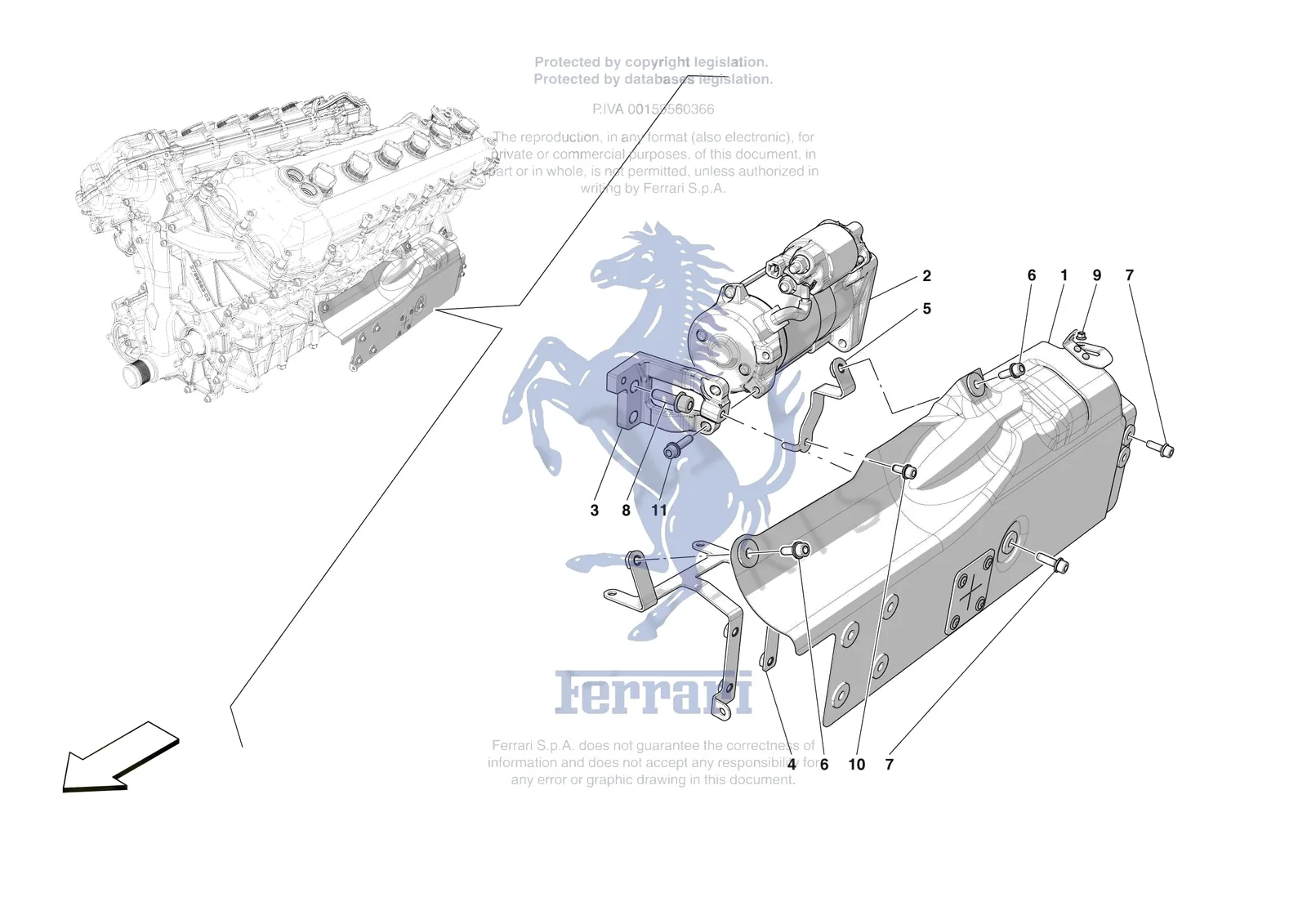

Exploded view of the [engine] - b.31 - electric starter motor on the Ferrari 12 Cilindri Spider, with 14 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [ENGINE] - B.31 - ELECTRIC STARTER MOTOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0036.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 1 | 868507 | Ferrari Heat Shield - 868507 | $663.86 | Special order, ships in 7-14 days |
| 2 | 903853 | Ferrari Starter Motor - 903853 | $1,873.35 | Special order, ships in 7-14 days |
| 3 | 919664 | Ferrari Plate - 919664 | $226.19 | Special order, ships in 7-14 days |
| 4 | 868480 | Ferrari Front Shield Mounting Bracke - 868480 | $108.16 | Special order, ships in 7-14 days |
| 5 | 887529 | Ferrari Rear Shield Mounting Bracket - 887529 | $46.69 | Special order, ships in 7-14 days |
| 6 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 7 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 8 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 9 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
| 10 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 11 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
