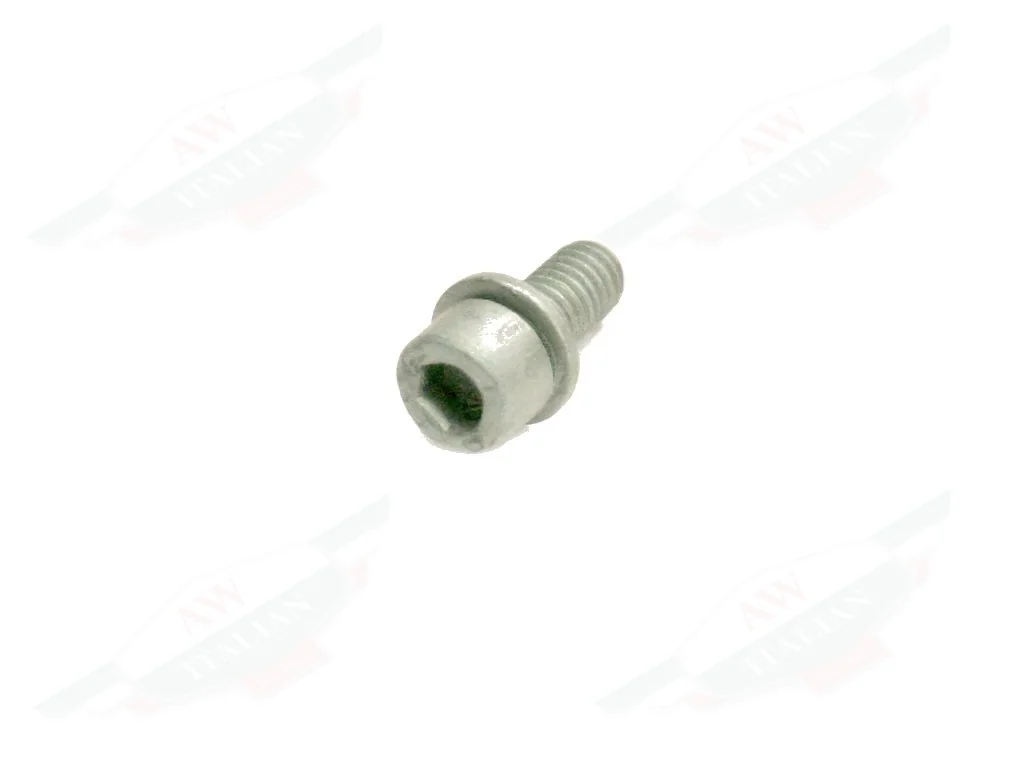

Ferrari Screw 6×14 – 231616

Name: Ferrari Screw 6x14 - 231616
Brand: Ferrari
SKU: 231616
Price: 0.57 USD
Availability: InStock

Original or OEM

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 231616

$0.57

Available Ships in 3-6 Days

Description

Ferrari Screw 6×14, part number 231616. Listed in our catalogue for 69 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 208 GT4 Dino. Replaces part numbers 14305720,11567624.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

69 vehicles · 820 positions

Ferrari 12 Cilindri15 positions

Item No.	Diagram (page)	Qty
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0037` [ENGINE] - B.32 - ALTERNATOR	1
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
5	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
5	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
8	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	12
10	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
11	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
24	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	5
26	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
29	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	6
50	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2

Ferrari 12 Cilindri Spider15 positions

Item No.	Diagram (page)	Qty
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0037` [ENGINE] - B.32 - ALTERNATOR	1
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
5	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
5	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
8	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	12
10	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
11	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
24	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	5
26	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
28	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	6
50	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2

Ferrari 208 GT4 Dino1 position

Item No.	Diagram (page)	Qty
—	`110` Doors	2

Ferrari 296 GTB16 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	3
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	3
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	4
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	4
2	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	5
4	`0026` [ENGINE] - B.21 - VENTS	3
4	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
5	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
5	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	7
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	8
14	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	9
18	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	9
50	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1

Ferrari 296 GTS15 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	3
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	3
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	8
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	4
2	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	5
4	`0026` [ENGINE] - B.21 - VENTS	3
4	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
5	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	7
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	8
14	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	9
18	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	9
40	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1

Ferrari 308 GT4 Dino 19761 position

Item No.	Diagram (page)	Qty
—	`110` Doors	2

Ferrari 328 GTB/GTS (1988)1 position

Item No.	Diagram (page)	Qty
—	`016` Air Intake And Manifolds	2

Ferrari 348 GTB/GTS/GTC/Spider2 positions

Item No.	Diagram (page)	Qty
—	`006` TIMING - CONTROLS	2
—	`024` CLUTCH AND CONTROLS	3

Ferrari 348 tb/ts2 positions

Item No.	Diagram (page)	Qty
—	`006` Timing - Controls	2
—	`021A` Clutch - Single And Double Disc	3

Ferrari 360 Challenge3 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`022` Clutch And Controls	2

Ferrari 360 Challenge Stradale4 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`026` Clutch And Controls	2
—	`032` Main Shaft Gears	1

Ferrari 360 Modena5 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`027` Clutch And Controls -Not For F1-	2
—	`028` Clutch And Controls -Valid For F1-	2
—	`034` Main Shaft Gears	1

Ferrari 360 Spider5 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`027` Clutch And Controls -Not For F1-	2
—	`028` Clutch And Controls -Valid For F1-	2
—	`034` Main Shaft Gears	1

Ferrari 430 Scuderia6 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	1
—	`006` Timing System - Drive	2
—	`007` Injection - Ignition System	2
—	`032` Primary Shaft Gears	1

Ferrari 430 Scuderia Spider 16M6 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	1
—	`006` Timing System - Drive	2
—	`007` Injection - Ignition System	2
—	`032` Primary Shaft Gears	1

Ferrari 456 GT/GTA2 positions

Item No.	Diagram (page)	Qty
—	`014` Injection Device	6
—	`028` Gearbox -Not For 456 Gta-	1

Ferrari 456 MGT/MGTA 2 positions

Item No.	Diagram (page)	Qty
—	`017` Injection Device	6
—	`031` Gearbox -Not For 456M Gta-	1

Ferrari 458 Italia20 positions

Item No.	Diagram (page)	Qty
—	`016` Exhaust System	3
3	`013` Intake Manifold	20
4	`007` Injection - Ignition System	6
10	`006` Timing System - Drive	2
12	`034` Power Steering Pump And Reservoir	3
13	`019` Cooling - Water Pump	2
17	`015` Intake Manifold Cover	1
17	`043` Alternator - Starter Motor	2
27	`003` Right Hand Cylinder Head	4
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	2
27	`045` Ac System - Water	1
27	`046` Ac System - Freon	2
29	`018` Lubrication System: Tank, Pump And Filter	4
30	`003` Right Hand Cylinder Head	2
30	`004` Left Hand Cylinder Head	2
36	`001` Crankcase	4
36	`135` Hi-Fi System	1
37	`006` Timing System - Drive	2
49	`008` Secondary Air System	4

Ferrari 458 Speciale13 positions

Item No.	Diagram (page)	Qty
4	`007` Injection - Ignition System	6
12	`033` Power Steering Pump And Reservoir	3
17	`042` Alternator - Starter Motor	2
27, 30	`003` Right Hand Cylinder Head	2
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	2
27	`044` Ac System - Water	1
27	`045` Ac System - Freon	2
29	`018` Lubrication System: Tank, Pump And Filter	4
30	`004` Left Hand Cylinder Head	2
36	`001` Crankcase	4
41	`117` Rear Bumper	4
49	`008` Secondary Air System	4

Ferrari 458 Speciale Aperta (Convertible)14 positions

Item No.	Diagram (page)	Qty
4	`007` Injection - Ignition System	6
11	`033` Power Steering Pump And Reservoir	3
17	`042` Alternator - Starter Motor	2
27	`003` Right Hand Cylinder Head	4
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	2
27	`044` Ac System - Water	1
27	`045` Ac System - Freon	2
29	`018` Lubrication System: Tank, Pump And Filter	4
30	`003` Right Hand Cylinder Head	2
30	`004` Left Hand Cylinder Head	2
36	`001` Crankcase	4
41	`118` Rear Bumper	4
49	`008` Secondary Air System	4

Ferrari 458 Spider18 positions

Item No.	Diagram (page)	Qty
—	`016` Exhaust System	3
3	`013` Intake Manifold	20
4	`007` Injection - Ignition System	6
10	`006` Timing System - Drive	2
12	`034` Power Steering Pump And Reservoir	3
17	`015` Intake Manifold Cover	1
17	`043` Alternator - Starter Motor	2
18	`046` Ac System - Freon	2
23	`045` Ac System - Water	1
27	`003` Right Hand Cylinder Head	4
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	2
29	`018` Lubrication System: Tank, Pump And Filter	4
30	`003` Right Hand Cylinder Head	2
30	`004` Left Hand Cylinder Head	2
36	`001` Crankcase	4
37	`006` Timing System - Drive	2
49	`008` Secondary Air System	4

Ferrari 488 GTB28 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	3
—	`009` Fuel System Pumps And Pipes	4
—	`016` Turbocharging System Adjustments	2
—	`024` Cooling - Header Tank And Pipes	1
—	`025` Cooling - Radiators And Air Ducts	2
—	`044` Vehicle Lift System	2
—	`046` Ac System Compressor	2
—	`046` Alternator - Starter Motor	1
—	`047` Ac System Compressor	2
—	`128` Airbags	10
10	`136` VEHICLE ECUs	3
11	`007` Injection - Ignition System	2
12	`048` Ac System - Water And Freon	2
13	`136` VEHICLE ECUs	3
16	`030` Servo Brake System	2
17	`035` Hydraulic Power Steering Box	1
21	`015` Cooling-Lubrication For Turbocharging System	4
22	`029` Gearbox Oil Lubrication And Cooling System	1
23	`014` Manifolds, Turbocharging System And Pipes	7
23	`035` Hydraulic Power Steering Box	1
26	`037` Power Steering Pump And Reservoir	5
27	`012` Evaporative Emissions Control System	2
29	`008` Secondary Air System	1
31	`008` Secondary Air System	1
34	`029` Gearbox Oil Lubrication And Cooling System	2
34	`118` Rear Active Aero	4
39	`029` Gearbox Oil Lubrication And Cooling System	4
49	`134` Various Fastenings For The Electrical System	17

Ferrari 488 Pista15 positions

Item No.	Diagram (page)	Qty
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	10
7	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
8	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	2
9	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
11	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	2
12	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
14	`0025` [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES	1
15	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	3
47	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	3

Ferrari 488 Pista Spider14 positions

Item No.	Diagram (page)	Qty
—	`030` Engine Cooling System Pipes	1
—	`034` A/C Compressor	2
—	`036` Electric Starter Motor	1
—	`048` Engine Fuel Delivery Pipes	4
—	`052` Turbocharging System Adjustments	2
—	`127` Doors - Trim	10
7	`023` Fuel Pumps	2
8	`061` Evaporative Emissions Control System	2
9	`039` Engine Electrical System	14
11	`028` Forced Induction System Pipes	2
12	`027` Forced Induction System Turbochargers And Mounts	6
14	`025` Emissions Control System Pipes And Valves	1
15	`169` A/C System - Air Conditioner System	3
47	`043` Gearbox Oil Heat Exchanger And Pipes - Heat Exchanger And Rear Pipes	3

Ferrari 488 Spider27 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	3
—	`009` Fuel System Pumps And Pipes	4
—	`016` Turbocharging System Adjustments	2
—	`024` Cooling - Header Tank And Pipes	1
—	`025` Cooling - Radiators And Air Ducts	2
—	`046` Alternator - Starter Motor	1
—	`047` Ac System Compressor	2
—	`129` Airbags	10
10	`137` VEHICLE ECUs	3
11	`007` Injection - Ignition System	2
12	`048` Ac System - Water And Freon	2
13	`137` VEHICLE ECUs	3
16	`030` Servo Brake System	2
17	`035` Hydraulic Power Steering Box	1
21	`015` Cooling-Lubrication For Turbocharging System	4
22	`029` Gearbox Oil Lubrication And Cooling System	1
23	`014` Manifolds, Turbocharging System And Pipes	7
23	`035` Hydraulic Power Steering Box	1
26	`037` Power Steering Pump And Reservoir	5
27	`012` Evaporative Emissions Control System	2
29	`008` Secondary Air System	1
31	`008` Secondary Air System	1
34	`029` Gearbox Oil Lubrication And Cooling System	2
34	`119` Rear Active Aero	1
39	`029` Gearbox Oil Lubrication And Cooling System	4
49	`135` Various Fastenings For The Electrical System	17
58	`118` Rear Bumper	4

Ferrari 550 Barchetta1 position

Item No.	Diagram (page)	Qty
—	`029` Gearbox	1

Ferrari 550 Maranello1 position

Item No.	Diagram (page)	Qty
—	`030` Gearbox	1

Ferrari 575 SuperAmerica3 positions

Item No.	Diagram (page)	Qty
—	`005` L.H. Cylinder Head	1
—	`017` Secondary Air Pump	8
—	`030` Gearbox	1

Ferrari 575M Maranello3 positions

Item No.	Diagram (page)	Qty
—	`005` L.H. Cylinder Head	1
—	`017` Secondary Air Pump	8
—	`030` Gearbox	1

Ferrari 599 GTB Fiorano6 positions

Item No.	Diagram (page)	Qty
—	`006` Timing System - Drive	2
—	`017` Front Exhaust System	4
—	`038` Power Unit And Tank -Applicable For F1-	3
—	`119` Doors - Power Windows And Rear-View Mirror	4
—	`139` Hi-Fi System	2
18	`001` Crankcase	2

Ferrari 599 GTO5 positions

Item No.	Diagram (page)	Qty
—	`006` Timing System - Drive	2
—	`035` Power Unit And Tank	3
—	`119` Doors - Power Windows And Rear-View Mirror	4
—	`139` Hi-Fi System	2
18	`001` Crankcase	2

Ferrari 599 SA Aperta5 positions

Item No.	Diagram (page)	Qty
—	`006` Timing System - Drive	1
—	`035` Power Unit And Tank	3
—	`120` Doors - Power Windows And Rear-View Mirror	4
—	`139` Hi-Fi System	2
18	`001` Crankcase	2

Ferrari 612 Scaglietti3 positions

Item No.	Diagram (page)	Qty
—	`005` Left Hand Cylinder Head	1
—	`016` Secondary Air System	8
—	`044` Power Unit And Tank -Applicable For F1-	3

Ferrari 612 Sessanta3 positions

Item No.	Diagram (page)	Qty
—	`005` Left Hand Cylinder Head	1
—	`016` Secondary Air System	8
—	`044` Power Unit And Tank -Applicable For F1-	3

Ferrari 812 Competizione17 positions

Item No.	Diagram (page)	Qty
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	12
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
6	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	7
9	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	2
10	`0070` [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES	1
11	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
13	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	8
15	`0054` [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM	3
20	`0183` [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	3
22	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	14
25	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
26	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
27	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2

Ferrari 812 CompetizioneA18 positions

Item No.	Diagram (page)	Qty
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6
—	`0060` [MECHANICAL SYSTEM] - D.11 - FUEL TANK	1
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	12
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
6	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	7
9	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	2
10	`0070` [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES	1
11	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
13	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	8
15	`0054` [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM	3
19	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	1
22	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	14
25	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
26	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
27	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2

Ferrari 812 GTS14 positions

Item No.	Diagram (page)	Qty
—	`0018` COOLING - OIL PUMP	2
—	`0044` TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE	2
—	`0115` DOORS - SUBSTRUCTURE AND TRIM	6
—	`0130` AIRBAGS	6
9	`0028` FRONT BRAKE CALIPERS	8
15	`0012` INTAKE MANIFOLD	2
18	`0041` AC SYSTEM - WATER AND FREON	2
24	`0003` RIGHT HAND CYLINDER HEAD	1
24	`0004` LEFT HAND CYLINDER HEAD	2
24	`0027` BRAKE SYSTEM	2
24	`0120` REAR ACTIVE AERO	4
28	`0039` ALTERNATOR - STARTER MOTOR	8
45	`0014` PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS	3
69	`0017` LUBRICATION SYSTEM- TANK	1

Ferrari 812 Superfast16 positions

Item No.	Diagram (page)	Qty
—	`018` Cooling - Oil Pump	2
—	`043` Tools And Accessories Provided With Vehicle	2
—	`114` Doors - Substructure And Trim	6
—	`129` Airbags	6
9	`027` Front Brake Callipers	8
15	`012` Intake Manifold	2
18	`040` Ac System - Water And Freon	2
24	`003` Right Hand Cylinder Head	1
24	`004` Left Hand Cylinder Head	2
24	`026` Brake System	2
24	`119` Rear Active Aero	4
25	`014` Pre-Catalytic Converters And Catalytic Converters	4
27	`003` Right Hand Cylinder Head	2
28	`038` Alternator - Starter Motor	5
69	`017` Lubrication System: Tank	1
77	`137` VEHICLE ECUs	3

Ferrari California16 positions

Item No.	Diagram (page)	Qty
—	`013` Intake Manifold And Throttle Body	1
8	`017` Heat Exchanger	3
10	`006` Timing System - Drive	2
11	`019` Lubrication: Circuit And Pickup	6
14	`019` Lubrication: Circuit And Pickup	1
15	`034` Power Steering System	8
17	`017` Heat Exchanger	1
17	`042` Steering Box And Power Steering Pump	1
20	`010` Right Hand Injection System - Ignition	1
21	`020` Lubrication: Pump And Filter	4
28	`003` Right Hand Cylinder Head	2
28	`004` Left Hand Cylinder Head	2
36	`042` Steering Box And Power Steering Pump	3
44	`051` Alternator, Starter Motor And Ac Compressor	2
66	`001` Crankcase	4
77	`030` GEARBOX LUBRICATION AND COOLING CIRCUIT -Not for mechanical gearbox-	1

Ferrari California T27 positions

Item No.	Diagram (page)	Qty
—	`011` Secondary Air System	6
—	`015` TURBOCHARGING SYSTEM ADJUSTMENTS-Solution found-	2
—	`016` Turbocharging System Adjustments	2
—	`019` Pre-Catalytic Converters And Catalytic Converters	2
—	`022` Vents	2
—	`023` Lubrication: Circuit And Pickup	2
—	`041` Power Steering Pump And Reservoir	2
—	`049` Alternator - Starter Motor	3
—	`050` Ac System Compressor	2
—	`051` Ac System - Water And Freon	2
—	`054` Standard Accessories	2
—	`118` Doors - Substructure And Trim	2
—	`131` Airbags	4
6	`013` Manifolds, Turbocharging System And Pipes	6
6	`014` Cooling-Lubrication For Turbocharging System	4
8	`003` Right Hand Cylinder Head	1
8	`004` Left Hand Cylinder Head	1
9	`012` Intake Manifold	2
14	`139` VEHICLE ECUs	1
15	`007` Fuel Pump And Connector Pipes	2
17	`007` Fuel Pump And Connector Pipes	2
17	`017` Intercooler	2
25	`017` Intercooler	4
36	`029` Gearbox Housing	2
62	`001` Crankcase	3
65	`001` Crankcase	1
66	`001` Crankcase	1

Ferrari Daytona SP320 positions

Item No.	Diagram (page)	Qty
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	4
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0072` [MECHANICAL SYSTEM] - D.23.01 - HYDRAULIC BRAKE CONTROL PIPES	1
—	`0074` [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM	3
—	`0087` [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES	6
—	`0129` [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES	8
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	6
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	6
5	`0006` [ENGINE] - B.03 - ENGINE COVERS	2
5	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	2
9	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
9	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
15	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	8
15	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	1
18	`0054` [MECHANICAL SYSTEM] - D.06 - EMISSIONS CONTROL SYSTEM	1
26	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
38	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
38	`0031` [ENGINE] - B.26 - ENGINE HEAT EXCHANGER	1

Ferrari Enzo7 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
—	`005` Timing - Tappets And Shafts	4
—	`006` Timing - Controls	2
—	`012` Air Intake Manifold And Air Box	2
—	`032` Brakes Hydraulic Controls And Brake Booster System	2
—	`048` Alternator, Starting Motor And A.C. Compressor	2
—	`109` Engine Bonnet And Gas Door	2

Ferrari F12 Berlinetta18 positions

Item No.	Diagram (page)	Qty
—	`019` Cooling - Oil Pump	2
—	`048` Tools And Accessories Provided With Vehicle	2
—	`108` Passenger Compartment Mats	4
11	`034` Power Steering Pump And Reservoir	1
15	`013` Intake Manifold	2
19	`007` Injection - Ignition System	2
22	`028` Brake System	2
24	`003` Right Hand Cylinder Head	1
24	`004` Left Hand Cylinder Head	2
25	`015` Pre-Catalytic Converters And Catalytic Converters	1
26	`007` Injection - Ignition System	2
27	`003` Right Hand Cylinder Head	2
27	`034` Power Steering Pump And Reservoir	1
28	`043` Alternator - Starter Motor	7
36	`034` Power Steering Pump And Reservoir	1
43	`045` Ac System - Water And Freon	1
50	`045` Ac System - Water And Freon	1
69	`018` Lubrication System: Tank	1

Ferrari F12tdf20 positions

Item No.	Diagram (page)	Qty
—	`018` Cooling - Oil Pump	2
—	`046` Tools And Accessories Provided With Vehicle	2
—	`108` Passenger Compartment Mats	4
3	`032` Power Steering Pump And Reservoir	1
9	`028` Front Brake Callipers	8
11	`032` Power Steering Pump And Reservoir	1
15	`012` Intake Manifold	2
19	`007` Injection - Ignition System	2
22	`027` Brake System	2
24	`003` Right Hand Cylinder Head	1
24	`004` Left Hand Cylinder Head	2
25	`014` Pre-Catalytic Converters And Catalytic Converters	4
26	`007` Injection - Ignition System	2
27	`003` Right Hand Cylinder Head	2
27	`032` Power Steering Pump And Reservoir	1
28	`041` Alternator - Starter Motor	5
30	`119` Rear Active Aero	4
43	`043` Ac System - Water And Freon	1
50	`043` Ac System - Water And Freon	1
69	`017` Lubrication System: Tank	1

Ferrari F355 B/GTS/Spider Mo. 2.74 positions

Item No.	Diagram (page)	Qty
—	`007` Injection Device - Ignition	2
—	`028` Gearbox Covers And Lubrication	1
—	`042` Hydraulic Steering Pump -Valid For Steering Box With Power Steering Cars-	2
—	`104` Frame - Rear Part Elements	4

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F14 positions

Item No.	Diagram (page)	Qty
—	`007` Injection Device - Ignition	1
—	`028` Power Unit And Tank -Valid For 355 F1 Cars-	2
—	`031` Gearbox Covers And Lubrication	1
—	`047` Hydraulic Steering Pump And Tank	2

Ferrari F430 Challenge4 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
—	`006` Timing - Controls	2
—	`024` Power Unit And Tank	3
—	`026` Main Shaft Gears	1

Ferrari F430 Coupe5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	1
—	`006` Timing System - Drive	2
—	`030` Primary Shaft Gears	1

Ferrari F430 Spider5 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	1
—	`006` Timing System - Drive	2
—	`030` Primary Shaft Gears	1

Ferrari F8 Spider20 positions

Item No.	Diagram (page)	Qty
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	10
3	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	6
7	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
7	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	6
8	`0115` [VEHICLE TRIM] - E.16 - REAR SHIELDS	4
9	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	16
11	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	2
12	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	1
14	`0025` [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES	1
14	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
14	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	10
15	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	3
31	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
44	`0087` [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES	11
48	`0052` [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER	2

Ferrari F8 Tributo17 positions

Item No.	Diagram (page)	Qty
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	10
3	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	6
7	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
7	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	6
9	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	16
11	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	2
12	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	1
14	`0025` [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES	1
14	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
14	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	10
15	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	3

Ferrari F8026 positions

Item No.	Diagram (page)	Qty
—	`0004` [ENGINE] - B.1 - CRANKCASE	1
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
—	`0050` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER	2
—	`0059` [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK	1
—	`0063` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1
—	`0081` [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS	2
—	`0093` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	5
—	`0094` [MECHANICAL SYSTEM] - D.36 - HV BATTERY COOLING	2
—	`0178` [VEHICLE TRIM] - E.57.03 - AC SYSTEM - AIR CONDITIONER SYSTEM	1
—	`0198` [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS	2
2	`0026` [ENGINE] - B.21 - VENTS	5
2	`0042` [GEARBOX] - C.2 - EXTERNAL GEARBOX CONTROLS	2
4	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	10
8	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
8	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	6
9	`0058` [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR	2
9	`0065` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	2
10	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	20
13	`0197` [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES	4
19	`0087` [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN	1
24	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	1
32	`0079` [MECHANICAL SYSTEM] - D.25.04 - FRONT SUSPENSION - COOLING	1
44	`0191` [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	2

Ferrari FF18 positions

Item No.	Diagram (page)	Qty
—	`049` Tools And Accessories Provided With Vehicle	2
—	`108` Passenger Compartment Mats	6
4	`132` Various Fastenings For The Electrical System	3
5	`136` Infotainment System	3
15	`019` Cooling - Header Tank And Pipes	1
19	`007` Injection - Ignition System	2
24	`003` Right Hand Cylinder Head	1
24	`004` Left Hand Cylinder Head	2
25	`001` Crankcase	4
26	`007` Injection - Ignition System	2
27	`003` Right Hand Cylinder Head	2
27	`035` Power Steering Pump And Reservoir	1
29	`044` Alternator - Starter Motor	1
30	`006` Timing System - Drive	2
35	`019` Cooling - Header Tank And Pipes	2
38	`109` Luggage Compartment Mats	1
43	`046` Ac System - Water And Freon	1
52	`017` Lubrication System: Tank	1

Ferrari GTC4 Lusso18 positions

Item No.	Diagram (page)	Qty
—	`017` Lubrication System: Tank	1
—	`022` Transmission Pipe	1
—	`047` Tools And Accessories Provided With Vehicle	2
—	`127` Airbags	6
9	`034` Power Steering Pump And Reservoir	1
16	`019` Cooling - Header Tank And Pipes	3
19	`007` Injection - Ignition System	2
22	`019` Cooling - Header Tank And Pipes	2
24	`003` Right Hand Cylinder Head	1
24	`004` Left Hand Cylinder Head	2
25	`001` Crankcase	4
27	`003` Right Hand Cylinder Head	2
27	`138` Audio Speaker System	1
30	`006` Timing System - Drive	2
32	`133` Various Fastenings For The Electrical System	1
43	`020` Cooling - Radiators And Air Ducts	1
49	`044` Ac System - Water And Freon	2
69	`109` Luggage Compartment Mats	1

Ferrari GTC4 Lusso T21 positions

Item No.	Diagram (page)	Qty
—	`012` Intake Manifold	2
—	`015` Turbocharging System Adjustments	2
—	`016` Intercooler	2
—	`022` Lubrication: Circuit And Pickup	2
—	`028` Transmission Pipe	1
—	`039` Power Steering Pump And Reservoir	2
—	`047` Alternator - Starter Motor	3
—	`048` Ac System Compressor	2
—	`052` Tools And Accessories Provided With Vehicle	2
—	`127` Airbags	6
6	`013` Manifolds, Turbocharging System And Pipes	6
6	`014` Cooling-Lubrication For Turbocharging System	4
8	`003` Right Hand Cylinder Head	1
8	`004` Left Hand Cylinder Head	1
18	`019` Silencers	4
27	`138` Audio Speaker System	1
32	`009` Fuel System Pumps And Pipes	2
32	`133` Various Fastenings For The Electrical System	1
42	`049` Ac System - Water And Freon	2
52	`135` VEHICLE ECUs	4
69	`109` Luggage Compartment Mats	1

Ferrari La Ferrari17 positions

Item No.	Diagram (page)	Qty
—	`014` Lubrication System And Oil Vapour Recovery System	1
—	`015` Oil Pump	2
—	`035` Lifting The Vehicle	4
—	`037` Battery Cooling System	3
—	`038` Inverter And Cooling	6
—	`041` Ac System	2
19	`039` Starter Motor And Electric Motor 2	9
23	`007` Injection - Ignition System	2
23	`008` Secondary Air System	1
25	`003` Right Hand Cylinder Head	1
25	`020` Electric Motor Cooling	3
26	`016` Header Tank And Pipes	1
29	`021` Gearbox Oil Cooling System	4
32	`003` Right Hand Cylinder Head	2
35	`004` Left Hand Cylinder Head	2
40	`130` Vehicle Ecus	2
53	`011` Intake Manifold	2

Ferrari La Ferrari Aperta17 positions

Item No.	Diagram (page)	Qty
—	`014` Lubrication System And Oil Vapour Recovery System	1
—	`015` Oil Pump	2
—	`035` Lifting The Vehicle	4
—	`037` Battery Cooling System	3
—	`038` Inverter And Cooling	6
—	`041` Ac System	2
19	`039` Starter Motor And Electric Motor 2	9
23	`007` Injection - Ignition System	2
23	`008` Secondary Air System	1
25	`003` Right Hand Cylinder Head	1
25	`020` Electric Motor Cooling	3
26	`016` Header Tank And Pipes	1
29	`021` Gearbox Oil Cooling System	4
32	`003` Right Hand Cylinder Head	2
35	`004` Left Hand Cylinder Head	2
40	`130` VEHICLE ECUs	2
53	`011` Intake Manifold	2

Ferrari Mondial t Coupe & Cabriolet2 positions

Item No.	Diagram (page)	Qty
—	`006` Timing - Controls	2
—	`030` Single And Double Disc Clutch	3

Ferrari Monza SP111 positions

Item No.	Diagram (page)	Qty
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	4
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	1
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	13
14	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	5
14	`0077` [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS	8
17	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
21	`0020` [ENGINE] - B.15 - INJECTION CONTROL	6
25	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	1
32	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
35	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	1
43	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1

Ferrari Monza SP211 positions

Item No.	Diagram (page)	Qty
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	4
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	1
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	13
14	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	5
14	`0077` [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS	8
17	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
21	`0020` [ENGINE] - B.15 - INJECTION CONTROL	6
25	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	1
32	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
35	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	1
43	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1

Ferrari Portofino18 positions

Item No.	Diagram (page)	Qty
—	`034` Air Conditioning Compressor	2
—	`040` Gearbox And Fasteners	4
—	`043` Heat Exchanger And Gearbox Oil Pipes - Heat Exchanger And Rear Pipes	1
—	`052` Turbocharging System Adjustments	10
—	`127` Doors - Trim	4
—	`132` Door Seals	2
—	`163` Rear Seats	6
3	`039` Engine Electrical System	10
6	`011` Cylinder Heads - Rh Cylinder Head	1
6	`039` Engine Electrical System	2
6	`048` Engine Fuel Delivery Pipes	4
8	`012` Cylinder Heads - Lh Cylinder Head	1
8	`027` Turbochargers And Forced Induction System Mounts	6
12	`036` Electric Starter Motor	1
14	`064` Cooling System Pipes	1
15	`051` Intercooler	2
16	`028` Forced Induction System Pipes	6
16	`039` Engine Electrical System	5

Ferrari Portofino M19 positions

Item No.	Diagram (page)	Qty
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	6
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	4
—	`0133` [VEHICLE TRIM] - E.32 - DOOR SEALS	2
—	`0164` [VEHICLE TRIM] - E.52 - REAR SEATS	6
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
5	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
6	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
7	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
8	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
9	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	2
9	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
10	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
14	`0065` [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES	1
15	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	12
16	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	6
19	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
20	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	1
24	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6

Ferrari Purosangue20 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0037` [ENGINE] - B.32 - ALTERNATOR	1
—	`0050` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	2
—	`0059` [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK	2
—	`0060` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	3
5	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	1
6	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	9
8	`0049` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	2
11	`0045` [GEARBOX] - C.04.01 - PTU SYSTEM	2
13	`0034` [ENGINE] - B.29 - AC COMPRESSOR	1
13	`0055` [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM	1
14	`0058` [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR	12
14	`0076` [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS	2
15	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
18	`0191` [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	2
21	`0051` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	2
22	`0081` [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS	4
23	`0006` [ENGINE] - B.3 - ENGINE COVERS	1
25	`0063` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	7
60	`0079` [MECHANICAL SYSTEM] - D.25.04 - FRONT SUSPENSION - COOLING	2

Ferrari Roma16 positions

Item No.	Diagram (page)	Qty
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	6
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
5	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
6	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
7	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
8	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
9	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
9	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
10	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
15	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	12
16	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	6
19	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
23	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	1
25	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6

Ferrari Roma Spider17 positions

Item No.	Diagram (page)	Qty
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	2
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
—	`0133` [VEHICLE TRIM] - E.32 - DOOR SEALS	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
5	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
6	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
7	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
8	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
9	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
9	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
9	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
15	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	12
16	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	6
19	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
25	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6

Ferrari SF90 Spider20 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	6
—	`0129` [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES	8
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	6
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
2	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
6	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
6	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
7	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	3
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	4
11	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
27	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	2
28	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
46	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	4

Ferrari SF90 Stradale19 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	6
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	1
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
2	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
6	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
6	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
7	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	3
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	8
11	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
27	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	2
28	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
45	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	4

Ferrari SF90 XX Spider20 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	7
—	`0129` [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES	8
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	6
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
2	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
6	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
7	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	3
9	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	6
11	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
20	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
