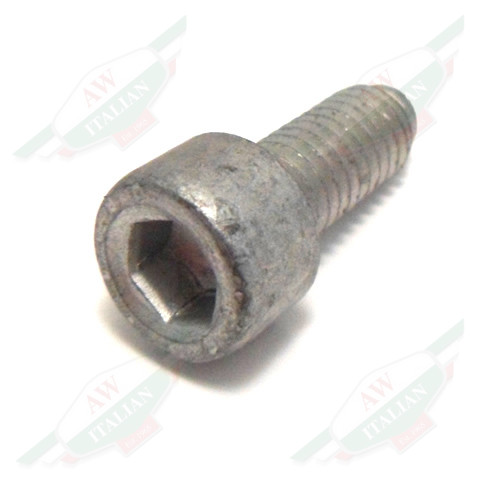

Ferrari Allen Screw TCEI M6 x 14 – 14305724

Name: Ferrari Allen Screw TCEI M6 x 14 - 14305724
Brand: Ferrari
SKU: 14305724
Price: 0.34 USD
Availability: InStock

AW Approved

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 14305724

$0.34

Available Ships in 3-6 Days

Description

Ferrari Allen Screw TCEI M6 x 14, part number 14305724. Listed in our catalogue for 69 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 208 GT4 Dino. Replaces part numbers 14305720,11567624.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

69 vehicles · 785 positions

Ferrari 12 Cilindri15 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0037` [ENGINE] - B.32 - ALTERNATOR	1
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
—	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
5	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
8	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	12
24	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	5
29	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	6

Ferrari 12 Cilindri Spider15 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0037` [ENGINE] - B.32 - ALTERNATOR	1
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
—	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
5	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
8	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	12
24	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	5
28	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	6

Ferrari 208 GT4 Dino1 position

Item No.	Diagram (page)	Qty
47	`110` Doors	2

Ferrari 296 GTB16 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	3
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	3
—	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	4
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	4
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	5
4	`0026` [ENGINE] - B.21 - VENTS	3
5	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	7
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	8
14	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	9
18	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	9

Ferrari 296 GTS15 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	3
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	3
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	8
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	4
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	5
4	`0026` [ENGINE] - B.21 - VENTS	3
5	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	7
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	8
14	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	9
18	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	9

Ferrari 308 GT4 Dino 19761 position

Item No.	Diagram (page)	Qty
47	`110` Doors	2

Ferrari 328 GTB/GTS (1988)1 position

Item No.	Diagram (page)	Qty
15	`016` Air Intake And Manifolds	2

Ferrari 348 GTB/GTS/GTC/Spider2 positions

Item No.	Diagram (page)	Qty
14	`006` TIMING - CONTROLS	2
67	`024` CLUTCH AND CONTROLS	3

Ferrari 348 tb/ts2 positions

Item No.	Diagram (page)	Qty
14	`006` Timing - Controls	2
24	`021A` Clutch - Single And Double Disc	3

Ferrari 360 Challenge3 positions

Item No.	Diagram (page)	Qty
29	`022` Clutch And Controls	2
47	`003` R.H. Cylinder Head	1
47	`004` L.H. Cylinder Head	1

Ferrari 360 Challenge Stradale4 positions

Item No.	Diagram (page)	Qty
26	`032` Main Shaft Gears	1
29	`026` Clutch And Controls	2
47	`003` R.H. Cylinder Head	1
47	`004` L.H. Cylinder Head	1

Ferrari 360 Modena5 positions

Item No.	Diagram (page)	Qty
29	`027` Clutch And Controls -Not For F1-	2
29	`028` Clutch And Controls -Valid For F1-	2
31	`034` Main Shaft Gears	1
47	`003` R.H. Cylinder Head	1
47	`004` L.H. Cylinder Head	1

Ferrari 360 Spider5 positions

Item No.	Diagram (page)	Qty
29	`027` Clutch And Controls -Not For F1-	2
29	`028` Clutch And Controls -Valid For F1-	2
31	`034` Main Shaft Gears	1
47	`003` R.H. Cylinder Head	1
47	`004` L.H. Cylinder Head	1

Ferrari 430 Scuderia7 positions

Item No.	Diagram (page)	Qty
6	`003` Right Hand Cylinder Head	1
6	`004` Left Hand Cylinder Head	1
16	`006` Timing System - Drive	2
17	`007` Injection - Ignition System	2
20	`006` Timing System - Drive	2
26	`032` Primary Shaft Gears	1
54	`001` Crankcase	2

Ferrari 430 Scuderia Spider 16M7 positions

Item No.	Diagram (page)	Qty
6	`003` Right Hand Cylinder Head	1
6	`004` Left Hand Cylinder Head	1
16	`006` Timing System - Drive	2
17	`007` Injection - Ignition System	2
20	`006` Timing System - Drive	2
26	`032` Primary Shaft Gears	1
54	`001` Crankcase	2

Ferrari 456 GT/GTA4 positions

Item No.	Diagram (page)	Qty
8	`014` Injection Device	6
15	`028` Gearbox -Not For 456 Gta-	1
18	`028` Gearbox -Not For 456 Gta-	1
30	`028` Gearbox -Not For 456 Gta-	1

Ferrari 456 MGT/MGTA 4 positions

Item No.	Diagram (page)	Qty
8	`017` Injection Device	6
15	`031` Gearbox -Not For 456M Gta-	1
18	`031` Gearbox -Not For 456M Gta-	1
30	`031` Gearbox -Not For 456M Gta-	1

Ferrari 458 Italia15 positions

Item No.	Diagram (page)	Qty
—	`006` Timing System - Drive	2
—	`015` Intake Manifold Cover	1
—	`016` Exhaust System	3
—	`019` Cooling - Water Pump	2
—	`043` Alternator - Starter Motor	2
—	`045` Ac System - Water	1
—	`046` Ac System - Freon	2
—	`135` Hi-Fi System	1
4	`007` Injection - Ignition System	6
12	`034` Power Steering Pump And Reservoir	3
27	`003` Right Hand Cylinder Head	4
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	4
36	`001` Crankcase	4
49	`008` Secondary Air System	4

Ferrari 458 Speciale11 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	2
—	`042` Alternator - Starter Motor	2
—	`044` Ac System - Water	1
—	`045` Ac System - Freon	2
4	`007` Injection - Ignition System	6
12	`033` Power Steering Pump And Reservoir	3
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	4
36	`001` Crankcase	4
41	`117` Rear Bumper	4
49	`008` Secondary Air System	4

Ferrari 458 Speciale Aperta (Convertible)11 positions

Item No.	Diagram (page)	Qty
—	`042` Alternator - Starter Motor	2
—	`044` Ac System - Water	1
—	`045` Ac System - Freon	2
4	`007` Injection - Ignition System	6
11	`033` Power Steering Pump And Reservoir	3
27	`003` Right Hand Cylinder Head	4
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	4
36	`001` Crankcase	4
41	`118` Rear Bumper	4
49	`008` Secondary Air System	4

Ferrari 458 Spider13 positions

Item No.	Diagram (page)	Qty
—	`006` Timing System - Drive	2
—	`015` Intake Manifold Cover	1
—	`016` Exhaust System	3
—	`043` Alternator - Starter Motor	2
—	`045` Ac System - Water	1
—	`046` Ac System - Freon	2
4	`007` Injection - Ignition System	6
12	`034` Power Steering Pump And Reservoir	3
27	`003` Right Hand Cylinder Head	4
27	`004` Left Hand Cylinder Head	4
27	`018` Lubrication System: Tank, Pump And Filter	4
36	`001` Crankcase	4
49	`008` Secondary Air System	4

Ferrari 488 GTB23 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	3
—	`007` Injection - Ignition System	2
—	`008` Secondary Air System	1
—	`009` Fuel System Pumps And Pipes	4
—	`012` Evaporative Emissions Control System	2
—	`016` Turbocharging System Adjustments	2
—	`024` Cooling - Header Tank And Pipes	1
—	`025` Cooling - Radiators And Air Ducts	2
—	`030` Servo Brake System	2
—	`035` Hydraulic Power Steering Box	1
—	`044` Vehicle Lift System	2
—	`046` Ac System Compressor	2
—	`046` Alternator - Starter Motor	1
—	`047` Ac System Compressor	2
—	`048` Ac System - Water And Freon	2
—	`128` Airbags	10
10	`136` VEHICLE ECUs	3
21	`015` Cooling-Lubrication For Turbocharging System	4
22	`029` Gearbox Oil Lubrication And Cooling System	4
23	`014` Manifolds, Turbocharging System And Pipes	7
26	`037` Power Steering Pump And Reservoir	5
34	`118` Rear Active Aero	4
49	`134` Various Fastenings For The Electrical System	17

Ferrari 488 Pista15 positions

Item No.	Diagram (page)	Qty
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0025` [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES	1
—	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	2
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	2
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	10
9	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
12	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
15	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	3
47	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	3

Ferrari 488 Pista Spider14 positions

Item No.	Diagram (page)	Qty
—	`023` Fuel Pumps	2
—	`025` Emissions Control System Pipes And Valves	1
—	`028` Forced Induction System Pipes	2
—	`030` Engine Cooling System Pipes	1
—	`034` A/C Compressor	2
—	`036` Electric Starter Motor	1
—	`048` Engine Fuel Delivery Pipes	4
—	`052` Turbocharging System Adjustments	2
—	`061` Evaporative Emissions Control System	2
—	`127` Doors - Trim	10
9	`039` Engine Electrical System	14
12	`027` Forced Induction System Turbochargers And Mounts	6
15	`169` A/C System - Air Conditioner System	3
47	`043` Gearbox Oil Heat Exchanger And Pipes - Heat Exchanger And Rear Pipes	3

Ferrari 488 Spider22 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	3
—	`007` Injection - Ignition System	2
—	`008` Secondary Air System	1
—	`009` Fuel System Pumps And Pipes	4
—	`012` Evaporative Emissions Control System	2
—	`016` Turbocharging System Adjustments	2
—	`024` Cooling - Header Tank And Pipes	1
—	`025` Cooling - Radiators And Air Ducts	2
—	`030` Servo Brake System	2
—	`035` Hydraulic Power Steering Box	1
—	`046` Alternator - Starter Motor	1
—	`047` Ac System Compressor	2
—	`048` Ac System - Water And Freon	2
—	`119` Rear Active Aero	1
—	`129` Airbags	10
10	`137` VEHICLE ECUs	3
21	`015` Cooling-Lubrication For Turbocharging System	4
22	`029` Gearbox Oil Lubrication And Cooling System	4
23	`014` Manifolds, Turbocharging System And Pipes	7
26	`037` Power Steering Pump And Reservoir	5
49	`135` Various Fastenings For The Electrical System	17
58	`118` Rear Bumper	4

Ferrari 550 Barchetta2 positions

Item No.	Diagram (page)	Qty
14	`029` Gearbox	1
30	`029` Gearbox	1

Ferrari 550 Maranello2 positions

Item No.	Diagram (page)	Qty
14	`030` Gearbox	1
30	`030` Gearbox	1

Ferrari 575 SuperAmerica3 positions

Item No.	Diagram (page)	Qty
14	`030` Gearbox	1
27	`017` Secondary Air Pump	8
29	`005` L.H. Cylinder Head	1

Ferrari 575M Maranello3 positions

Item No.	Diagram (page)	Qty
14	`030` Gearbox	1
27	`017` Secondary Air Pump	8
29	`005` L.H. Cylinder Head	1

Ferrari 599 GTB Fiorano6 positions

Item No.	Diagram (page)	Qty
3	`119` Doors - Power Windows And Rear-View Mirror	4
14	`017` Front Exhaust System	4
16	`139` Hi-Fi System	2
18	`001` Crankcase	2
21	`006` Timing System - Drive	2
43	`038` Power Unit And Tank -Applicable For F1-	3

Ferrari 599 GTO6 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
3	`119` Doors - Power Windows And Rear-View Mirror	4
16	`139` Hi-Fi System	2
17	`006` Timing System - Drive	2
21	`006` Timing System - Drive	2
43	`035` Power Unit And Tank	3

Ferrari 599 SA Aperta6 positions

Item No.	Diagram (page)	Qty
—	`001` Crankcase	2
3	`120` Doors - Power Windows And Rear-View Mirror	4
16	`139` Hi-Fi System	2
17	`006` Timing System - Drive	2
21	`006` Timing System - Drive	2
43	`035` Power Unit And Tank	3

Ferrari 612 Scaglietti3 positions

Item No.	Diagram (page)	Qty
27	`016` Secondary Air System	8
29	`005` Left Hand Cylinder Head	1
42	`044` Power Unit And Tank -Applicable For F1-	3

Ferrari 612 Sessanta3 positions

Item No.	Diagram (page)	Qty
27	`016` Secondary Air System	8
29	`005` Left Hand Cylinder Head	1
42	`044` Power Unit And Tank -Applicable For F1-	3

Ferrari 812 Competizione17 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	2
—	`0070` [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES	1
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
6	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	7
13	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	8
14	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	12
15	`0054` [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM	3
20	`0183` [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	3
22	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	14

Ferrari 812 CompetizioneA18 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0060` [MECHANICAL SYSTEM] - D.11 - FUEL TANK	1
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	2
—	`0070` [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES	1
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	2
—	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	1
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
6	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	7
13	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	8
14	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	12
15	`0054` [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM	3
22	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	14

Ferrari 812 GTS14 positions

Item No.	Diagram (page)	Qty
—	`0003` RIGHT HAND CYLINDER HEAD	1
—	`0004` LEFT HAND CYLINDER HEAD	2
—	`0012` INTAKE MANIFOLD	2
—	`0017` LUBRICATION SYSTEM- TANK	1
—	`0018` COOLING - OIL PUMP	2
—	`0027` BRAKE SYSTEM	2
—	`0041` AC SYSTEM - WATER AND FREON	2
—	`0044` TOOLS AND ACCESSORIES PROVIDED WITH VEHICLE	2
—	`0115` DOORS - SUBSTRUCTURE AND TRIM	6
—	`0130` AIRBAGS	6
9	`0028` FRONT BRAKE CALIPERS	8
24	`0120` REAR ACTIVE AERO	4
28	`0039` ALTERNATOR - STARTER MOTOR	8
45	`0014` PRE-CATALYTIC CONVERTERS AND CATALYTIC CONVERTERS	3

Ferrari 812 Superfast15 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	2
—	`012` Intake Manifold	2
—	`017` Lubrication System: Tank	1
—	`018` Cooling - Oil Pump	2
—	`026` Brake System	2
—	`040` Ac System - Water And Freon	2
—	`043` Tools And Accessories Provided With Vehicle	2
—	`114` Doors - Substructure And Trim	6
—	`129` Airbags	6
9	`027` Front Brake Callipers	8
24	`119` Rear Active Aero	4
25	`014` Pre-Catalytic Converters And Catalytic Converters	4
28	`038` Alternator - Starter Motor	5
77	`137` VEHICLE ECUs	3

Ferrari California13 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	2
—	`004` Left Hand Cylinder Head	2
—	`006` Timing System - Drive	2
—	`010` Right Hand Injection System - Ignition	1
—	`013` Intake Manifold And Throttle Body	1
—	`030` GEARBOX LUBRICATION AND COOLING CIRCUIT -Not for mechanical gearbox-	1
—	`051` Alternator, Starter Motor And Ac Compressor	2
8	`017` Heat Exchanger	3
11	`019` Lubrication: Circuit And Pickup	6
15	`034` Power Steering System	8
17	`042` Steering Box And Power Steering Pump	3
21	`020` Lubrication: Pump And Filter	4
66	`001` Crankcase	4

Ferrari California T23 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	1
—	`007` Fuel Pump And Connector Pipes	2
—	`011` Secondary Air System	6
—	`012` Intake Manifold	2
—	`015` TURBOCHARGING SYSTEM ADJUSTMENTS-Solution found-	2
—	`016` Turbocharging System Adjustments	2
—	`019` Pre-Catalytic Converters And Catalytic Converters	2
—	`022` Vents	2
—	`023` Lubrication: Circuit And Pickup	2
—	`029` Gearbox Housing	2
—	`041` Power Steering Pump And Reservoir	2
—	`049` Alternator - Starter Motor	3
—	`050` Ac System Compressor	2
—	`051` Ac System - Water And Freon	2
—	`054` Standard Accessories	2
—	`118` Doors - Substructure And Trim	2
—	`131` Airbags	4
—	`139` VEHICLE ECUs	1
6	`013` Manifolds, Turbocharging System And Pipes	6
6	`014` Cooling-Lubrication For Turbocharging System	4
17	`017` Intercooler	4
62	`001` Crankcase	3

Ferrari Daytona SP320 positions

Item No.	Diagram (page)	Qty
—	`0006` [ENGINE] - B.03 - ENGINE COVERS	2
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0017` [ENGINE] - B.12 - ENGINE OIL PUMP	2
—	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0031` [ENGINE] - B.26 - ENGINE HEAT EXCHANGER	1
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	4
—	`0054` [MECHANICAL SYSTEM] - D.06 - EMISSIONS CONTROL SYSTEM	1
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	1
—	`0072` [MECHANICAL SYSTEM] - D.23.01 - HYDRAULIC BRAKE CONTROL PIPES	1
—	`0074` [MECHANICAL SYSTEM] - D.24 - ABS ASR SYSTEM	3
—	`0087` [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES	6
—	`0129` [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES	8
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	6
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	6
—	`0183` [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	2
15	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	8

Ferrari Enzo8 positions

Item No.	Diagram (page)	Qty
18	`001` Crankcase	2
20	`109` Engine Bonnet And Gas Door	2
21	`006` Timing - Controls	2
25	`012` Air Intake Manifold And Air Box	2
29	`032` Brakes Hydraulic Controls And Brake Booster System	2
30	`012` Air Intake Manifold And Air Box	2
37	`048` Alternator, Starting Motor And A.C. Compressor	2
38	`005` Timing - Tappets And Shafts	4

Ferrari F12 Berlinetta13 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	2
—	`007` Injection - Ignition System	2
—	`013` Intake Manifold	2
—	`015` Pre-Catalytic Converters And Catalytic Converters	1
—	`018` Lubrication System: Tank	1
—	`019` Cooling - Oil Pump	2
—	`028` Brake System	2
—	`034` Power Steering Pump And Reservoir	1
—	`045` Ac System - Water And Freon	1
—	`048` Tools And Accessories Provided With Vehicle	2
—	`108` Passenger Compartment Mats	4
28	`043` Alternator - Starter Motor	7

Ferrari F12tdf15 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	2
—	`007` Injection - Ignition System	2
—	`012` Intake Manifold	2
—	`017` Lubrication System: Tank	1
—	`018` Cooling - Oil Pump	2
—	`027` Brake System	2
—	`032` Power Steering Pump And Reservoir	1
—	`043` Ac System - Water And Freon	1
—	`046` Tools And Accessories Provided With Vehicle	2
—	`108` Passenger Compartment Mats	4
9	`028` Front Brake Callipers	8
25	`014` Pre-Catalytic Converters And Catalytic Converters	4
28	`041` Alternator - Starter Motor	5
30	`119` Rear Active Aero	4

Ferrari F355 B/GTS/Spider Mo. 2.74 positions

Item No.	Diagram (page)	Qty
8	`028` Gearbox Covers And Lubrication	1
22	`104` Frame - Rear Part Elements	4
27	`007` Injection Device - Ignition	2
32	`042` Hydraulic Steering Pump -Valid For Steering Box With Power Steering Cars-	2

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F15 positions

Item No.	Diagram (page)	Qty
8	`031` Gearbox Covers And Lubrication	1
22	`028` Power Unit And Tank -Valid For 355 F1 Cars-	2
25	`007` Injection Device - Ignition	1
27	`007` Injection Device - Ignition	1
32	`047` Hydraulic Steering Pump And Tank	2

Ferrari F430 Challenge5 positions

Item No.	Diagram (page)	Qty
7	`024` Power Unit And Tank	3
16	`006` Timing - Controls	2
20	`006` Timing - Controls	2
26	`026` Main Shaft Gears	1
54	`001` Crankcase	2

Ferrari F430 Coupe6 positions

Item No.	Diagram (page)	Qty
6	`003` Right Hand Cylinder Head	1
6	`004` Left Hand Cylinder Head	1
16	`006` Timing System - Drive	2
20	`006` Timing System - Drive	2
26	`030` Primary Shaft Gears	1
54	`001` Crankcase	2

Ferrari F430 Spider6 positions

Item No.	Diagram (page)	Qty
6	`003` Right Hand Cylinder Head	1
6	`004` Left Hand Cylinder Head	1
16	`006` Timing System - Drive	2
20	`006` Timing System - Drive	2
26	`030` Primary Shaft Gears	1
54	`001` Crankcase	2

Ferrari F8 Spider20 positions

Item No.	Diagram (page)	Qty
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0025` [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES	1
—	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	2
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
—	`0052` [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER	2
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	1
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	10
3	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	6
7	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	6
8	`0115` [VEHICLE TRIM] - E.16 - REAR SHIELDS	4
9	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	16
14	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
14	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	10
15	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	3
31	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
44	`0087` [MECHANICAL SYSTEM] - D.32 - STEERING BOX PIPES	11

Ferrari F8 Tributo17 positions

Item No.	Diagram (page)	Qty
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0025` [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES	1
—	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	2
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	1
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	1
—	`0049` [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.05 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	1
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	10
3	`0050` [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL	6
7	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	6
9	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	16
14	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
14	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	10
15	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	3

Ferrari F8026 positions

Item No.	Diagram (page)	Qty
—	`0004` [ENGINE] - B.1 - CRANKCASE	1
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
—	`0042` [GEARBOX] - C.2 - EXTERNAL GEARBOX CONTROLS	2
—	`0050` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
—	`0053` [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER	2
—	`0058` [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR	2
—	`0059` [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK	1
—	`0063` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1
—	`0065` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	2
—	`0079` [MECHANICAL SYSTEM] - D.25.04 - FRONT SUSPENSION - COOLING	1
—	`0081` [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS	2
—	`0087` [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN	1
—	`0093` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	5
—	`0094` [MECHANICAL SYSTEM] - D.36 - HV BATTERY COOLING	2
—	`0178` [VEHICLE TRIM] - E.57.03 - AC SYSTEM - AIR CONDITIONER SYSTEM	1
—	`0191` [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	2
—	`0198` [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS	2
2	`0026` [ENGINE] - B.21 - VENTS	5
4	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	10
8	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	6
10	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	20
13	`0197` [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES	4
20	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	13

Ferrari FF16 positions

Item No.	Diagram (page)	Qty
—	`007` Injection - Ignition System	2
—	`017` Lubrication System: Tank	1
—	`019` Cooling - Header Tank And Pipes	2
—	`035` Power Steering Pump And Reservoir	1
—	`044` Alternator - Starter Motor	1
—	`046` Ac System - Water And Freon	1
—	`049` Tools And Accessories Provided With Vehicle	2
—	`108` Passenger Compartment Mats	6
—	`109` Luggage Compartment Mats	1
4	`132` Various Fastenings For The Electrical System	3
5	`136` Infotainment System	3
20	`004` Left Hand Cylinder Head	3
21	`003` Right Hand Cylinder Head	4
25	`001` Crankcase	4
29	`003` Right Hand Cylinder Head	1
30	`006` Timing System - Drive	2

Ferrari GTC4 Lusso17 positions

Item No.	Diagram (page)	Qty
—	`006` Timing System - Drive	2
—	`007` Injection - Ignition System	2
—	`017` Lubrication System: Tank	1
—	`020` Cooling - Radiators And Air Ducts	1
—	`022` Transmission Pipe	1
—	`034` Power Steering Pump And Reservoir	1
—	`044` Ac System - Water And Freon	2
—	`047` Tools And Accessories Provided With Vehicle	2
—	`109` Luggage Compartment Mats	1
—	`127` Airbags	6
—	`133` Various Fastenings For The Electrical System	1
—	`138` Audio Speaker System	1
16	`019` Cooling - Header Tank And Pipes	3
20	`004` Left Hand Cylinder Head	3
21	`003` Right Hand Cylinder Head	4
25	`001` Crankcase	4
29	`003` Right Hand Cylinder Head	1

Ferrari GTC4 Lusso T21 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	1
—	`009` Fuel System Pumps And Pipes	2
—	`012` Intake Manifold	2
—	`015` Turbocharging System Adjustments	2
—	`016` Intercooler	2
—	`022` Lubrication: Circuit And Pickup	2
—	`028` Transmission Pipe	1
—	`039` Power Steering Pump And Reservoir	2
—	`047` Alternator - Starter Motor	3
—	`048` Ac System Compressor	2
—	`049` Ac System - Water And Freon	2
—	`052` Tools And Accessories Provided With Vehicle	2
—	`109` Luggage Compartment Mats	1
—	`127` Airbags	6
—	`133` Various Fastenings For The Electrical System	1
—	`138` Audio Speaker System	1
6	`013` Manifolds, Turbocharging System And Pipes	6
6	`014` Cooling-Lubrication For Turbocharging System	4
18	`019` Silencers	4
52	`135` VEHICLE ECUs	4

Ferrari La Ferrari16 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	2
—	`004` Left Hand Cylinder Head	2
—	`007` Injection - Ignition System	2
—	`008` Secondary Air System	1
—	`011` Intake Manifold	2
—	`014` Lubrication System And Oil Vapour Recovery System	1
—	`015` Oil Pump	2
—	`016` Header Tank And Pipes	1
—	`035` Lifting The Vehicle	4
—	`037` Battery Cooling System	3
—	`038` Inverter And Cooling	6
—	`041` Ac System	2
—	`130` Vehicle Ecus	3
19	`039` Starter Motor And Electric Motor 2	9
25	`020` Electric Motor Cooling	3
29	`021` Gearbox Oil Cooling System	4

Ferrari La Ferrari Aperta16 positions

Item No.	Diagram (page)	Qty
—	`003` Right Hand Cylinder Head	1
—	`004` Left Hand Cylinder Head	2
—	`007` Injection - Ignition System	2
—	`008` Secondary Air System	1
—	`011` Intake Manifold	2
—	`014` Lubrication System And Oil Vapour Recovery System	1
—	`015` Oil Pump	2
—	`016` Header Tank And Pipes	1
—	`035` Lifting The Vehicle	4
—	`037` Battery Cooling System	3
—	`038` Inverter And Cooling	6
—	`041` Ac System	2
—	`130` VEHICLE ECUs	3
19	`039` Starter Motor And Electric Motor 2	9
25	`020` Electric Motor Cooling	3
29	`021` Gearbox Oil Cooling System	4

Ferrari Mondial t Coupe & Cabriolet2 positions

Item No.	Diagram (page)	Qty
6	`030` Single And Double Disc Clutch	3
16	`006` Timing - Controls	2

Ferrari Monza SP111 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	4
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	1
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	1
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	1
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	13
14	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	5
14	`0077` [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS	8
21	`0020` [ENGINE] - B.15 - INJECTION CONTROL	6

Ferrari Monza SP211 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0019` [ENGINE] - B.14 - ENGINE INTAKE DUCT	2
—	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	4
—	`0059` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	1
—	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	1
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	1
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	1
3	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	13
14	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	5
14	`0077` [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS	8
21	`0020` [ENGINE] - B.15 - INJECTION CONTROL	6

Ferrari Portofino16 positions

Item No.	Diagram (page)	Qty
—	`011` Cylinder Heads - Rh Cylinder Head	1
—	`012` Cylinder Heads - Lh Cylinder Head	1
—	`034` Air Conditioning Compressor	2
—	`036` Electric Starter Motor	3
—	`040` Gearbox And Fasteners	4
—	`043` Heat Exchanger And Gearbox Oil Pipes - Heat Exchanger And Rear Pipes	1
—	`051` Intercooler	2
—	`052` Turbocharging System Adjustments	10
—	`064` Cooling System Pipes	1
—	`127` Doors - Trim	4
—	`132` Door Seals	2
—	`163` Rear Seats	6
3	`039` Engine Electrical System	10
6	`048` Engine Fuel Delivery Pipes	4
8	`027` Turbochargers And Forced Induction System Mounts	6
16	`028` Forced Induction System Pipes	6

Ferrari Portofino M19 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	2
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	3
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	1
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	6
—	`0065` [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES	1
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	4
—	`0133` [VEHICLE TRIM] - E.32 - DOOR SEALS	2
—	`0164` [VEHICLE TRIM] - E.52 - REAR SEATS	6
—	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
5	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
9	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
15	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	12
16	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	6
24	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6

Ferrari Purosangue20 positions

Item No.	Diagram (page)	Qty
—	`0006` [ENGINE] - B.3 - ENGINE COVERS	1
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	1
—	`0037` [ENGINE] - B.32 - ALTERNATOR	1
—	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	1
—	`0045` [GEARBOX] - C.04.01 - PTU SYSTEM	2
—	`0049` [MECHANICAL SYSTEM] - D.1 - ENGINE SUSPENSION BUSH	2
—	`0050` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	2
—	`0051` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	2
—	`0055` [MECHANICAL SYSTEM] - D.6 - EMISSIONS CONTROL SYSTEM	1
—	`0059` [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK	2
—	`0060` [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR	3
—	`0079` [MECHANICAL SYSTEM] - D.25.04 - FRONT SUSPENSION - COOLING	2
—	`0191` [ELECTRICAL SYSTEM] - F.8 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM	2
6	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	9
14	`0058` [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR	12
14	`0076` [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS	4
22	`0081` [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS	4
25	`0063` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	7

Ferrari Roma16 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	3
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	1
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	6
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
—	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
5	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
9	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
15	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	12
16	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	6
25	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6

Ferrari Roma Spider17 positions

Item No.	Diagram (page)	Qty
—	`0011` [ENGINE] - B.08.01 - CYLINDER HEADS - RH HEAD	1
—	`0012` [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD	1
—	`0023` [ENGINE] - B.18 - FUEL PUMPS	2
—	`0034` [ENGINE] - B.29 - AC COMPRESSOR	2
—	`0036` [ENGINE] - B.31 - ELECTRIC STARTER MOTOR	3
—	`0043` [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES	1
—	`0050` [MECHANICAL SYSTEM] - D.3 - ENGINE INJECTION CONTROL	2
—	`0053` [MECHANICAL SYSTEM] - D.5 - TURBOCHARGING SYSTEM ADJUSTMENTS	2
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	6
—	`0133` [VEHICLE TRIM] - E.32 - DOOR SEALS	2
—	`0187` [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM	2
4	`0049` [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES	4
5	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	14
9	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	6
15	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	12
16	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	6
25	`0056` [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION	6

Ferrari SF90 Spider20 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	6
—	`0129` [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES	8
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	6
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	8
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
7	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	3
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	4
11	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
46	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	4

Ferrari SF90 Stradale19 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	6
—	`0128` [VEHICLE TRIM] - E.29.01 - DOORS - TRIM	1
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	8
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
7	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	3
8	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	8
11	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
45	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	4

Ferrari SF90 XX Spider20 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	7
—	`0129` [VEHICLE TRIM] - E.29.02 - DOORS - OPENING MECHANISMS AND HINGES	8
—	`0165` [VEHICLE TRIM] - E.53 - OTHER INTERIOR TRIM ACCESSORIES	6
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	6
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
7	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	3
9	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	6
11	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
46	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	4

Ferrari SF90 XX Stradale18 positions

Item No.	Diagram (page)	Qty
—	`0021` [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS	4
—	`0027` [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS	4
—	`0030` [ENGINE] - B.25 - ENGINE COOLING SYSTEM PIPES	2
—	`0032` [ENGINE] - B.27 - ENGINE TEMPERATURE AND PRESSURE REGULATORS	3
—	`0039` [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM	3
—	`0042` [GEARBOX] - C.02 - EXTERNAL GEARBOX CONTROLS	2
—	`0058` [MECHANICAL SYSTEM] - D.09 - ENGINE OIL RADIATOR AND TANK	2
—	`0064` [MECHANICAL SYSTEM] - D.15 - EXPANSION TANK	5
—	`0067` [MECHANICAL SYSTEM] - D.18 - LIFTING THE VEHICLE	3
—	`0090` [MECHANICAL SYSTEM] - D.35 - INVERTER COOLING	7
—	`0168` [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT	3
—	`0170` [VEHICLE TRIM] - E.57.02 - AC SYSTEM - AIR CONDITIONER SYSTEM	2
—	`0172` [VEHICLE TRIM] - E.59 - EXTERNAL LATERAL TRIM	2
—	`0195` [ELECTRICAL SYSTEM] - F.20 - ELECTRIC MACHINE COOLING	6
6	`0044` [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES	13
9	`0081` [MECHANICAL SYSTEM] - D.27.03 - REAR SUSPENSION - CALIPERS AND DISCS	6
14	`0028` [ENGINE] - B.23 - FORCED INDUCTION SYSTEM PIPES	10
42	`0062` [MECHANICAL SYSTEM] - D.13 - EVAPORATIVE EMISSIONS CONTROL SYSTEM	4
