Ferrari 12 Cilindri Spider — [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES (diagram 0043)

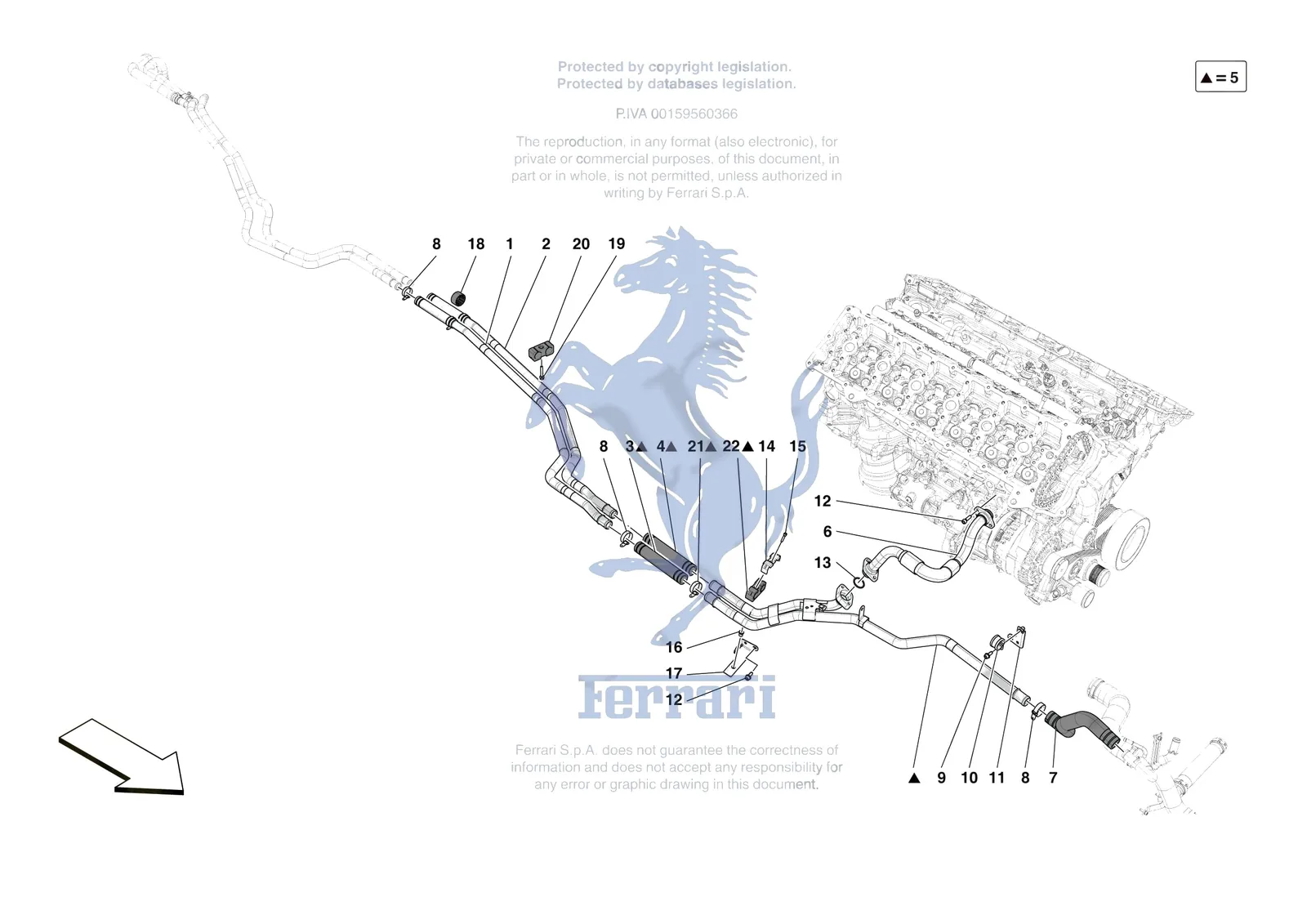

Exploded view of the [gearbox] - c.03.01 - gearbox oil heat exchanger and pipes - front-underbody pipes on the Ferrari 12 Cilindri Spider, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri Spider [GEARBOX] - C.03.01 - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri-spider/0043.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 841334 | Ferrari ENGINE SIDE UNDERBODY WATER RETURN PIPE - 841334 | $342.66 | Special order, ships in 7-14 days |
| 2 | 842585 | Ferrari ENGINE SIDE UNDERBODY WATER DELIVERY PIPE - 842585 | $489.54 | Special order, ships in 7-14 days |
| 3 | 842587 | Ferrari MULTI-WAY INLET HOSE - 842587 | $69.59 | Special order, ships in 7-14 days |
| 4 | 990083 | Ferrari MULTI-WAY DELIVERY HOSE - 990083 | $174.03 | Special order, ships in 7-14 days |
| 5 | 55044389 | Ferrari Multivie Cpl Manicotti Con F - 55044389 | $958.91 | Special order, ships in 7-14 days |
| 5 | 775279 | Ferrari Multivie Cpl Manicotti Con F - 775279 | $958.91 | Special order, ships in 7-14 days |
| 6 | 996458 | Ferrari METAL DELIVERY PIPE ON ENGINE - 996458 | $835.97 | Special order, ships in 7-14 days |
| 7 | 841305 | Ferrari ENGINE SIDE RETURN HOSE - 841305 | Price on request | Contact us for price and availability |
| 8 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 9 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 10 | 10441990 | Ferrari P Clip Bracket With Sheath - 10441990 | $1.42 | Available, ships in 3-6 days |
| 11 | 841306 | Ferrari Multi-Way Hose Mounting Brac - 841306 | $36.86 | Special order, ships in 7-14 days |
| 12 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 13 | 250888 | Ferrari Gasket - 250888 | $1.42 | Available, ships in 3-6 days |
| 14 | 329366 | Ferrari Retainer Block Plate - 329366 | $13.74 | Available, ships in 3-6 days |
| 15 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 16 | 329368 | Ferrari Retainer Block Bush Diam.23 - 329368 | $1.49 | Available, ships in 3-6 days |
| 17 | 841314 | Ferrari Rear Multi-Way Hose Mounting - 841314 | $81.11 | Special order, ships in 7-14 days |
| 18 | 790973 | Ferrari Cable Guides - 790973 | $17.23 | Special order, ships in 7-14 days |
| 19 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 20 | 329367 | Ferrari Gogna Gomma X Tubi 2 - 329367 | $13.24 | Special order, ships in 7-14 days |
