Ferrari 12 Cilindri — [ENGINE] - B.12 - ENGINE OIL PUMP (diagram 0017)

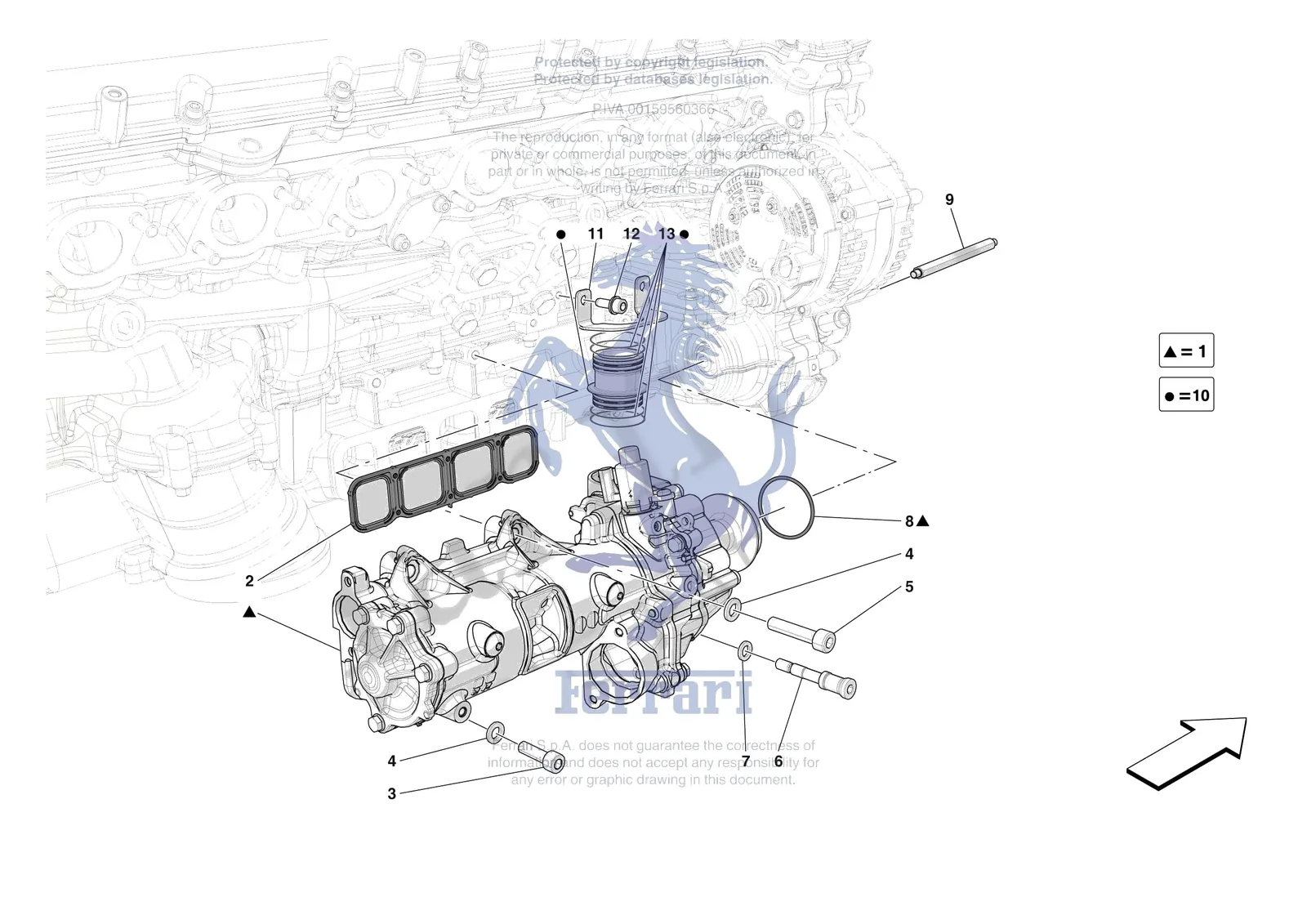

Exploded view of the [engine] - b.12 - engine oil pump on the Ferrari 12 Cilindri, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [ENGINE] - B.12 - ENGINE OIL PUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0017.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 812435 | Ferrari Compl. Oil Pump - 812435 | Price on request | Contact us for price and availability | |
| 910383 | Ferrari Compl. Oil Pump - 910383 | Price on request | Contact us for price and availability | |
| 955008 | Ferrari Compl. Oil Pump - 955008 | Price on request | Contact us for price and availability | |
| 920843 | Ferrari Hexagonal Oil Pump Drive Rod - 920843 | $66.35 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 14306624 | Ferrari Screw 8x35mm - 14306624 | $0.52 | Special order, ships in 7-14 days | |
| 986899 | Ferrari Washer - 986899 | Superseded | Order 986847 instead | |
| 1 | 55010660 | Ferrari Compl. Oil Pump - 55010660 | $8,273.30 | Special order, ships in 7-14 days |
| 1 | 55042138 | Ferrari Compl. Oil Pump - 55042138 | $8,914.93 | Special order, ships in 7-14 days |
| 2 | 275528 | Ferrari Pump Seal Filter - 275528 | $58.98 | Available, ships in 3-6 days |
| 3 | 14306421 | Ferrari Screw 8x20 - 14306421 | $0.63 | Available, ships in 3-6 days |
| 3 | 14306424 | Ferrari Screw M8 x 25mm - 14306424 | Superseded | Order 14306421 instead |
| 4 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 5 | 14306621 | Ferrari Screw 8X35 - 14306621 | Superseded | Order 14306624 instead |
| 6 | 292495 | Ferrari Calibrated Stud Bolt - 292495 | $44.24 | Special order, ships in 7-14 days |
| 7 | 986847 | Ferrari Conical Washer - 986847 | $1.36 | Special order, ships in 7-14 days |
| 8 | 123353 | Ferrari O-Ring - 123353 | $4.35 | Available, ships in 3-6 days |
| 9 | 917921 | Ferrari Hexagonal Oil Pump Drive Rod - 917921 | $76.19 | Special order, ships in 7-14 days |
| 10 | 833135 | Ferrari Compl. Oil Pump Delivery Fit - 833135 | $100.78 | Special order, ships in 7-14 days |
| 11 | 833133 | Ferrari Bracket - 833133 | $49.14 | Special order, ships in 7-14 days |
| 12 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 13 | 921637 | Ferrari O-Ring - 921637 | $39.31 | Special order, ships in 7-14 days |
