Ferrari 12 Cilindri — [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS (diagram 0040)

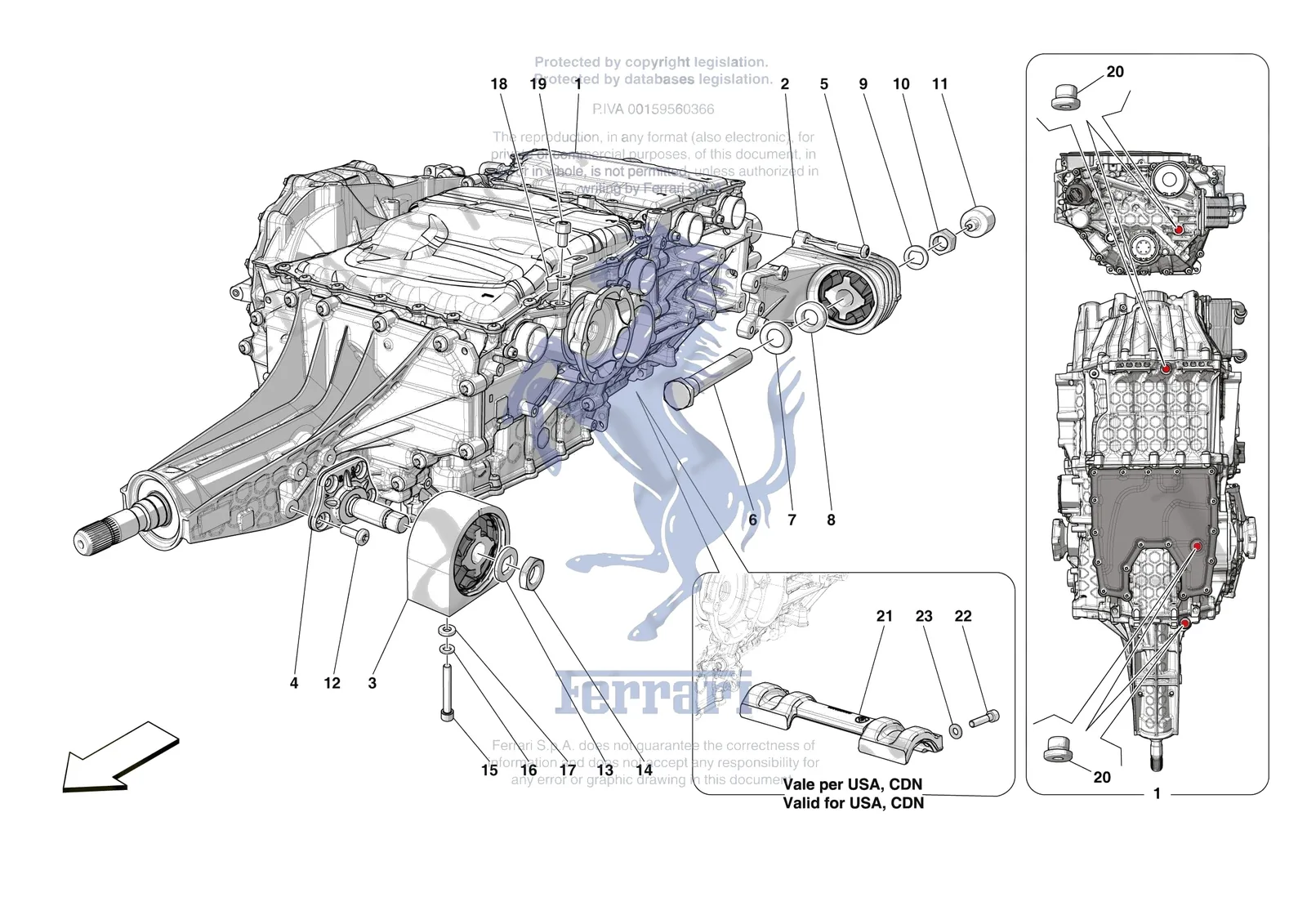

Exploded view of the [gearbox] - c.01.01 - gearbox and fasteners on the Ferrari 12 Cilindri, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0040.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 917933 | Ferrari Supporto Anteriore Tampone - 917933 | Superseded | Order 777385 instead | |
| 93798 | Ferrari Washer - 93798 | Superseded | Order 10519624 instead | |
| 10519601 | Ferrari Washer 8.15-17 X 2 - 10519601 | Superseded | Order 10519624 instead | |
| 1 | 987521 | Ferrari Compl. Dct Gearbox - 987521 | $70,321.25 | Contact us to order |
| 2 | 893003 | Ferrari LH REAR GEARBOX STRUT - 893003 | $688.45 | Special order, ships in 7-14 days |
| 2 | 893004 | Ferrari RH REAR GEARBOX STRUT - 893004 | $663.86 | Special order, ships in 7-14 days |
| 3 | 777385 | Ferrari Supporto Anteriore Tampone - 777385 | $565.49 | Special order, ships in 7-14 days |
| 4 | 893453 | Ferrari Zampa Anteriore Cambio 498 D - 893453 | $319.62 | Special order, ships in 7-14 days |
| 5 | 247857 | Ferrari Screw 8x35 - 247857 | $4.12 | Available, ships in 3-6 days |
| 6 | 938726 | Ferrari Gearbox Mounting Bush Pin - 938726 | $216.35 | Special order, ships in 7-14 days |
| 7 | 10731314 | Ferrari Washer - 10731314 | $3.03 | Available, ships in 3-6 days |
| 8 | 243122 | Ferrari Shim - 243122 | $11.56 | Special order, ships in 7-14 days |
| 9 | 331997 | Ferrari Anti Rotation Washer - 331997 | $4.56 | Available, ships in 3-6 days |
| 10 | 12164424 | Ferrari Nut M22 x 1.5 x 18 - 12164424 | $10.46 | Available, ships in 3-6 days |
| 11 | 938712 | Ferrari Additional Ground Male - 938712 | $93.40 | Special order, ships in 7-14 days |
| 12 | 247856 | Ferrari Screw TORX M8 x 1.25x 25 - 247856 | $3.68 | Available, ships in 3-6 days |
| 13 | 331171 | Ferrari Washer - 331171 | $13.74 | Special order, ships in 7-14 days |
| 14 | 16102624 | Ferrari Nut M20 X 1.5 - 16102624 | $19.42 | Special order, ships in 7-14 days |
| 15 | 14302234 | Ferrari Screw M8 X 55 - 14302234 | $1.86 | Special order, ships in 7-14 days |
| 16 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 17 | 12654424 | Ferrari Washer - 12654424 | $0.98 | Available, ships in 3-6 days |
| 18 | 910977 | Ferrari Wiring Harness Mounting Bracket - 910977 | $29.48 | Special order, ships in 7-14 days |
| 19 | 14359924 | Ferrari Screw - 14359924 | $3.47 | Special order, ships in 7-14 days |
| 20 | 913205 | Ferrari Oil Plug Compl. With Washer - 913205 | $115.54 | Special order, ships in 7-14 days |
| 21 | 977463 | Ferrari Retention Bracket - 977463 | $270.44 | Special order, ships in 7-14 days |
| 22 | 14306634 | Ferrari Screw - 14306634 | Price on request | Contact us for price and availability |
| 23 | 10519624 | Ferrari Washer 8.15 - 17 x 2 - 10519624 | $0.27 | Available, ships in 3-6 days |
