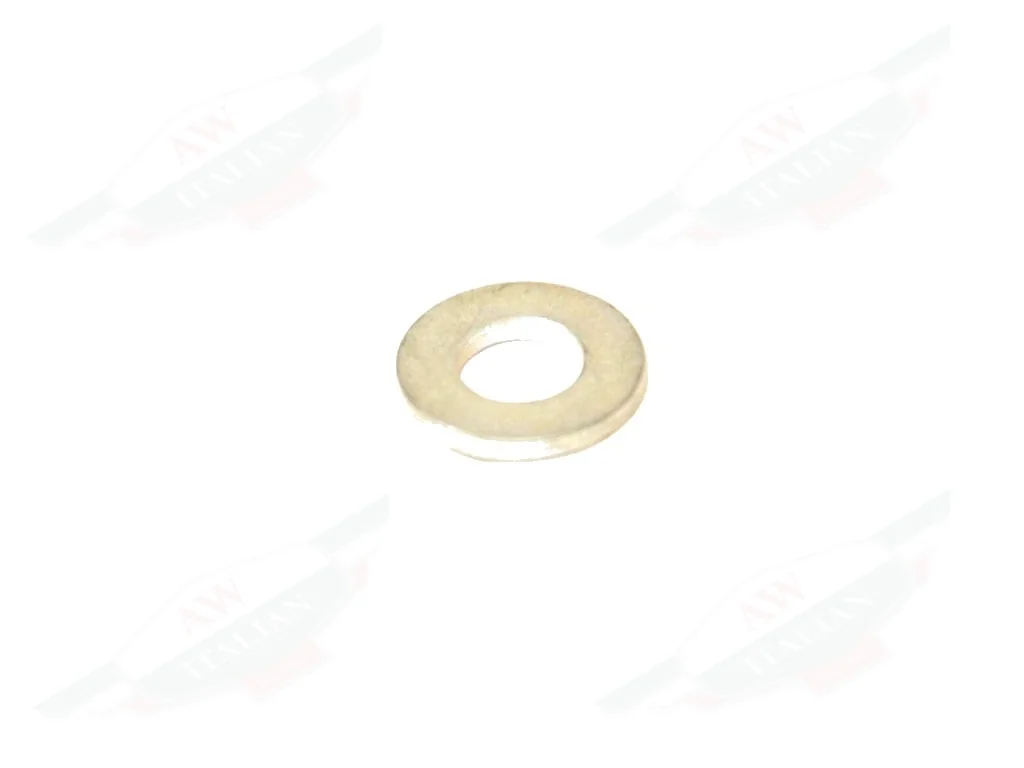

Ferrari Washer 8.15-17 X 2 – 10519601

Name: Ferrari Washer 8.15-17 X 2 - 10519601
Brand: Ferrari
SKU: 10519601
Price: 0.12 USD
Availability: InStock

Original or OEM

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 10519601

$0.12

SUPERSEDEDPlease order 10519624 instead.

Description

Ferrari Washer 8.15-17 X 2, part number 10519601. Listed in our catalogue for 100 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 206 GT Dino. This number has been superseded by 10519624.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

100 vehicles · 554 positions

Ferrari 12 Cilindri1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari 12 Cilindri Spider1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari 206 GT Dino1 position

Item No.	Diagram (page)	Qty
19	`037` Engine Ignition	3

Ferrari 208 GT4 Dino9 positions

Item No.	Diagram (page)	Qty
7	`016` Cooling System	2
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	2
16	`038` Engine Ignition	2
19	`025` Outside Gearbox Controls	2
20	`030` Hand-Brake Control	3
33	`021` Gearbox - Differential Housing And Oil Sump	4
50	`015` Lubrication System	4
58	`016` Cooling System	4

Ferrari 208 GTB/GTS Carburetor7 positions

Item No.	Diagram (page)	Qty
4	`108` Bumpers And Mouldings	4
14	`006` Cylinder Head (Left)	1
17	`024` Outside Gearbox Controls	2
20	`029` Hand - Brake Control	3
33	`020` Gearbox - Differential Housing And Oil Sump	4
36	`014` Lubrication System	2
50	`014` Lubrication System	4

Ferrari 208 GTB/GTS Turbo7 positions

Item No.	Diagram (page)	Qty
—	`034` Hand - Brake Control	1
13	`013` Throttle Housing And Linkage	1
17	`026` Outside Gearbox Controls	2
33	`022` Gearbox - Differential Housing And Oil Pump	5
35	`013` Throttle Housing And Linkage	1
37	`048` Electric Generating System	1
50	`016` Lubrication System	4

Ferrari 208 Turbo11 positions

Item No.	Diagram (page)	Qty
13	`013` Throttle Control	1
17	`025` Outside Gearbox Controls	2
18	`108` Bumpers, Mouldings And External Lights	6
20	`030` Hand-Brake Controll	3
33	`021` Gearbox - Differential Housing And Oil Sump	7
35	`116` Windshields Wiper, Washer And Horn	2
50	`016` Lubrication System	4
59	`039` Electric Generating System	1
67	`017` Cooling System	4
68	`016` Lubrication System	2
74	`017` Cooling System	2

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132)4 positions

Item No.	Diagram (page)	Qty
10	`014` Cooling System	2
19	`036` Engine Ignition	3
43	`029` Steering Control	2
44	`029` Steering Control	4

Ferrari 250 GT (Engine 128F)(1956-1959)1 position

Item No.	Diagram (page)	Qty
—	`011` Ignition System	6

Ferrari 275 GTB3 positions

Item No.	Diagram (page)	Qty
—	`011` Engine Ignition	1
—	`012B` Generator - Battery & Coils - RHD Variants	1
—	`030` Radiator & Water Pump	1

Ferrari 275 GTB42 positions

Item No.	Diagram (page)	Qty
—	`014` Distributors And Controls	6
—	`016` Radiator And Water Pump	1

Ferrari 275 GTS3 positions

Item No.	Diagram (page)	Qty
—	`011` Engine Ignition	1
—	`012B` Generator - Battery & Coils - RHD Variants	1
—	`030` Radiator & Water Pump	1

Ferrari 288 GTO6 positions

Item No.	Diagram (page)	Qty
11	`032` Steering Box And Linkage	4
12	`009` Throttle Bodies And Accelerator Control	1
15	`018` Clutch Release Control	1
16	`032` Steering Box And Linkage	4
23	`107` Bumpers - Lights - Outer Name	4
40	`040` Electric Generating System	2

Ferrari 308 GT4 Dino 197616 positions

Item No.	Diagram (page)	Qty
7, 58	`016` Cooling System	2
7R	`054` Water Radiator - Gear - Lever Housing (U.S. 1976 Version)	2
8	`052` Exhaust System (U.S. And Australian Versions 1976)	4
13	`052` Exhaust System (U.S. And Australian Versions 1976)	6
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	2
16	`038` Engine Ignition (2 Distributors)	2
16	`053` Engine Ignition (U.S. And Australian Versions 1976)	2
16	`38A` Engine Ignition (1 Distributor)	1
17	`25A` Outside Gearbox Controls (From No. 11324 Gs - 11300 Gd - 10360 U.S. Version)	2
20	`030` Hand - Brake Control	3
20	`051` Fuel System (Up To No. 11462 - U.S. 1976 Version)	2
20	`51A` Fuel System (From No.11994 - U.S. 1976 Version)	2
33	`021` Gearbox - Differential Housing And Oil Sump	4
44	`025` Outside Gearbox Controls (Up To No. 10114 Gs - 10100 Gd - 10358 U.S. Version)	2
50	`015` Lubrication System	4

Ferrari 308 GT4 Dino 197913 positions

Item No.	Diagram (page)	Qty
4	`053` Exhaust System (Variants For Usa - Aus And J Version)	4
7	`015` Cooling System	2
8	`054` Exhaust System (Variants For Usa - Aus And J Version)	4
13	`054` Exhaust System (Variants For Usa - Aus And J Version)	6
14	`006` Cylinder Head (Left)	2
16	`055` Engine Ignition (Variants For Usa - Aus And J Version)	2
17	`024` Outside Gearbox Controls	2
20	`029` Hand - Brake Control	3
20	`048` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
20	`049` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
33	`020` Gear - Differential Housing And Oil Sump	4
50	`014` Lubrication System	4
61	`053` Exhaust System (Variants For Usa - Aus And J Version)	2

Ferrari 308 GTB 1976 Fibreglass10 positions

Item No.	Diagram (page)	Qty
4	`109` Bumpers And Mouldings	4
4	`159` Bumpers And Mouldings (Valid For RHD - Aus Versions)	4
7	`017` Cooling System	2
9	`015` Lubrication System	1
14	`006` Cylinder Head (Left)	2
15	`015` Lubrication System	2
16	`039` Engine Ignition	1
17	`026` Outside Gearbox Controls	2
20	`031` Hand-Brake Control	3
33	`022` Gearbox - Differential Housing And Oil Sump	4

Ferrari 308 GTB/GTS Carburetor16 positions

Item No.	Diagram (page)	Qty
4	`109` Bumpers And Mouldings	4
4	`159` Bumpers And Mouldings (Variants For RHD - Aus Versions)	4
7	`018` Cooling System	2
8	`054` Exhaust System (Variants For Aus Version)	4
9	`015` Lubrication System (308 Gtb)	1
13	`054` Exhaust System (Variants For Aus Version)	12
14	`006` Cylinder Head (Left)	1
16	`055` Engine Ignition (Variants For Aus Version)	2
17	`028` Outside Gearbox Controls	2
20	`033` Hand-Brake Control	3
20	`052` Fuel System (Variants For Aus Version)	2
33	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	4
33	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	4
36	`017` Lubrication System (308 Gts And Aus)	2
50	`017` Lubrication System (308 Gts And Aus)	4
71	`016` Oil Filter And Pumps (308 Gtb)	2

Ferrari 308 GTB/GTS JAP12 positions

Item No.	Diagram (page)	Qty
4	`017` Exhaust System	4
7	`020` Cooling System	2
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	2
16	`042` Engine Ignition	1
17	`029` Outside Gearbox Controls	2
20	`011` Antievaporative Emission Control System	2
20	`034` Handbrake Control	3
33	`025` Gearbox - Differential Housing & Oil Sump	4
50	`019` Lubrication System	4
61	`017` Exhaust System	2
70	`019` Lubrication System	2

Ferrari 308 GTB/GTS USA12 positions

Item No.	Diagram (page)	Qty
4	`017` Exhaust System	4
7	`020` Cooling System	2
14	`006` Cylinder Head (Left)	2
15	`005` Cylinder Head (Right)	3
16	`042` Engine Ignition	1
17	`029` Outside Gearbox Controls	2
20	`011` Antievaporative Emission Control System	2
20	`034` Hand - Brake Control	3
33	`025` Gearbox - Differential Housing And Oil Sump	4
50	`019` Lubrication System	4
61	`017` Exhaust System	2
70	`019` Lubrication System	2

Ferrari 308 GTBi/GTSi7 positions

Item No.	Diagram (page)	Qty
4	`108` Bumpers And Moldings	4
7	`016` Cooling System	2
14	`013` Exhaust System	12
17	`024` Outside Gearbox Controls	2
20	`029` Hand-Brake Control	3
33	`020` Gearbox - Differential Housing And Oil Sump	5
50	`015` Lubrication System	4

Ferrari 308 Quattrovalvole9 positions

Item No.	Diagram (page)	Qty
4	`013` Exhaust System	24
13	`012` Throttle Housing And Linkage	1
17	`024` Outside Gearbox Controls	2
18	`108` Bumpers, Moldings And External Lights	4
20	`029` Hand - Brake Controls	3
33	`020` Gearbox - Differential Housing And Oil Sump	5
35	`116` Windshield Wiper, Washer And Horn	2
46	`013` Exhaust System	4
50	`015` Lubrication System	4

Ferrari 308 Quattrovalvole USA9 positions

Item No.	Diagram (page)	Qty
4	`015` Exhaust System	1
7	`018` Cooling System	2
13	`014` Throttle Housing and Linkage	1
17	`026` Outside Gearbox Controls	2
20	`031` Hand - Brake Control	3
33	`022` Gearbox - Differential Housing and Oil Sump	5
35	`117` Windshield Wiper Washer and Horn	2
47	`014` Throttle Housing and Linkage	2
50	`017` Lubrication System	4

Ferrari 328 GTB/GTS (1985)9 positions

Item No.	Diagram (page)	Qty
4	`017` Exhaust System (Not For U.S. And Sa Version)	24
4	`018` Exhaust System (For U.S. And Sa Version)	1
12	`034` Hand - Brake Control	1
13	`016` Throttle Housing And Linkage	1
17	`029` Outside Gearbox Controls	2
33	`025` Gearbox - Differential Housing And Oil Sump	5
46	`017` Exhaust System (Not For U.S. And Sa Version)	4
50	`020` Lubrication System	4
63	`102` Body Shell - Outer Elements (For U.S. And Sa Version)	8

Ferrari 328 GTB/GTS (1988)9 positions

Item No.	Diagram (page)	Qty
4	`019` Exhaust System (For Us - Sa - Ch87 And Ch88 Version)	4
5	`018` Exhaust System (Not For Us - Sa - Ch87 And Ch88 Version)	4
12	`039` Hand - Brake Control	1
13	`017` Throttle Housing And Linkage	1
17	`031` Outside Gearbox Controls	2
25	`018` Exhaust System (Not For Us - Sa - Ch87 And Ch88 Version)	24
26	`103` Rear Bumpers	8
33	`027` Gearbox - Differential Housing And Oil Pump	1
50	`021` Lubrication System	4

Ferrari 330 GT 2+2 Mk.11 position

Item No.	Diagram (page)	Qty
—	`013` Distributors And Controls	6

Ferrari 330 GTC2 positions

Item No.	Diagram (page)	Qty
—	`013` Distributors And Controls	6
—	`036` Radiator And Water Pump	1

Ferrari 348 GTB/GTS/GTC/Spider8 positions

Item No.	Diagram (page)	Qty
—	`015` EXHAUST SYSTEM -Not for USA, CDN, CH, AUS-	2
—	`016` EXHAUST SYSTEM -Valid for USA AND CDN-	2
—	`017` EXHAUST SYSTEM -Valid for CH AND AUS-	2
—	`019` LUBRICATION - PUMPS AND OIL SUMPS	4
—	`039` HAND-BRAKE CONTROL	1
—	`047` CURRENT GENERATOR - STARTING MOTOR	3
—	`119` DOORS - OPENING CONTROL AND HINGES	12
—	`144` ELECTRICAL BOARDS	2

Ferrari 348 tb/ts9 positions

Item No.	Diagram (page)	Qty
—	`014` Exhaust System - Not For Catalytic Vehicles	2
—	`014A` Exhaust System - Valid For Catalytic Vehicles - Not For Usa Spyder	2
—	`014B` Exhaust System - Valid For Catalytic Vehicles - For Usa Spyder	2
—	`016` Lubrication - Pumps And Oil Sumps	4
—	`022` Clutch Release Control - Not For RHD	2
—	`034` Hand-Brake Control	1
—	`042A` Current Generator (Valid From Engine Nr. 30738) - Battery	3
—	`116` Doors - Opening Control And Hinges	12
—	`133` Electrical Boards	2

Ferrari 360 Challenge5 positions

Item No.	Diagram (page)	Qty
—	`015` Exhaust System	4
—	`017` Pumps And Oil Sump	6
—	`024` F1 Clutch Hydraulic Control	2
—	`045` Current Generator - Starting Motor	3
—	`104` Frame - Rear Elements Structures And Plates	12

Ferrari 360 Challenge Stradale6 positions

Item No.	Diagram (page)	Qty
—	`021` Pumps And Oil Sump	6
—	`029` F1 Clutch Hydraulic Control	2
—	`052` Current Generator - Starting Motor	3
—	`134` Anti-Theft Electrical Boards And Devices	2
21	`104` Frame - Rear Elements Structures And Plates	8
28	`104` Frame - Rear Elements Structures And Plates	4

Ferrari 360 Modena6 positions

Item No.	Diagram (page)	Qty
—	`022` Pumps And Oil Sump	6
—	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
—	`055` Current Generator - Starting Motor	3
—	`139` Anti-Theft Electrical Boards And Devices	2
21	`104` Frame - Rear Elements Structures And Plates	8
28	`104` Frame - Rear Elements Structures And Plates	4

Ferrari 360 Spider6 positions

Item No.	Diagram (page)	Qty
—	`022` Pumps And Oil Sump	6
—	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
—	`055` Current Generator - Starting Motor	3
—	`147` Anti-Theft Electrical Boards And Devices	2
21	`104` Frame - Rear Elements Structures And Plates	8
28	`104` Frame - Rear Elements Structures And Plates	4

Ferrari 365 GT 2+2 MK1 up to 128102 positions

Item No.	Diagram (page)	Qty
—	`016` Distributors & Controls	10
—	`041` Radiator & Water Pump	1

Ferrari 365 GT 2+2 MK2 from 128112 positions

Item No.	Diagram (page)	Qty
—	`016` Distributors & Controls	6
—	`041` Radiator & Water Pump	1

Ferrari 365 GT4 2+22 positions

Item No.	Diagram (page)	Qty
15	`018` Cooling System	4
35	`033` Handbrake Control	2

Ferrari 365 GT4 BB9 positions

Item No.	Diagram (page)	Qty
8	`011` Exhaust System	8
10	`036` Engine Ignition	1
16	`028` Hand-Brake Control	1
19	`028` Hand-Brake Control	1
21	`23B` Gearbox Controls (From Car No. 18825)	2
22	`041` Clutch Release Control (For RHD)	4
32	`004` Cylinder Head (Left)	2
33	`014` Cooling System (Up To Car No. 17845)	2
33	`014A` Cooling System (From Car No. 17847)	2

Ferrari 365 GTB4 (Daytona)6 positions

Item No.	Diagram (page)	Qty
—	`009` Cooling System - Water Pump & Radiator	1
—	`009A` Cooling System - Water Pump & Radiator (1974 Revision - Cars With Air Pollution System)	1
—	`010` Distributors & Controls	1
—	`030` Hand Brake Control	1
—	`033` Steering Control	4
—	`038` Air Conditioning System	8

Ferrari 365 GTC44 positions

Item No.	Diagram (page)	Qty
—	`016` Water & Oil Pump	1
—	`016A` Water & Oil Pump - Revision Oct 1972	1
15	`017` Water Circuit	4
35	`032` Handbrakes	2

Ferrari 400 GT / 400 Auto3 positions

Item No.	Diagram (page)	Qty
15	`019` Cooling System	4
28	`041` Steering Controls	4
35	`038` Hand-Brake Control	2

Ferrari 400i7 positions

Item No.	Diagram (page)	Qty
8	`018` Cooling System	2
14	`048` Rear Suspension - Self Leveling Valve And Oil Lines	4
18	`042` Power Steering Oil Tank - Self Levelling Devices (For RHD)	1
24	`009` Fuel Tanks, Pumps, Lines	2
28	`044` Steering Control	4
35	`040` Hand-Brake Control	2
47	`053` Current Generators And Starting Motor	2

Ferrari 4127 positions

Item No.	Diagram (page)	Qty
14	`050` Rear Suspension - Self - Levelling Valve And Oil Lines	4
28	`046` Steering Column	4
30	`016` Exhaust System	12
35	`042` Hand - Brake Control	2
38	`016A` Exhaust System - Swiss Cars	12
42	`055` Alternators And Starting Motor	2
72	`019` Cooling System	2

Ferrari 430 Scuderia4 positions

Item No.	Diagram (page)	Qty
—	`029` Hydraulic F1 Gearbox And Clutch Control	1
—	`147` Antitheft System Ecus And Devices	2
21	`105` Chassis - Structure, Rear Elements And Panels	8
27	`105` Chassis - Structure, Rear Elements And Panels	4

Ferrari 430 Scuderia Spider 16M4 positions

Item No.	Diagram (page)	Qty
—	`029` Hydraulic F1 Gearbox And Clutch Control	1
—	`147` Antitheft System Ecus And Devices	2
21	`105` Chassis - Structure, Rear Elements And Panels	8
27	`105` Chassis - Structure, Rear Elements And Panels	4

Ferrari 456 GT/GTA10 positions

Item No.	Diagram (page)	Qty
—	`046` Control Unit And Hydraulic Equipment For Abs System	2
—	`049` Hand-Brake Control -Valid For 456 Gt-	1
—	`050` Hand-Brake Control -Valid For 456 Gta-	1
—	`059` Rear Suspension - Shock Absorber And Brake Disc	8
—	`060` Rear Suspension - Wishbones And Stabilizer Bar	4
—	`062` Battery	1
—	`063` Alternator - Starting Motor - Air Conditioning Compressor	3
—	`106` Rear Bumper And Movable Spoiler -Not For 456 Gta-	4
—	`107` Rear Bumper And Movable Spoiler -Valid For 456 Gta-	4
—	`132` Stereo Equipment	4

Ferrari 456 MGT/MGTA 4 positions

Item No.	Diagram (page)	Qty
—	`052` Hand-Brake Control -Not For 456M Gta-	1
—	`053` Hand-Brake Control -Valid For 456M Gta-	1
—	`062` Rear Suspension - Shock Absorber And Brake Disc	8
—	`066` Alternator - Starting Motor - Air Conditioning Compressor	3

Ferrari 458 Italia1 position

Item No.	Diagram (page)	Qty
—	`033` Steering Control	4

Ferrari 458 Speciale1 position

Item No.	Diagram (page)	Qty
—	`032` Steering Control	4

Ferrari 458 Speciale Aperta (Convertible)1 position

Item No.	Diagram (page)	Qty
—	`032` Steering Control	4

Ferrari 458 Spider1 position

Item No.	Diagram (page)	Qty
—	`033` Steering Control	4

Ferrari 512 BB (Carburetor)11 positions

Item No.	Diagram (page)	Qty
2	`014A` Cooling System (1978 Revision)	2
10	`036` Engine Ignition	1
16	`028` Hand-Brake Control	1
19	`028` Hand-Brake Control	1
20	`029` Steering Rack And Linkage	4
21	`023` Gear Box Controls	2
32	`004` Cylinder Head (Left)	2
32	`004A` Cylinder Head (Left) (1978 Revision)	2
33	`030` Steering Column	2
36	`012` Lubrication - Blow-By And Oil Reservoir	1
36	`030` Steering Column	4

Ferrari 512 BBi13 positions

Item No.	Diagram (page)	Qty
2	`013` Cooling System	2
10	`035` Engine Ignition	1
13	`009` Throttle Control	1
16	`027` Hand-Brake Control	1
19	`027` Hand-Brake Control	1
20	`028` Steering Rack And Linkage	4
21	`022` Gearbox Controls	2
32	`004` Cylinder Head (Left)	2
33	`013` Cooling System	4
33	`029` Steering Column	2
36	`011` Lubrication - Blow-By And Oil Reservoir	1
36	`029` Steering Column	4
57	`016` Clutch Release Control	1

Ferrari 512 M12 positions

Item No.	Diagram (page)	Qty
—	`016` Throttle Control - Lhd	1
—	`017` Throttle Control -RHD	2
—	`018` Exhaust System -Not For Usa, Cdn, Aus, Ch	4
—	`019` Exhaust System -Valid For Usa, Cdn, Aus, Ch	4
—	`027` Clutch Release Control - Lhd	2
—	`028` Clutch Release Control -RHD	2
—	`034` Gearbox Controls	2
—	`042` Hand - Brake Control	1
—	`050` Battery	1
—	`051` Current Generator	1
—	`112` Door - Power Window	2
—	`125` Lamps	2

Ferrari 512 TR13 positions

Item No.	Diagram (page)	Qty
—	`016` Throttle Control -Not For Gd-	1
—	`017` Throttle Control -Valid For Gd-	1
—	`018` Exhaust System -Not For Usa, Cdn, Aus, Ch-	4
—	`019` Exhaust System -Valid For Usa, Cdn, Aus, Ch-	4
—	`027` Clutch Release Control -Not For Gd-	3
—	`028` Clutch Release Control -Valid For Gd-	2
—	`034` Gearbox Controls	2
—	`043` Hand - Brake Control	1
—	`051` Battery	1
—	`052` Current Generator -Valid Till Engine No ...-	3
—	`053` Current Generator -Valid From Engine No ...-	3
—	`112` Door - Power Window	2
—	`124` Lamps	2

Ferrari 550 Barchetta3 positions

Item No.	Diagram (page)	Qty
—	`044` Hand-Brake Control	1
—	`051` Rear Suspension - Wishbones And Stabilizer Bar	4
—	`054` Alternator - Starting Motor - Air Conditioning Compressor	3

Ferrari 550 Maranello3 positions

Item No.	Diagram (page)	Qty
—	`045` Hand-Brake Control	1
—	`052` Rear Suspension - Wishbones And Stabilizer Bar	4
—	`055` Alternator - Starting Motor - Air Conditioning Compressor	3

Ferrari 575 SuperAmerica3 positions

Item No.	Diagram (page)	Qty
—	`048` Hand-Brake Control	1
—	`056` Rear Suspension - Wishbones And Stabilizer Bar	4
—	`060` Alternator - Starting Motor - Air Conditioning Compressor	3

Ferrari 575M Maranello3 positions

Item No.	Diagram (page)	Qty
—	`048` Hand-Brake Control	1
—	`056` Rear Suspension - Wishbones And Stabilizer Bar	4
—	`060` Alternator - Starting Motor - Air Conditioning Compressor	3

Ferrari 599 GTB Fiorano5 positions

Item No.	Diagram (page)	Qty
—	`043` Parking Brake Control	2
—	`046` Steering Control	4
—	`054` Alternator, Starter Motor And Ac Compressor	3
—	`103` Structures And Elements, Front Of Vehicle	8
17	`125` Tunnel - Substructure And Accessories	8

Ferrari 599 GTO5 positions

Item No.	Diagram (page)	Qty
—	`039` Parking Brake Control	2
—	`042` Steering Control	4
—	`050` Alternator, Starter Motor And Ac Compressor	3
—	`103` Structures And Elements, Front Of Vehicle	8
13	`125` Tunnel - Substructure And Accessories	2

Ferrari 599 SA Aperta5 positions

Item No.	Diagram (page)	Qty
—	`039` Parking Brake Control	2
—	`042` Steering Control	4
—	`050` Alternator, Starter Motor And Ac Compressor	3
—	`103` Structures And Elements, Front Of Vehicle	8
13	`126` Tunnel - Substructure And Accessories	2

Ferrari 612 Scaglietti2 positions

Item No.	Diagram (page)	Qty
—	`052` Steering Control	4
—	`061` Alternator - Starter Motor - Ac Compressor	3

Ferrari 612 Sessanta2 positions

Item No.	Diagram (page)	Qty
—	`052` Steering Control	4
—	`061` Alternator - Starter Motor - Ac Compressor	3

Ferrari 812 Competizione1 position

Item No.	Diagram (page)	Qty
—	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari 812 CompetizioneA1 position

Item No.	Diagram (page)	Qty
—	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari 812 GTS1 position

Item No.	Diagram (page)	Qty
—	`0102` STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari 812 Superfast2 positions

Item No.	Diagram (page)	Qty
—	`024` Gearbox Housing	4
—	`102` Structures And Elements, Front Of Vehicle	8

Ferrari California3 positions

Item No.	Diagram (page)	Qty
—	`043` Steering Column Assembly And Steering Wheel	4
—	`106` FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable up to Ass.ly No. 103178-	2
—	`107` FRONT STRUCTURES AND CHASSIS BOX SECTIONS -Applicable from Ass.ly No. 103179 (see note A for excluded Ass.ly Numbers)-	8

Ferrari California T1 position

Item No.	Diagram (page)	Qty
—	`101` Structures And Elements, Front Of Vehicle	8

Ferrari Enzo4 positions

Item No.	Diagram (page)	Qty
—	`022` F1 Clutch Hydraulic Control	4
—	`047` Battery	1
—	`048` Alternator, Starting Motor And A.C. Compressor	3
—	`125` Passengers And Engine Compartments Control Units	2

Ferrari F12 Berlinetta4 positions

Item No.	Diagram (page)	Qty
—	`025` Gearbox Housing	8
—	`033` Steering Control	4
—	`102` Structures And Elements, Front Of Vehicle	8
—	`125` Dashboard	3

Ferrari F12tdf4 positions

Item No.	Diagram (page)	Qty
—	`024` Gearbox Housing	4
—	`031` Steering Control	4
—	`102` Structures And Elements, Front Of Vehicle	8
33	`117` Front Bumper	6

Ferrari F355 B/GTS/Spider Mo. 2.74 positions

Item No.	Diagram (page)	Qty
—	`017` Exhaust System	2
—	`020` Pumps And Oil Sump	4
—	`038` Hand-Brake Control	1
—	`122` Doors - Opening Control And Hinges	12

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F15 positions

Item No.	Diagram (page)	Qty
—	`016` Exhaust System	2
—	`019` Pumps And Oil Sump	4
—	`044` Hand-Brake Control	1
—	`122` Doors - Opening Control And Hinges	12
32	`103` Central Part Structures	4

Ferrari F408 positions

Item No.	Diagram (page)	Qty
3	`014` Accelerator Control	1
11	`043` Steering Box And Linkage	4
12	`014` Accelerator Control	2
15	`048` Rear Suspension - Levers	4
16	`043` Steering Box And Linkage	4
22	`044` Steering Control	2
23	`028` Brakes And Clutch Control Pedals	9
31	`029` Clutch And Control	6

Ferrari F430 Challenge3 positions

Item No.	Diagram (page)	Qty
—	`023` Clutch And Gearbox Hydraulic Control	2
21	`104` Frame - Rear Elements And Plates	8
27	`104` Frame - Rear Elements And Plates	4

Ferrari F430 Coupe4 positions

Item No.	Diagram (page)	Qty
—	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	1
—	`138` Antitheft System Ecus And Devices	2
21	`104` Chassis - Structure, Rear Elements And Panels	8
27	`104` Chassis - Structure, Rear Elements And Panels	4

Ferrari F430 Spider4 positions

Item No.	Diagram (page)	Qty
—	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	1
—	`147` Antitheft System Ecus And Devices	2
21	`104` Chassis - Structure, Rear Elements And Panels	8
27	`104` Chassis - Structure, Rear Elements And Panels	4

Ferrari F508 positions

Item No.	Diagram (page)	Qty
—	`039` Steering Column	2
—	`044` Rear Suspension - Shock Absorber And Stabilizer Bar	4
—	`047` Alternator And Starting Motor	3
—	`100` Frame And Structures	20
—	`111` Doors - Hinges And Opening Control	16
—	`114` Seats And Safety Belts -Not For Usa-	12
—	`115` Seats And Safety Belts -Valid For Usa-	4
—	`116` Passive Safety Belts System -Valid For Usa-	6

Ferrari F801 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.1 - GEARBOX AND FASTENERS	2

Ferrari FF2 positions

Item No.	Diagram (page)	Qty
—	`034` Steering Control	4
—	`124` Dashboard	8

Ferrari La Ferrari1 position

Item No.	Diagram (page)	Qty
—	`027` Steering Control	4

Ferrari La Ferrari Aperta1 position

Item No.	Diagram (page)	Qty
—	`027` Steering Control	4

Ferrari Mondial 811 positions

Item No.	Diagram (page)	Qty
3	`019` Clutch Release Control	2
3	`042` Pedal Board - Clutch Control (Variants For RHD Versions)	2
13	`012` Throttle Housing And Linkage	1
14	`013` Exhaust System	12
17	`025` Outside Gearbox Controls	2
20	`030` Hand-Brake Control	1
30	`030` Hand-Brake Control	2
32	`009` Fuel Pump And Pipes	2
33	`021` Gearbox - Differential Housing And Oil Sump	5
50	`015` Lubrication System	4
55	`043` Throttle Control And Brake Hydraulic System (Variants For RHD Version)	1

Ferrari Mondial 8 USA10 positions

Item No.	Diagram (page)	Qty
3	`022` Clutch Release Control	2
4	`015` Exhaust System	4
11	`033` Hand - Brake Control	1
13	`014` Throttle Housing and Linkage	1
16	`034` Steering Box and Linkage	4
17	`028` Outside Gearbox Controls	2
18	`033` Hand - Brake Control	1
32	`011` Fuel Pump and Pipes	2
33	`024` Gearbox - Differential Housing and Oil Sump	5
50	`018` Lubrification System	4

Ferrari Mondial Cabriolet 3.2 (Inc Coupe)20 positions

Item No.	Diagram (page)	Qty
3	`026` Clutch Release Control (For Car Without Antiskid System)	2
3	`053` Pedal Board - Clutch Control (For Car Without Antiskid System – RHD)	2
4	`019` Exhaust System (Not For Us And Sa Version)	28
4	`020` Exhaust System (For Us And Sa Version)	4
11	`041` Hand - Brake Control	1
11	`042` Steering Box And Linkage	4
13	`018` Throttle Housing And Linkage	1
16	`042` Steering Box And Linkage	4
17	`033` Outside Gearbox Controls	2
32	`012` Fuel Pump And Pipes (Not For Us Version)	2
32	`013` Fuel Pump And Pipes (For Us Version)	2
33	`029` Gearbox - Differential Housing And Oil Sump	1
35	`054` Pedal Board - Clutch Control (For Car With Antiskid System – RHD)	3
35	`115` Bumpers And Moldings	8
38	`027` Clutch Release Control (For Car With Antiskid System)	2
38	`050` Electric Generation System	2
39	`056` Throttle Control And Brake Hydraulic System (For Cars With Antiskid System – RHD)	2
48	`056` Throttle Control And Brake Hydraulic System (For Cars With Antiskid System – RHD)	1
50	`022` Lubrication System	4
55	`055` Throttle Control And Brake Hydraulic System (For Cars Without Antiskid System – RHD)	1

Ferrari Mondial QV Coupe & Cabriolet18 positions

Item No.	Diagram (page)	Qty
3	`020` Clutch Release Control	2
3	`048` Pedal Board - Clutch Control (Variants For RHD)	2
4	`014` Exhaust System	28
11	`034` Hand - Brake Control (Valid For RHD - For Lhd From Chassis No. 43013)	1
11	`035` Steering Box And Linkage	4
13	`013` Throttle Housing And Linkage	1
16	`035` Steering Box And Linkage	4
17	`026` Outside Gearbox Controls	2
20	`033` Hand - Brake Control (Valid Only For Lhd Up To Chassis No. 43011)	1
24	`010` Fuel Pump And Pipes (Cabriolet)	1
30	`033` Hand - Brake Control (Valid Only For Lhd Up To Chassis No. 43011)	2
32	`009` Fuel Pump And Pipes (Quattrovalvole)	2
32	`010` Fuel Pump And Pipes (Cabriolet)	2
33	`022` Gearbox - Differential Housing And Oil Sump	5
38	`045` Electric Generating System - (Engine With 2 Belts)	2
50	`016` Lubrication System	4
55	`049` Throttle Control And Brake Hydraulic System (Variants For RHD)	1
60	`044` Electric Generating System - (Engine With Single Belt)	2

Ferrari Mondial t Coupe & Cabriolet12 positions

Item No.	Diagram (page)	Qty
—	`021` Throttle Housing And Linkage	1
—	`022` Exhaust System -Not For Cars With Catalysts And 77Db-	4
—	`023` Exhaust System -For Cars With Catalysts And 77Db-	2
—	`025` Lubrication - Pumps And Oil Sumps	4
—	`031` Electronic Clutch - Controls	1
—	`032` Clutch Release Control -Valid For Gs-	2
—	`033` Pedals Case And Support -Valid For Cars With F.E.-	2
—	`048` Hand-Brake Control	1
—	`061` Clutch Release Control -Valid For Gd-	2
—	`062` Throttle Pedal And Brake Hydraulic System -Valid For Gd-	2
—	`126` Bumpers	8
—	`145` Windshield Wiper And Horns	2

Ferrari Monza SP11 position

Item No.	Diagram (page)	Qty
—	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari Monza SP21 position

Item No.	Diagram (page)	Qty
—	`0095` [VEHICLE TRIM] - E.01.01 - STRUCTURES AND ELEMENTS FRONT OF VEHICLE	10

Ferrari Portofino M1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari Purosangue1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.1 - GEARBOX AND FASTENERS	4

Ferrari Roma1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari Roma Spider2 positions

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2
—	`0110` [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS	6

Ferrari SF90 Spider1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 Stradale1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 XX Spider1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari SF90 XX Stradale1 position

Item No.	Diagram (page)	Qty
—	`0040` [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS	2

Ferrari Testarossa TR 8513 positions

Item No.	Diagram (page)	Qty
3	`051` Clutch Release Control (Variants For RHD Versions)	2
6	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	2
9	`020` Exhaust System (For U.S. - Sa And Ch87)	4
11	`025` Cooling System	2
11	`039` Hand-Brake Control	1
11	`040` Steering Box And Linkage	4
13	`018` Throttle Control	1
14	`109` Rear Hood	2
15	`028` Clutch Release Control	1
15	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	1
16	`040` Steering Box And Linkage	4
21	`034` Gear Box Controls	2
44	`048` Current Generation	1

Ferrari Testarossa TR 8714 positions

Item No.	Diagram (page)	Qty
3	`051` Clutch Release Control (Variants For RHD Versions)	2
6	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	2
9	`020` Exhaust System (For U.S. - Sa And Ch87) (Apr89)	4
11	`025` Cooling System (Apr89)	1
11	`039` Hand-Brake Control (Apr89)	1
11	`040` Steering Box & Linkage (Apr89)	4
13	`018` Throttle Control (Apr89)	1
14	`109` Rear Hood	2
15	`028` Clutch Release Control	1
15	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	1
16	`040` Steering Box & Linkage (Apr89)	4
21	`034` Gear Box Controls (Apr89)	2
44	`048` Current Generation (Apr89)	1
55	`048` Current Generation (Apr89)	1

Ferrari Testarossa TR 9014 positions

Item No.	Diagram (page)	Qty
3	`059` Clutch Release Control	2
6	`060` Brake Hydraulic System - Accelerator Control (Variants For RHD)	2
9	`020` Exhaust System (For Us - Sa And Cat Version)	4
11	`025` Cooling System	1
11	`040` Hand - Brake Control	1
11	`041` Steering Box And Linkage	4
13	`018` Throttle Control	1
14	`109` Rear Hood	2
15	`029` Clutch Release Control	1
15	`060` Brake Hydraulic System - Accelerator Control (Variants For RHD)	1
16	`041` Steering Box And Linkage	4
21	`035` Gearbox Controls	2
44	`056` Current Generation	1
55	`056` Current Generation	1
