Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL (diagram 0050)

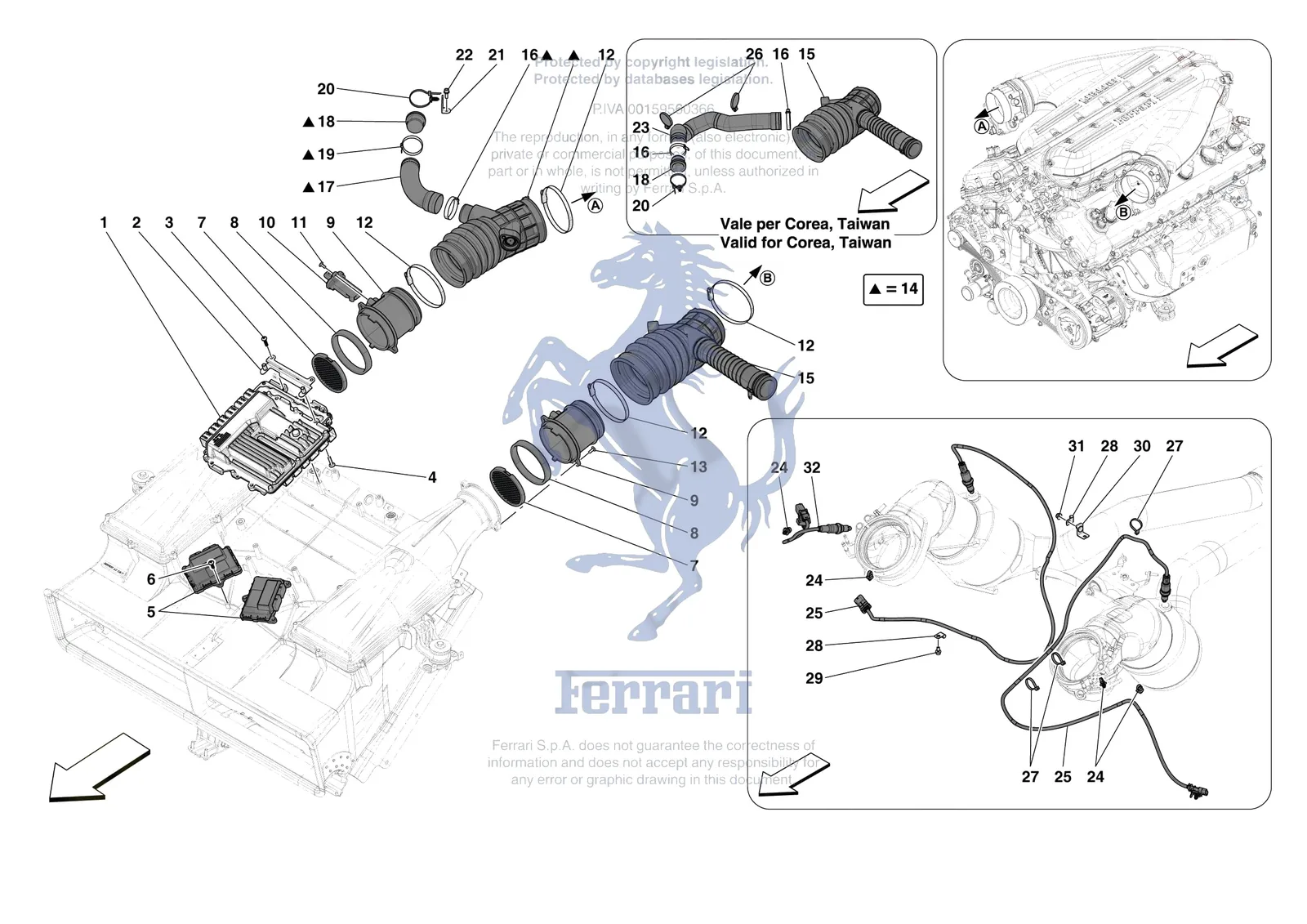

Exploded view of the [mechanical system] - d.03 - engine injection control on the Ferrari 12 Cilindri, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/12-cilindri/0050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 942601 | Ferrari Ion ECU Casing - 942601 | Superseded | Order 941421 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 935117 | Ferrari Centralina Accensione Mg1 Cp - 935117 | $2,749.16 | Special order, ships in 7-14 days |
| 2 | 851565 | Ferrari Bracket - 851565 | $66.35 | Special order, ships in 7-14 days |
| 3 | 308398 | Ferrari Screw - 308398 | $0.92 | Special order, ships in 7-14 days |
| 4 | 62941000 | Ferrari Screw - 62941000 | $6.88 | In stock |
| 5 | 941421 | Ferrari Ion ECU Casing - 941421 | $2,224.61 | Special order, ships in 7-14 days |
| 6 | 340221 | Ferrari Screw - 340221 | $1.59 | Special order, ships in 7-14 days |
| 7 | 841336 | Ferrari Square Mesh Grille For Mass - 841336 | $18.55 | Special order, ships in 7-14 days |
| 8 | 327132 | Ferrari Adhesive Foam - 327132 | $39.31 | Special order, ships in 7-14 days |
| 9 | 845077 | Ferrari RH Intake Line Air Flow Sens - 845077 | $98.32 | Special order, ships in 7-14 days |
| 10 | 297280 | Ferrari Air Flow Sensor - 297280 | $237.66 | In stock |
| 11 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 12 | 323688 | Ferrari Ring Clamp - 323688 | $8.93 | Special order, ships in 7-14 days |
| 13 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 14 | 55042476 | Ferrari Compl. RH Air Intake Hose Un - 55042476 | $516.33 | Special order, ships in 7-14 days |
| 14 | 978400 | Ferrari Manicotto Dx Cpl Lambda /4 - 978400 | $811.38 | Special order, ships in 7-14 days |
| 15 | 55042479 | Ferrari Compl. LH Air Intake Hose Un - 55042479 | $516.33 | Special order, ships in 7-14 days |
| 15 | 978418 | Ferrari Manicotto Sx Cpl Lambda /4 - 978418 | $811.38 | Special order, ships in 7-14 days |
| 16 | 262116 | Ferrari Collar - 262116 | $6.10 | Available, ships in 3-6 days |
| 17 | 987788 | Ferrari COILED PIPE - 987788 | Price on request | Contact us for price and availability |
| 18 | 888005 | Ferrari Lambda Pipe Plug - 888005 | $9.16 | Special order, ships in 7-14 days |
| 19 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 20 | 303385 | Ferrari Clip - 303385 | $0.57 | Special order, ships in 7-14 days |
| 21 | 987844 | Ferrari LH Lambda Sensor Fastener Bracket - 987844 | $41.76 | Special order, ships in 7-14 days |
| 21 | 987841 | Ferrari RH Lambda Sensor Fastener Bracket - 987841 | $41.76 | Special order, ships in 7-14 days |
| 22 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 23 | 972032 | Ferrari LH INNER LAMBDA SENSOR PIPE - 972032 | Price on request | Contact us for price and availability |
| 23 | 972031 | Ferrari RH INNER LAMBDA SENSOR PIPE - 972031 | Price on request | Contact us for price and availability |
| 24 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 25 | 788064 | Ferrari Rear Oxygen Sensor - 788064 | $262.24 | Special order, ships in 7-14 days |
| 27 | 206739 | Ferrari Tear Clip - 206739 | $16.37 | Available, ships in 3-6 days |
| 28 | 10418301 | Ferrari Clamp 8mm - 10418301 | $0.86 | Available, ships in 3-6 days |
| 29 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 29 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 30 | 862865 | Ferrari Bracket for RH Rear Oxygen Sensor Cable - 862865 | $12.52 | Special order, ships in 7-14 days |
| 31 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 32 | 866218 | Ferrari Front Lambda/Oxygen Sensor - 866218 | $284.11 | Available, ships in 3-6 days |
