Ferrari 12 Cilindri — [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR (diagram 0059)

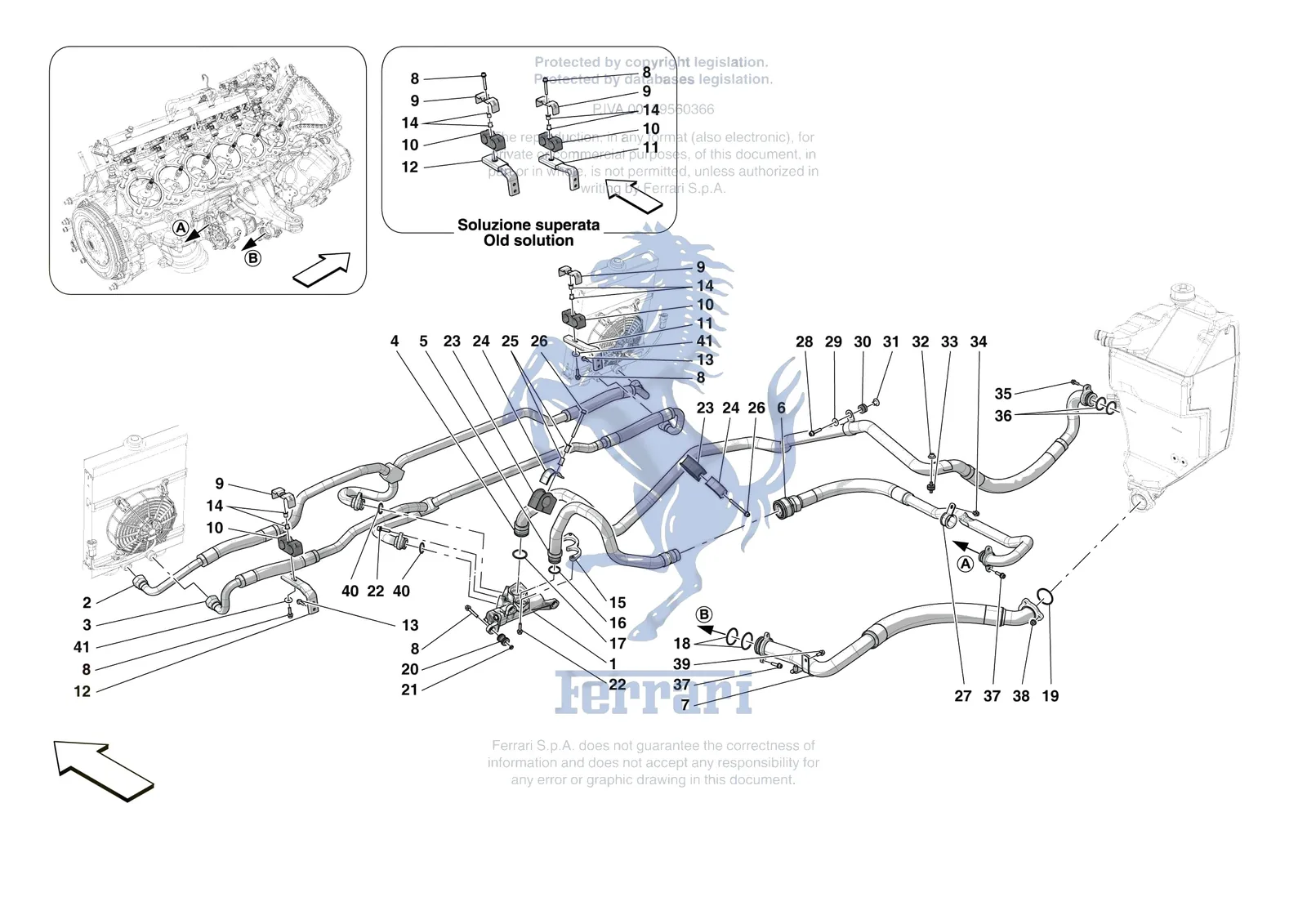

Exploded view of the [mechanical system] - d.10 - oil pipes and engine oil level sensor on the Ferrari 12 Cilindri, with 64 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 12 Cilindri [MECHANICAL SYSTEM] - D.10 - OIL PIPES AND ENGINE OIL LEVEL SENSOR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
289837Ferrari Bushing - 289837$15.43Special order, ships in 7-14 days
294902Ferrari Damped Mounting - 294902SupersededOrder 267300 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
282404Ferrari Screw 6x65 - 282404SupersededOrder 255495 instead
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
14496406Ferrari Spring Washer - 14496406SupersededOrder 10519424 instead
10519401Ferrari Washer - 10519401SupersededOrder 10519424 instead
125516Ferrari Washer - 125516SupersededOrder 10519424 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
13550201Ferrari Washer - 13550201SupersededOrder 10519424 instead
14496405Ferrari Washer - 14496405SupersededOrder 10519424 instead
14496421Ferrari Washer - 14496421SupersededOrder 10519424 instead
14496424Ferrari Washer - 14496424SupersededOrder 10519424 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1316675Ferrari Oil Thermostat Complete - 316675$1,622.78Special order, ships in 7-14 days
255056233Ferrari OIL PIPE FROM THERMOSTAT TO RADIATORS - 55056233$1,868.67Special order, ships in 7-14 days
2839186Ferrari OIL PIPE FROM THERMOSTAT TO RADIATORS - 839186SupersededOrder 55056233 instead
355056240Ferrari OIL PIPE FROM RADIATORS TO THERMOSTAT - 55056240$1,868.67Special order, ships in 7-14 days
3839182Ferrari OIL PIPE FROM RADIATORS TO THERMOSTAT - 839182SupersededOrder 55056240 instead
4839188Ferrari OIL RETURN PIPE FROM THERMOSTAT TO OIL TANK - 839188$1,737.90Special order, ships in 7-14 days
5839177Ferrari OIL RETURN PIPE FROM DISCONNECTOR UNION TO THERMOSTAT - 839177$590.08Special order, ships in 7-14 days
6839175Ferrari Oil Return Pipe From Engine - 839175$2,248.03Special order, ships in 7-14 days
7839211Ferrari OIL PIPE FROM RANK TO PUMP - 839211$2,013.87Special order, ships in 7-14 days
8231623Ferrari Screw M6 x 40 TCEI - 231623$1.02Available, ships in 3-6 days
955017221Ferrari Piastrino Gogna Con Dado Sal - 55017221$27.03Special order, ships in 7-14 days
9329366Ferrari Retainer Block Plate - 329366$13.74Available, ships in 3-6 days
10329367Ferrari Gogna Gomma X Tubi 2 - 329367$13.24Special order, ships in 7-14 days
1155024737Ferrari RH Bracket - 55024737$194.22Special order, ships in 7-14 days
1255024739Ferrari LH Bracket - 55024739$194.22Special order, ships in 7-14 days
1316285224Ferrari Screw 5x20 - 16285224$0.52Available, ships in 3-6 days
14329368Ferrari Retainer Block Bush Diam.23 - 329368$1.49Available, ships in 3-6 days
15311723Ferrari Engine Oil Pipe Retainer Fork - 311723$164.72Special order, ships in 7-14 days
16121903Ferrari Gasket - 121903$1.48Available, ships in 3-6 days
17104212Ferrari O-Ring - 104212$1.10In stock
18101044Ferrari Water Pump O-Ring - 101044$2.41In stock
19834321Ferrari Gasket - 834321$14.62Special order, ships in 7-14 days
20267300Ferrari Mount Bushing - 267300$13.18In stock
21341672Ferrari Spacer - 341672$10.91Special order, ships in 7-14 days
22231620Ferrari/Maserati Screw - 231620$0.58In stock
23315530Ferrari Pillory Block - 315530$76.19Special order, ships in 7-14 days
24315540Ferrari Retainer Block Fastener Plate - 315540$44.24Special order, ships in 7-14 days
25304075Ferrari Bushing - 304075$12.21Special order, ships in 7-14 days
26255495Ferrari Screw 6x65 - 255495$1.82Special order, ships in 7-14 days
27322190Ferrari Bracket - 322190$66.35Special order, ships in 7-14 days
28231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
2912643724Ferrari/Maserati Washer - 12643724$0.20In stock
30103549Ferrari Grommet - 103549$2.80In stock
31149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
3214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
3215896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
33225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
34233600Ferrari/Maserati Screw - 233600$1.98In stock
35797725Ferrari Screw - 797725$1.82Special order, ships in 7-14 days
36139934Ferrari Radiator Tank Pipe to Oil Tank O-Ring - 139934$2.15In stock
37231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
3814040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
39248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
40122791Ferrari O-Ring - 122791$4.12Available, ships in 3-6 days
4110519424Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424$0.06Available, ships in 3-6 days
