Ferrari 12 Cilindri — [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM (diagram 0183)

Exploded view of the [electrical system] - f.08 - various fastenings for the electrical system on the Ferrari 12 Cilindri, with 62 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

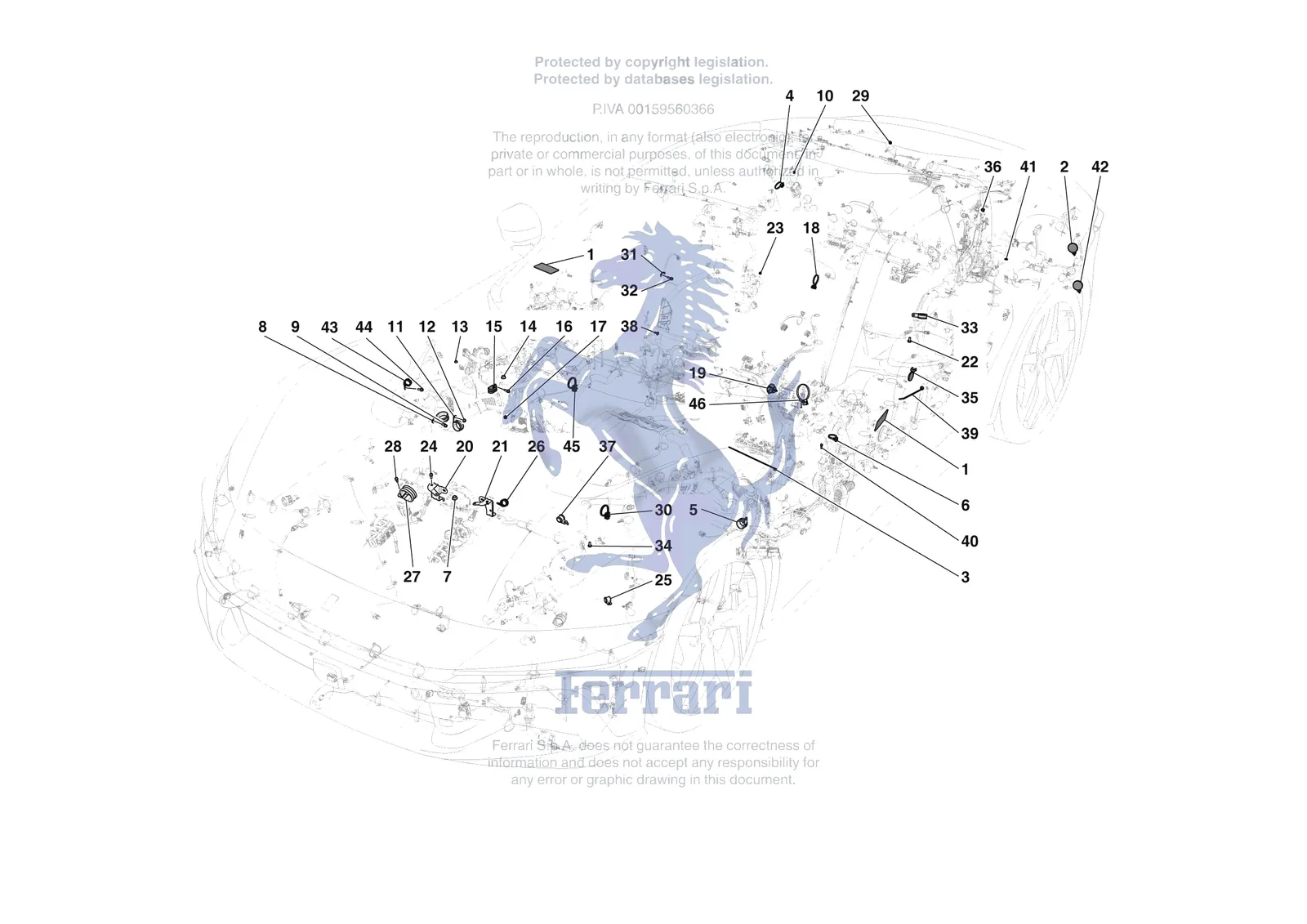

Ferrari 12 Cilindri [ELECTRICAL SYSTEM] - F.08 - VARIOUS FASTENINGS FOR THE ELECTRICAL SYSTEM exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14305721Ferrari Allen Bolt 6x14 - 14305721SupersededOrder 248334 instead
14569480Ferrari Clip 10x3.8 Black - 14569480$0.54Available, ships in 3-6 days
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
14048115Ferrari Nut - 14048115SupersededOrder 14058411 instead
14048611Ferrari Nut - 14048611SupersededOrder 14058411 instead
14048615Ferrari Nut - 14048615SupersededOrder 14058411 instead
14084111Ferrari Nut - 14084111SupersededOrder 11673111 instead
291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
840252Ferrari RH Injection Cable Fastener - 840252SupersededOrder 786671 instead
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
248334Ferrari Screw M6 x 16 TCEI - 248334$1.25Available, ships in 3-6 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
1179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
2217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
3145854Ferrari Cable tie 200mm - 145854$0.57Available, ships in 3-6 days
4255869Ferrari Clip - 255869$3.91Special order, ships in 7-14 days
510442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
6786155Ferrari Clip - 786155$1.80Special order, ships in 7-14 days
713046214Ferrari Nut - 13046214$0.73Special order, ships in 7-14 days
8175119Ferrari Bracket With Sheath - 175119$11.29Special order, ships in 7-14 days
9231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
1014059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
1014039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
1110448890Ferrari Bracket With Sheath - 10448890$4.16Available, ships in 3-6 days
1214058411Ferrari Flanged Nut M6 x 6mm - 14058411$0.38Available, ships in 3-6 days
1314059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
1414059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
15257980Ferrari P Clip Bracket - 257980$5.86Available, ships in 3-6 days
16231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
1714059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
18864678Ferrari CLAMP - 864678Price on requestContact us for price and availability
19248061Ferrari Clip - 248061$4.12Available, ships in 3-6 days
20941383Ferrari Bracket - 941383$73.73Special order, ships in 7-14 days
20983995Ferrari Bracket - 983995$319.62Special order, ships in 7-14 days
21941384Ferrari Bracket - 941384$73.73Special order, ships in 7-14 days
21983998Ferrari Bracket - 983998$319.62Special order, ships in 7-14 days
2216287127Ferrari Screw 8x20 - 16287127$0.92Special order, ships in 7-14 days
2311673111Ferrari Nut - 11673111$0.52Available, ships in 3-6 days
2414305724Ferrari Allen Screw TCEI M6 x 14 - 14305724$0.34Available, ships in 3-6 days
24231616Ferrari Screw 6x14 - 231616$0.57Available, ships in 3-6 days
2510441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
2610442190Ferrari P Clip Bracket With Sheath - 10442190$1.42Available, ships in 3-6 days
27809079Ferrari Bracket - 809079$16.45Special order, ships in 7-14 days
28233600Ferrari/Maserati Screw - 233600$1.98In stock
3069708300Ferrari Clip - 69708300$2.59Available, ships in 3-6 days
3110440890Ferrari P Clip Bracket With Sheath - 10440890$1.04Available, ships in 3-6 days
32231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
33309169Ferrari Bracket With Sheath - 309169$29.48Special order, ships in 7-14 days
3416287024Ferrari Screw - 16287024$1.00In stock
35242384Ferrari Clip - 242384$0.59Available, ships in 3-6 days
36317027Ferrari Clip - 317027$1.02Special order, ships in 7-14 days
37912852Ferrari Bracket - 912852$31.93Special order, ships in 7-14 days
3882113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
39786671Ferrari Clip - 786671$2.59Special order, ships in 7-14 days
40294780Ferrari Allen Head Bolt with Washer M5X16 - 294780$0.98Special order, ships in 7-14 days
4112644427Ferrari Washer - 12644427$2.59Special order, ships in 7-14 days
42206739Ferrari Tear Clip - 206739$16.37Available, ships in 3-6 days
4310441790Ferrari/Maserati P Clip Bracket - 10441790$1.80In stock
44256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
4569850100Ferrari Clip - 69850100$1.74Special order, ships in 7-14 days
46898766Ferrari Ring Clamp - 898766$6.10Special order, ships in 7-14 days
