Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Timing Control (diagram 005)

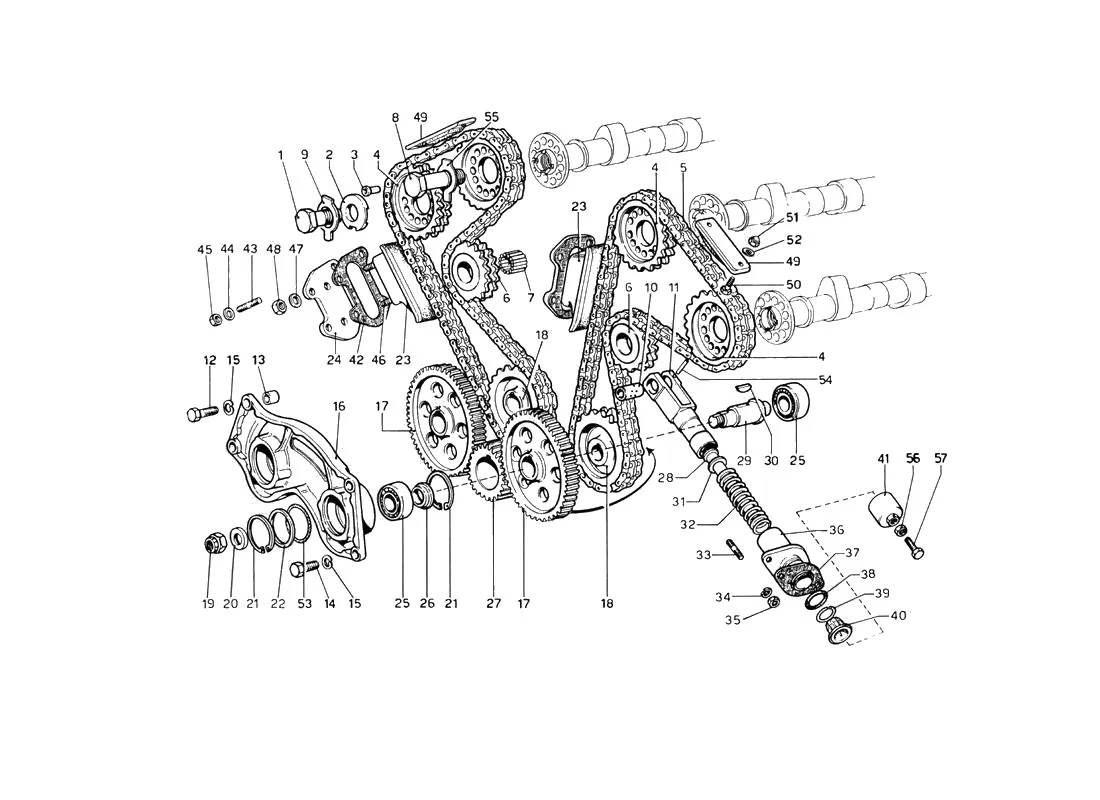

Exploded view of the timing control on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 86 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Timing Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14146779Ferrari Screw - 4146779$89.31Available, ships in 3-6 days
14261136Ferrari Screw - 4261136Price on requestContact us for price and availability
24146764Ferrari Collar Washer - 4146764$46.09Available, ships in 3-6 days
34146769Ferrari Pin - 4146769SupersededOrder 102827 instead
3102827Ferrari Timing Gear Pin - 102827$95.78Available, ships in 3-6 days
44181157Ferrari 246Gt/S C/Shaft Timing Sprket - 4181157$425.88Available, ships in 3-6 days
54181156Ferrari 246GT/S Duplex Timing Chain - 4181156$384.00Available, ships in 3-6 days
64181158Ferrari Toothed Gear - 4181158$524.42Available, ships in 3-6 days
728044380Ferrari Needle Roller - 28044380$0.54Available, ships in 3-6 days
84146765Ferrari Bolt - 4146765$45.24Available, ships in 3-6 days
9102777Ferrari Timing Sprocket Tab - 102777$10.73In stock
94146781Ferrari Locktab - 4146781SupersededOrder 102777 instead
104160884Ferrari Bush - 4160884$68.75Available, ships in 3-6 days
114195781Ferrari Support - 4195781$227.96Available, ships in 3-6 days
1216043624Ferrari Screw - 16043624$0.85In stock
1216043621Ferrari Screw - 16043621SupersededOrder 16043624 instead
134146789Ferrari Dowel Bolt - 4146789SupersededOrder 102032 instead
1416043424Ferrari Bolt M8 x 20 - 16043424$0.38Available, ships in 3-6 days
1416043421Ferrari Bolt - 16043421SupersededOrder 16043424 instead
1511198074Ferrari/Maserati Washer - 11198074$0.14In stock
1511198073Ferrari Washer - 11198073SupersededOrder 11198074 instead
164182708Ferrari Support - 4182708$274.16Available, ships in 3-6 days
179220751Ferrari 246GT/S Timing Gear - 9220751$696.08Available, ships in 3-6 days
184181155Ferrari Camshaft Sprocket - 4181155$274.19Available, ships in 3-6 days
1916109221Ferrari Self Locking Nut M12 x 1.25 - 16109221$9.28Available, ships in 3-6 days
204177555Ferrari Washer - 4177555$35.78Available, ships in 3-6 days
2111059475Ferrari Circlip - 11059475Price on requestContact us for price and availability
22102783Ferrari Washer - 102783$42.93Available, ships in 3-6 days
224182710Ferrari Washer - 4182710SupersededOrder 102783 instead
234242216Ferrari Chain Tensioner Guide - 4242216SupersededOrder 4242217 instead
234242217Ferrari 246GT/S Chain Tensioner Guide - 4242217$816.46Available, ships in 3-6 days
244234900Ferrari Plate - 4234900$34.73Available, ships in 3-6 days
244234900/UFerrari Plate - 4234900/U$79.96Available, ships in 3-6 days
25121145Ferrari Ball Bearing - 121145$18.15In stock
2510558440Ferrari Bearing - 10558440SupersededOrder 121145 instead
264146780Ferrari Spacer - 4146780$20.00Available, ships in 3-6 days
2712830Ferrari 246 Timing Gear + 2X 9220751 - 12830$641.80Available, ships in 3-6 days
284195791Ferrari Pin - 4195791$31.11Available, ships in 3-6 days
289220793Ferrari Chain Tensioner Assy - 9220793Price on requestContact us for price and availability
289220795Ferrari Adjuster Rod - 9220795$30.48Available, ships in 3-6 days
28220794Ferrari Rubber Terminal - 220794SupersededOrder 230745 instead
294177554Ferrari Shaft - 4177554$205.90Available, ships in 3-6 days
3012834Ferrari Woodruff Key - 12834$9.75Available, ships in 3-6 days
3010205920Ferrari Woodruff Key - 10205920Price on requestContact us for price and availability
314195785Ferrari Washer - 4195785$1.40Available, ships in 3-6 days
324220865Ferrari Spring - 4220865$7.43Available, ships in 3-6 days
3313540924Ferrari Stud - 13540924$78.66Available, ships in 3-6 days
3313540921Ferrari Stud - 13540921SupersededOrder 13540924 instead
3411197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
3411197773Ferrari Washer - 11197773SupersededOrder 11197774 instead
3515896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
36220765Ferrari T/C Tensioner Housing - 220765$163.18Available, ships in 3-6 days
374195788Ferrari 206/246 Chain Tensioner Gasket - 4195788$4.90In stock
384195786Ferrari O-Ring - 4195786$5.63Available, ships in 3-6 days
394195790Ferrari Circlip - 4195790$1.63Available, ships in 3-6 days
404195789Ferrari Bush - 4195789$46.41Available, ships in 3-6 days
41220764Ferrari Tensioner Nut - 220764$28.94Available, ships in 3-6 days
424234707Ferrari 246 Timing Gasket - 4234707$5.23In stock
4613543121Ferrari Stud - 13543121SupersededOrder 13543124 instead
4816100824Ferrari/Maserati Nut - 16100824$0.30In stock
4816100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
49115984Ferrari Timing Chain Pad - 115984$508.24Available, ships in 3-6 days
49100213Ferrari Timing Chain Pad - 100213SupersededOrder 115984 instead
5010902124Ferrari Screw - 10902124$0.29In stock
5095880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
51100436Ferrari Water Pump Nut - 100436$6.44In stock
5210519460Ferrari Washer - 10519460Price on requestContact us for price and availability
534182709Ferrari 0-Ring - 4182709$4.08Available, ships in 3-6 days
5410336110Ferrari Pin - 10336110$62.85Special order, ships in 7-14 days
56134041Ferrari Nut 6mm - 134041$1.80Available, ships in 3-6 days
5615896221Ferrari Nut - 15896221SupersededOrder 134041 instead
5795880324Ferrari Bolt - 95880324Price on requestContact us for price and availability
5795880320Ferrari Bolt - 95880320Price on requestContact us for price and availability
106526Ferrari Bolt - 106526SupersededOrder 16043624 instead
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
16043611Ferrari Bolt - 16043611SupersededOrder 16043624 instead
11059476Ferrari Circlip - 11059476$0.52Available, ships in 3-6 days
95450Ferrari Gasket - 95450Price on requestContact us for price and availability
15896225Ferrari Nut - 15896225SupersededOrder 134041 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
230745Ferrari Rubber Pipe D.12.8-8 - 230745$391.61Special order, ships in 7-14 days
226117Ferrari Rubber Pipe E1-10 D.14.5-7 - 226117SupersededOrder 230745 instead
13543124Ferrari Stud Bolt M8x16 -Stem 16mm - 13543124$13.53Special order, ships in 7-14 days
9161905Ferrari Timing Chain Pad - 9161905SupersededOrder 115984 instead
-4195782Ferrari Tensioner Complete - 4195782Price on requestContact us for price and availability
