Ferrari/Maserati Nut – 16100824

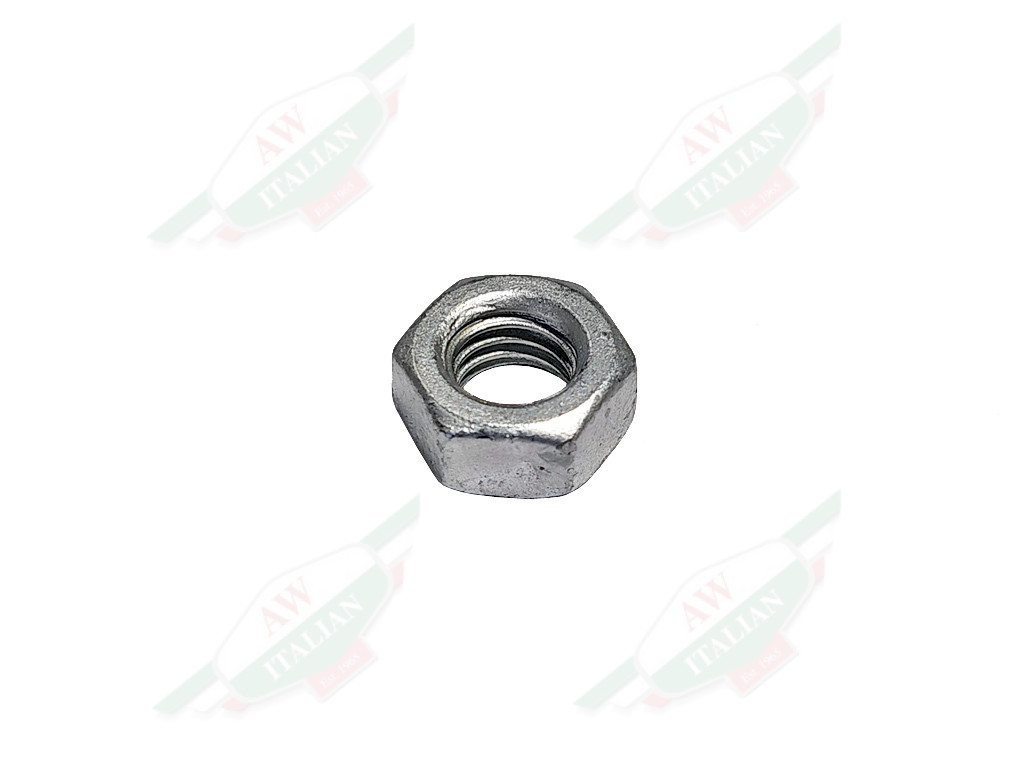

Name: Ferrari/Maserati Nut - 16100824
Brand: Ferrari
SKU: 16100824
Price: 0.30 USD
Availability: InStock

Original or OEM

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 16100824

$0.30

Available In StockIn our local warehouse and ships same day if ordered by 5pm EST

Description

Ferrari/Maserati Nut, part number 16100824. Listed in our catalogue for 75 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 206 GT Dino. Replaces part numbers 16100821,16100814,16100812,16100811,16102114.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

70 vehicles · 656 positions

Ferrari 12 Cilindri1 position

Item No.	Diagram (page)	Qty
47	`0141` [VEHICLE TRIM] - E.40 - FRONT BUMPER	4

Ferrari 12 Cilindri Spider1 position

Item No.	Diagram (page)	Qty
51	`0141` [VEHICLE TRIM] - E.40 - FRONT BUMPER	4

Ferrari 206 GT Dino3 positions

Item No.	Diagram (page)	Qty
15	`001` Crankcase & Cylinder Heads	4
16	`016` Water Pump & Pipes	12
20	`009` Air Filter And Manifolds	4

Ferrari 208 GT4 Dino15 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
5	`039` Electric Generating System	1
7	`010` Carburettors And Air Cleaner	20
7	`124` Windshield Wiper, Washer And Horn	2
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
15	`111` Bumpers And Mouldings	8
17	`004` Flywheel And Clutch Housing Spacer	2
19	`030` Hand-Brake Control	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
41	`012` Throttle Control	1
42	`017` Water Pump And Pipings	4
53	`009` Fuel System	2

Ferrari 208 GTB/GTS Carburetor16 positions

Item No.	Diagram (page)	Qty
3	`019` Gearbox Transmission	10
4	`117` Windshield Wiper, Washer And Horn	2
5	`038` Electric Generating System	1
7	`010` Carburettors And Air Cleaner	20
9	`108` Bumpers And Mouldings	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing Spacer	2
19	`029` Hand - Brake Control	2
19	`105` Front Compartment Lid	6
21	`020` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
33	`011` Throttle Control	1
42	`016` Water Pump And Pipings	4
53	`009` Fuel System	2

Ferrari 208 GTB/GTS Turbo12 positions

Item No.	Diagram (page)	Qty
4	`122` Windshield Wiper, Washer And Horns	2
7	`048` Electric Generating System	1
11	`013` Throttle Housing And Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
19	`106` Front Compartment Lid	4
21	`014` Exhaust System	2
21	`022` Gearbox - Differential Housing And Oil Pump	12
22	`001` Engine - Gearbox & Supports	8
25	`021` Gearbox Transmission	10
26	`042` Rear Suspension - Shock Absorber And Brake Disc (Starting From Car No. 76626)	12
38	`036` Steering Column	2

Ferrari 208 Turbo14 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
4	`116` Windshields Wiper, Washer And Horn	3
5	`039` Electric Generating System	1
11	`013` Throttle Control	2
12	`016` Lubrication System	2
14	`002` Crankcase	9
15	`108` Bumpers, Mouldings And External Lights	12
17	`004` Flywheel And Clutch Housing Spacer	2
19	`030` Hand-Brake Controll	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
25	`006` Cylinder Head (Left)	9
26	`014` Exhaust System	2
30	`005` Cylinder Head (Right)	9

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132)13 positions

Item No.	Diagram (page)	Qty
7	`110` Bumpers And Mouldings	6
7	`118` Windshield Wiper, Washer And Horn	4
16	`011` Blow - By System	2
18	`015` Water Pump And Pipes	2
23	`036` Engine Ignition	2
23	`109` Doors	2
24	`018` Clutch Unit And Cover	10
25	`004` Flywheel And Intermediate Gearbox Housing	1
27	`001` Crankcase And Cylinder Heads	1
27	`002` Oil Sump - Gearbox And Differential	22
28	`008` Air Filter And Manifolds	12
30	`017` Clutch Disengagement	1
48	`005` Timing Control	4

Ferrari 288 GTO16 positions

Item No.	Diagram (page)	Qty
4	`012` Exhaust System	4
4	`021` Differential Housing	8
6	`015` Lubrication - Filter And Oil Pumps	2
7	`009` Throttle Bodies And Accelerator Control	2
7	`020` Gearbox Transmission	6
8	`113` Windshield Wiper - Washer And Horn	2
14	`001` Crankcase	12
14	`014` Lubrication System	3
17	`019` Clutch And Controls	12
17	`023` Gearbox Housing	14
18	`004` Cylinder Head (Left)	10
20	`003` Cylinder Head (Right)	10
21	`107` Bumpers - Lights - Outer Name	8
30	`036` Rear Suspension -Shock Absorber And Brake Disc	2
34	`017` Water Pump And Pipings	4
38	`033` Steering Column	2

Ferrari 308 GT4 Dino 197616 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
5	`039` Electric Generating System	1
7	`010` Carburettors And Air Cleaner	20
7	`124` Windshield Wiper, Washer And Horn	2
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
15	`111` Bumpers And Mouldings	8
17	`004` Flywheel And Clutch Housing Spacer	2
19	`030` Hand - Brake Control	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
33	`12A` Throttle Control (1 Distributor)	1
41	`012` Throttle Control (2 Distributors)	1
42	`017` Water Pump And Pipings	4
66	`009` Fuel System	2

Ferrari 308 GT4 Dino 197917 positions

Item No.	Diagram (page)	Qty
3	`019` Gearbox Transmission	10
5	`039` Electric Generating System	1
7	`010` Carburetors And Air Cleaner	20
8	`050` Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)	1
8	`051` Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)	1
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing	2
19	`029` Hand - Brake Control	2
19	`048` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
21	`020` Gear - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
33	`011` Throttle Control	1
37	`046` Air Pump And Piping (Variants For Usa - Aus And J Version)	1
42	`016` Water Pump And Piping	4
53	`009` Fuel System	2

Ferrari 308 GTB 1976 Fibreglass20 positions

Item No.	Diagram (page)	Qty
3	`021` Gearbox Transmission	10
5	`040` Electric Generating System	1
5	`120` Windshield Wiper, Washer And Horn	2
7	`010` Carburetors And Air Cleaner	20
7	`170` Windshield Wiper, Washer And Horn (Valid For RHD - Aus Versions)	2
9	`109` Bumpers And Mouldings	8
9	`159` Bumpers And Mouldings (Valid For RHD - Aus Versions)	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing Spacer	2
19	`031` Hand-Brake Control	2
21	`022` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
33	`012` Throttle Control	1
37	`015` Lubrication System	1
42	`018` Water Pump And Piping	4
53	`009` Fuel System	2
56	`107` Rear Bonnet And Luggage Compartment Covering	2
56	`157` Rear Bonnet And Luggage Compartment Covering (Valid For RHD - Aus Versions)	2

Ferrari 308 GTB/GTS Carburetor24 positions

Item No.	Diagram (page)	Qty
3	`022` Gearbox Transmission	10
5	`043` Electric Generating System	1
7	`010` Carburetors And Air Cleaner	20
7	`015` Lubrication System (308 Gtb)	2
8	`120` Windshield Wiper, Washer And Horn	2
8	`170` Windshield Wiper, Washer And Horn (Variants For RHD - Aus Versions)	2
9	`109` Bumpers And Mouldings	8
9	`159` Bumpers And Mouldings (Variants For RHD - Aus Versions)	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	1
17	`004` Flywheel And Clutch Housing Spacer	2
19	`033` Hand-Brake Control	2
19	`106` Front Compartment Lid	6
19	`156` Front Compartment Lid (Variants For RHD - Aus Versions)	6
21	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	12
21	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	12
22	`001` Engine - Gearbox And Supports	8
33	`011` Throttle Control	1
42	`019` Water Pump And Piping	4
47	`107` Rear Bonnet And Luggage Compartment Covering	2
47	`157` Rear Bonnet And Luggage Compartment Covering (Variants For RHD - Aus Version)	2
52	`016` Oil Filter And Pumps (308 Gtb)	2
53	`009` Fuel System	2

Ferrari 308 GTB/GTS JAP19 positions

Item No.	Diagram (page)	Qty
3	`024` Gearbox Transmission	10
4	`120` Windshield Wiper Washer & Horn	2
5	`043` Electric Generating System	1
7	`014` Carburettors & Air Filter	20
8	`013` Intake Air Cleaner Valve & Lines	1
9	`109` Bumpers & Mouldings	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel and Clutch Housing Spacer	2
19	`011` Antievaporative Emission Control System	2
19	`034` Handbrake Control	2
19	`106` Front Compartment Lid	6
21	`025` Gearbox - Differential Housing & Oil Sump	12
22	`001` Engine - Gearbox and Supports	8
33	`016` Throttle Control	1
37	`009` Air Pump & Pipings	1
42	`021` Water Pump & Pipings	4
53	`012` Fuel Pump & Pipes	2

Ferrari 308 GTB/GTS USA19 positions

Item No.	Diagram (page)	Qty
3	`024` Gearbox Transmission	10
4	`120` Windshield Wiper, Washer And Horn	2
5	`043` Electric Generating System	1
7	`014` Carburettors And Air Cleaner	20
8	`013` Intake Air Cleaner Valve And Lines	1
9	`109` Bumpers And Moldings	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing Spacer	2
19	`011` Antievaporative Emission Control System	2
19	`034` Hand - Brake Control	2
19	`106` Front Compartment Lid	6
21	`025` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
33	`016` Throttle Control	1
37	`009` Air Pump And Pipings	1
42	`021` Water Pump And Pipings	4
53	`012` Fuel Pump And Pipes	2

Ferrari 308 GTBi/GTSi15 positions

Item No.	Diagram (page)	Qty
3	`019` Gearbox Transmission	10
4	`117` Windshield Wiper, Washer And Horn	2
5	`038` Electric Generating System	1
9	`108` Bumpers And Moldings	8
12	`015` Lubrication System	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
19	`029` Hand-Brake Control	2
19	`105` Front Compartment Lid	6
21	`013` Exhaust System	2
21	`020` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
25	`006` Cylinder Head (Left)	9
30	`005` Cylinder Head (Right)	9
52	`012` Throttle Housing And Linkage	1

Ferrari 308 Quattrovalvole18 positions

Item No.	Diagram (page)	Qty
4	`116` Windshield Wiper, Washer And Horn	3
5	`038` Electric Generating System (Engine With Single Belt)	1
7	`039` Electric Generating System (Engine With 2 Individual Belts)	1
10	`011` Air Intake And Manifold	8
11	`012` Throttle Housing And Linkage	2
12	`015` Lubrication System	2
14	`002` Crankcase	9
15	`108` Bumpers, Moldings And External Lights	8
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`029` Hand - Brake Controls	2
19	`105` Front Compartment	6
20	`005` Cylinder Head (Right)	10
21	`020` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`017` Water Pump And Pipes	4
45	`013` Exhaust System	1
51	`031` Steering Column	2

Ferrari 308 Quattrovalvole USA13 positions

Item No.	Diagram (page)	Qty
4	`117` Windshield Wiper Washer and Horn	3
7	`040` Electric Generating System	1
10	`013` Air Intake and Manifolds	8
11	`014` Throttle Housing and Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel and Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`031` Hand - Brake Control	2
19	`105` Front Compartment Lid	6
20	`005` Cylinder Head (Right)	10
21	`022` Gearbox - Differential Housing and Oil Sump	12
22	`001` Engine - Gearbox and Supports	8
24	`019` Water Pump and Pipings	4

Ferrari 328 GTB/GTS (1985)15 positions

Item No.	Diagram (page)	Qty
4	`119` Windshield Wiper, Washer And Horn	2
7	`043` Electric Generating System	1
10	`015` Air Intake And Manifolds	8
11	`016` Throttle Housing And Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`108` Front Compartment Lid	4
20	`005` Cylinder Head (Right)	10
21	`025` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`022` Water Pump And Piping	4
25	`024` Gearbox Transmission	10
38	`036` Steering Column	2
45	`017` Exhaust System (Not For U.S. And Sa Version)	1

Ferrari 328 GTB/GTS (1988)12 positions

Item No.	Diagram (page)	Qty
4	`129` Windshield Wiper, Washer And Horns	2
7	`053` Electric Generating System	1
10	`016` Air Intake And Manifolds	8
11	`017` Throttle Housing And Linkage	2
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`112` Front Compartment Lid	4
22	`001` Engine - Gearbox And Supports	8
24	`023` Water Pump And Piping	4
25	`026` Gearbox Transmission	10
26	`047` Rear Suspension - Shock Absorber And Brake Disc (Starting From Car No. 76626)	12
38	`041` Steering Column	2

Ferrari 330 GT 2+2 Mk.11 position

Item No.	Diagram (page)	Qty
8	`034` Rear Brakes And Handbrake	1

Ferrari 348 GTB/GTS/GTC/Spider3 positions

Item No.	Diagram (page)	Qty
4	`028` GEARBOX COVERS	9
27	`024` CLUTCH AND CONTROLS	4
36	`023` WATER PUMP	4

Ferrari 348 tb/ts5 positions

Item No.	Diagram (page)	Qty
2	`021A` Clutch - Single And Double Disc	6
4	`024` Gearbox Covers	9
27	`021` Clutch - Controls	4
36	`020` Water Pump	4
37	`039` Rear Suspension - Shock Absorber And Brake Disc - Valid till Car Ass. Nr. 8798	12

Ferrari 360 Challenge5 positions

Item No.	Diagram (page)	Qty
3	`033` Brake System	2
8	`122` Windshield And Glass Washer	3
30	`024` F1 Clutch Hydraulic Control	5
35	`003` R.H. Cylinder Head	1
35	`004` L.H. Cylinder Head	1

Ferrari 360 Challenge Stradale9 positions

Item No.	Diagram (page)	Qty
3	`039` Brake System -Not For Gd-	2
3	`040` Brake System -Valid For Gd-	2
8	`129` Windshield, Glass Washer And Horns	3
30	`019` Exhaust System	4
30	`029` F1 Clutch Hydraulic Control	2
33	`019` Exhaust System	4
34	`052` Current Generator - Starting Motor	1
35	`003` R.H. Cylinder Head	1
35	`004` L.H. Cylinder Head	1

Ferrari 360 Modena10 positions

Item No.	Diagram (page)	Qty
3	`042` Brake System -Not For Gd-	2
3	`043` Brake System -Valid For Gd-	2
8	`134` Windshield, Glass Washer And Horns	3
30	`019` Exhaust System	4
30	`020` Racing Exhaust System -Optional-	4
30	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
33	`020` Racing Exhaust System -Optional-	4
34	`055` Current Generator - Starting Motor	1
35	`003` R.H. Cylinder Head	1
35	`004` L.H. Cylinder Head	1

Ferrari 360 Spider10 positions

Item No.	Diagram (page)	Qty
3	`042` Brake System -Not For Gd-	2
3	`043` Brake System -Valid For Gd-	2
8	`142` Windshield, Glass Washer And Horns	3
30	`019` Exhaust System	4
30	`020` Racing Exhaust System -Optional-	4
30	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
33	`020` Racing Exhaust System -Optional-	4
34	`055` Current Generator - Starting Motor	1
35	`003` R.H. Cylinder Head	1
35	`004` L.H. Cylinder Head	1

Ferrari 365 GT4 2+25 positions

Item No.	Diagram (page)	Qty
23	`037` Front Suspension - Shock Absorber	16
31	`034` Power Steering	1
41	`002` Oil Sump	2
47	`045` Air Conditioning System	2
55	`017` Oil And Water Pumps	1

Ferrari 365 GT4 BB18 positions

Item No.	Diagram (page)	Qty
3	`107` Rear Bonnet	4
6	`011` Exhaust System	8
6	`020` Gearbox (Up To Car No. 17535)	13
7	`119` Windshield Wiper, Washer And Horns	2
8	`018` Gearbox - Transmission	10
9	`20A` Gearbox (From Car No. 17543)	12
13	`010` Throttle Control	6
13	`106` Front Compartment Lid	6
18	`003` Cylinder Head (Right)	12
18	`004` Cylinder Head (Left)	12
21	`008` Air Intakes And Manifolds	24
22	`019` Gearbox - Mountings And Covers	16
38	`037` Current Generation (Up To Car No. 18263)	1
38	`37A` Current Generation (From Car No. 18265)	1
46	`013` Lubrication - Pump And Oil Filters	6
47	`001` Crankcase	5
50	`016` Clutch And Controls	10
55	`014A` Cooling System (From Car No. 17847)	2

Ferrari 365 GTB4 (Daytona)2 positions

Item No.	Diagram (page)	Qty
4	`224A` Door Handle & Lock	1
13	`225A` Front Lamp Motor	1

Ferrari 365 GTC44 positions

Item No.	Diagram (page)	Qty
26	`050` USA Diverter Valves - Air Pollution System Oct 1972	1
47	`044A` Air Con System - Revision Oct 1972	2
55	`016` Water & Oil Pump	1
55	`016A` Water & Oil Pump - Revision Oct 1972	1

Ferrari 400 GT / 400 Auto12 positions

Item No.	Diagram (page)	Qty
8	`020` Engine Flywheel And Clutch Housing Spacer (400 Automatic)	6
13	`051` Supplementary Air Conditiong System	4
14	`019` Cooling System	4
14	`041` Steering Controls	2
14	`053` Throttle Control (Variants For RHD Version)	1
25	`021` Automatic Transmission (400 Automatic)	1
27	`039` Hydraulic Steering System	1
28	`054` Clutch Release Control (400 Gt - Variants For RHD Version)	1
38	`049` Current Generator And Starting Motor	1
41	`002` Oil Sump	2
47	`050` Air Conditioning System	2
55	`018` Water Pump And Engine Oil	1

Ferrari 400i11 positions

Item No.	Diagram (page)	Qty
6	`018` Cooling System	4
8	`019` Engine Flywheel And Clutch Housing Spacer (400 Automatic)	6
13	`055` Supplementary Air Conditioning System	4
14	`013` Throttles Controls (For RHD)	1
14	`044` Steering Control	2
27	`020` Automatic Transmission (400 Automatic)	2
27	`041` Hydraulic Steering System	1
28	`025` Clutch Release Control (400 Gt - For RHD)	1
41	`053` Current Generators And Starting Motor	1
46	`002` Oil Sump	2
55	`017` Water Pump And Engine Oil Pump	1

Ferrari 41210 positions

Item No.	Diagram (page)	Qty
6	`051` Rear Suspension - Brake Disc	12
8	`020` Engine Flywheel And Clutch Housing Spacer - 4	6
14	`014` Throttle Controls (For RHD)	1
14	`046` Steering Column	2
27	`021` Automatic Transmission - 412A	2
27	`043` Hydraulic Steering System	1
28	`026` Clutch Release Control - 412M RHD	1
44	`018` Water Pump And Engine Oil	2
46	`002` Oil Sump	2
61	`019` Cooling System	3

Ferrari 430 Scuderia8 positions

Item No.	Diagram (page)	Qty
8	`142` Windscreen Wiper, Windscreen Washer And Horns	3
12	`029` Hydraulic F1 Gearbox And Clutch Control	2
21	`039` Brake System -Applicable For Gd-	2
30	`020` Racing Exhaust System	4
32	`038` Brake System -Not Applicable For Gd-	2
33	`020` Racing Exhaust System	4
37	`004` Left Hand Cylinder Head	2
48	`020` Racing Exhaust System	4

Ferrari 430 Scuderia Spider 16M8 positions

Item No.	Diagram (page)	Qty
8	`142` Windscreen Wiper, Windscreen Washer And Horns	3
12	`029` Hydraulic F1 Gearbox And Clutch Control	2
21	`039` Brake System -Applicable For Gd-	2
30	`020` Racing Exhaust System	4
32	`038` Brake System -Not Applicable For Gd-	2
33	`020` Racing Exhaust System	4
37	`004` Left Hand Cylinder Head	2
48	`020` Racing Exhaust System	4

Ferrari 456 GT/GTA10 positions

Item No.	Diagram (page)	Qty
2	`027` Clutch Housing -Valid For 456 Gta-	9
7	`028` Gearbox -Not For 456 Gta-	13
13	`046` Control Unit And Hydraulic Equipment For Abs System	3
29	`106` Rear Bumper And Movable Spoiler -Not For 456 Gta-	1
29	`107` Rear Bumper And Movable Spoiler -Valid For 456 Gta-	1
32	`128` Lights Lifting Device And Headlights	2
33	`030` Different. Carrier And Gearbox Cooling Radiator -Not For 456 Gta-	13
48	`026` Clutch - Controls -Not For 456 Gta-	9
50	`106` Rear Bumper And Movable Spoiler -Not For 456 Gta-	4
52	`133` Windshield Wiper, Washer And Horns	2

Ferrari 456 MGT/MGTA 6 positions

Item No.	Diagram (page)	Qty
2	`030` Clutch Housing -Valid For 456M Gta-	9
7	`031` Gearbox -Not For 456M Gta-	13
11	`032` Complete Gearbox -Valid For 456M Gta-	1
33	`033` Differential Carrier And Gearbox Cooling Radiator -Not For 456M Gta-	13
36	`132` Windshield Wiper, Washer And Horns	2
48	`029` Clutch - Controls -Not For 456M Gta-	5

Ferrari 512 BB (Carburetor)14 positions

Item No.	Diagram (page)	Qty
3	`107` Rear Bonnet	4
6	`011` Exhaust System	16
7	`119` Windshield Wipers, Washer And Horns	2
13	`010` Throttle Control	6
13	`106` Front Compartment Lid	6
18	`003` Cylinder Head (Right)	12
18	`004` Cylinder Head (Left)	12
18	`004A` Cylinder Head (Left) (1978 Revision)	12
21	`008` Air Intakes, Filters And Manifolds	24
32	`014` Cooling System	4
32	`014A` Cooling System (1978 Revision)	4
37	`012` Lubrication - Blow-By And Oil Reservoir	2
38	`037` Alternator, Starter And Battery	1
47	`001` Crankcase	5

Ferrari 512 BBi6 positions

Item No.	Diagram (page)	Qty
6	`010` Exhaust System	16
11	`009` Throttle Control	1
18	`003` Cylinder Head (Right)	12
18	`004` Cylinder Head (Left)	12
37	`011` Lubrication - Blow-By And Oil Reservoir	2
47	`001` Crankcase	5

Ferrari 512 M10 positions

Item No.	Diagram (page)	Qty
3	`003` Right Cylinder Head	10
3	`004` Left Cylinder Head	10
7	`022` Lubrication - Pumps And Oil Filter	3
9	`016` Throttle Control - Lhd	2
14	`017` Throttle Control -RHD	1
16	`011` Air Injection - Ignition	6
45	`031` Gearbox	1
47	`001` Crankcase	5
49	`044` Steering Column	2
51	`034` Gearbox Controls	2

Ferrari 512 TR10 positions

Item No.	Diagram (page)	Qty
3	`003` Right Cylinder Head	10
3	`004` Left Cylinder Head	10
7	`022` Lubrication - Pumps And Oil Filter	3
9	`016` Throttle Control -Not For Gd-	2
14	`017` Throttle Control -Valid For Gd-	1
16	`011` Air Injection - Ignition	6
45	`031` Gearbox	1
47	`001` Crankcase	5
49	`045` Steering Column	2
51	`034` Gearbox Controls	2

Ferrari 550 Barchetta3 positions

Item No.	Diagram (page)	Qty
7	`029` Gearbox	13
33	`030` Differential Carrier And Clutch Cooling Radiator	13
48	`028` Clutch - Controls	5

Ferrari 550 Maranello3 positions

Item No.	Diagram (page)	Qty
7	`030` Gearbox	13
33	`031` Differential Carrier And Clutch Cooling Radiator	13
48	`029` Clutch - Controls	5

Ferrari 575 SuperAmerica7 positions

Item No.	Diagram (page)	Qty
7	`030` Gearbox	13
14	`044` Brake System -Not For Gd-	2
14	`045` Brake System -Valid For Gd-	2
24	`030` Gearbox	10
33	`031` Differential Carrier And Clutch Cooling Radiator	13
48	`028` Clutch And Controls -Not For F1-	5
48	`029` Clutch And Controls -Valid For F1-	5

Ferrari 575M Maranello7 positions

Item No.	Diagram (page)	Qty
7	`030` Gearbox	13
14	`044` Brake System -Not For Gd-	2
14	`045` Brake System -Valid For Gd-	2
24	`030` Gearbox	10
33	`031` Differential Carrier And Clutch Cooling Radiator	13
48	`028` Clutch And Controls -Not For F1-	5
48	`029` Clutch And Controls -Valid For F1-	5

Ferrari 599 GTB Fiorano3 positions

Item No.	Diagram (page)	Qty
7	`025` Gearbox Housing	13
19	`037` F1 Clutch Hydraulic Control -Applicable For F1-	2
33	`026` Differential Case And Gearbox Cooling Radiator	13

Ferrari 599 GTO3 positions

Item No.	Diagram (page)	Qty
7	`024` Gearbox Housing	13
19	`034` F1 Clutch Hydraulic Control	2
33	`025` Differential Case And Gearbox Cooling Radiator	13

Ferrari 599 SA Aperta3 positions

Item No.	Diagram (page)	Qty
7	`024` Gearbox Housing	13
19	`034` F1 Clutch Hydraulic Control	2
33	`025` Differential Case And Gearbox Cooling Radiator	13

Ferrari 612 Scaglietti10 positions

Item No.	Diagram (page)	Qty
7	`031` Gearbox Housing	13
7	`041` Electronic Accelerator Pedal	1
9	`051` Hydraulic Fluid Reservoir For Power Steering System And Coil	2
19	`043` F1 Clutch Hydraulic Control -Applicable For F1-	2
24	`031` Gearbox Housing	10
26	`042` Pedal Board	1
33	`032` Differential Case And Gearbox Cooling Radiator	13
47	`030` Clutch And Controls -Applicable For "Oto"-	5
48	`028` Clutch And Controls -Not For F1-	5
48	`029` Clutch And Controls -Applicable For F1-	5

Ferrari 612 Sessanta10 positions

Item No.	Diagram (page)	Qty
7	`031` Gearbox Housing	13
7	`041` Electronic Accelerator Pedal	1
9	`051` Hydraulic Fluid Reservoir For Power Steering System And Coil	2
19	`043` F1 Clutch Hydraulic Control -Applicable For F1-	2
24	`031` Gearbox Housing	10
26	`042` Pedal Board	1
33	`032` Differential Case And Gearbox Cooling Radiator	13
47	`030` Clutch And Controls -Applicable For "Oto"-	5
48	`028` Clutch And Controls -Not For F1-	5
48	`029` Clutch And Controls -Applicable For F1-	5

Ferrari California4 positions

Item No.	Diagram (page)	Qty
10	`035` COMPLETE PEDAL BOARD ASSEMBLY -Applicable for DCT gearbox-	1
10	`036` COMPLETE PEDAL BOARD ASSEMBLY -Not for DCT gearbox-	1
22	`015` Pre-Catalytic Converters And Catalytic Converters	2
31	`016` Silencers	4

Ferrari Enzo7 positions

Item No.	Diagram (page)	Qty
3	`025` Gearbox - Rear Part Gearboxes Housing And Cover	12
3	`033` Brake System	2
14	`003` R.H. Cylinder Head	2
14	`004` L.H. Cylinder Head	2
14	`020` Cooling System Radiators	4
37	`026` Main Shaft Gears	1
45	`022` F1 Clutch Hydraulic Control	2

Ferrari F355 B/GTS/Spider Mo. 2.74 positions

Item No.	Diagram (page)	Qty
13	`027` Gearbox - Differential Housing And Intermediate Casing	1
19	`028` Gearbox Covers And Lubrication	12
24	`024` Clutch And Controls	4
24	`049` Air Conditioning Compressor	2

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F12 positions

Item No.	Diagram (page)	Qty
10	`023` Clutch	8
19	`031` Gearbox Covers And Lubrication	12

Ferrari F4016 positions

Item No.	Diagram (page)	Qty
1	`014` Accelerator Control	1
4	`021` Exhaust System -Not For Cars With Catalyst-	4
4	`022` Exhaust System -Valid For Cars With Catalyst-	4
4	`031` Differential Gearbox	6
6	`025` Lubrication - Pumps	2
7	`030` Gearbox Transmission	6
9	`102` Frame - Rear Part -Not For Cars With Catalyst-	8
9	`103` Frame - Rear Part -Valid For Cars With Catalyst-	8
14	`001` Engine Block	12
17	`029` Clutch And Control	12
17	`033` Gearbox	14
18	`004` L.H. Cylinder Head	10
20	`003` R.H. Cylinder Head	10
26	`123` Windshield Wiper And Horns	2
28	`047` Rear Suspension - Shock Absorber And Brake Disc	12
34	`027` Water Pump And Pipings	4

Ferrari F430 Challenge6 positions

Item No.	Diagram (page)	Qty
5	`023` Clutch And Gearbox Hydraulic Control	2
8	`123` Windshield And Glass Washer	3
27	`015` Racing Exhaust System	4
31	`032` Brake System	4
33	`015` Racing Exhaust System	4
37	`004` L.H. Cylinder Head	2

Ferrari F430 Coupe8 positions

Item No.	Diagram (page)	Qty
3	`038` Brake System -Applicable For Gd-	2
8	`133` Windscreen Wiper, Windscreen Washer And Horns	3
12	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	2
30	`017` Racing Exhaust System	4
31	`037` Brake System -Not Applicable For Gd-	1
33	`017` Racing Exhaust System	4
37	`004` Left Hand Cylinder Head	2
48	`017` Racing Exhaust System	4

Ferrari F430 Spider8 positions

Item No.	Diagram (page)	Qty
3	`038` Brake System -Applicable For Gd-	2
8	`142` Windscreen Wiper, Windscreen Washer And Horns	3
12	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	2
30	`017` Racing Exhaust System	4
31	`037` Brake System -Not Applicable For Gd-	1
33	`017` Racing Exhaust System	4
37	`004` Left Hand Cylinder Head	2
48	`017` Racing Exhaust System	4

Ferrari F505 positions

Item No.	Diagram (page)	Qty
1	`029` Rear Part Gearboxes Housing - Covers And Lubrication	11
11	`034` Differential And Axle Shaft	11
20	`027` Clutch Controls	4
27	`108` Rear Hood And Opening Control	2
39	`029` Rear Part Gearboxes Housing - Covers And Lubrication	11

Ferrari F801 position

Item No.	Diagram (page)	Qty
6	`0174` [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS	1

Ferrari Mondial 814 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
5	`039` Electric Generating System	1
11	`012` Throttle Housing And Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
21	`013` Exhaust System	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
22	`117` Windshield Wiper, Washer And Horn	1
25	`006` Cylinder Head (Left)	9
30	`005` Cylinder Head (Right)	9
31	`030` Hand-Brake Control	2
42	`032` Steering Column	2
54	`043` Throttle Control And Brake Hydraulic System (Variants For RHD Version)	1

Ferrari Mondial 8 USA11 positions

Item No.	Diagram (page)	Qty
3	`023` Gearbox Transmission	10
5	`042` Electric Generating System	1
11	`014` Throttle Housing and Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel and Clutch Housing Spacer	2
21	`024` Gearbox - Differential Housing and Oil Sump	12
22	`001` Engine - Gearbox and Supports	8
22	`117` Windshield Wiper Washer and Horn	1
25	`006` Cylinder Head (Left)	9
30	`005` Cylinder Head (Right)	9
42	`035` Steering Column	2

Ferrari Mondial Cabriolet 3.2 (Inc Coupe)16 positions

Item No.	Diagram (page)	Qty
10	`017` Air Intake And Manifolds	8
11	`018` Throttle Housing And Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
20	`005` Cylinder Head (Right)	10
20	`050` Electric Generation System	1
21	`029` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
22	`056` Throttle Control And Brake Hydraulic System (For Cars With Antiskid System – RHD)	2
22	`124` Windshield Wiper And Horns	1
23	`046` Rear Suspension - Shock Absorber And Brake Disc	12
24	`024` Water Pump And Piping	4
25	`028` Gearbox Transmission	10
42	`043` Steering Column	2
54	`055` Throttle Control And Brake Hydraulic System (For Cars Without Antiskid System – RHD)	1

Ferrari Mondial QV Coupe & Cabriolet17 positions

Item No.	Diagram (page)	Qty
3	`021` Gearbox Transmission	10
5	`044` Electric Generating System - (Engine With Single Belt)	1
10	`012` Air Intake And Manifolds	8
11	`013` Throttle Housing And Linkage	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
20	`005` Cylinder Head (Right)	10
21	`022` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
22	`121` Windshield Wiper - Washer And Horn	1
23	`039` Rear Suspension - Shock Absorber And Brake Disc	12
24	`018` Water Pump And Piping	4
31	`033` Hand - Brake Control (Valid Only For Lhd Up To Chassis No. 43011)	2
42	`036` Steering Column	2
45	`014` Exhaust System	1
54	`049` Throttle Control And Brake Hydraulic System (Variants For RHD)	1

Ferrari Mondial t Coupe & Cabriolet5 positions

Item No.	Diagram (page)	Qty
8	`021` Throttle Housing And Linkage	2
22	`062` Throttle Pedal And Brake Hydraulic System -Valid For Gd-	2
22	`145` Windshield Wiper And Horns	1
26	`054` Rear Suspension - Shock Absorber And Brake Disc	12
42	`100` Body Shell: Outer Elements - Front And Rear Part	2

Ferrari Purosangue1 position

Item No.	Diagram (page)	Qty
21	`0040` [GEARBOX] - C.1 - GEARBOX AND FASTENERS	2

Ferrari Testarossa TR 857 positions

Item No.	Diagram (page)	Qty
3	`003` Cylinder Head (Right)	10
3	`004` Cylinder Head (Left)	10
11	`018` Throttle Control	2
14	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	1
16	`019` Exhaust System (Not For U.S.- Sa And Ch87)	12
47	`001` Crankcase	5
58	`041` Steering Column	2

Ferrari Testarossa TR 879 positions

Item No.	Diagram (page)	Qty
3	`003` Cylinder Head (Right) (Apr89)	10
3	`004` Cylinder Head (Left) (Apr89)	10
11	`018` Throttle Control (Apr89)	2
14	`052` Brake Hydraulic System - Accelerator Control (Variants For RHD)	1
16	`019` Exhaust System (Not For U.S.- Sa And Ch87)	12
47	`001` Crankcase (Apr89)	5
49	`041A` Steering Column - Starting From Car N 75997 (Apr89)	2
49	`041B` Steering Column - Starting From Car N 80423 (Apr89)	2
58	`041` Steering Column	2

Ferrari Testarossa TR 9010 positions

Item No.	Diagram (page)	Qty
3	`003` Cylinder Head (Right)	10
3	`004` Cylinder Head (Left)	10
7	`023` Lubrication -Pumps And Oil Filter	3
11	`018` Throttle Control	2
14	`060` Brake Hydraulic System - Accelerator Control (Variants For RHD)	1
16	`019` Exhaust System (For B1 - RHD1 Version)	12
47	`001` Crankcase	5
49	`043` Steering Column (Starting From Car No. 75997 To Car No. 80422)	2
49	`044` Steering Column (Starting From Car No. 80423)	2
58	`042` Steering Column (Until Car No. 75995)	2
