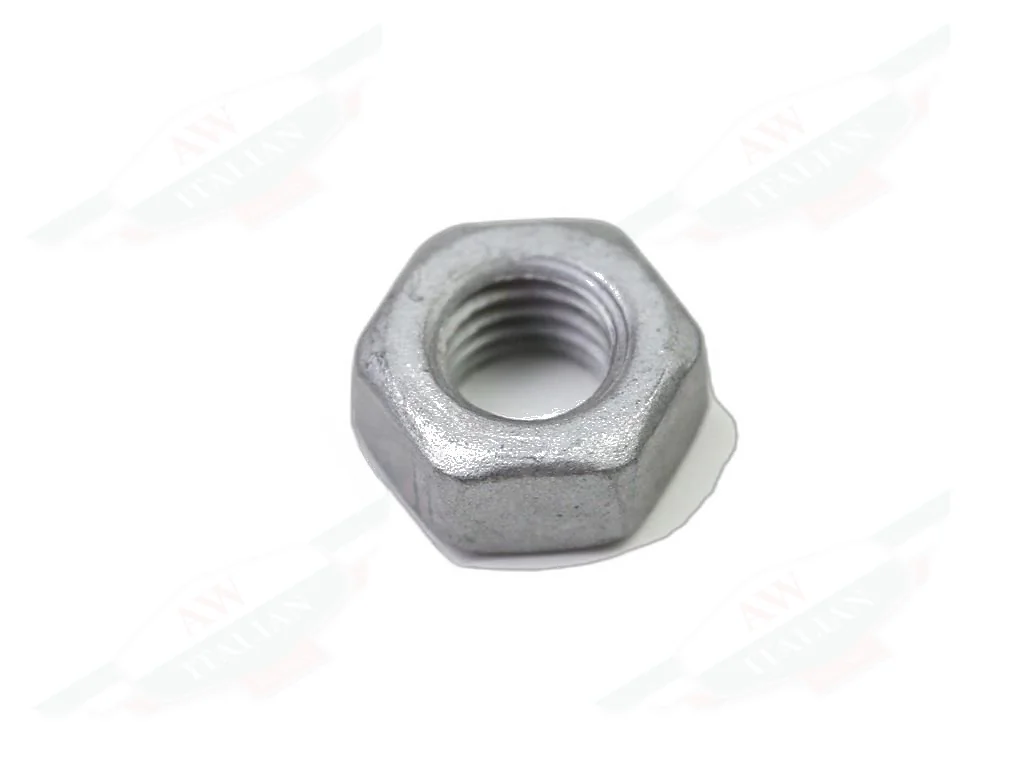

Ferrari Nut 8×6.5mm – 16100811

Original or OEM

?Original or OEM — genuine Ferrari parts, or parts made by the Original Equipment Manufacturer that supplies Ferrari. AW Approved — quality aftermarket parts vetted and approved by AW Italian.

PART # 16100811

SUPERSEDEDPlease order 16100824 instead.

Description

Ferrari Nut 8×6.5mm, part number 16100811. Listed in our catalogue for 70 Ferrari models, including the 12 Cilindri, 12 Cilindri Spider, 206 GT Dino. This number has been superseded by 16100824.

Every product we sell is backed by our 1-year warranty, giving you added confidence with every purchase. We're committed to knowledgeable service, reliable fulfillment, and helping you get the right part the first time.

Not sure it’s the right part for your car? Contact our team before you order and we’ll help you confirm it.

Fits the following vehicles

70 vehicles · 892 positions

Ferrari 12 Cilindri1 position

Item No.	Diagram (page)	Qty
—	`0141` [VEHICLE TRIM] - E.40 - FRONT BUMPER	4

Ferrari 12 Cilindri Spider1 position

Item No.	Diagram (page)	Qty
—	`0141` [VEHICLE TRIM] - E.40 - FRONT BUMPER	4

Ferrari 206 GT Dino6 positions

Item No.	Diagram (page)	Qty
15	`001` Crankcase & Cylinder Heads	4
16	`016` Water Pump & Pipes	12
20	`009` Air Filter And Manifolds	4
28	`009` Air Filter And Manifolds	12
30	`016` Water Pump & Pipes	12
46	`001` Crankcase & Cylinder Heads	1

Ferrari 208 GT4 Dino24 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
5	`039` Electric Generating System	1
7	`010` Carburettors And Air Cleaner	20
7	`124` Windshield Wiper, Washer And Horn	2
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
15	`111` Bumpers And Mouldings	8
17	`004` Flywheel And Clutch Housing Spacer	2
19	`030` Hand-Brake Control	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`021` Gearbox - Differential Housing And Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`030` Hand-Brake Control	1
29	`006` Cylinder Head (Left)	9
37	`021` Gearbox - Differential Housing And Oil Sump	6
39	`039` Electric Generating System	1
41	`012` Throttle Control	1
41	`021` Gearbox - Differential Housing And Oil Sump	6
42	`017` Water Pump And Pipings	4
47	`021` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
53	`009` Fuel System	2

Ferrari 208 GTB/GTS Carburetor25 positions

Item No.	Diagram (page)	Qty
3	`019` Gearbox Transmission	10
4	`117` Windshield Wiper, Washer And Horn	2
5	`038` Electric Generating System	1
7	`010` Carburettors And Air Cleaner	20
9	`108` Bumpers And Mouldings	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing Spacer	2
19	`029` Hand - Brake Control	2
19	`105` Front Compartment Lid	6
21	`020` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`020` Gearbox - Differential Housing And Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`029` Hand - Brake Control	1
29	`006` Cylinder Head (Left)	9
33	`011` Throttle Control	1
37	`038` Electric Generating System	1
39	`038` Electric Generating System	1
41	`020` Gearbox - Differential Housing And Oil Sump	6
42	`016` Water Pump And Pipings	4
47	`020` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
53	`009` Fuel System	2

Ferrari 208 GTB/GTS Turbo19 positions

Item No.	Diagram (page)	Qty
4	`122` Windshield Wiper, Washer And Horns	2
7	`048` Electric Generating System	1
11	`013` Throttle Housing And Linkage	2
14	`002` Crankcase	9
15	`013` Throttle Housing And Linkage	1
17	`004` Flywheel And Clutch Housing Spacer	2
19	`106` Front Compartment Lid	4
21	`014` Exhaust System	2
21	`022` Gearbox - Differential Housing And Oil Pump	12
22	`001` Engine - Gearbox & Supports	8
24	`022` Gearbox - Differential Housing And Oil Pump	4
25	`021` Gearbox Transmission	10
26	`042` Rear Suspension - Shock Absorber And Brake Disc (Starting From Car No. 76626)	12
35	`048` Electric Generating System	1
38	`036` Steering Column	2
41	`022` Gearbox - Differential Housing And Oil Pump	5
42	`048` Electric Generating System	1
47	`022` Gearbox - Differential Housing And Oil Pump	1
52	`002` Crankcase	6

Ferrari 208 Turbo23 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
4	`116` Windshields Wiper, Washer And Horn	3
5	`039` Electric Generating System	1
11	`013` Throttle Control	2
12	`016` Lubrication System	2
14	`002` Crankcase	9
15	`013` Throttle Control	1
15	`108` Bumpers, Mouldings And External Lights	12
17	`004` Flywheel And Clutch Housing Spacer	2
19	`030` Hand-Brake Controll	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`021` Gearbox - Differential Housing And Oil Sump	4
25	`006` Cylinder Head (Left)	9
25	`030` Hand-Brake Controll	1
26	`014` Exhaust System	2
30	`005` Cylinder Head (Right)	9
37	`039` Electric Generating System	1
41	`021` Gearbox - Differential Housing And Oil Sump	5
47	`021` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
57	`039` Electric Generating System	1
81	`021` Gearbox - Differential Housing And Oil Sump	2

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132)17 positions

Item No.	Diagram (page)	Qty
7	`110` Bumpers And Mouldings	6
7	`118` Windshield Wiper, Washer And Horn	4
16	`011` Blow - By System	2
18	`015` Water Pump And Pipes	2
23	`036` Engine Ignition	2
23	`109` Doors	2
24	`018` Clutch Unit And Cover	10
25	`004` Flywheel And Intermediate Gearbox Housing	1
27	`001` Crankcase And Cylinder Heads	1
27	`002` Oil Sump - Gearbox And Differential	22
28	`008` Air Filter And Manifolds	12
30	`015` Water Pump And Pipes	3
30	`017` Clutch Disengagement	1
45	`002` Oil Sump - Gearbox And Differential	7
48	`005` Timing Control	4
52	`001` Crankcase And Cylinder Heads	13
53	`109` Doors	2

Ferrari 288 GTO22 positions

Item No.	Diagram (page)	Qty
4	`012` Exhaust System	4
4	`021` Differential Housing	8
6	`015` Lubrication - Filter And Oil Pumps	2
7	`009` Throttle Bodies And Accelerator Control	2
7	`020` Gearbox Transmission	6
8	`113` Windshield Wiper - Washer And Horn	2
11	`009` Throttle Bodies And Accelerator Control	1
13	`020` Gearbox Transmission	4
14	`001` Crankcase	12
14	`014` Lubrication System	3
17	`019` Clutch And Controls	12
17	`023` Gearbox Housing	14
18	`004` Cylinder Head (Left)	10
20	`003` Cylinder Head (Right)	10
21	`107` Bumpers - Lights - Outer Name	8
27	`021` Differential Housing	2
30	`036` Rear Suspension -Shock Absorber And Brake Disc	2
34	`017` Water Pump And Pipings	4
38	`033` Steering Column	2
50	`019` Clutch And Controls	4
52	`001` Crankcase	6
61	`001` Crankcase	2

Ferrari 308 GT4 Dino 197625 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
5	`039` Electric Generating System	1
7	`010` Carburettors And Air Cleaner	20
7	`124` Windshield Wiper, Washer And Horn	2
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
15	`111` Bumpers And Mouldings	8
17	`004` Flywheel And Clutch Housing Spacer	2
19	`030` Hand - Brake Control	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`021` Gearbox - Differential Housing And Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`030` Hand - Brake Control	1
29	`006` Cylinder Head (Left)	9
33	`12A` Throttle Control (1 Distributor)	1
37	`021` Gearbox - Differential Housing And Oil Sump	6
39	`039` Electric Generating System	1
41	`012` Throttle Control (2 Distributors)	1
41	`021` Gearbox - Differential Housing And Oil Sump	6
42	`017` Water Pump And Pipings	4
47	`021` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
66	`009` Fuel System	2

Ferrari 308 GT4 Dino 197926 positions

Item No.	Diagram (page)	Qty
3	`019` Gearbox Transmission	10
5	`039` Electric Generating System	1
7	`010` Carburetors And Air Cleaner	20
8	`050` Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)	1
8	`051` Intake Air Cleaner Valve And Lines (Variants For Usa - Aus And J Version)	1
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing	2
19	`029` Hand - Brake Control	2
19	`048` Antievaporative Emission Control System (Variants For Usa - Aus And J Version)	2
21	`020` Gear - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`020` Gear - Differential Housing And Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`029` Hand - Brake Control	1
29	`006` Cylinder Head (Left)	9
33	`011` Throttle Control	1
37	`039` Electric Generating System	1
37	`046` Air Pump And Piping (Variants For Usa - Aus And J Version)	1
39	`039` Electric Generating System	1
41	`020` Gear - Differential Housing And Oil Sump	6
42	`016` Water Pump And Piping	4
47	`020` Gear - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
53	`009` Fuel System	2

Ferrari 308 GTB 1976 Fibreglass32 positions

Item No.	Diagram (page)	Qty
3	`021` Gearbox Transmission	10
5	`040` Electric Generating System	1
5	`120` Windshield Wiper, Washer And Horn	2
7	`010` Carburetors And Air Cleaner	20
7	`170` Windshield Wiper, Washer And Horn (Valid For RHD - Aus Versions)	2
8	`120` Windshield Wiper, Washer And Horn	2
9	`109` Bumpers And Mouldings	8
9	`159` Bumpers And Mouldings (Valid For RHD - Aus Versions)	8
10	`170` Windshield Wiper, Washer And Horn (Valid For RHD - Aus Versions)	2
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing Spacer	2
17	`120` Windshield Wiper, Washer And Horn	2
19	`031` Hand-Brake Control	2
19	`170` Windshield Wiper, Washer And Horn (Valid For RHD - Aus Versions)	2
21	`022` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`022` Gearbox - Differential Housing And Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`031` Hand-Brake Control	1
29	`006` Cylinder Head (Left)	9
33	`012` Throttle Control	1
37	`015` Lubrication System	1
39	`040` Electric Generating System	1
41	`022` Gearbox - Differential Housing And Oil Sump	6
42	`018` Water Pump And Piping	4
47	`022` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
53	`009` Fuel System	2
56	`107` Rear Bonnet And Luggage Compartment Covering	2
56	`157` Rear Bonnet And Luggage Compartment Covering (Valid For RHD - Aus Versions)	2

Ferrari 308 GTB/GTS Carburetor39 positions

Item No.	Diagram (page)	Qty
3	`022` Gearbox Transmission	10
5	`043` Electric Generating System	1
7	`010` Carburetors And Air Cleaner	20
7	`015` Lubrication System (308 Gtb)	2
8	`120` Windshield Wiper, Washer And Horn	2
8	`170` Windshield Wiper, Washer And Horn (Variants For RHD - Aus Versions)	2
9	`109` Bumpers And Mouldings	8
9	`159` Bumpers And Mouldings (Variants For RHD - Aus Versions)	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	1
14	`015` Lubrication System (308 Gtb)	2
17	`004` Flywheel And Clutch Housing Spacer	2
19	`033` Hand-Brake Control	2
19	`106` Front Compartment Lid	6
19	`156` Front Compartment Lid (Variants For RHD - Aus Versions)	6
21	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	12
21	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	12
22	`001` Engine - Gearbox And Supports	8
24	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	4
24	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	4
25	`005` Cylinder Head (Right)	9
25	`033` Hand-Brake Control	1
29	`006` Cylinder Head (Left)	9
33	`011` Throttle Control	1
37	`015` Lubrication System (308 Gtb)	1
37	`043` Electric Generating System	1
39	`043` Electric Generating System	1
41	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	6
41	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	6
42	`019` Water Pump And Piping	4
47	`023` Gearbox - Differential Housing And Oil Sump (308 Gtb)	1
47	`024` Gearbox - Differential Housing And Oil Sump (308 Gts And Aus)	1
47	`107` Rear Bonnet And Luggage Compartment Covering	2
47	`157` Rear Bonnet And Luggage Compartment Covering (Variants For RHD - Aus Version)	2
52	`002` Crankcase	6
52	`016` Oil Filter And Pumps (308 Gtb)	2
53	`009` Fuel System	2
62	`016` Oil Filter And Pumps (308 Gtb)	2

Ferrari 308 GTB/GTS JAP28 positions

Item No.	Diagram (page)	Qty
3	`024` Gearbox Transmission	10
4	`120` Windshield Wiper Washer & Horn	2
5	`043` Electric Generating System	1
7	`014` Carburettors & Air Filter	20
8	`013` Intake Air Cleaner Valve & Lines	1
9	`109` Bumpers & Mouldings	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel and Clutch Housing Spacer	2
19	`011` Antievaporative Emission Control System	2
19	`034` Handbrake Control	2
19	`106` Front Compartment Lid	6
21	`025` Gearbox - Differential Housing & Oil Sump	12
22	`001` Engine - Gearbox and Supports	8
24	`025` Gearbox - Differential Housing & Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`034` Handbrake Control	1
29	`006` Cylinder Head (Left)	9
33	`016` Throttle Control	1
37	`009` Air Pump & Pipings	1
37	`043` Electric Generating System	1
39	`043` Electric Generating System	1
41	`025` Gearbox - Differential Housing & Oil Sump	6
42	`021` Water Pump & Pipings	4
47	`025` Gearbox - Differential Housing & Oil Sump	1
52	`002` Crankcase	6
53	`012` Fuel Pump & Pipes	2

Ferrari 308 GTB/GTS USA28 positions

Item No.	Diagram (page)	Qty
3	`024` Gearbox Transmission	10
4	`120` Windshield Wiper, Washer And Horn	2
5	`043` Electric Generating System	1
7	`014` Carburettors And Air Cleaner	20
8	`013` Intake Air Cleaner Valve And Lines	1
9	`109` Bumpers And Moldings	8
13	`006` Cylinder Head (Left)	2
14	`002` Crankcase	9
14	`005` Cylinder Head (Right)	2
17	`004` Flywheel And Clutch Housing Spacer	2
19	`011` Antievaporative Emission Control System	2
19	`034` Hand - Brake Control	2
19	`106` Front Compartment Lid	6
21	`025` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`025` Gearbox - Differential Housing And Oil Sump	4
25	`005` Cylinder Head (Right)	9
25	`034` Hand - Brake Control	1
29	`006` Cylinder Head (Left)	9
33	`016` Throttle Control	1
37	`009` Air Pump And Pipings	1
37	`043` Electric Generating System	1
39	`043` Electric Generating System	1
41	`025` Gearbox - Differential Housing And Oil Sump	6
42	`021` Water Pump And Pipings	4
47	`025` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
53	`012` Fuel Pump And Pipes	2

Ferrari 308 GTBi/GTSi21 positions

Item No.	Diagram (page)	Qty
3	`019` Gearbox Transmission	10
4	`117` Windshield Wiper, Washer And Horn	2
5	`038` Electric Generating System	1
9	`108` Bumpers And Moldings	8
12	`015` Lubrication System	2
14	`002` Crankcase	9
17	`004` Flywheel And Clutch Housing Spacer	2
19	`029` Hand-Brake Control	2
19	`105` Front Compartment Lid	6
21	`013` Exhaust System	2
21	`020` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`020` Gearbox - Differential Housing And Oil Sump	4
25	`006` Cylinder Head (Left)	9
25	`029` Hand-Brake Control	1
30	`005` Cylinder Head (Right)	9
37	`038` Electric Generating System	1
41	`020` Gearbox - Differential Housing And Oil Sump	5
47	`020` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
52	`012` Throttle Housing And Linkage	1

Ferrari 308 Quattrovalvole25 positions

Item No.	Diagram (page)	Qty
4	`116` Windshield Wiper, Washer And Horn	3
5	`038` Electric Generating System (Engine With Single Belt)	1
7	`039` Electric Generating System (Engine With 2 Individual Belts)	1
8	`038` Electric Generating System (Engine With Single Belt)	1
10	`011` Air Intake And Manifold	8
11	`012` Throttle Housing And Linkage	2
12	`015` Lubrication System	2
14	`002` Crankcase	9
15	`012` Throttle Housing And Linkage	1
15	`108` Bumpers, Moldings And External Lights	8
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`029` Hand - Brake Controls	2
19	`105` Front Compartment	6
20	`005` Cylinder Head (Right)	10
21	`020` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`017` Water Pump And Pipes	4
24	`020` Gearbox - Differential Housing And Oil Sump	4
25	`029` Hand - Brake Controls	1
41	`020` Gearbox - Differential Housing And Oil Sump	5
45	`013` Exhaust System	1
47	`020` Gearbox - Differential Housing And Oil Sump	1
51	`031` Steering Column	2
52	`002` Crankcase	6

Ferrari 308 Quattrovalvole USA19 positions

Item No.	Diagram (page)	Qty
4	`117` Windshield Wiper Washer and Horn	3
7	`040` Electric Generating System	1
10	`013` Air Intake and Manifolds	8
11	`014` Throttle Housing and Linkage	2
14	`002` Crankcase	9
15	`014` Throttle Housing and Linkage	1
17	`004` Flywheel and Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`031` Hand - Brake Control	2
19	`105` Front Compartment Lid	6
20	`005` Cylinder Head (Right)	10
21	`022` Gearbox - Differential Housing and Oil Sump	12
22	`001` Engine - Gearbox and Supports	8
24	`019` Water Pump and Pipings	4
24	`022` Gearbox - Differential Housing and Oil Sump	4
25	`031` Hand - Brake Control	1
41	`022` Gearbox - Differential Housing and Oil Sump	5
47	`022` Gearbox - Differential Housing and Oil Sump	1
52	`002` Crankcase	6

Ferrari 328 GTB/GTS (1985)21 positions

Item No.	Diagram (page)	Qty
4	`119` Windshield Wiper, Washer And Horn	2
7	`043` Electric Generating System	1
10	`015` Air Intake And Manifolds	8
11	`016` Throttle Housing And Linkage	2
14	`002` Crankcase	9
15	`016` Throttle Housing And Linkage	1
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`108` Front Compartment Lid	4
20	`005` Cylinder Head (Right)	10
21	`025` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
24	`022` Water Pump And Piping	4
24	`025` Gearbox - Differential Housing And Oil Sump	4
25	`024` Gearbox Transmission	10
38	`036` Steering Column	2
41	`025` Gearbox - Differential Housing And Oil Sump	5
45	`017` Exhaust System (Not For U.S. And Sa Version)	1
47	`025` Gearbox - Differential Housing And Oil Sump	1
50	`043` Electric Generating System	1
52	`002` Crankcase	6

Ferrari 328 GTB/GTS (1988)17 positions

Item No.	Diagram (page)	Qty
4	`129` Windshield Wiper, Washer And Horns	2
7	`053` Electric Generating System	1
10	`016` Air Intake And Manifolds	8
11	`017` Throttle Housing And Linkage	2
14, 52	`002` Crankcase	9
15	`017` Throttle Housing And Linkage	1
17	`004` Flywheel And Clutch Housing Spacer	2
18	`006` Cylinder Head (Left)	10
19	`112` Front Compartment Lid	4
20	`005` Cylinder Head (Right)	10
21, 24, 41, 47	`027` Gearbox - Differential Housing And Oil Pump	12
22	`001` Engine - Gearbox And Supports	8
24	`023` Water Pump And Piping	4
25	`026` Gearbox Transmission	10
26	`047` Rear Suspension - Shock Absorber And Brake Disc (Starting From Car No. 76626)	12
38	`041` Steering Column	2
50	`053` Electric Generating System	1

Ferrari 330 GT 2+2 Mk.11 position

Item No.	Diagram (page)	Qty
8	`034` Rear Brakes And Handbrake	1

Ferrari 348 GTB/GTS/GTC/Spider10 positions

Item No.	Diagram (page)	Qty
4	`028` GEARBOX COVERS	9
15	`028` GEARBOX COVERS	12
26	`028` GEARBOX COVERS	2
27	`024` CLUTCH AND CONTROLS	4
36	`023` WATER PUMP	4
37	`028` GEARBOX COVERS	10
40	`024` CLUTCH AND CONTROLS	1
45	`024` CLUTCH AND CONTROLS	6
53	`028` GEARBOX COVERS	7
60	`024` CLUTCH AND CONTROLS	4

Ferrari 348 tb/ts11 positions

Item No.	Diagram (page)	Qty
2	`021A` Clutch - Single And Double Disc	6
4	`024` Gearbox Covers	9
15	`024` Gearbox Covers	12
17	`021A` Clutch - Single And Double Disc	4
26	`024` Gearbox Covers	2
27	`021` Clutch - Controls	4
36	`020` Water Pump	4
37	`024` Gearbox Covers	8
37	`039` Rear Suspension - Shock Absorber And Brake Disc - Valid till Car Ass. Nr. 8798	12
40	`021` Clutch - Controls	1
53	`024` Gearbox Covers	6

Ferrari 360 Challenge5 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`024` F1 Clutch Hydraulic Control	5
—	`033` Brake System	2
—	`122` Windshield And Glass Washer	3

Ferrari 360 Challenge Stradale8 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`019` Exhaust System	4
—	`029` F1 Clutch Hydraulic Control	2
—	`039` Brake System -Not For Gd-	2
—	`040` Brake System -Valid For Gd-	2
—	`052` Current Generator - Starting Motor	1
—	`129` Windshield, Glass Washer And Horns	3

Ferrari 360 Modena9 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`019` Exhaust System	4
—	`020` Racing Exhaust System -Optional-	4
—	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
—	`042` Brake System -Not For Gd-	2
—	`043` Brake System -Valid For Gd-	2
—	`055` Current Generator - Starting Motor	1
—	`134` Windshield, Glass Washer And Horns	3

Ferrari 360 Spider9 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	1
—	`004` L.H. Cylinder Head	1
—	`019` Exhaust System	4
—	`020` Racing Exhaust System -Optional-	4
—	`031` F1 Clutch Hydraulic Control -Valid For F1-	2
—	`042` Brake System -Not For Gd-	2
—	`043` Brake System -Valid For Gd-	2
—	`055` Current Generator - Starting Motor	1
—	`142` Windshield, Glass Washer And Horns	3

Ferrari 365 GT4 2+25 positions

Item No.	Diagram (page)	Qty
23	`037` Front Suspension - Shock Absorber	16
31	`034` Power Steering	1
41	`002` Oil Sump	2
47	`045` Air Conditioning System	2
55	`017` Oil And Water Pumps	1

Ferrari 365 GT4 BB30 positions

Item No.	Diagram (page)	Qty
3	`107` Rear Bonnet	4
6	`011` Exhaust System	8
6	`020` Gearbox (Up To Car No. 17535)	13
7	`119` Windshield Wiper, Washer And Horns	2
8	`018` Gearbox - Transmission	10
9	`20A` Gearbox (From Car No. 17543)	12
12	`119` Windshield Wiper, Washer And Horns	2
13	`010` Throttle Control	6
13	`106` Front Compartment Lid	6
15	`107` Rear Bonnet	6
18	`003` Cylinder Head (Right)	12
18	`004` Cylinder Head (Left)	12
18	`020` Gearbox (Up To Car No. 17535)	11
18	`20A` Gearbox (From Car No. 17543)	9
19	`107` Rear Bonnet	2
21	`008` Air Intakes And Manifolds	24
22	`019` Gearbox - Mountings And Covers	16
25	`008` Air Intakes And Manifolds	24
34	`004` Cylinder Head (Left)	2
37	`008` Air Intakes And Manifolds	2
38	`037` Current Generation (Up To Car No. 18263)	1
38	`37A` Current Generation (From Car No. 18265)	1
46	`013` Lubrication - Pump And Oil Filters	6
47	`001` Crankcase	5
50	`010` Throttle Control	4
50	`016` Clutch And Controls	10
52	`107` Rear Bonnet	2
55	`014A` Cooling System (From Car No. 17847)	2
60	`016` Clutch And Controls	2
64	`016` Clutch And Controls	2

Ferrari 365 GTB4 (Daytona)3 positions

Item No.	Diagram (page)	Qty
4	`224A` Door Handle & Lock	1
11	`224A` Door Handle & Lock	1
13	`225A` Front Lamp Motor	1

Ferrari 365 GTC45 positions

Item No.	Diagram (page)	Qty
26	`050` USA Diverter Valves - Air Pollution System Oct 1972	1
47	`044A` Air Con System - Revision Oct 1972	2
55	`016` Water & Oil Pump	1
55	`016A` Water & Oil Pump - Revision Oct 1972	1
72	`016A` Water & Oil Pump - Revision Oct 1972	1

Ferrari 400 GT / 400 Auto14 positions

Item No.	Diagram (page)	Qty
8	`020` Engine Flywheel And Clutch Housing Spacer (400 Automatic)	6
13	`051` Supplementary Air Conditiong System	4
14	`019` Cooling System	4
14	`041` Steering Controls	2
14	`053` Throttle Control (Variants For RHD Version)	1
25	`021` Automatic Transmission (400 Automatic)	1
27	`039` Hydraulic Steering System	1
28	`054` Clutch Release Control (400 Gt - Variants For RHD Version)	1
38	`049` Current Generator And Starting Motor	1
40	`021` Automatic Transmission (400 Automatic)	2
41	`002` Oil Sump	2
44	`021` Automatic Transmission (400 Automatic)	4
47	`050` Air Conditioning System	2
55	`018` Water Pump And Engine Oil	1

Ferrari 400i14 positions

Item No.	Diagram (page)	Qty
6	`018` Cooling System	4
8	`019` Engine Flywheel And Clutch Housing Spacer (400 Automatic)	6
13	`018` Cooling System	1
13	`055` Supplementary Air Conditioning System	4
14	`013` Throttles Controls (For RHD)	1
14	`044` Steering Control	2
27	`020` Automatic Transmission (400 Automatic)	2
27	`041` Hydraulic Steering System	1
28	`025` Clutch Release Control (400 Gt - For RHD)	1
31	`020` Automatic Transmission (400 Automatic)	4
41	`053` Current Generators And Starting Motor	1
46	`002` Oil Sump	2
55	`017` Water Pump And Engine Oil Pump	1
61	`018` Cooling System	1

Ferrari 41212 positions

Item No.	Diagram (page)	Qty
6	`051` Rear Suspension - Brake Disc	12
8	`020` Engine Flywheel And Clutch Housing Spacer - 4	6
14	`014` Throttle Controls (For RHD)	1
14	`046` Steering Column	2
27	`021` Automatic Transmission - 412A	2
27	`043` Hydraulic Steering System	1
28	`026` Clutch Release Control - 412M RHD	1
31	`021` Automatic Transmission - 412A	4
44	`018` Water Pump And Engine Oil	2
46	`002` Oil Sump	2
55	`018` Water Pump And Engine Oil	1
61	`019` Cooling System	3

Ferrari 430 Scuderia6 positions

Item No.	Diagram (page)	Qty
—	`004` Left Hand Cylinder Head	2
—	`020` Racing Exhaust System	4
—	`029` Hydraulic F1 Gearbox And Clutch Control	2
—	`038` Brake System -Not Applicable For Gd-	2
—	`039` Brake System -Applicable For Gd-	2
—	`142` Windscreen Wiper, Windscreen Washer And Horns	3

Ferrari 430 Scuderia Spider 16M6 positions

Item No.	Diagram (page)	Qty
—	`004` Left Hand Cylinder Head	2
—	`020` Racing Exhaust System	4
—	`029` Hydraulic F1 Gearbox And Clutch Control	2
—	`038` Brake System -Not Applicable For Gd-	2
—	`039` Brake System -Applicable For Gd-	2
—	`142` Windscreen Wiper, Windscreen Washer And Horns	3

Ferrari 456 GT/GTA9 positions

Item No.	Diagram (page)	Qty
—	`027` Clutch Housing -Valid For 456 Gta-	9
—	`028` Gearbox -Not For 456 Gta-	13
—	`030` Different. Carrier And Gearbox Cooling Radiator -Not For 456 Gta-	14
—	`046` Control Unit And Hydraulic Equipment For Abs System	3
—	`107` Rear Bumper And Movable Spoiler -Valid For 456 Gta-	1
—	`128` Lights Lifting Device And Headlights	2
48	`026` Clutch - Controls -Not For 456 Gta-	9
50	`106` Rear Bumper And Movable Spoiler -Not For 456 Gta-	4
52	`133` Windshield Wiper, Washer And Horns	2

Ferrari 456 MGT/MGTA 6 positions

Item No.	Diagram (page)	Qty
—	`029` Clutch - Controls -Not For 456M Gta-	5
—	`030` Clutch Housing -Valid For 456M Gta-	9
—	`031` Gearbox -Not For 456M Gta-	2
—	`032` Complete Gearbox -Valid For 456M Gta-	1
—	`033` Differential Carrier And Gearbox Cooling Radiator -Not For 456M Gta-	13
—	`132` Windshield Wiper, Washer And Horns	2

Ferrari 512 BB (Carburetor)27 positions

Item No.	Diagram (page)	Qty
3	`107` Rear Bonnet	4
6	`011` Exhaust System	16
7	`119` Windshield Wipers, Washer And Horns	2
12	`119` Windshield Wipers, Washer And Horns	2
13	`010` Throttle Control	6
13	`106` Front Compartment Lid	6
15	`107` Rear Bonnet	1
18	`003` Cylinder Head (Right)	12
18	`004` Cylinder Head (Left)	12
18	`004A` Cylinder Head (Left) (1978 Revision)	12
19	`107` Rear Bonnet	2
20	`010` Throttle Control	1
21	`008` Air Intakes, Filters And Manifolds	24
25	`008` Air Intakes, Filters And Manifolds	24
32	`014` Cooling System	4
32	`014A` Cooling System (1978 Revision)	4
34	`004` Cylinder Head (Left)	2
34	`004A` Cylinder Head (Left) (1978 Revision)	2
37	`008` Air Intakes, Filters And Manifolds	2
37	`012` Lubrication - Blow-By And Oil Reservoir	2
38	`037` Alternator, Starter And Battery	1
43	`012` Lubrication - Blow-By And Oil Reservoir	2
47	`001` Crankcase	5
50	`010` Throttle Control	4
52	`107` Rear Bonnet	2
55	`014` Cooling System	2
55	`014A` Cooling System (1978 Revision)	3

Ferrari 512 BBi12 positions

Item No.	Diagram (page)	Qty
6	`010` Exhaust System	16
11	`009` Throttle Control	1
13	`105` Front Compartment Lid	6
15	`009` Throttle Control	1
15	`106` Rear Bonnet	8
18	`003` Cylinder Head (Right)	12
18	`004` Cylinder Head (Left)	12
34	`004` Cylinder Head (Left)	2
36	`036` Alternator, Starter And Battery	1
37	`011` Lubrication - Blow-By And Oil Reservoir	2
43	`011` Lubrication - Blow-By And Oil Reservoir	2
47	`001` Crankcase	5

Ferrari 512 M11 positions

Item No.	Diagram (page)	Qty
3	`003` Right Cylinder Head	10
3	`004` Left Cylinder Head	10
7	`022` Lubrication - Pumps And Oil Filter	3
9	`016` Throttle Control - Lhd	2
11	`016` Throttle Control - Lhd	1
14	`017` Throttle Control -RHD	1
16	`011` Air Injection - Ignition	6
45	`031` Gearbox	1
47	`001` Crankcase	5
49	`044` Steering Column	2
51	`034` Gearbox Controls	2

Ferrari 512 TR11 positions

Item No.	Diagram (page)	Qty
3	`003` Right Cylinder Head	10
3	`004` Left Cylinder Head	10
7	`022` Lubrication - Pumps And Oil Filter	3
9	`016` Throttle Control -Not For Gd-	2
11	`016` Throttle Control -Not For Gd-	1
14	`017` Throttle Control -Valid For Gd-	1
16	`011` Air Injection - Ignition	6
45	`031` Gearbox	1
47	`001` Crankcase	5
49	`045` Steering Column	2
51	`034` Gearbox Controls	2

Ferrari 550 Barchetta3 positions

Item No.	Diagram (page)	Qty
—	`028` Clutch - Controls	5
—	`029` Gearbox	13
—	`030` Differential Carrier And Clutch Cooling Radiator	14

Ferrari 550 Maranello3 positions

Item No.	Diagram (page)	Qty
—	`029` Clutch - Controls	5
—	`030` Gearbox	13
—	`031` Differential Carrier And Clutch Cooling Radiator	14

Ferrari 575 SuperAmerica6 positions

Item No.	Diagram (page)	Qty
—	`028` Clutch And Controls -Not For F1-	5
—	`029` Clutch And Controls -Valid For F1-	5
—	`030` Gearbox	10
—	`031` Differential Carrier And Clutch Cooling Radiator	14
—	`044` Brake System -Not For Gd-	2
—	`045` Brake System -Valid For Gd-	2

Ferrari 575M Maranello6 positions

Item No.	Diagram (page)	Qty
—	`028` Clutch And Controls -Not For F1-	5
—	`029` Clutch And Controls -Valid For F1-	5
—	`030` Gearbox	10
—	`031` Differential Carrier And Clutch Cooling Radiator	14
—	`044` Brake System -Not For Gd-	2
—	`045` Brake System -Valid For Gd-	2

Ferrari 599 GTB Fiorano6 positions

Item No.	Diagram (page)	Qty
7	`025` Gearbox Housing	13
9	`025` Gearbox Housing	13
19	`037` F1 Clutch Hydraulic Control -Applicable For F1-	2
24	`025` Gearbox Housing	6
33	`026` Differential Case And Gearbox Cooling Radiator	13
42	`026` Differential Case And Gearbox Cooling Radiator	14

Ferrari 599 GTO6 positions

Item No.	Diagram (page)	Qty
7	`024` Gearbox Housing	13
9	`024` Gearbox Housing	13
19	`034` F1 Clutch Hydraulic Control	2
24	`024` Gearbox Housing	6
33	`025` Differential Case And Gearbox Cooling Radiator	13
42	`025` Differential Case And Gearbox Cooling Radiator	14

Ferrari 599 SA Aperta4 positions

Item No.	Diagram (page)	Qty
7	`024` Gearbox Housing	13
19	`034` F1 Clutch Hydraulic Control	2
33	`025` Differential Case And Gearbox Cooling Radiator	13
42	`025` Differential Case And Gearbox Cooling Radiator	14

Ferrari 612 Scaglietti11 positions

Item No.	Diagram (page)	Qty
—	`028` Clutch And Controls -Not For F1-	5
—	`029` Clutch And Controls -Applicable For F1-	5
—	`030` Clutch And Controls -Applicable For "Oto"-	5
—	`041` Electronic Accelerator Pedal	1
—	`042` Pedal Board	1
—	`051` Hydraulic Fluid Reservoir For Power Steering System And Coil	2
7	`031` Gearbox Housing	13
9	`031` Gearbox Housing	13
19	`043` F1 Clutch Hydraulic Control -Applicable For F1-	2
33	`032` Differential Case And Gearbox Cooling Radiator	13
42	`032` Differential Case And Gearbox Cooling Radiator	14

Ferrari 612 Sessanta11 positions

Item No.	Diagram (page)	Qty
—	`028` Clutch And Controls -Not For F1-	5
—	`029` Clutch And Controls -Applicable For F1-	5
—	`030` Clutch And Controls -Applicable For "Oto"-	5
—	`041` Electronic Accelerator Pedal	1
—	`042` Pedal Board	1
—	`051` Hydraulic Fluid Reservoir For Power Steering System And Coil	2
7	`031` Gearbox Housing	13
9	`031` Gearbox Housing	13
19	`043` F1 Clutch Hydraulic Control -Applicable For F1-	2
33	`032` Differential Case And Gearbox Cooling Radiator	13
42	`032` Differential Case And Gearbox Cooling Radiator	14

Ferrari California4 positions

Item No.	Diagram (page)	Qty
—	`015` Pre-Catalytic Converters And Catalytic Converters	2
—	`016` Silencers	4
—	`035` COMPLETE PEDAL BOARD ASSEMBLY -Applicable for DCT gearbox-	1
—	`036` COMPLETE PEDAL BOARD ASSEMBLY -Not for DCT gearbox-	1

Ferrari Enzo7 positions

Item No.	Diagram (page)	Qty
—	`003` R.H. Cylinder Head	2
—	`004` L.H. Cylinder Head	2
—	`020` Cooling System Radiators	4
—	`022` F1 Clutch Hydraulic Control	2
—	`025` Gearbox - Rear Part Gearboxes Housing And Cover	13
—	`026` Main Shaft Gears	1
—	`033` Brake System	2

Ferrari F355 B/GTS/Spider Mo. 2.78 positions

Item No.	Diagram (page)	Qty
—	`027` Gearbox - Differential Housing And Intermediate Casing	1
—	`049` Air Conditioning Compressor	2
19	`028` Gearbox Covers And Lubrication	12
24	`024` Clutch And Controls	4
38	`028` Gearbox Covers And Lubrication	7
41	`024` Clutch And Controls	4
44	`024` Clutch And Controls	8
47	`028` Gearbox Covers And Lubrication	10

Ferrari F355 B/GTS/Spider Mo. 5.2 / ABS Bosch F13 positions

Item No.	Diagram (page)	Qty
—	`031` Gearbox Covers And Lubrication	10
10	`023` Clutch	8
17	`023` Clutch	4

Ferrari F4023 positions

Item No.	Diagram (page)	Qty
1	`014` Accelerator Control	1
4	`021` Exhaust System -Not For Cars With Catalyst-	4
4	`022` Exhaust System -Valid For Cars With Catalyst-	4
4	`031` Differential Gearbox	6
6	`025` Lubrication - Pumps	2
7	`030` Gearbox Transmission	6
9	`102` Frame - Rear Part -Not For Cars With Catalyst-	8
9	`103` Frame - Rear Part -Valid For Cars With Catalyst-	8
13	`030` Gearbox Transmission	4
14	`001` Engine Block	12
17	`029` Clutch And Control	12
17	`033` Gearbox	14
18	`004` L.H. Cylinder Head	10
20	`003` R.H. Cylinder Head	10
26	`123` Windshield Wiper And Horns	2
27	`031` Differential Gearbox	12
28	`047` Rear Suspension - Shock Absorber And Brake Disc	12
34	`027` Water Pump And Pipings	4
35	`033` Gearbox	4
46	`029` Clutch And Control	4
52	`001` Engine Block	5
61	`001` Engine Block	2
63	`025` Lubrication - Pumps	1

Ferrari F430 Challenge5 positions

Item No.	Diagram (page)	Qty
—	`004` L.H. Cylinder Head	2
—	`015` Racing Exhaust System	4
—	`023` Clutch And Gearbox Hydraulic Control	2
—	`032` Brake System	4
—	`123` Windshield And Glass Washer	3

Ferrari F430 Coupe6 positions

Item No.	Diagram (page)	Qty
—	`004` Left Hand Cylinder Head	2
—	`017` Racing Exhaust System	4
—	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	2
—	`037` Brake System -Not Applicable For Gd-	1
—	`038` Brake System -Applicable For Gd-	2
—	`133` Windscreen Wiper, Windscreen Washer And Horns	3

Ferrari F430 Spider6 positions

Item No.	Diagram (page)	Qty
—	`004` Left Hand Cylinder Head	2
—	`017` Racing Exhaust System	4
—	`027` F1 Gearbox And Clutch Hydraulic Control -Applicable For F1-	2
—	`037` Brake System -Not Applicable For Gd-	1
—	`038` Brake System -Applicable For Gd-	2
—	`142` Windscreen Wiper, Windscreen Washer And Horns	3

Ferrari F504 positions

Item No.	Diagram (page)	Qty
—	`034` Differential And Axle Shaft	11
—	`108` Rear Hood And Opening Control	2
1	`029` Rear Part Gearboxes Housing - Covers And Lubrication	11
20	`027` Clutch Controls	4

Ferrari F801 position

Item No.	Diagram (page)	Qty
—	`0174` [VEHICLE TRIM] - E.55 - WIPERS AND HEADLAMP WASHERS	1

Ferrari Mondial 819 positions

Item No.	Diagram (page)	Qty
3	`020` Gearbox Transmission	10
5	`039` Electric Generating System	1
11	`012` Throttle Housing And Linkage	2
14	`002` Crankcase	9
15	`012` Throttle Housing And Linkage	1
17	`004` Flywheel And Clutch Housing Spacer	2
21	`013` Exhaust System	2
21	`021` Gearbox - Differential Housing And Oil Sump	12
22	`001` Engine - Gearbox And Supports	8
22	`117` Windshield Wiper, Washer And Horn	1
24	`021` Gearbox - Differential Housing And Oil Sump	4
25	`006` Cylinder Head (Left)	9
30	`005` Cylinder Head (Right)	9
31	`030` Hand-Brake Control	2
41	`021` Gearbox - Differential Housing And Oil Sump	5
42	`032` Steering Column	2
47	`021` Gearbox - Differential Housing And Oil Sump	1
52	`002` Crankcase	6
54	`043` Throttle Control And Brake Hydraulic System (Variants For RHD Version)	1

Ferrari Mondial 8 USA16 positions

Item No.	Diagram (page)	Qty
3	`023` Gearbox Transmission	10
5	`042` Electric Generating System	1
11	`014` Throttle Housing and Linkage	2
14	`002` Crankcase	9
15	`014` Throttle Housing and Linkage	1
17	`004` Flywheel and Clutch Housing Spacer	2
21	`024` Gearbox - Differential Housing and Oil Sump	12
22	`001` Engine - Gearbox and Supports	8
22	`117` Windshield Wiper Washer and Horn	1
24	`024` Gearbox - Differential Housing and Oil Sump	4
25	`006` Cylinder Head (Left)	9
30	`005` Cylinder Head (Right)	9
41	`024` Gearbox - Differential Housing and Oil Sump	5
42	`035` Steering Column	2
47	`024` Gearbox - Differential Housing and Oil Sump	1
