Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Air Filter And Manifolds (diagram 008)

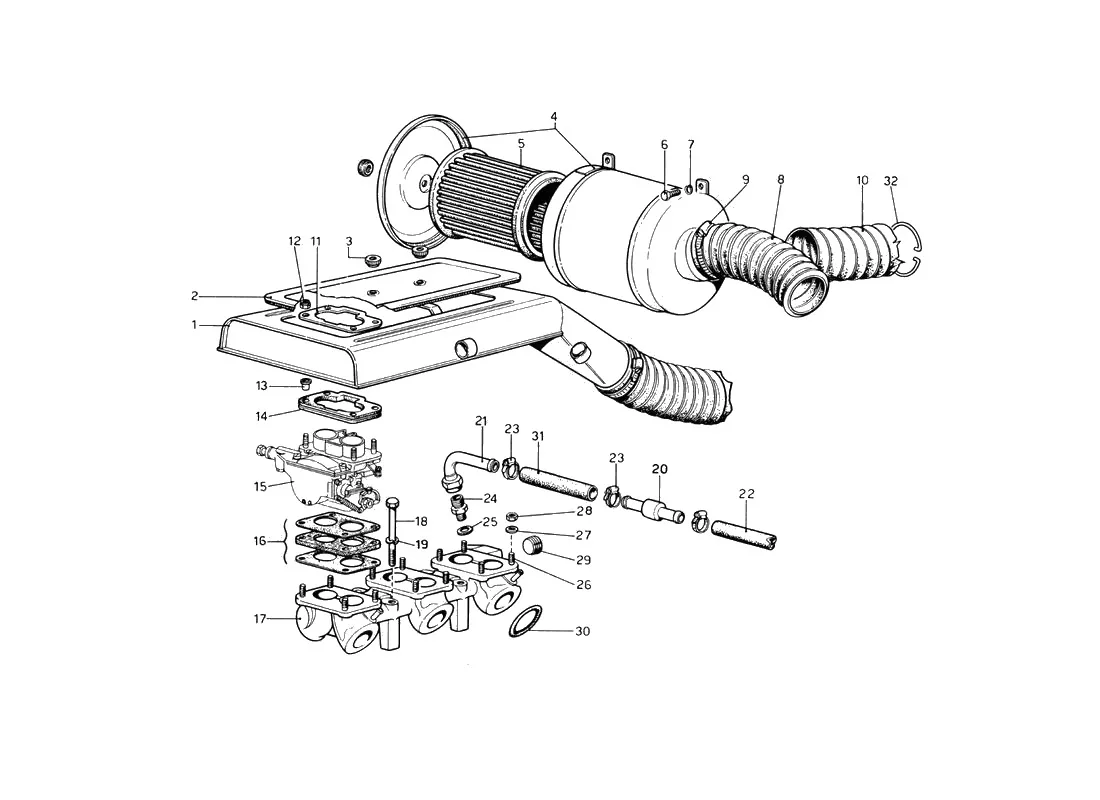

Exploded view of the air filter and manifolds on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/008.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 9181748 | Ferrari Filter Box - 9181748 | Price on request | Contact us for price and availability |
| 2 | 9181113 | Ferrari Cover 246Gt - 9181113 | Price on request | Contact us for price and availability |
| 3 | 95180135 | Ferrari Air Filter Housing Nut - 95180135 | $38.22 | Available, ships in 3-6 days |
| 4 | 9181525 | Ferrari Air Filter Housing - 9181525 | $811.76 | Available, ships in 3-6 days |
| 5 | 9181839 | Ferrari 206/246 Air Filter - 9181839 | $54.95 | In stock |
| 6 | 16043121 | Ferrari Bolt 8X15 Uni 188 - 16043121 | Superseded | Order 16043124 instead |
| 7 | 12541870 | Ferrari Washer - 12541870 | Price on request | Contact us for price and availability |
| 8 | 107533 | Ferrari Lower Oil Cooler Air Hose-107533 | $86.90 | In stock |
| 9 | 95901008 | Ferrari Clip - 95901008 | Price on request | Contact us for price and availability |
| 10 | 9181752 | Ferrari Tube - 9181752 | Price on request | Contact us for price and availability |
| 10 | 9181751 | Ferrari Tube - 9181751 | Price on request | Contact us for price and availability |
| 11 | 9182021 | Ferrari Plate - 9182021 | $30.07 | Available, ships in 3-6 days |
| 11 | 4177743 | Ferrari Plate - 4177743 | Price on request | Contact us for price and availability |
| 12 | 169180 | Ferrari Nyloc Nut M5 x 6.3 - 169180 | $0.31 | Available, ships in 3-6 days |
| 12 | 12574111 | Ferrari Nyloc Nut - 12574111 | Superseded | Order 169180 instead |
| 13 | 103925 | Ferrari Air Cleaner Spacer - 103925 | $18.25 | In stock |
| 13 | 4153761 | Ferrari Distance Piece - 4153761 | Superseded | Order 103925 instead |
| 14 | 103923 | Ferrari 308 Rubber Carburetor Gasket - 103923 | $27.78 | In stock |
| 14 | 9182020 | Ferrari Gasket - 9182020 | Superseded | Order 103923 instead |
| 14 | 4177742 | Ferrari Gasket - 4177742 | $70.59 | Available, ships in 3-6 days |
| 15 | 9181842 | Ferrari Carburetor WEBER 40DCNF20 - 9181842 | Price on request | Contact us for price and availability |
| 15 | 9181840 | Ferrari Carburetor 40DCNF13 - 9181840 | Price on request | Contact us for price and availability |
| 16 | 103786 | Ferrari Carburetor Insulator Base Gasket / Spacer - 103786 | $52.80 | In stock |
| 16 | 4185358 | Ferrari Spacer - 4185358 | Superseded | Order 103786 instead |
| 17 | 9181792 | Ferrari Manifold - 9181792 | Price on request | Contact us for price and availability |
| 18 | 16045221 | Ferrari Bolt - 16045221 | $3.62 | Available, ships in 3-6 days |
| 19 | 11198017 | Ferrari Washer - 11198017 | $5.48 | Available, ships in 3-6 days |
| 20 | 128435A | Ferrari Brake Booster Check Valve - 128435A | $48.80 | In stock |
| 20 | 101538 | Ferrari Servo Valve - 101538 | Superseded | Order 128435 instead |
| 21 | 9180845 | Ferrari Tube only - 9180845 | $139.01 | Available, ships in 3-6 days |
| 21 | 9180845/A | Ferrari Tube only - 9180845/A | $156.51 | Available, ships in 3-6 days |
| 22 | 104464 | Ferrari Hose Not Servo Hose - 104464 | Price on request | Contact us for price and availability |
| 23 | 100507 | Ferrari Jubilee Clip - 100507 | Superseded | Order 13000390 instead |
| 23 | 13000390 | Ferrari Screw Collar 16-25mm - 13000390 | Superseded | Order 178052 instead |
| 24 | 95331 | Ferrari Union - 95331 | Price on request | Contact us for price and availability |
| 25 | 10280060 | Ferrari/Maserati Copper Washer - 10280060 | $1.93 | In stock |
| 25 | 103403 | Ferrari Gasket - 103403 | Superseded | Order 10280060 instead |
| 26 | 13517121 | Ferrari Threaded Stud 8x12 Stem 28mm - 13517121 | Superseded | Order 13517124 instead |
| 27 | 11198077 | Ferrari Washer - 11198077 | Price on request | Special order, ships in 7-14 days |
| 28 | 16100824 | Ferrari/Maserati Nut - 16100824 | $0.30 | In stock |
| 28 | 16100811 | Ferrari Nut 8x6.5mm - 16100811 | Superseded | Order 16100824 instead |
| 29 | 10269950 | Ferrari Plug - 10269950 | $17.42 | Available, ships in 3-6 days |
| 30 | 100049 | Ferrari O-Ring - 100049 | $4.98 | In stock |
| 30 | 4159110 | Ferrari Ring - 4159110 | Superseded | Order 100049 instead |
| 31 | 680910 | Ferrari Pipe - 680910 | Price on request | Contact us for price and availability |
| 32 | 9181786 | Ferrari Clip - Air Intake Hose - 9181786 | $9.99 | Available, ships in 3-6 days |
| 32 | 9181786/A | Ferrari Clip - Air Intake Hose - 9181786/A | $9.93 | Available, ships in 3-6 days |
| 16046131 | Ferrari Bolt - 16046131 | Price on request | Contact us for price and availability | |
| 12179590 | Ferrari Hose Clip 16-25 - 12179590 | Superseded | Order 13000390 instead | |
| 16100812 | Ferrari Nut - 16100812 | Superseded | Order 16100824 instead | |
| 16100814 | Ferrari Nut - 16100814 | Superseded | Order 16100824 instead | |
| 12574121 | Ferrari Nyloc Nut White - 12574121 | Superseded | Order 169180 instead | |
| 95124 | Ferrari Plug - 95124 | Price on request | Contact us for price and availability | |
| 16043124 | Ferrari Screw M8 x 14 - 16043124 | $0.33 | Special order, ships in 7-14 days | |
| 107981 | Ferrari Servo Hose - 107981 | Price on request | Contact us for price and availability | |
| 107982 | Ferrari Servo Hose - 107982 | Price on request | Contact us for price and availability | |
| 680956 | Ferrari Servo Valve - 680956 | Superseded | Order 128435 instead | |
| 100501 | Ferrari Washer - 100501 | Superseded | Order 10280060 instead | |
| 100511 | Ferrari Washer - 100511 | Superseded | Order 10280060 instead | |
| 95108 | Ferrari Washer - 95108 | Superseded | Order 10280060 instead |
