Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Blow - By System (diagram 011)

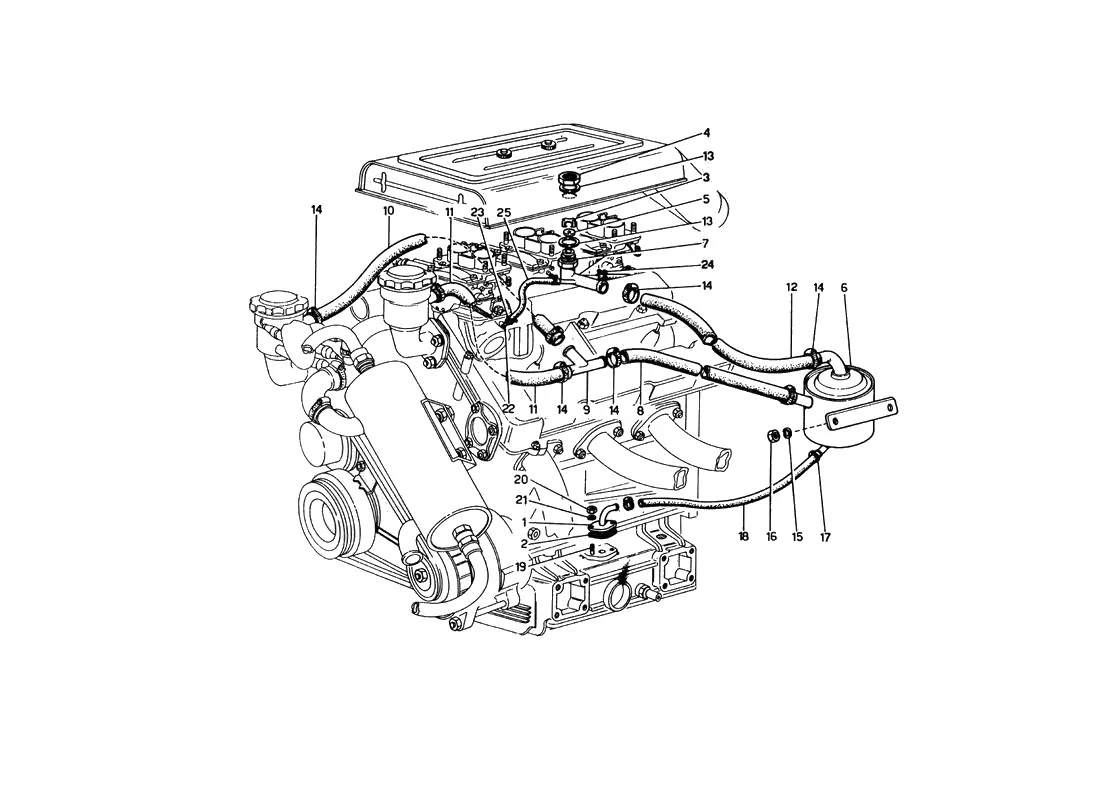

Exploded view of the blow - by system on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
/011.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 104210 | Ferrari Oil Pipe Pick Up - 104210 | $144.52 | Available, ships in 3-6 days |
| 2 | 104211 | Ferrari 246/308 GT 4 Gasket - 104211 | $1.10 | In stock |
| 3 | 106755 | Ferrari Breather Valve Cage - 106755 | Price on request | Special order, ships in 7-14 days |
| 4 | 21064 | Ferrari Nut - 21064 | Price on request | Contact us for price and availability |
| 5 | 21080 | Ferrari Disc Valve - 21080 | Price on request | Contact us for price and availability |
| 5 | 210162 | Ferrari Disc Valve - 210162 | Price on request | Contact us for price and availability |
| 6 | 210154 | Ferrari Oil Vapour Tank - 210154 | $835.23 | Available, ships in 3-6 days |
| 6 | 210154/U | Ferrari Oil Vapour Tank - 210154/U | $1,222.53 | Available, ships in 3-6 days |
| 7 | 21110 | Ferrari Valve Pipe- Crank Case Ventilation - 21110 | Price on request | Contact us for price and availability |
| 8 | 210159 | Ferrari Hose - 210159 | Price on request | Special order, ships in 7-14 days |
| 9 | 107394 | Ferrari T Piece Union - 107394 | $74.25 | Special order, ships in 7-14 days |
| 10 | 9210157 | Ferrari Oil Breather Pipe - 9210157 | Price on request | Contact us for price and availability |
| 11 | 210158 | Ferrari Pipe - 210158 | Price on request | Contact us for price and availability |
| 12 | 95389 | Ferrari Hose - 95389 | Price on request | Contact us for price and availability |
| 13 | 10261860 | Ferrari Copper Washer - 10261860 | $1.42 | In stock |
| 13 | 95248 | Ferrari Washer - 95248 | $0.79 | Available, ships in 3-6 days |
| 14 | 104022 | Ferrari Jubilee Clip - 104022 | Superseded | Order 13000390 instead |
| 14 | 13000390 | Ferrari Screw Collar 16-25mm - 13000390 | Superseded | Order 178052 instead |
| 15 | 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead |
| 15 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 16 | 16100824 | Ferrari/Maserati Nut - 16100824 | $0.30 | In stock |
| 16 | 16100811 | Ferrari Nut 8x6.5mm - 16100811 | Superseded | Order 16100824 instead |
| 17 | 12179390 | Ferrari Clip - 12179390 | Price on request | Contact us for price and availability |
| 18 | 210168 | Ferrari Tube - 210168 | Price on request | Contact us for price and availability |
| 19 | 11500120 | Ferrari Stud - 11500120 | Superseded | Order 11500124 instead |
| 20 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 21 | 127494 | Ferrari Lock Washer - 127494 | $0.50 | In stock |
| 21 | 10516470 | Ferrari Washer 6 R 4 - 10516470 | Superseded | Order 127494 instead |
| 22 | 4159621 | Ferrari Pipe Union - 4159621 | $5.62 | Available, ships in 3-6 days |
| 23 | 10170920 | Ferrari Hose Clip - 10170920 | Price on request | Contact us for price and availability |
| 25 | 210169 | Ferrari Tube - 210169 | Price on request | Contact us for price and availability |
| 21062 | Ferrari Circlip - 21062 | Price on request | Contact us for price and availability | |
| 12179990 | Ferrari Jubilee Clip 20-32mm - 12179990 | Superseded | Order 13000390 instead | |
| 16100812 | Ferrari Nut - 16100812 | Superseded | Order 16100824 instead | |
| 16100814 | Ferrari Nut - 16100814 | Superseded | Order 16100824 instead | |
| 106850 | Ferrari Spring Washer 6mm - 106850 | Superseded | Order 127494 instead | |
| 11500124 | Ferrari Stud - 11500124 | $6.61 | Available, ships in 3-6 days | |
| 13540820 | Ferrari Stud - 13540820 | Superseded | Order 11500124 instead | |
| 11500121 | Ferrari Threaded Stud - 11500121 | Superseded | Order 11500124 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead |
