Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Steering Control (diagram 029)

Exploded view of the steering control on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 120 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

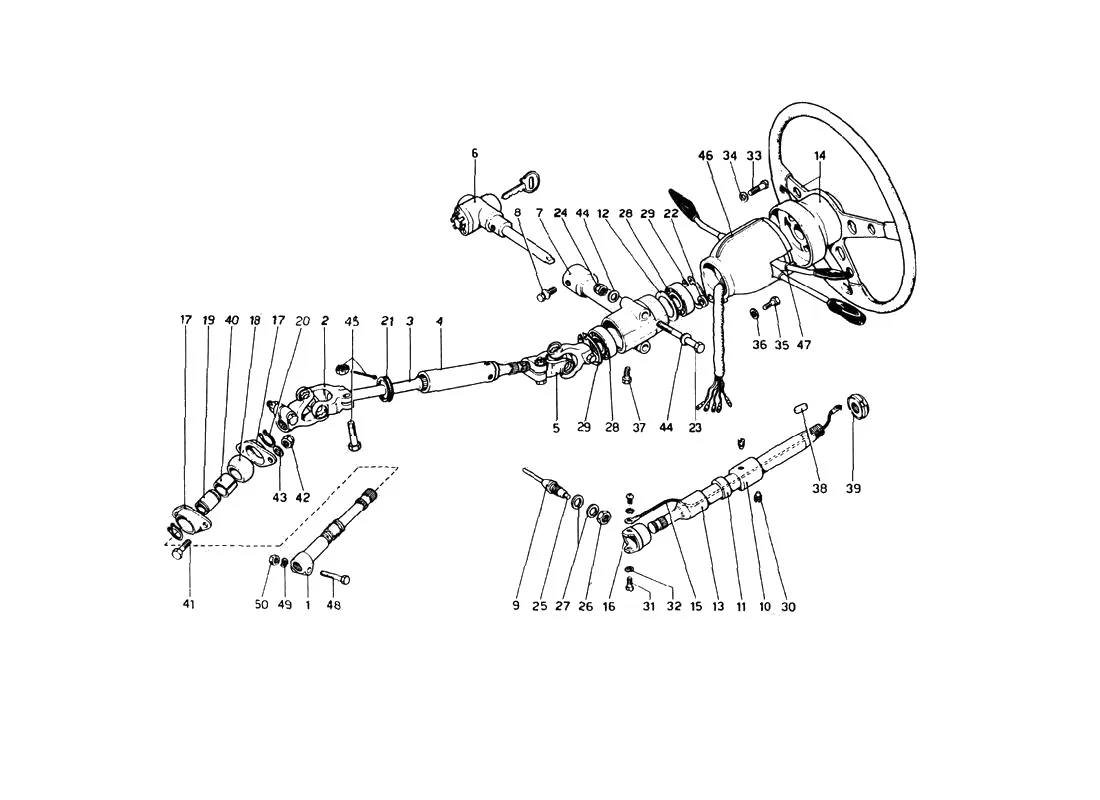

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Steering Control exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1740424Ferrari Steering Column Extension - 740424Price on requestContact us for price and availability
2740534Ferrari Steering Joint - 740534Price on requestContact us for price and availability
3740538Ferrari Shaft - 740538SupersededOrder 103274 instead
3103274Ferrari Shaft - 103274$278.43Available, ships in 3-6 days
3740425Ferrari Shaft - 740425$358.90Available, ships in 3-6 days
4740537Ferrari Shaft Sleeve - 740537$1,387.05Available, ships in 3-6 days
4740467Ferrari Shaft Sleeve - 740467$539.92Special order, ships in 7-14 days
5740434Ferrari Steering Joint - 740434Price on requestContact us for price and availability
6740194Ferrari Anti-Theft Lock - 740194SupersededOrder 168785 instead
6740636Ferrari Anti-Theft Lock - 740636SupersededOrder 168785 instead
7101083Ferrari Support - 101083$292.58Special order, ships in 7-14 days
7740639Ferrari Support - 740639Price on requestContact us for price and availability
8101082Ferrari Shear Bolt - 101082$16.79Available, ships in 3-6 days
8255-88-254-00Ferrari Sheer Screw (Steering Lock) - 255-88-254-00$16.47Available, ships in 3-6 days
9101068Ferrari Guide - Horn Contact - 101068$325.17Available, ships in 3-6 days
9740531Ferrari Bolt - 740531Price on requestContact us for price and availability
10101111Ferrari Sleeve - 101111Price on requestContact us for price and availability
11103281Ferrari Distance Spacer Piece - 103281$28.79Available, ships in 3-6 days
12740333Ferrari Washer - 740333SupersededOrder 101101 instead
12101101Ferrari Washer 0.5mm - 101101$27.96Available, ships in 3-6 days
13740447Ferrari Steering Column - 740447$525.28Special order, ships in 7-14 days
13740539Ferrari Steering Column - 740539SupersededOrder 103278 instead
13103278Ferrari Steering Column - 103278$428.70Available, ships in 3-6 days
14740451Ferrari Steering Wheel - 740451$2,202.29Available, ships in 3-6 days
14740654Ferrari Steering Wheel - 740654Price on requestContact us for price and availability
14740453Ferrari Steering Wheel - 740453Price on requestContact us for price and availability
14740591Ferrari Steering Wheel Hub - 740591Price on requestContact us for price and availability
14740477Ferrari Steering Wheel - 740477Price on requestContact us for price and availability
14740592Ferrari Steering Wheel - 740592Price on requestContact us for price and availability
14102336Ferrari Steering Wheel Hub - 102336$229.46Available, ships in 3-6 days
14740451/AFerrari Steering Wheel - 740451/APrice on requestSpecial order, ships in 7-14 days
15740452Ferrari Cable - 740452$4.91Available, ships in 3-6 days
16103283Ferrari Horn Ring Contact - 103283$326.27Available, ships in 3-6 days
17103292Ferrari Steering Joint Lower Flange - 103292$23.94Special order, ships in 7-14 days
17740423Ferrari Flange Assy - 740423Price on requestContact us for price and availability
18103297Ferrari Bush - Steering Rack - 103297$49.25Available, ships in 3-6 days
19106353Ferrari Bush - 106353$15.56Available, ships in 3-6 days
19740430Ferrari Bush - 740430Price on requestContact us for price and availability
2011067076Ferrari Snap Ring - 11067076$1.54Available, ships in 3-6 days
21103293Ferrari Steering Column Grommet - 103293$70.42Available, ships in 3-6 days
22103299Ferrari Spacer - 103299Price on requestContact us for price and availability
23103576Ferrari Bolt - 103576$32.79Special order, ships in 7-14 days
2316044821Ferrari Bolt 80mm - 16044821$0.90Available, ships in 3-6 days
24104030Ferrari/Maserati Nut - 104030$0.88In stock
2416104121Ferrari Nyloc Nut - 16104121SupersededOrder 104030 instead
2416104421Ferrari Nut GTB - 16104421SupersededOrder 101139 instead
24101139Ferrari Nyloc Nut 8x1.25mm - 101139$0.60Available, ships in 3-6 days
25101074Ferrari Carbon Brush - 101074$47.61Available, ships in 3-6 days
26101077Ferrari Nut - 101077Price on requestContact us for price and availability
27101078Ferrari Washer - 101078SupersededOrder 94385 instead
2794385Ferrari Washer - 94385$3.28Available, ships in 3-6 days
28101104Ferrari Steering Column Bearing - 101104$11.94In stock
2911060576Ferrari Snap Ring - 11060576$2.70Available, ships in 3-6 days
30740614Ferrari Grub Screw - 740614Price on requestContact us for price and availability
3110374911Ferrari Screw - 10374911$0.52Available, ships in 3-6 days
3211195370Ferrari Spring Washer 4mm - 11195370$0.71Available, ships in 3-6 days
3310388811Ferrari Flat Head Screw - 10388811Price on requestContact us for price and availability
3310389901Ferrari Flat Head Screw - 10389901Price on requestContact us for price and availability
3412541671Ferrari Washer - 12541671Price on requestContact us for price and availability
3510902324Ferrari Screw M6 x 18 - 10902324$0.27Available, ships in 3-6 days
3510902321Ferrari Bolt - 10902321SupersededOrder 10902324 instead
3612601279Ferrari Wavy Washer 6mm - 12601279$0.19Available, ships in 3-6 days
3612601278Ferrari Washer - 12601278$0.19Available, ships in 3-6 days
3710979421Ferrari Bolt - 10979421$1.59Special order, ships in 7-14 days
38101106Ferrari Woodruff Key - 101106$10.45Available, ships in 3-6 days
39101093Ferrari Steering Shaft Lock Nut - 101093$97.54Available, ships in 3-6 days
40103370Ferrari Bush - 103370$15.17Available, ships in 3-6 days
4116043624Ferrari Screw - 16043624$0.85In stock
4116043621Ferrari Screw - 16043621SupersededOrder 16043624 instead
4310519624Ferrari Washer 8.15 - 17 x 2 - 10519624$0.27Available, ships in 3-6 days
4310519601Ferrari Washer 8.15-17 X 2 - 10519601SupersededOrder 10519624 instead
45105032Ferrari Steering Column U/J Nut & Bolt with Split Pin - 105032$99.47Available, ships in 3-6 days
45740584Ferrari Steering U/J Nut/Bolt - 740584SupersededOrder 105032 instead
46400401Ferrari Casing - 400401Price on requestContact us for price and availability
46740529Ferrari Steering Column Cowling - 740529Price on requestContact us for price and availability
46103284Ferrari Cowl - 103284Price on requestContact us for price and availability
46740572Ferrari Tube - 740572Price on requestContact us for price and availability
47740446Ferrari 246Gt/S Single Speed W/W H/L Switch - 740446Price on requestContact us for price and availability
47401204Ferrari Switch - 401204Price on requestContact us for price and availability
47401170Ferrari Indicator Main Switch - 401170Price on requestContact us for price and availability
47103518Ferrari Main Indicator/Head Lamp Switch - 103518Price on requestContact us for price and availability
47118123/XFerrari Column Switch - 118123/XPrice on requestSpecial order, ships in 7-14 days
48125518Ferrari Steering Shaft Clamp Allen Screw - 125518$3.45Available, ships in 3-6 days
48103371Ferrari Bolt - 103371SupersededOrder 125518 instead
49103372Ferrari Washer - 103372SupersededOrder 12601279 instead
50102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
50103373Ferrari Nut - 103373SupersededOrder 102948 instead
102333Ferrari Anti Theft Lock - 102333SupersededOrder 168785 instead
127298Ferrari Anti-Theft Device - 127298SupersededOrder 168785 instead
106614Ferrari Anti-Theft Lock - 106614SupersededOrder 168785 instead
106664Ferrari Anti-Theft Lock - 106664SupersededOrder 168785 instead
740422Ferrari Anti-Theft Lock - 740422SupersededOrder 168785 instead
168785Ferrari Anti-Theft Lock Assy - 168785$4,350.01Special order, ships in 7-14 days
106526Ferrari Bolt - 106526SupersededOrder 16043624 instead
16043611Ferrari Bolt - 16043611SupersededOrder 16043624 instead
95610Ferrari Bolt - 95610SupersededOrder 103576 instead
95300068Ferrari Carbon Brush - 95300068SupersededOrder 101074 instead
11067075Ferrari Clip - 11067075Price on requestContact us for price and availability
740001Ferrari Guide - 740001Price on requestContact us for price and availability
740554Ferrari Lock Bolt - 740554Price on requestContact us for price and availability
14499370Ferrari Lock Washer - 14499370Price on requestContact us for price and availability
16104125Ferrari Nut - 16104125SupersededOrder 104030 instead
94829Ferrari Nut - 94829Price on requestContact us for price and availability
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
16104425Ferrari Nyloc Nut - 16104425SupersededOrder 101139 instead
740395Ferrari Sealing - 740395SupersededOrder 103293 instead
740291Ferrari Spacer - 740291Price on requestContact us for price and availability
107308Ferrari Steering Column Extension - 107308$1,091.20Special order, ships in 7-14 days
101062Ferrari Steering Column Universal Joint - 101062Price on requestContact us for price and availability
103343Ferrari Steering Column Universal Joint - 103343$1,797.87Available, ships in 3-6 days
740231Ferrari Support - 740231Price on requestContact us for price and availability
401202Ferrari Switch - 401202Price on requestContact us for price and availability
740457Ferrari Switch - 740457Price on requestContact us for price and availability
740197Ferrari Tube - 740197Price on requestContact us for price and availability
115935Ferrari Universal Joint L78mm - 115935Price on requestContact us for price and availability
12541670Ferrari Washer - 12541670Price on requestContact us for price and availability
12639701Ferrari Washer - 12639701Price on requestContact us for price and availability
93798Ferrari Washer - 93798SupersededOrder 10519624 instead
12601271Ferrari Wavy Washer 6mm - 12601271SupersededOrder 12601279 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
