Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Doors (diagram 109)

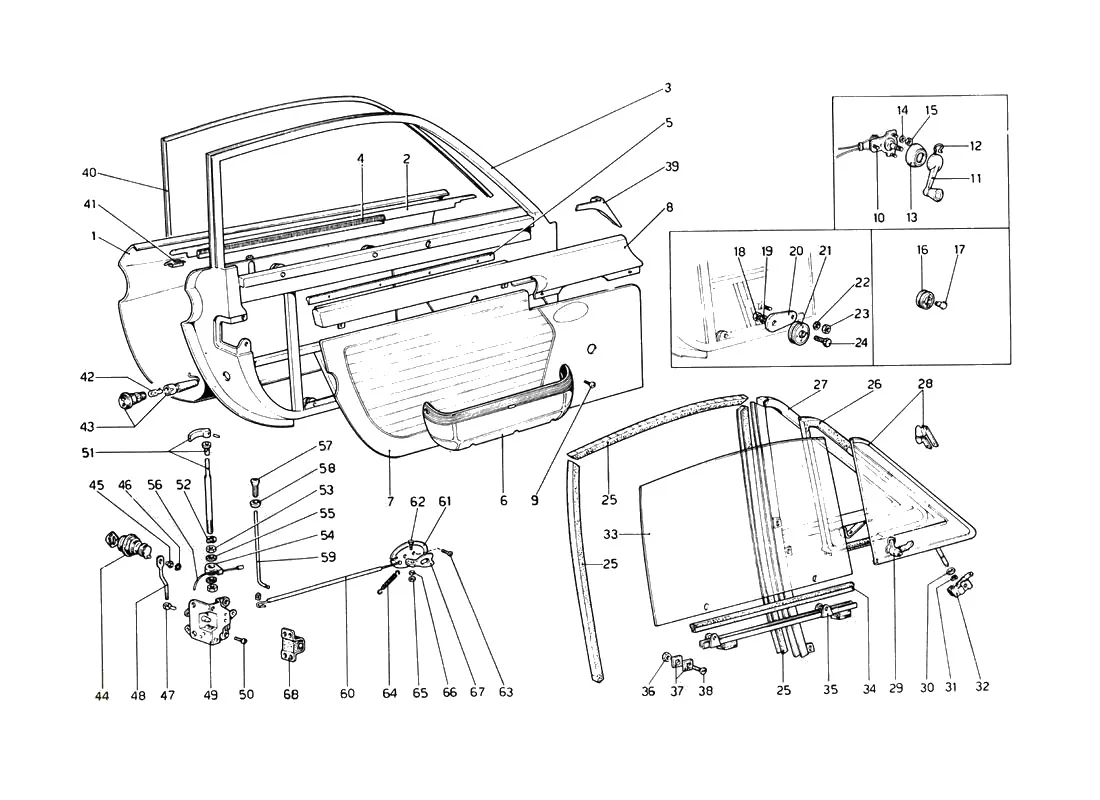

Exploded view of the doors on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 153 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Doors exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
120018404Ferrari RH Door Skin Steel - 20018404$3,559.76Available, ships in 3-6 days
120018503Ferrari LH Door Skin Steel - 20018503$3,559.76Available, ships in 3-6 days
220039202Ferrari RH Door Trim GT - 20039202Price on requestContact us for price and availability
220039301Ferrari LH Door Trim GT - 20039301Price on requestContact us for price and availability
220231304Ferrari RH Door Moulding GTS - 20231304$1,516.43Special order, ships in 7-14 days
220231403Ferrari LH Door Moulding GTS - 20231403$1,516.43Special order, ships in 7-14 days
320111209Ferrari RH Door Frame GT - 20111209Price on requestContact us for price and availability
320111308Ferrari LH Door Frame GT - 20111308Price on requestContact us for price and availability
320282604Ferrari RH Door Frame GTS - 20282604Price on requestContact us for price and availability
320282703Ferrari LH Door Frame GTS - 20282703$1,548.49Special order, ships in 7-14 days
320268702Ferrari RH Door Frame - 20268702Price on requestContact us for price and availability
320268801Ferrari LH Door Frame - 20268801Price on requestContact us for price and availability
320282802Ferrari RH Door Frame - 20282802Price on requestContact us for price and availability
320282901Ferrari LH Door Frame - 20282901Price on requestContact us for price and availability
460553900Ferrari 308GT4 LH/RH Rubber Gasket - 60553900$128.49Available, ships in 3-6 days
420033304Ferrari Felt Strip - 20033304SupersededOrder 60553900 instead
520120200Ferrari Weather Strip - 20120200$47.03Special order, ships in 7-14 days
620038600Ferrari 246 Door Pocket - 20038600$779.72Available, ships in 3-6 days
720066908Ferrari RH Door Panel - 20066908Price on requestContact us for price and availability
720067005Ferrari LH Door Panel - 20067005Price on requestContact us for price and availability
820032009Ferrari Upper RH Door Trim Panel - 20032009Price on requestContact us for price and availability
820032108Ferrari Upper LH Door Trim Panel - 20032108Price on requestContact us for price and availability
91502058Ferrari Screw - 1502058Price on requestContact us for price and availability
1020141701Ferrari RH Window Motor - 20141701Price on requestContact us for price and availability
1020141800Ferrari LH Window Motor - 20141800Price on requestContact us for price and availability
1020034005Ferrari Manual Window Regulator - 20034005Price on requestContact us for price and availability
1120170205Ferrari Window Winder Handle - 20170205Price on requestContact us for price and availability
1220170106Ferrari Spring - 20170106Price on requestContact us for price and availability
1320170304Ferrari 246Gt/S W/Winder Handle Bezeloe - 20170304$91.42Available, ships in 3-6 days
1412605276Ferrari Washer - 12605276Price on requestContact us for price and availability
1515896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
1515896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
1620170007Ferrari Pulley - 20170007Price on requestContact us for price and availability
1720071007Ferrari Metal Pulley - 20071007$57.75Special order, ships in 7-14 days
1815896211Ferrari Nut M6 x 5 - 15896211$0.13Available, ships in 3-6 days
1912605376Ferrari Washer - 12605376Price on requestContact us for price and availability
2020064700Ferrari Window Pulley Bracket - 20064700Price on requestContact us for price and availability
2212605576Ferrari Washer - 12605576Price on requestContact us for price and availability
2316100824Ferrari/Maserati Nut - 16100824$0.30In stock
2316100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
2420154605Ferrari Metal Pin - 20154605$4.41Available, ships in 3-6 days
2540024200Ferrari Window Channel - 40024200$117.89Available, ships in 3-6 days
2520020004Ferrari Gasket - 20020004SupersededOrder 40024200 instead
2620065009Ferrari 246 GT RH Front Quarter Light Rubber - 20065009Price on requestContact us for price and availability
2620065108Ferrari 246 GT LH Front Quarter Light Rubber - 20065108Price on requestContact us for price and availability
2720054409Ferrari RH Quarter Light Assy GT - 20054409Price on requestContact us for price and availability
2720054508Ferrari LH Quarter Light Assy GT - 20054508Price on requestContact us for price and availability
2720140109Ferrari RH Qtr Light Assy GTS - 20140109$1,283.71Available, ships in 3-6 days
2720140208Ferrari LH Qtr Light Assy GTS - 20140208Price on requestContact us for price and availability
2720284402Ferrari RH Qtr Light GT - 20284402Price on requestContact us to order
2720284501Ferrari LH Qtr Light GT - 20284501Price on requestContact us to order
2720284600Ferrari RH Quarter Light Assy 246 GTS - 20284600Price on requestContact us for price and availability
2720284709Ferrari LH Quarter Light Assy 246 GTS - 20284709Price on requestContact us for price and availability
2720283000Ferrari RH Main Qtr Light Frame - 20283000Price on requestContact us for price and availability
2720283100Ferrari LH Main Qtr Light Frame - 20283100Price on requestContact us for price and availability
2720283200Ferrari RH Main Qtr Light Frame - 20283200Price on requestContact us for price and availability
2720283300Ferrari LH Main Qtr Light Frame - 20283300$1,954.18Available, ships in 3-6 days
2720140109/UFerrari RH Qtr Light Assy GTS - 20140109/U$1,276.16Available, ships in 3-6 days
2720283300/UFerrari LH Main Qtr Light Frame - 20283300/U$1,942.68Available, ships in 3-6 days
2820283404Ferrari RH Qtr Light Glass GT - 20283404Price on requestContact us to order
2820283503Ferrari LH Qtr Light Glass GT - 20283503Price on requestContact us to order
2820283602Ferrari RH Qtr Light Glass GTS - 20283602Price on requestContact us to order
2820283701Ferrari LH Qtr Light Glass GTS - 20283701Price on requestContact us to order
2820283800Ferrari RH Front Qtr Light Glass With Frame - 20283800$777.82Contact us to order
2820283909Ferrari LH Front Qtr Light Glass With Frame - 20283909$1,002.99Contact us to order
2820283800/BFerrari 246Gt Qtr Light Glass Only RH With Catch Holes - 20283800/B$773.26Contact us to order
2820283909/AFerrari 246Gt LH Qtr Light Glass - 20283909/A$997.09Contact us to order
2820284105/AFerrari 246Gts Lhf Qtr Vent Glass (No Hole) - 20284105/A$1,234.77Contact us to order
2920096806Ferrari RH Window Catch Lever - 20096806$322.44Available, ships in 3-6 days
2920096905Ferrari LH Window Catch Lever - 20096905$25.70Available, ships in 3-6 days
2920096905/OEFerrari LH Window Catch Complete Original Type - 20096905/OEPrice on requestSpecial order, ships in 7-14 days
3020156700Ferrari Washer - 20156700Price on requestContact us for price and availability
3120156600Ferrari Washer - 20156600Price on requestContact us for price and availability
3220097800Ferrari RH Qtr Light Support - 20097800Price on requestContact us for price and availability
3220097900Ferrari LH Qtr Light Support - 20097900Price on requestContact us for price and availability
3320270005Ferrari RH Drop Glass Clear GT - 20270005$672.40Contact us to order
3320270104Ferrari LH Drop Glass Clear GT - 20270104$672.40Contact us to order
3320285003Ferrari RH Drop Glass Clear GTS - 20285003$672.40Contact us to order
3320070009Ferrari RH Door Glass GT - 20070009SupersededOrder 20270005 instead
3320070108Ferrari LH Door Glass GT - 20070108SupersededOrder 20270104 instead
3320139705Ferrari RH Door Glass GTS - 20139705Price on requestContact us to order
3320139804Ferrari LH Door Glass GTS - 20139804Price on requestContact us to order
3320285102Ferrari LH Drop Glass Clear GTS - 20285102Price on requestContact us to order
3320285003/DFerrari RH Drop Glass Clear GTS - 20285003/D$1,763.43Contact us to order
3420102802Ferrari Drop Glass Base Rubber - 20102802$65.49Available, ships in 3-6 days
3520059002Ferrari RH Door Drop Glass Base Channel GT - 20059002Price on requestContact us for price and availability
3520059101Ferrari LH Door Drop Glass Base Channel GT - 20059101Price on requestContact us for price and availability
3520199105Ferrari RH Door Drop Glass Base Channel GTS - 20199105Price on requestContact us for price and availability
3520199204Ferrari LH Door Drop Glass Base Channel GTS - 20199204Price on requestContact us for price and availability
3720102700Ferrari Rubber Shims - 20102700Price on requestContact us for price and availability
381200327Ferrari Screw - 1200327Price on requestContact us for price and availability
3920179008Ferrari RH Door Moulding GTS - 20179008Price on requestContact us for price and availability
3920179107Ferrari LH Door Moulding GTS - 20179107Price on requestContact us for price and availability
4020039400Ferrari RH Door Top Moulding GT - 20039400$1,252.50Special order, ships in 7-14 days
4020039509Ferrari LH Door Top Moulding GT - 20039509Price on requestContact us for price and availability
4120251609Ferrari RH Guide - 20251609Price on requestContact us for price and availability
4120251708Ferrari LH Guide - 20251708Price on requestContact us for price and availability
42101525Ferrari Bulb 12V-3W - 101525$5.88Available, ships in 3-6 days
4220083309Ferrari Bulb 12V-4W - 20083309SupersededOrder 101525 instead
4320083606Ferrari Red Lamp (Without Chrome Ring) - 20083606$88.26Available, ships in 3-6 days
4420035606Ferrari RH Exterior Door Lock - 20035606Price on requestContact us for price and availability
4420035705Ferrari LH Exterior Door Lock - 20035705Price on requestContact us for price and availability
4520037305Ferrari Door Lock Plastic Bush - 20037305$18.46Available, ships in 3-6 days
4611087676Ferrari Circlip - 11087676$0.27Available, ships in 3-6 days
4620035903Ferrari Door Lock Circlips - 20035903SupersededOrder 11087676 instead
4720135901Ferrari Pin - 20135901Price on requestContact us for price and availability
4820073300Ferrari 246GT/S Door Lock Rod - 20073300$167.77Available, ships in 3-6 days
4920170809Ferrari RH Door Lock - 20170809Price on requestContact us for price and availability
4920170908Ferrari LH Door Lock - 20170908Price on requestContact us for price and availability
5013312911Ferrari Screw - 13312911Price on requestContact us for price and availability
5120130407Ferrari RH Door Handle - 20130407$503.89Available, ships in 3-6 days
5120130506Ferrari LH Door Handle - 20130506$568.62Available, ships in 3-6 days
5211087974Ferrari Circlip - 11087974$0.38Available, ships in 3-6 days
5211087975Ferrari Circlip - 11087975SupersededOrder 11087974 instead
5430014609Ferrari Snail Cam - 30014609$205.81Available, ships in 3-6 days
5630035505Ferrari Cable - 30035505SupersededOrder 30014708 instead
5720170403Ferrari Door Lock Knob - 20170403$11.50Available, ships in 3-6 days
5720170403/AFerrari Door Lock Knob - 20170403/A$42.76Available, ships in 3-6 days
5830016208Ferrari Rubber Grommet Door Button - 30016208$56.85Available, ships in 3-6 days
5920036406Ferrari Lock Mechanism Rod - 20036406Price on requestContact us for price and availability
6020284200Ferrari Cable - 20284200$136.27Available, ships in 3-6 days
6020284200/AFerrari Cable - 20284200/APrice on requestSpecial order, ships in 7-14 days
6120037602Ferrari Door Handle Embellisher - 20037602Price on requestContact us for price and availability
6220037800Ferrari Screw - 20037800Price on requestContact us for price and availability
6317685102Ferrari Screw - 17685102$0.22Available, ships in 3-6 days
6420036000Ferrari Spring - 20036000Price on requestContact us for price and availability
6510794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
6610615276Ferrari Washer - 10615276Price on requestContact us for price and availability
6720037701Ferrari Int Door Handle - 20037701Price on requestContact us for price and availability
6820019105Ferrari Right Door Lock Striker - 20019105$175.98Contact us
6820019204Ferrari LH Lock Striker - 20019204$1,189.44Available, ships in 3-6 days
101528Ferrari Bulb 12v 4w - 101528SupersededOrder 101525 instead
11087675Ferrari Circlip - 11087675SupersededOrder 11087676 instead
11087976Ferrari Circlip - 11087976SupersededOrder 11087974 instead
20261400Ferrari Door Handle (Interior) - 20261400Price on requestContact us for price and availability
63026200Ferrari Door Hinge Pin - 63026200$87.30In stock
30017602Ferrari Gasket - 30017602Price on requestContact us for price and availability
40024309Ferrari Glass Weatherstrip - 40024309SupersededOrder 60553900 instead
401329Ferrari Lamp - 401329SupersededOrder 101525 instead
152-30-213-00Ferrari LH Striker Plate - 152-30-213-00Price on requestContact us for price and availability
50371608Ferrari Lock Set - 50371608$1,391.50Special order, ships in 7-14 days
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
152-30-212-00Ferrari RH Striker Plate - 152-30-212-00Price on requestContact us for price and availability
30017206Ferrari Rubber Strip - 30017206Price on requestContact us for price and availability
69251-30-224-00Ferrari Door Leading Edge Rubber Per Metre - 251-30-224-00$15.96Available, ships in 3-6 days
6920047601Ferrari Front Door Rubber - 20047601$16.27Available, ships in 3-6 days
7020074100Ferrari Door Hinge Pin - 20074100$58.71Available, ships in 3-6 days
7040120404Ferrari Door Hinge Pin - 40120404$58.71Available, ships in 3-6 days
7120156105Ferrari LH Quarter Light Hinge - 20156105$347.47Available, ships in 3-6 days
7120156006Ferrari RH Qtr Light Hinge - 20156006$347.47Available, ships in 3-6 days

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams

Loading…
header Logo 3 (1)

120 Kremer Ave. Eatontown, NJ 07724
Corner of Highway 35 and Kremer Ave.
(Mile North of the Mall)

800-631-5589
info@awitalian.com

Mon – Fri 9-6
Sat, Sun closed

NOTE ABOUT IN/OUT OF STOCK

We always attempt to indicate when a part is out of stock. In the event that you order a part and we are currently out of stock, you will be notified within 24 business hours.

Please read our Shipping & Returns Policy for more information

By the same token, we have many parts or can get many parts that may not be found on our site. Please email or call with inquiries.

JOIN OUR MAILING LIST

Receive promotions directly in your email

WE ACCEPT
credit cards 03
TERMS, CONDITIONS, AND PRIVACY

Terms and Conditions & Privacy Policy AW Italian Auto Parts is a division of AW Imported Auto Parts and Service

© 1965 - 2026 • AW ITALIAN is an American Auto Part Dealer for Luxury Italian Vehicles • All Rights Reserved

Go to Top
