Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Bumpers And Mouldings (diagram 110)

Exploded view of the bumpers and mouldings on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

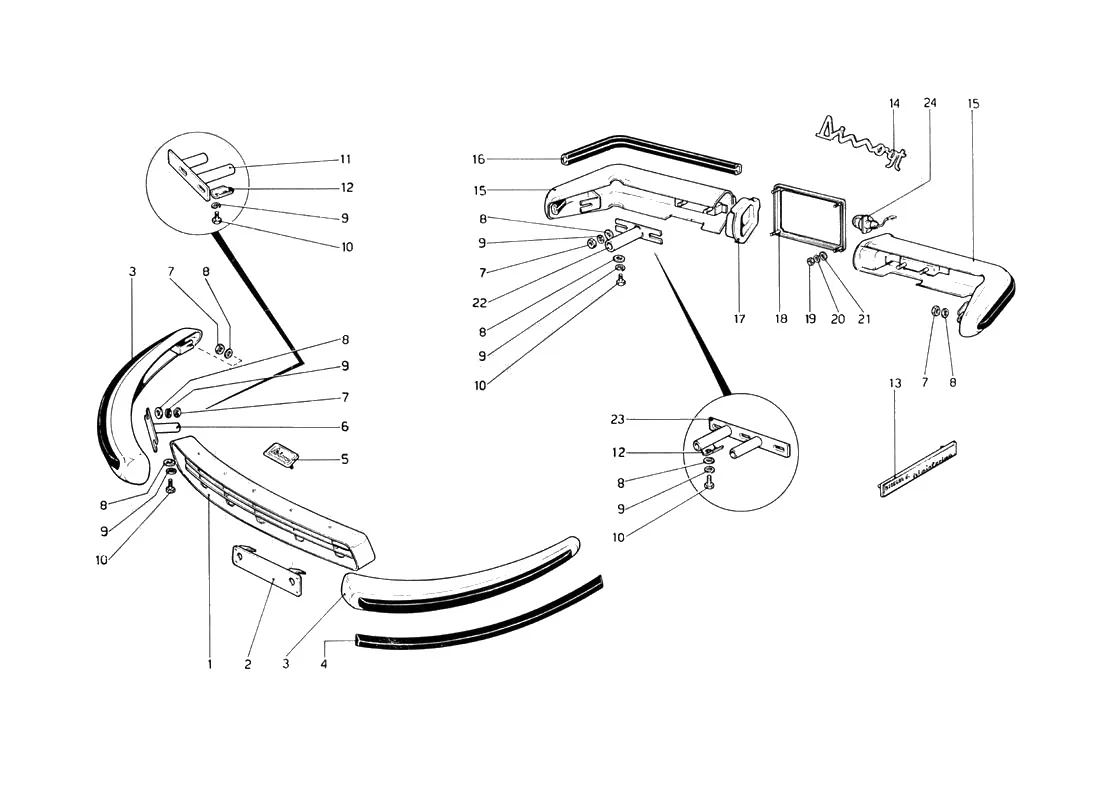

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Bumpers And Mouldings exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
120047908Ferrari Radiator Grille - 20047908Price on requestContact us for price and availability
120243408Ferrari Radiator Grille - 20243408$5,032.16Available, ships in 3-6 days
220108205Ferrari Front Number Plate Carrier - 20108205$199.66Available, ships in 3-6 days
320042206Ferrari RH Front Quarter Bumper Early - 20042206$8,205.85Available, ships in 3-6 days
320042305Ferrari LH Front Quarter Bumper Early - 20042305$2,042.47Available, ships in 3-6 days
320245007Ferrari RH Front Qtr Bumper Late - 20245007Price on requestContact us for price and availability
320245106Ferrari LH Front Qtr Bumper Late - 20245106$5,085.81Available, ships in 3-6 days
320255006Ferrari RH Front Qtr Bumper Late - 20255006$2,423.91Available, ships in 3-6 days
320255105Ferrari LH Front Qtr Bumper Late - 20255105$2,423.91Available, ships in 3-6 days
420279907Ferrari Bumper Rubber - 20279907$57.92Available, ships in 3-6 days
520043303Ferrari Dino Nose Badge - 20043303$455.23Available, ships in 3-6 days
620266300Ferrari RH Front Bumper Iron - 20266300$72.00Available, ships in 3-6 days
620266409Ferrari LH Front Bumper Iron - 20266409$72.00Available, ships in 3-6 days
716100824Ferrari/Maserati Nut - 16100824$0.30In stock
716100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
812647001Ferrari Washer - 12647001SupersededOrder 12647021 instead
911196000Ferrari Washer - 11196000Price on requestContact us for price and availability
1016043424Ferrari Bolt M8 x 20 - 16043424$0.38Available, ships in 3-6 days
1016043411Ferrari Hex Head Screw - 16043411SupersededOrder 16043424 instead
1120253605Ferrari RH Front Bracket - 20253605Price on requestContact us for price and availability
1120253704Ferrari LH Front Bracket - 20253704$118.43Available, ships in 3-6 days
1220251800Ferrari Bumper Iron Plate - 20251800Price on requestContact us for price and availability
1320043105Ferrari Pininfarina Badge - 20043105$64.90In stock
1420042909Ferrari Dino GT Motif - 20042909$341.68Available, ships in 3-6 days
1520093803Ferrari RH Rear Qtr Bumper - 20093803SupersededOrder 20134003 instead
1520134003Ferrari RH Rear 246 Bumper - 20134003$5,909.41Contact us to order
1520093902Ferrari LH Rear Qtr Bumper - 20093902Price on requestContact us for price and availability
1520134102Ferrari LH Rear 246 Bumper - 20134102$6,411.71Contact us to order
1520255204Ferrari RH Rear Qtr Bumper - 20255204$2,907.82Available, ships in 3-6 days
1520255303Ferrari LH Rear Qtr Bumper - 20255303Price on requestContact us for price and availability
1520255204/UFerrari RH Rear Qtr Bumper - 20255204/U$2,890.70Available, ships in 3-6 days
1620280004Ferrari Bumper Rubber - 20280004SupersededOrder 20279907 instead
1720280103Ferrari Rear Bumper End Cap Lamp Type - 20280103$592.67Available, ships in 3-6 days
1720280202Ferrari Rear Bumper End Cap Solid - 20280202Price on requestContact us for price and availability
1720280300Ferrari Rear Bumper End Cap - 20280300Price on requestContact us for price and availability
1820084900Ferrari Front Plate Holder - 20084900Price on requestContact us for price and availability
1840236002Ferrari Rear Plate Holder - 40236002Price on requestContact us for price and availability
1910794011Ferrari Nut M4 x 0.7mm - 10794011$0.06Available, ships in 3-6 days
2011195870Ferrari Spring Washer - 11195870Price on requestContact us for price and availability
2110519202Ferrari Washer - 10519202$0.59Available, ships in 3-6 days
2220286500Ferrari Support - 20286500Price on requestContact us for price and availability
2320254405Ferrari RH Rear Bumper Iron - 20254405$168.40Available, ships in 3-6 days
2320254504Ferrari LH Rear Bumper Iron - 20254504$168.40Available, ships in 3-6 days
2420082509Ferrari Number Plate Lamp - 20082509$246.62Available, ships in 3-6 days
2420082509/AFerrari Number Plate Light For End Cap - 20082509/A$245.16Available, ships in 3-6 days
16043421Ferrari Bolt - 16043421SupersededOrder 16043424 instead
20-28-01Ferrari Motif "Dino" - 20-28-01SupersededOrder 20043303 instead
60295805Ferrari Number Plate Frame - 60295805Price on requestContact us for price and availability
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
