Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) — Windshield Wiper, Washer And Horn (diagram 118)

Exploded view of the windshield wiper, washer and horn on the Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132), with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

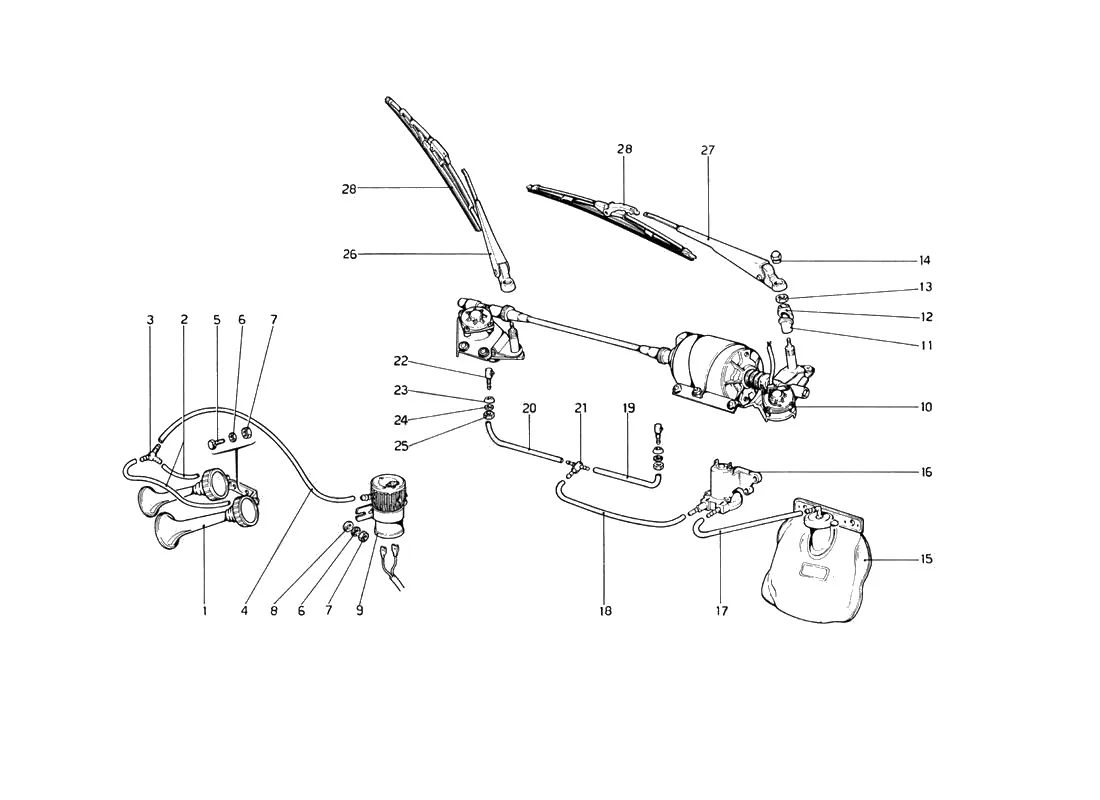

Ferrari 246 Dino GT Coupe & Spyder (From Ch 02132) Windshield Wiper, Washer And Horn exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
150089507Ferrari Horn - 50089507Price on requestContact us for price and availability
150186900Ferrari Horn - 50186900Price on requestContact us for price and availability
250089606Ferrari Red Air Horn Pipe Per Metre - 50089606Price on requestContact us for price and availability
350089705Ferrari 3-Way Union - 50089705Price on requestContact us for price and availability
420281200Ferrari Fiamm Air Horn Kit - 20281200$1,329.53Available, ships in 3-6 days
4MC3950/10/UFerrari Fiamm Air Horn Kit - MC3950/10/UPrice on requestSpecial order, ships in 7-14 days
516043221Ferrari Bolt M8 x 16 - 16043221$0.19Available, ships in 3-6 days
610615670Ferrari Washer - 10615670SupersededOrder 12601374 instead
612601374Ferrari Wavy Washer 8mm - 12601374$3.12Available, ships in 3-6 days
716100824Ferrari/Maserati Nut - 16100824$0.30In stock
716100811Ferrari Nut 8x6.5mm - 16100811SupersededOrder 16100824 instead
812642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
950089309Ferrari Horn Compresser - 50089309Price on requestContact us for price and availability
950186808Ferrari Horn Compresser - 50186808Price on requestContact us for price and availability
920163101Ferrari Horn Kit - 20163101Price on requestContact us for price and availability
920281300Ferrari Horn Kit - 20281300$1,329.53Available, ships in 3-6 days
10491613Ferrari Wiper Linkage-491613$423.50In stock
10401713Ferrari Wiper Motor Assy (Tge130c) - 401713Price on requestContact us for price and availability
10401561Ferrari Wiper Motor Assy (Late)Tge130d - 401561Price on requestContact us for price and availability
1120281400Ferrari Spacer - 20281400Price on requestContact us for price and availability
1220281509Ferrari Windscreen Wiper Spacer - 20281509$18.46Available, ships in 3-6 days
1350098904Ferrari Wiper Arm Nut - 50098904$78.48In stock
1320281600Ferrari Black Wiper Arm Nut - 20281600SupersededOrder 50098904 instead
1420281700Ferrari Nut - 20281700Price on requestContact us for price and availability
1520169200Ferrari Windscreen Washer Bag - 20169200Price on requestContact us for price and availability
1520233607Ferrari Windscreen Washer Bag - 20233607Price on requestContact us for price and availability
1620281800Ferrari Windscreen Washer Pump - 20281800$428.62Available, ships in 3-6 days
1620281800/AFerrari Windscreen Washer Pump - 20281800/A$426.09Available, ships in 3-6 days
1720281900Ferrari Tube - 20281900Price on requestContact us for price and availability
1820282000Ferrari Tube - 20282000Price on requestContact us for price and availability
1920282100Ferrari Tube - 20282100Price on requestContact us for price and availability
2020282200Ferrari Tube - 20282200Price on requestContact us for price and availability
2120282300Ferrari Union - 20282300Price on requestContact us for price and availability
2224604085Ferrari Windshield Washer Jet - 24604085$34.87In stock
2320282500Ferrari Spacer - 20282500Price on requestContact us for price and availability
2412601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
2412605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
25101563Ferrari Windshield Washer Bag Reservoir - 101563$141.90In stock
2510725911Ferrari RH Thread Nut 6mm - 10725911SupersededOrder 10725914 instead
2510725914Ferrari Nut M6 x 4 - 10725914$0.19Available, ships in 3-6 days
26401764Ferrari Wiper Arm - 401764Price on requestContact us for price and availability
26401765Ferrari LH Wiper Arm - 401765Price on requestContact us for price and availability
27401345Ferrari Wiper Arm - 401345Price on requestContact us for price and availability
27401766Ferrari RH Wiper Arm - 401766Price on requestContact us for price and availability
28401120Ferrari 246GT/S Wiper Blade - 401120$34.33Available, ships in 3-6 days
28401122Ferrari Wiper Blade - 401122Price on requestContact us for price and availability
28401767Ferrari Wiper Blade - 401767Price on requestContact us for price and availability
28401768Ferrari Wiper Blade - 401768Price on requestContact us for price and availability
50089804Ferrari Horns Assy - 50089804Price on requestContact us for price and availability
16100812Ferrari Nut - 16100812SupersededOrder 16100824 instead
16100814Ferrari Nut - 16100814SupersededOrder 16100824 instead
10615674Ferrari Washer - 10615674SupersededOrder 12601374 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
401088Ferrari Windscreen Washer Bag - 401088$286.25Available, ships in 3-6 days
40131401Ferrari Windscreen Washer Jet - 40131401Price on requestContact us for price and availability
-20087400Ferrari Washer Complete - 20087400Price on requestContact us for price and availability
-20135800Ferrari Washer Complete - 20135800SupersededOrder 101563 instead

All 246 Dino GT Coupe & Spyder (From Ch 02132) diagrams
