Ferrari 296 GTB — [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD (diagram 0012)

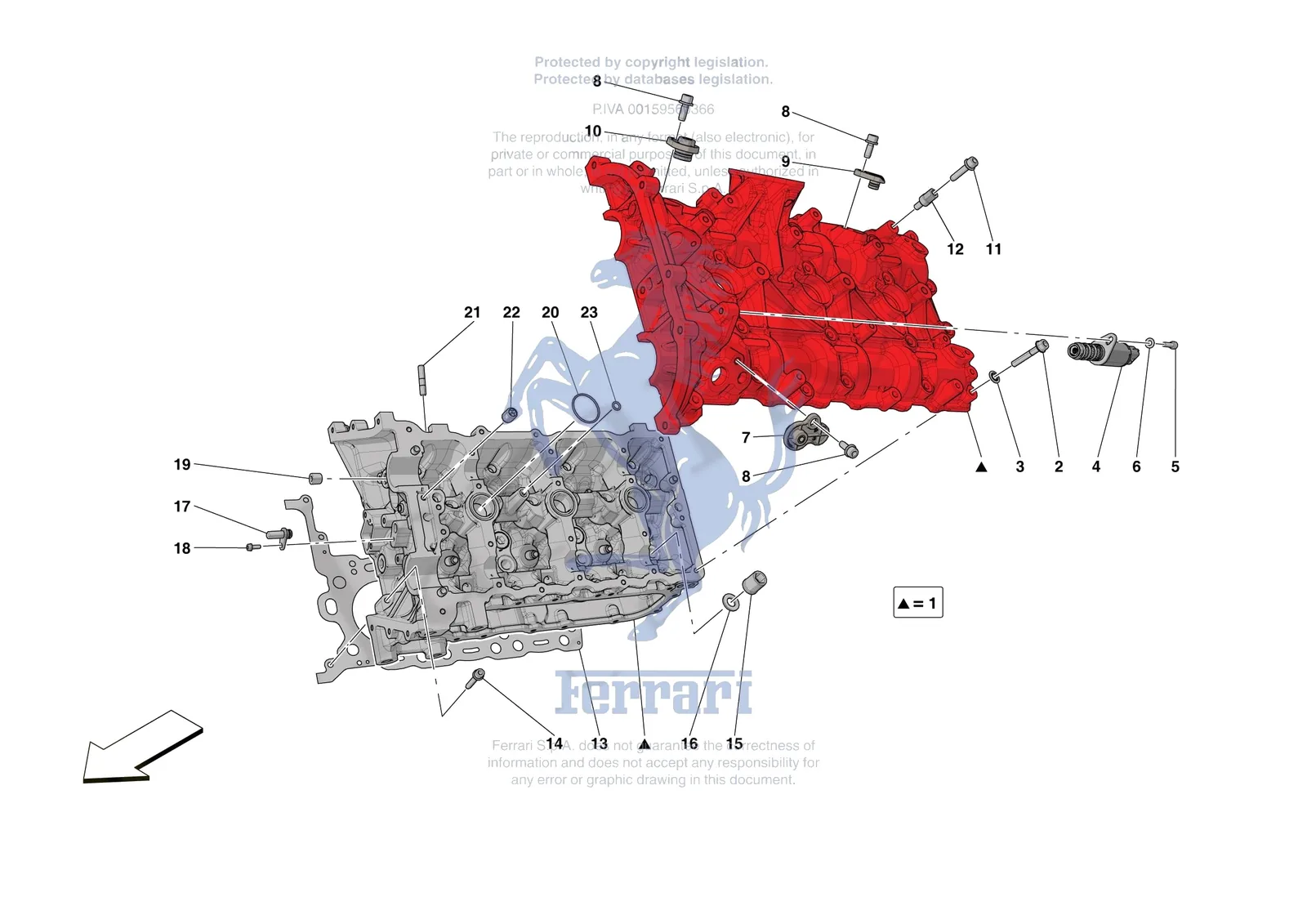

Exploded view of the [engine] - b.08.02 - cylinder heads - lh head on the Ferrari 296 GTB, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0012.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days | |
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead | |
| 300499 | Ferrari Screw - 300499 | $1.44 | Special order, ships in 7-14 days | |
| 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days | |
| 1 | 750252 | Ferrari LH Cylinder/LH Head Cover As - 750252 | Superseded | Order 806910 instead |
| 1 | 806910 | Ferrari LH Cylinder/LH Head Cover As - 806910 | $4,871.95 | Special order, ships in 7-14 days |
| 1 | 867211 | Ferrari LH Cylinder/LH Head Cover As - 867211 | Superseded | Order 806910 instead |
| 1 | 915891 | Ferrari LH Cylinder/LH Head Cover As - 915891 | Superseded | Order 806910 instead |
| 1 | 950362 | Ferrari LH Cylinder/LH Head Cover As - 950362 | Superseded | Order 806910 instead |
| 2 | 338022 | Ferrari Vite Tcce Flangiata M6X1X35 - 338022 | $0.73 | Special order, ships in 7-14 days |
| 3 | 296075 | Ferrari Washer - 296075 | $2.38 | Available, ships in 3-6 days |
| 4 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 5 | 14304224 | Ferrari Screw M5 x 16 - 14304224 | $0.27 | Available, ships in 3-6 days |
| 6 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 7 | 899222 | Ferrari Plug - 899222 | $18.11 | Special order, ships in 7-14 days |
| 8 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 9 | 899148 | Ferrari Plug - 899148 | $13.95 | Special order, ships in 7-14 days |
| 10 | 899147 | Ferrari Plug - 899147 | $15.05 | Special order, ships in 7-14 days |
| 11 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 12 | 814799 | Ferrari Stud Bolt - 814799 | $16.94 | Special order, ships in 7-14 days |
| 13 | 962415 | Ferrari Gasket - 962415 | $368.79 | Special order, ships in 7-14 days |
| 14 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 15 | 271125 | Ferrari Cylinder Head Nut - 271125 | $14.39 | Available, ships in 3-6 days |
| 16 | 271129 | Ferrari Washer - 271129 | $2.38 | Available, ships in 3-6 days |
| 17 | 829568 | Ferrari Chain Cooling Nozzle Assembl - 829568 | $93.40 | Special order, ships in 7-14 days |
| 18 | 315493 | Ferrari Screw - 315493 | $2.13 | Special order, ships in 7-14 days |
| 19 | 291078 | Ferrari Threaded Plug 12x11 - 291078 | $5.02 | Special order, ships in 7-14 days |
| 20 | 14454381 | Ferrari O-Ring Seal - 14454381 | $2.59 | Special order, ships in 7-14 days |
| 21 | 935821 | Ferrari Stud Bolt - 935821 | $5.63 | Special order, ships in 7-14 days |
| 22 | 342272 | Ferrari Non Return Valve - 342272 | $20.37 | Special order, ships in 7-14 days |
| 23 | 14450581 | Ferrari Gasket - 14450581 | $7.19 | Special order, ships in 7-14 days |
