Ferrari 296 GTB — [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS (diagram 0027)

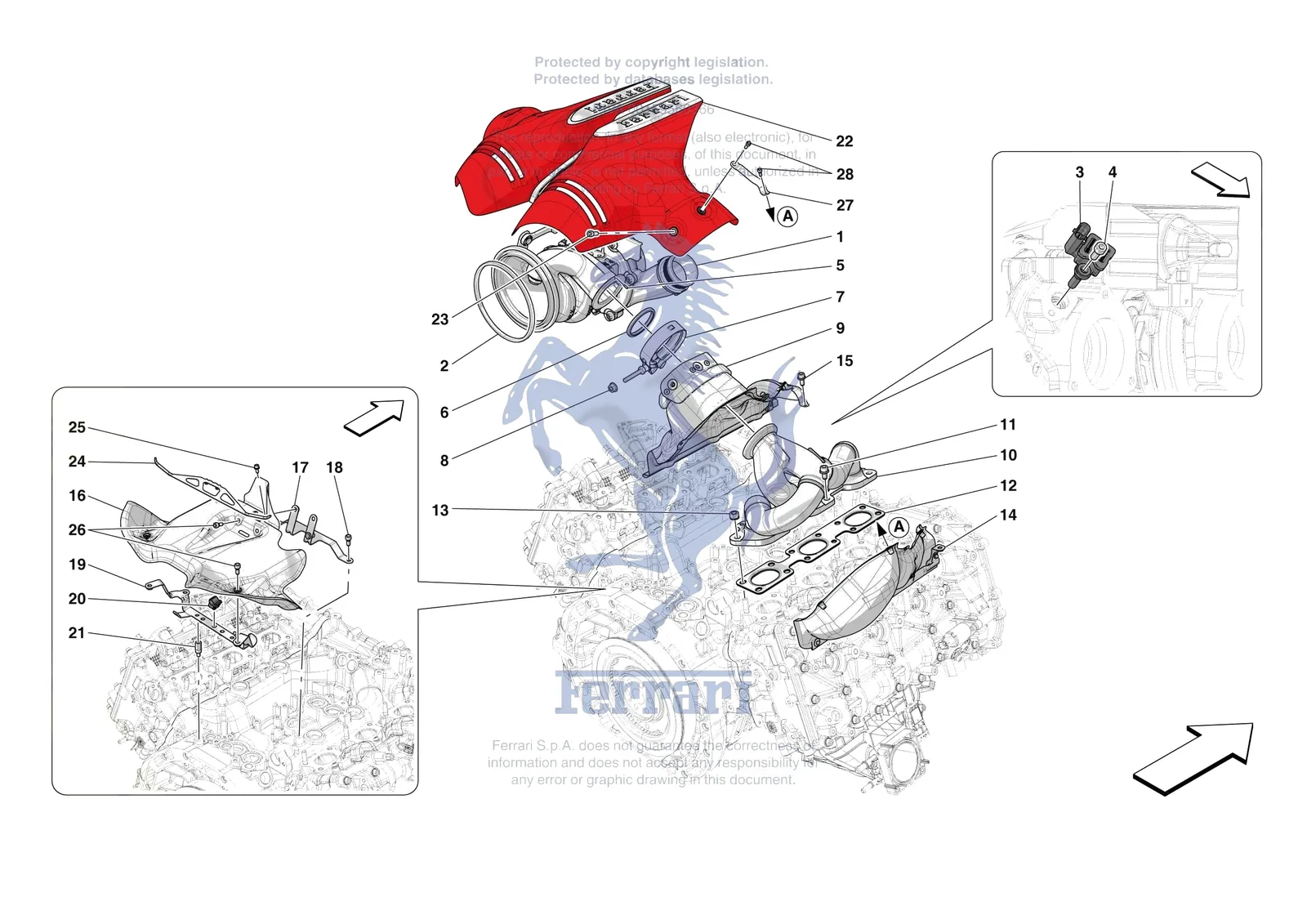

Exploded view of the [engine] - b.22 - forced induction system turbochargers and mounts on the Ferrari 296 GTB, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [ENGINE] - B.22 - FORCED INDUCTION SYSTEM TURBOCHARGERS AND MOUNTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0027.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 1 | 849087 | Ferrari LH Turbocharger - 849087 | $9,858.66 | Special order, ships in 7-14 days |
| 1 | 916466 | Ferrari LH Turbocharger - 916466 | Superseded | Order 849087 instead |
| 1 | 849086 | Ferrari RH Turbocharger - 849086 | $9,860.99 | Special order, ships in 7-14 days |
| 1 | 916465 | Ferrari RH Turbocharger - 916465 | Superseded | Order 849086 instead |
| 2 | 275465 | Ferrari Gasket - 275465 | $103.25 | Available, ships in 3-6 days |
| 3 | 342239 | Ferrari Speed Sensor - 342239 | $437.10 | Special order, ships in 7-14 days |
| 4 | 14304124 | Ferrari Screw TCEI M5 x 12 - 14304124 | $0.31 | Special order, ships in 7-14 days |
| 5 | 811083 | Ferrari Mechanical Pin - 811083 | $2.59 | Special order, ships in 7-14 days |
| 6 | 959447 | Ferrari Ring Seal - 959447 | $192.30 | Available, ships in 3-6 days |
| 7 | 959011 | Ferrari Turbo-Manifold Fastener V-Clamp - 959011 | $270.44 | Available, ships in 3-6 days |
| 8 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
| 9 | 784756 | Ferrari LH Inner Manifold Shield Ass - 784756 | $737.61 | Special order, ships in 7-14 days |
| 9 | 994349 | Ferrari LH Inner Manifold Shield Ass - 994349 | $713.04 | Special order, ships in 7-14 days |
| 9 | 784755 | Ferrari RH Inner Manifold Shield Ass - 784755 | Superseded | Order 994348 instead |
| 9 | 994348 | Ferrari RH Inner Manifold Shield Ass - 994348 | $713.04 | Special order, ships in 7-14 days |
| 10 | 939648 | Ferrari LH Exhaust Manifold - 939648 | $9,589.36 | Special order, ships in 7-14 days |
| 10 | 939647 | Ferrari RH Exhaust Manifold - 939647 | $9,734.53 | Special order, ships in 7-14 days |
| 11 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 12 | 953586 | Ferrari Exhaust Manifold Gasket - 953586 | $100.78 | Special order, ships in 7-14 days |
| 13 | 210971 | Ferrari Copper Exhaust Nut - 210971 | $3.25 | In stock |
| 14 | 747394 | Ferrari LH Outer Manifold Shield - 747394 | Superseded | Order 994346 instead |
| 14 | 994346 | Ferrari LH Outer Manifold Shield - 994346 | $590.08 | Special order, ships in 7-14 days |
| 14 | 747393 | Ferrari RH Outer Manifold Shield - 747393 | Superseded | Order 994345 instead |
| 14 | 994345 | Ferrari RH Outer Manifold Shield - 994345 | $590.08 | Special order, ships in 7-14 days |
| 15 | 797723 | Ferrari Screw - 797723 | $0.86 | Special order, ships in 7-14 days |
| 16 | 799328 | Ferrari Centre Heat Shield - 799328 | $417.97 | Special order, ships in 7-14 days |
| 17 | 812556 | Ferrari Front Mount Of Centre Heat S - 812556 | $61.45 | Special order, ships in 7-14 days |
| 18 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 18 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 19 | 784371 | Ferrari Rear Mount Of Centre Heat Sh - 784371 | $100.78 | Special order, ships in 7-14 days |
| 20 | 250318 | Ferrari Clip - 250318 | $0.50 | Special order, ships in 7-14 days |
| 21 | 837574 | Ferrari Stud Bolt - 837574 | $20.37 | Special order, ships in 7-14 days |
| 22 | 902850 | Ferrari Heat Shield Above Turbocharg - 902850 | $4,069.90 | Special order, ships in 7-14 days |
| 23 | 797724 | Ferrari Screw - 797724 | $0.92 | Special order, ships in 7-14 days |
| 24 | 900142 | Ferrari Manifold Guard Support Brack - 900142 | $186.84 | Special order, ships in 7-14 days |
| 25 | 797725 | Ferrari Screw - 797725 | $1.82 | Special order, ships in 7-14 days |
| 26 | 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days |
| 27 | 910619 | Ferrari LH Upper Fastener Bracket - 910619 | $44.24 | Special order, ships in 7-14 days |
| 27 | 910614 | Ferrari RH Upper Fastener Bracket - 910614 | $44.24 | Special order, ships in 7-14 days |
| 28 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
