Ferrari 296 GTB — [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM (diagram 0039)

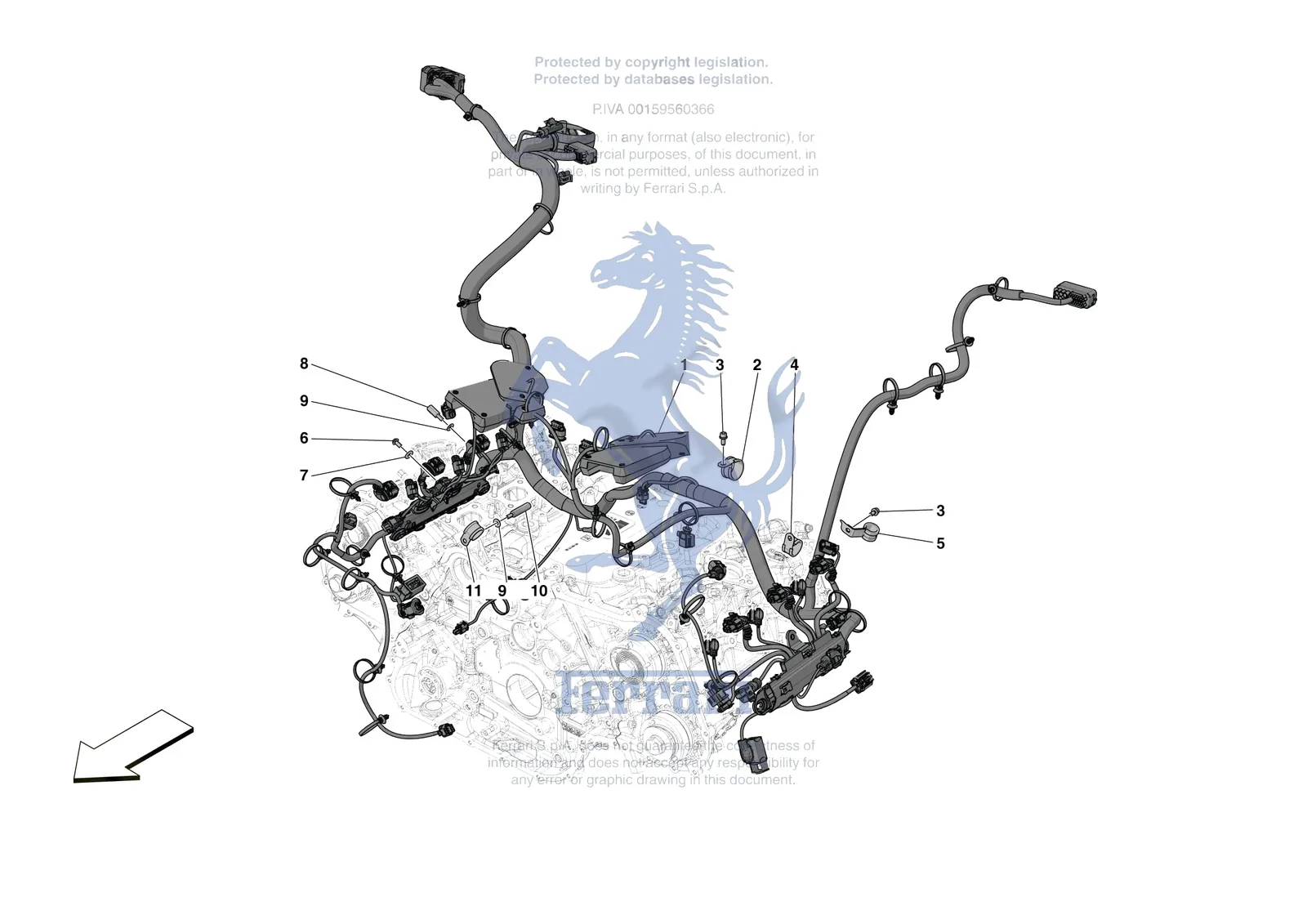

Exploded view of the [engine] - b.34 - engine electrical system on the Ferrari 296 GTB, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [ENGINE] - B.34 - ENGINE ELECTRICAL SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0039.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 900174 | Ferrari Cavo Iniezione F163Bc - 900174 | $4,421.17 | Special order, ships in 7-14 days |
| 1 | 906402 | Ferrari Cavo Iniezione F163Bc - 906402 | Superseded | Order 900174 instead |
| 2 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 3 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 3 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 4 | 10441990 | Ferrari P Clip Bracket With Sheath - 10441990 | $1.42 | Available, ships in 3-6 days |
| 4 | 10442090 | Ferrari P Clip Bracket With Sheath D26 - 10442090 | $1.42 | Available, ships in 3-6 days |
| 5 | 750725 | Ferrari Bracket With Sheath - 750725 | $56.52 | Special order, ships in 7-14 days |
| 6 | 306938 | Ferrari Screw - 306938 | $0.82 | Special order, ships in 7-14 days |
| 7 | 12647624 | Ferrari Washer D 6.45-16x2 - 12647624 | $0.19 | Available, ships in 3-6 days |
| 8 | 339377 | Ferrari Stud Bolt - 339377 | $16.69 | Special order, ships in 7-14 days |
| 9 | 11193274 | Ferrari Washer - 11193274 | $0.06 | Available, ships in 3-6 days |
| 10 | 841281 | Ferrari Stud Bolt - 841281 | $36.86 | Special order, ships in 7-14 days |
| 11 | 10450790 | Ferrari Clamp 22mm - 10450790 | $1.11 | Available, ships in 3-6 days |
| 11 | 10441890 | Ferrari P Clip Bracket With Sheath D22 - 10441890 | $1.17 | Available, ships in 3-6 days |
