Ferrari 296 GTB — [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES (diagram 0044)

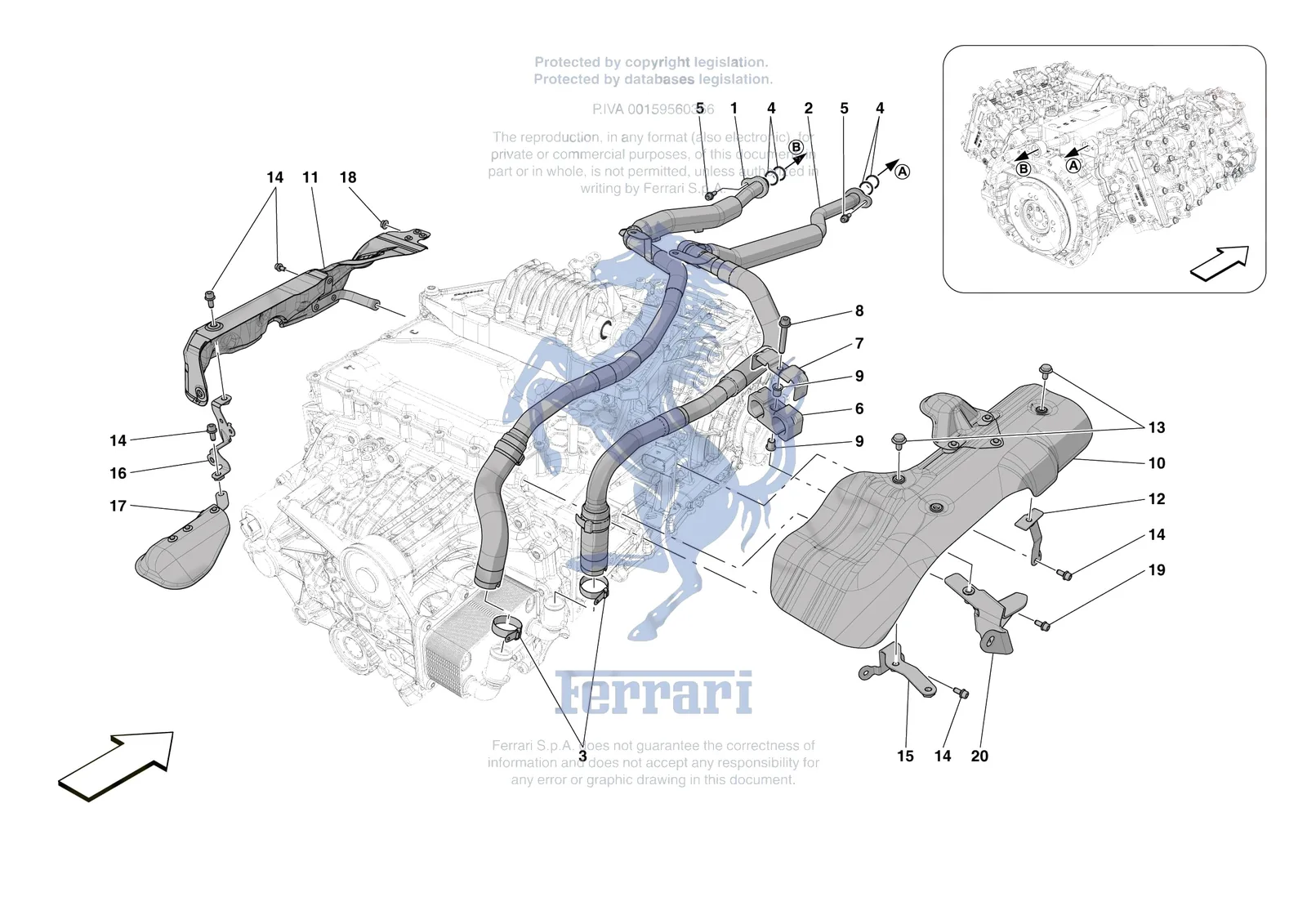

Exploded view of the [gearbox] - c.03.02 - gearbox oil heat exchanger and pipes - heat exchanger and rear pipes on the Ferrari 296 GTB, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari 296 GTB [GEARBOX] - C.03.02 - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/296-gtb/0044.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14305721 | Ferrari Allen Bolt 6x14 - 14305721 | Superseded | Order 248334 instead | |
| 262112 | Ferrari Collar - 262112 | Superseded | Order 262111 instead | |
| 921444 | Ferrari Rear Bracket Of LH Shield - 921444 | $64.00 | Special order, ships in 7-14 days | |
| 921373 | Ferrari Riparo Solenoide P-Lock - 921373 | $130.47 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 10860370 | Ferrari Screw Collar - 10860370 | $3.26 | Special order, ships in 7-14 days | |
| 13127770 | Ferrari Screw Collar - 13127770 | $2.82 | Special order, ships in 7-14 days | |
| 268210 | Ferrari Screw Collar - 268210 | $6.32 | Special order, ships in 7-14 days | |
| 248334 | Ferrari Screw M6 x 16 TCEI - 248334 | $1.25 | Available, ships in 3-6 days | |
| 1 | 860194 | Ferrari Tubo Ritorno Acqua Su Cambio - 860194 | $688.45 | Special order, ships in 7-14 days |
| 2 | 872402 | Ferrari Tubo Mand. Acqua Su Cambio - 872402 | $983.50 | Special order, ships in 7-14 days |
| 3 | 262111 | Ferrari Screw Collar - 262111 | $3.03 | Special order, ships in 7-14 days |
| 4 | 803918 | Ferrari Gasket 1.78 x 20. - 803918 | $2.59 | Available, ships in 3-6 days |
| 5 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 6 | 329367 | Ferrari Gogna Gomma X Tubi 2 - 329367 | $13.24 | Special order, ships in 7-14 days |
| 7 | 329366 | Ferrari Retainer Block Plate - 329366 | $13.74 | Available, ships in 3-6 days |
| 8 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 9 | 329368 | Ferrari Retainer Block Bush Diam.23 - 329368 | $1.49 | Available, ships in 3-6 days |
| 10 | 799050 | Ferrari Riparo Semiasse Dx - 799050 | $211.43 | Special order, ships in 7-14 days |
| 11 | 766233 | Ferrari Riparo Semiasse Sx - 766233 | $319.62 | Special order, ships in 7-14 days |
| 12 | 953472 | Ferrari Front Bracket Of RH Shield - 953472 | $71.28 | Special order, ships in 7-14 days |
| 13 | 11625524 | Ferrari Screw - 11625524 | $1.53 | Special order, ships in 7-14 days |
| 14 | 14305724 | Ferrari Allen Screw TCEI M6 x 14 - 14305724 | $0.34 | Available, ships in 3-6 days |
| 14 | 231616 | Ferrari Screw 6x14 - 231616 | $0.57 | Available, ships in 3-6 days |
| 15 | 887099 | Ferrari Rear Bracket Of RH Shield - 887099 | $51.62 | Special order, ships in 7-14 days |
| 16 | 768810 | Ferrari Rear Bracket Of LH Shield - 768810 | $71.28 | Special order, ships in 7-14 days |
| 17 | 906840 | Ferrari Riparo Solenoide P-Lock - 906840 | $147.51 | Special order, ships in 7-14 days |
| 17 | 945225 | Ferrari Solenoid Shield - 945225 | $145.03 | Special order, ships in 7-14 days |
| 18 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 19 | 231627 | Ferrari Screw M8 x 16 - 231627 | $1.25 | Available, ships in 3-6 days |
| 20 | 751053 | Ferrari Bracket Fastening Water Pipes to Gearbox - 751053 | $115.54 | Special order, ships in 7-14 days |
